Complete Off Grid Solar Power Systems 5KW 10KW 25KW 30W 79KW For Cctv
| Certification | API, ISO, CB, CE |
|---|
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Solar Energy System | Application | Home, Industrial, Commercial |
|---|---|---|---|
| Specification | Mini, Standard Specification Or Customized | Controller Type | MPPT |
| Rated Voltage | 12/24V/Self-Identification | Storage Power | 2400wh |
| Nominal Capacity | 200ah | Junction Box | IP65 |
| Core Components | Solar Photovoltaic Module+Battery+Solar Controller | Safety Performance | Reverse Connection/Overvoltage/Overcurrent |
| Rated Current | 60A | Front Glass | High Transmittance Tempered Glass |
| Panel Power | 375wp | Nominal Voltage | 12V |
| Battery Type | Gel | Keywords | Solar Energy System |
| Cell Type | Monocrystalline Silicon | Product Name | Off Grid Solar System |
| Transport Package | Standard Packaging Or Customized | Trademark | HTONETECH |
| Origin | Beijing, China | Supply Ability | 50000000pieces/Year |
| Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
| Warranty | 2year | Condition | New |
| High Light | Complete Off Grid Solar Power Systems,Off Grid Solar Power Systems 5KW,complete solar energy system 79KW |
||
Product Description
Product Description

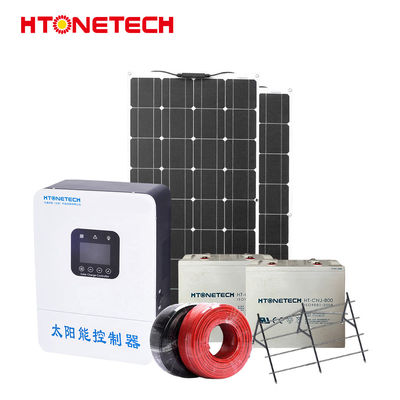

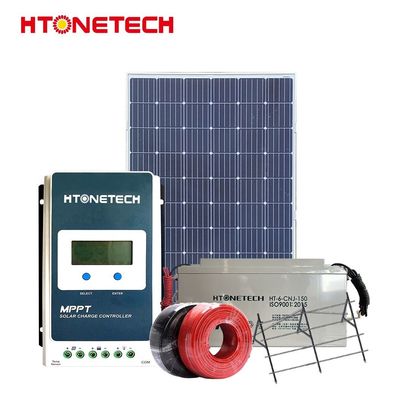

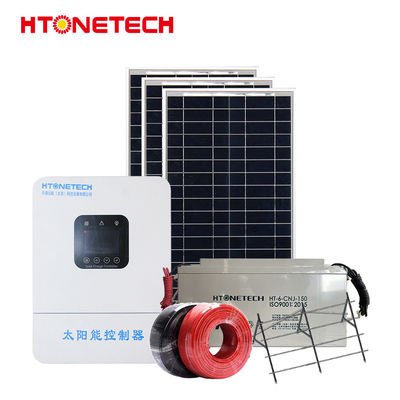

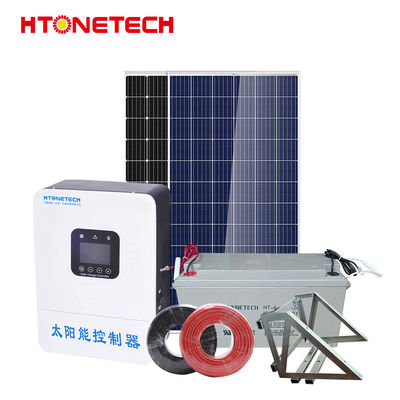

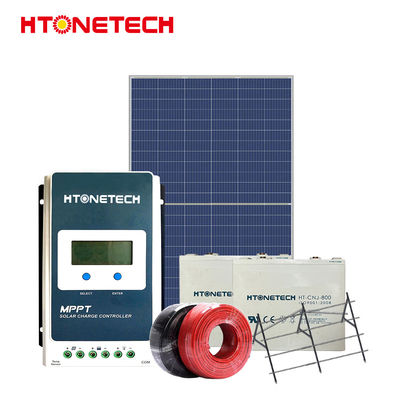

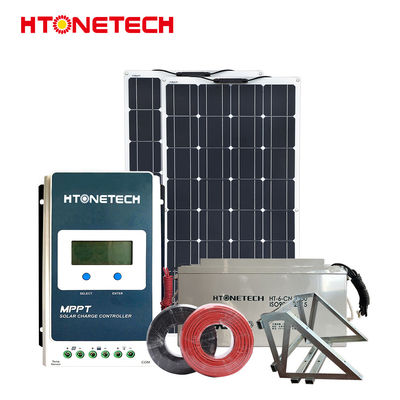

HTONETECH Solar Panel Off Grid System Complete Kit Suppliers China 5KW 10KW 25KW 30W 79KW Solar Energy System For Cctv
System advantages:
HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.
1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.
Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.
- A solar panel off-grid system, also known as a standalone solar system, is a self-contained power generation system that operates independently of the electrical grid. It utilizes solar panels to convert sunlight into electricity, which is then stored in batteries for use when sunlight is not available. Here are the key components and functioning of a solar panel off-grid system:
- Solar Panels: Solar panels, also called photovoltaic (PV) panels, are the main component of the system. They consist of multiple solar cells that convert sunlight into direct current (DC) electricity through the photovoltaic effect. The number and capacity of solar panels depend on the energy demand and available sunlight in the location.
- Charge Controller: A charge controller regulates the charging of the batteries from the solar panels. It prevents overcharging and can also protect the batteries from over-discharge. The charge controller ensures efficient and safe charging, maximizing the lifespan of the batteries.
- Batteries: Deep-cycle batteries are used to store the excess electricity generated by the solar panels. These batteries are designed to withstand regular charging and discharging cycles. They store the energy during the day for use at night or during periods of low sunlight.
Solar Photovoltaic Modules
Cell type: monocrystalline silicon
Panel power: 375Wp
Front glass: High transmittance tempered glass
Junction box: IP65
Total power of components: 1125WP
Gel Battery
Battery Type: Gel
Nominal voltage: 12V
Nominal capacity: 200AH
Storage power: 2400WH
Total battery capacity: 9600WH
Sun Controller
Controller Type: MPPT
Rated voltage: 12/24V/self-identification
Rated current: 60A
Safety performance: reverse connection, overvoltage, overcurrent, Undervoltage protection
DC24V 1125Wp Solar Power System
| No. | Product Name | Specification Model |
| 1 | Solar photovoltaic modules | Monocrystalline silicon 375 |
| 2 | Photovoltaic mounting bracket | HT-S1125-ZJ |
| 3 | Gel battery | 12V 200AH |
| 4 | Battery box | HT-ABS-200*2 |
| 5 | Solar Controller | MPPT 24V 60A |
| 6 | Distribution box and accessories | HT-BL |
| 7 | Auxiliary materials and packaging are transported to the port (FOB) | PF1*4 20m BVR10 10m φ25 10m |
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
