Htonetech Mono Solar Panel 450watt Suppliers Wind Power Equipment China Solar Wind Hybrid Energy System

Certification API, ISO, CB, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. Wind And Solar Power System Application Home, Industrial, Commercial
Specification Mini, Standard Specification Or Customized Output Voltage (V) 220V - 360V
Work Time (H) 24h Mounting Type Roof Mounting
Battery Type Lead-Acid, Lithium Ion Battery Lead-Acid Gel Battery
OEM Or ODM Accept Color White
System Type Hybrid Solar PV System Solar Panel Type Monocrystalline Silicon, Polycrystalline Silicon
Load Power (W) 3kw, 50kw, 30kw, 8kw, 6kw, 20kw, 5kw, 10kw Application For Surveillance System
Output Frequency 50/60 Hz Keywords Wind And Solar Power System
Type Photovoltaic Solar Energy System Product Name Off Grid Solar System
Transport Package Standard Packaging Or Customized Trademark HTONETECH
Origin Beijing, China Supply Ability 50000000pieces/Year
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 2year Condition New
Leave a Message
Product Description

Product Description

HTONETECH Mono Solar Panel 450Watt Suppliers Wind Power Equipment China Solar Wind Hybrid Energy System With Ac Wind Generator System
Product Description
 Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw

System advantages:

HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.

1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.

Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.



key aspects and benefits of a solar wind hybrid energy system:

  1. Power Generation: Solar panels generate electricity by converting sunlight into electrical energy, while wind turbines harness wind power to generate electricity. By combining these two sources, the system can produce electricity from both solar radiation and wind movement, maximizing power generation potential.
  2. Complementary Nature: Solar and wind power have complementary characteristics. Solar power tends to peak during the day, while wind power often generates more energy during the night and in windy conditions. By combining these sources, the system can provide a more consistent and reliable power supply throughout the day and across different weather conditions.
  3. Energy Efficiency: A solar wind hybrid system can improve overall energy efficiency by utilizing both solar and wind resources. This allows for a more optimized use of available renewable energy, reducing dependence on conventional power sources and minimizing energy waste.
  4. Location Flexibility: Hybrid systems can be implemented in various locations, including areas with good solar exposure but inconsistent wind patterns, or regions with strong and consistent winds but limited sunlight. By combining solar and wind technologies, the system can adapt to different environmental conditions and maximize energy production potential.
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Product Parameters


BLACK MONO SOLAR PANELS

Peak Power Watts:280W(SP280M-60)
Maximum Power Voltage:31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current:9.33A
Dimensions:1650x992x35mm(65.0x39.1x1.38inches)
Weight:18.6 kg (41.0 b)

SOLAX HYBRID INVERTER &DATA LOGGING STICK

Max.DC Input Power.3KW/3.7KW/4.6KW/5KW
Max.DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional

TRIPLE-POWER LITHIUM BATTERY

Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A):30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety: CE, FCC, RCM, TUV (IEC 62619)

PV MOUNTING SYSTEM

Mounting Rail & Rail Splice Kit: Al6005 & SUS304Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger BoltOptional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Components SP3KW-HY SP3.7KW-HY SP4.6KW-HY SP5KW-HY
280W Mono Solar Panel 12 Piece 14 Piece 18 Piece 20 Piece
Dc Disconnect Switch 1 Piece 1 Piece 2 Piece 2 Piece
Hybrid Inverter X1-HYBRID-3.0T X1-HYBRID-3.7T X1-HYBRID-4.6T X1-HYBRID-5.0T
Triple Power Battery 4.5 kWh 4.5 kWh 6.3 kWh 6.3 kWh
Dc Cable 4mm2 100 meter 100 meter 200 meter 200 meter
AC Disconnect Switch 1 Piece 1 Piece 1 Piece 1 Piece
MC4 Connector 10 10 15 15
Mounting System Standards Pitched Roof ( Customized Optional)
PV Tools 1 Set

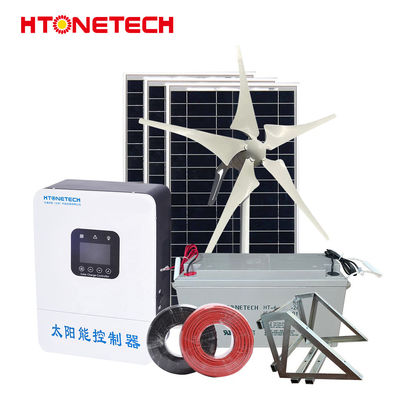

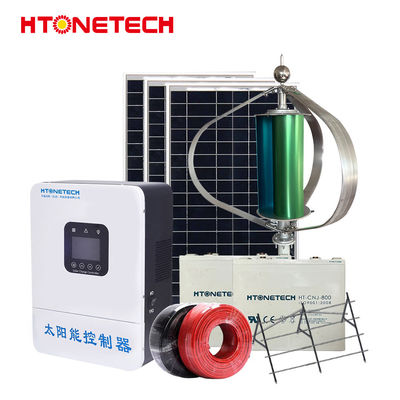

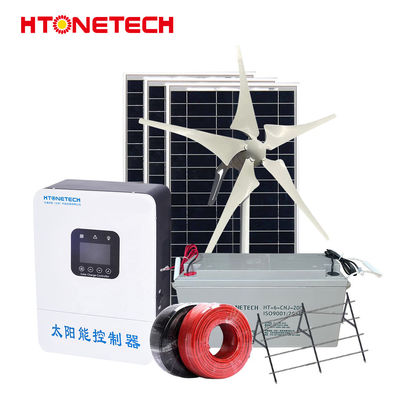

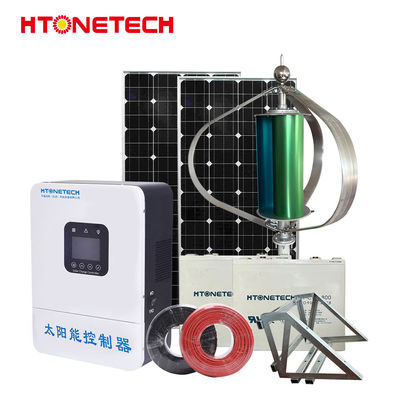

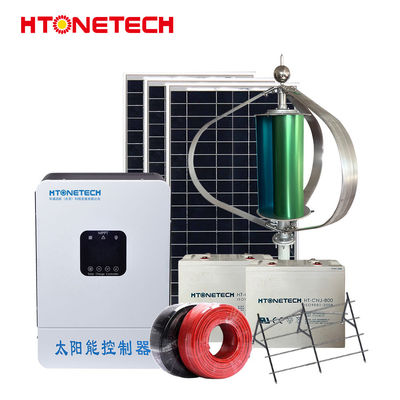

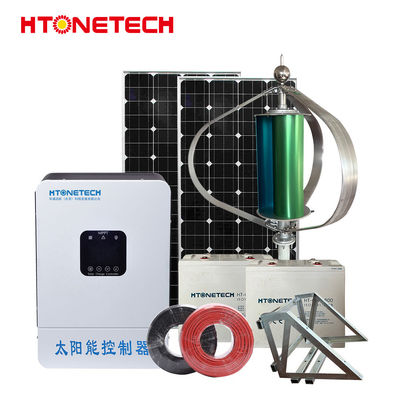

Detailed Photos
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw




Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
  Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw

FAQ

1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China

2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;

3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems

4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
