465 Watt Solar Photovoltaic Power Generation Lithium Battery Energy Storage

Certification API, ISO, CB, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000000pieces/Year Model NO. Wind And Solar Power System
Application Home, Industrial, Commercial Specification Normal, Standard Specification Or Customized
Output Voltage (V) 220V - 360V Work Time (H) 24h
Mounting Type Roof Mounting Battery Type Lead-Acid, Lithium Ion
Battery Lead-Acid Gel Battery OEM Or ODM Accept
Color White System Type Hybrid Solar PV System
Solar Panel Type Monocrystalline Silicon, Polycrystalline Silicon Load Power (W) 3kw, 50kw, 30kw, 8kw, 6kw, 20kw, 5kw, 10kw
Application For Surveillance System Output Frequency 50/60 Hz
Product Name Off Grid Solar System Transport Package Standard Packaging Or Customized
Trademark HTONETECH Origin Beijing, China
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 2year Condition New
High Light

465 Watt Solar Photovoltaic Power Generation

,

Solar Photovoltaic Power Generation Lithium Battery

Leave a Message
Product Description

Product Description

HTONETECH Solar Panel Mono 465 Watt Factory Lithium Battery Energy Storage Solar System Hybrid China 1400W Solar & Wind Power Kits Home Off Grid System
Product Description

Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw

System advantages:

HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.

1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.

Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.



key details about a lithium battery energy storage system in a solar power system:

  1. Lithium-ion batteries are commonly used for home energy storage with solar panels because they have a high energy density, can discharge rapidly, and have no memory effect from partial charges.
  2. The batteries are charged during the day by excess power from the solar panels. This stored energy can then power the home at night or on cloudy days when solar output is low.
  3. Battery inverters are used to convert the DC power from the solar panels/batteries to AC power for the home's electrical loads. Bi-directional inverters allow power to flow both ways between the solar/battery system and home circuits.
  4. Large residential battery packs may contain dozens of individual lithium-ion battery cells internally connected. Typical usable capacities range from 5-20 kWh for homes.
  5. Battery management systems monitor each cell and balance charging to maximize performance and safety. They prevent overcharging and deep discharging of the batteries.
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Product Parameters


BLACK MONO SOLAR PANELS

Peak Power Watts:280W(SP280M-60)
Maximum Power Voltage:31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current:9.33A
Dimensions:1650x992x35mm(65.0x39.1x1.38inches)
Weight:18.6 kg (41.0 b)

SOLAX HYBRID INVERTER &DATA LOGGING STICK

Max.DC Input Power.3KW/3.7KW/4.6KW/5KW
Max.DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional

TRIPLE-POWER LITHIUM BATTERY

Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A):30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety: CE, FCC, RCM, TUV (IEC 62619)

PV MOUNTING SYSTEM

Mounting Rail & Rail Splice Kit: Al6005 & SUS304Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger BoltOptional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Components SP3KW-HY SP3.7KW-HY SP4.6KW-HY SP5KW-HY
280W Mono Solar Panel 12 Piece 14 Piece 18 Piece 20 Piece
Dc Disconnect Switch 1 Piece 1 Piece 2 Piece 2 Piece
Hybrid Inverter X1-HYBRID-3.0T X1-HYBRID-3.7T X1-HYBRID-4.6T X1-HYBRID-5.0T
Triple Power Battery 4.5 kWh 4.5 kWh 6.3 kWh 6.3 kWh
Dc Cable 4mm2 100 meter 100 meter 200 meter 200 meter
AC Disconnect Switch 1 Piece 1 Piece 1 Piece 1 Piece
MC4 Connector 10 10 15 15
Mounting System Standards Pitched Roof ( Customized Optional)
PV Tools 1 Set

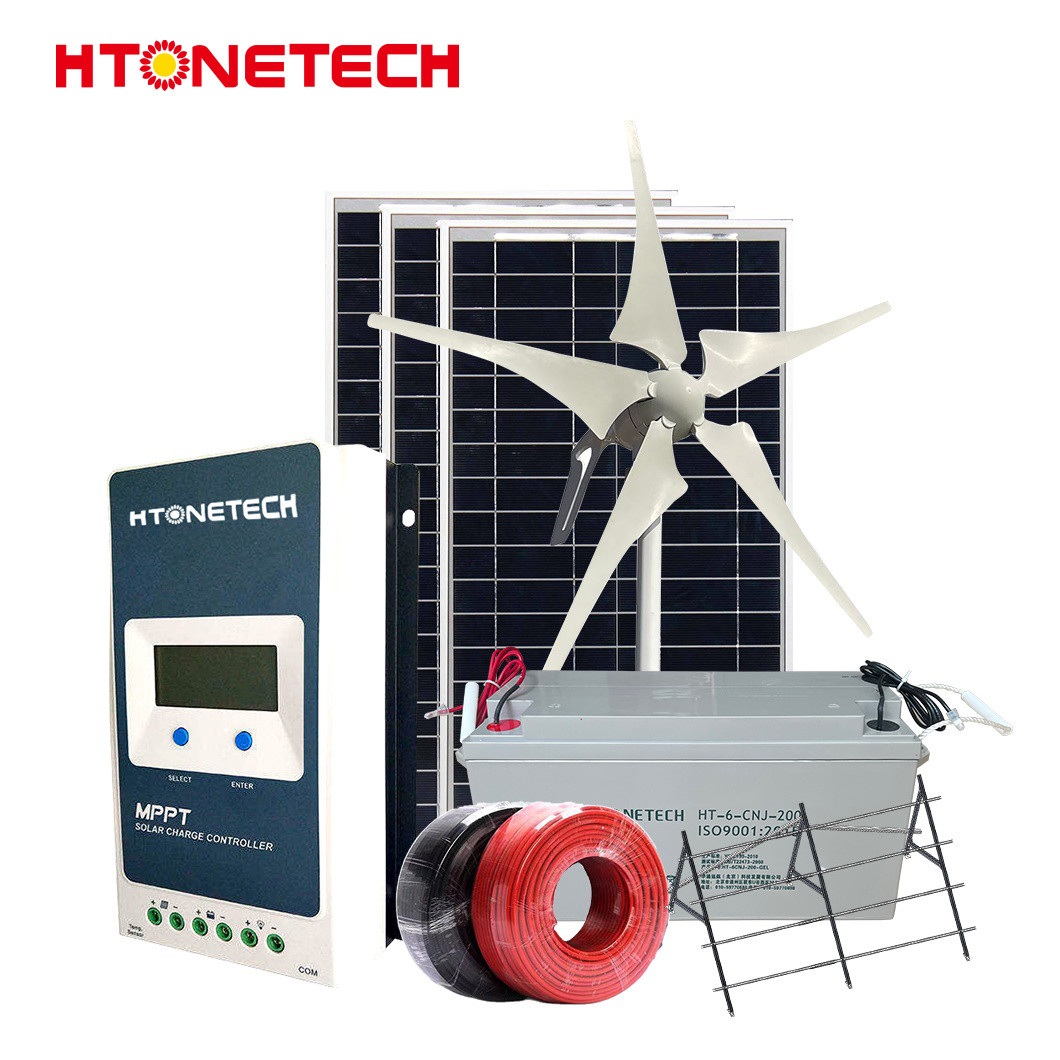

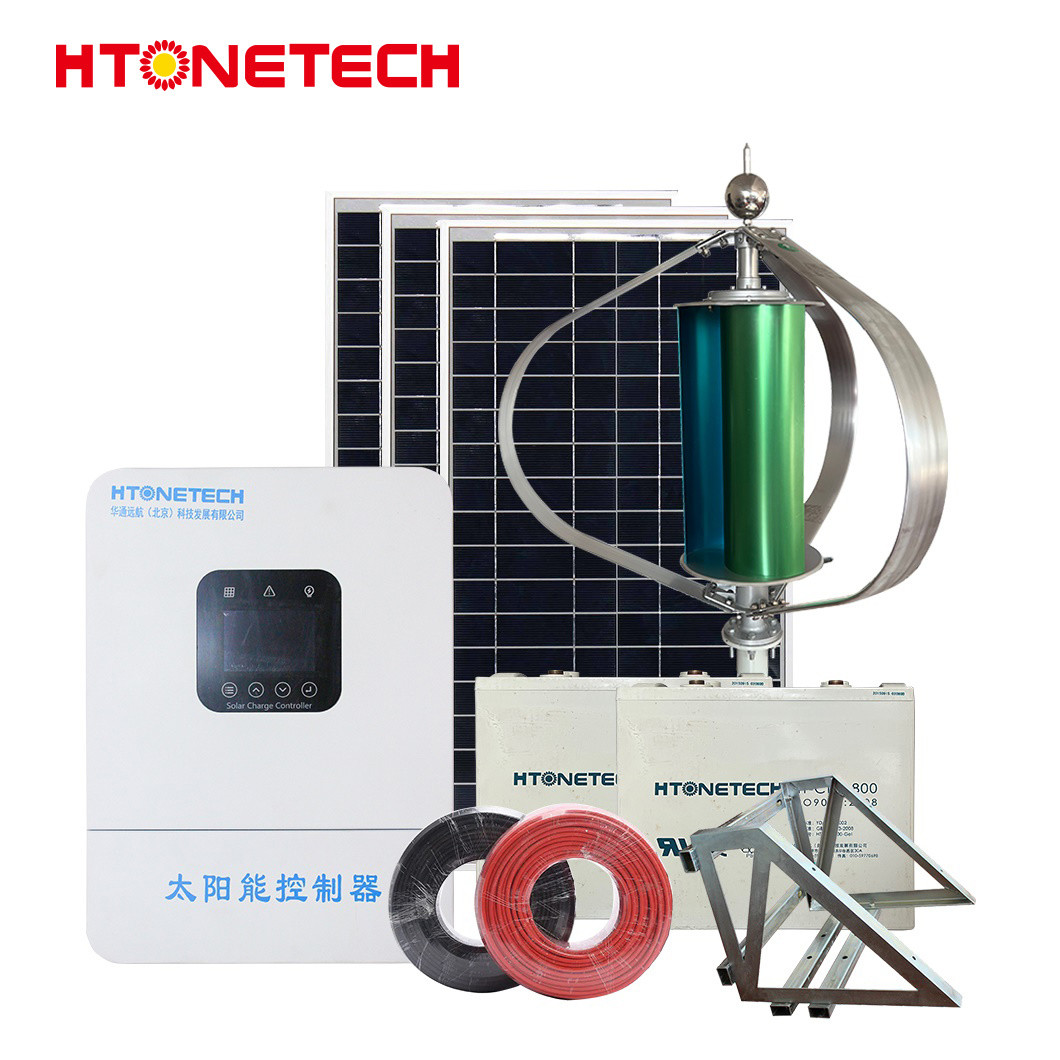

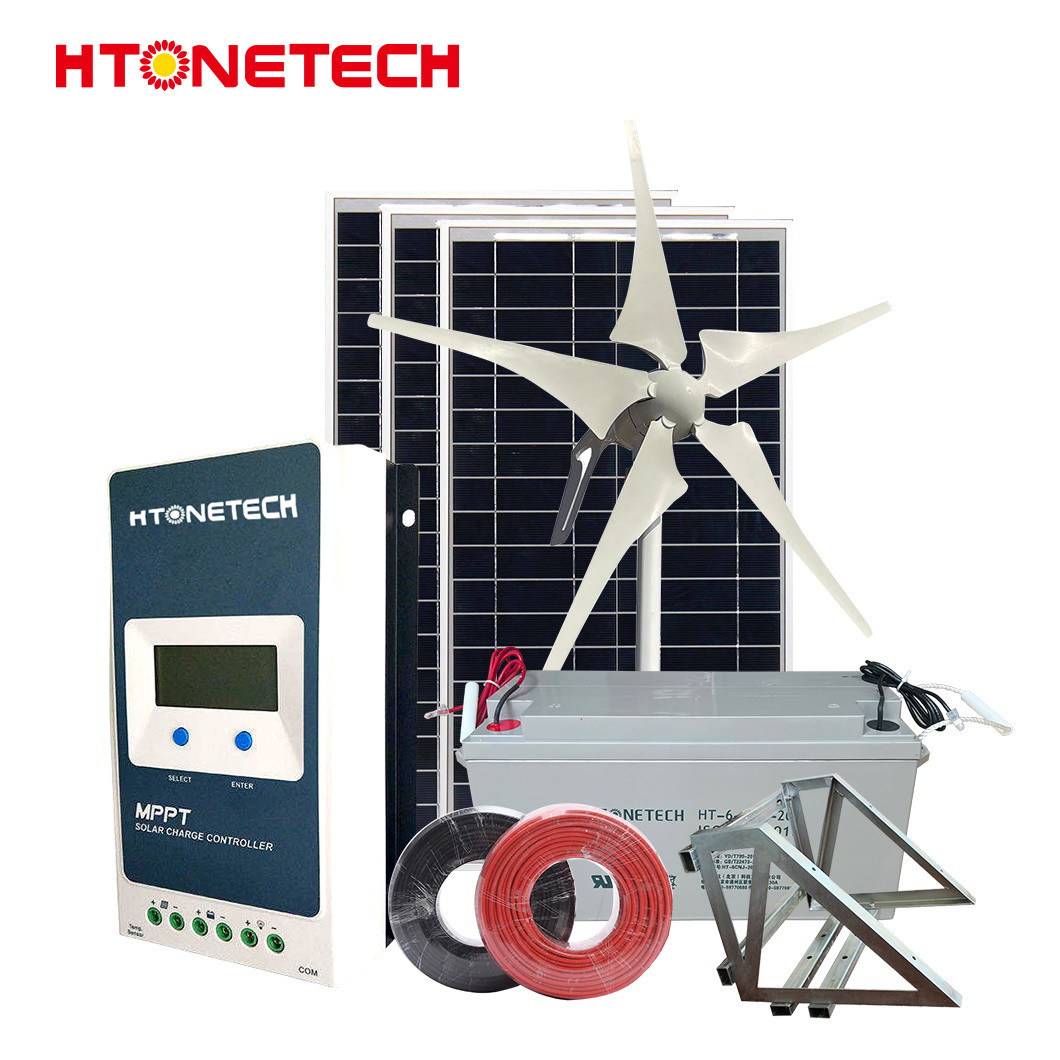

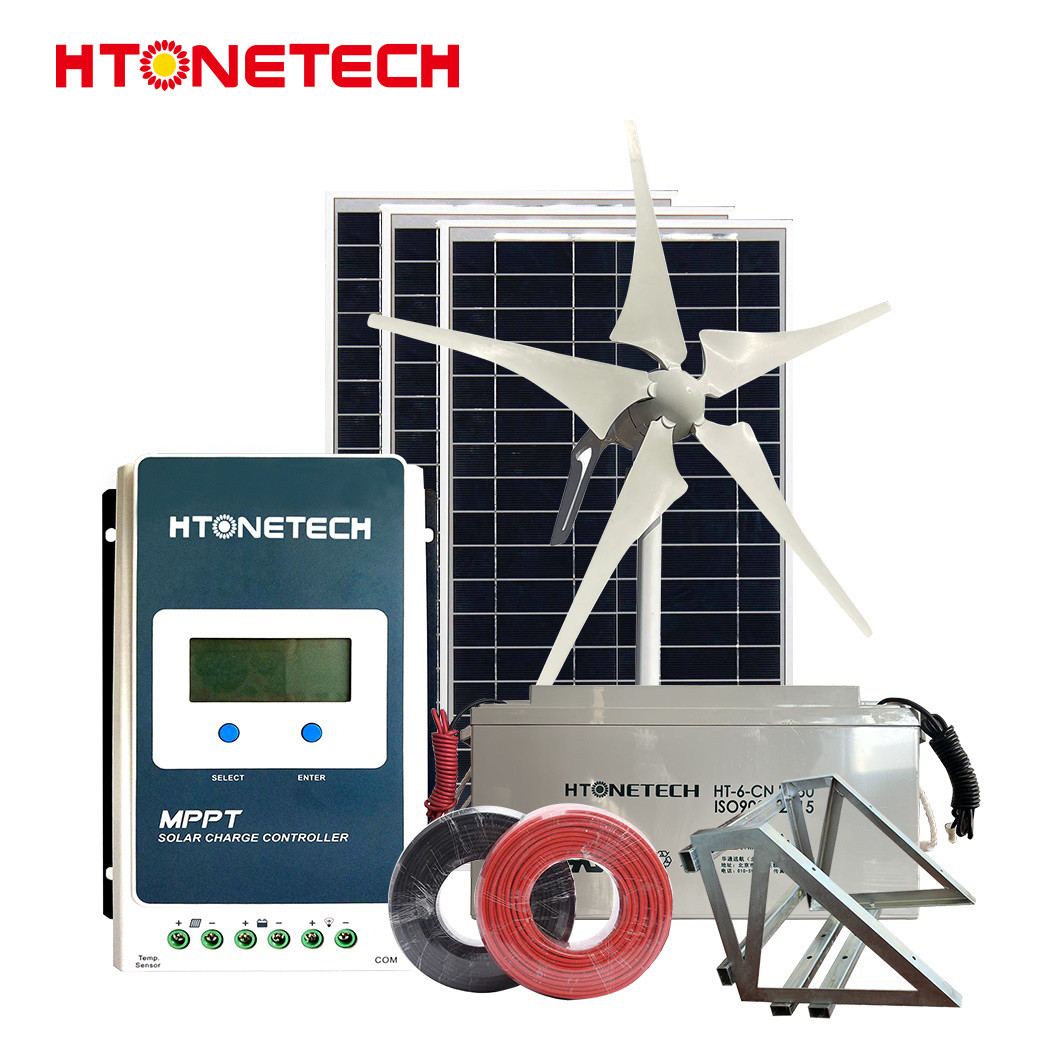

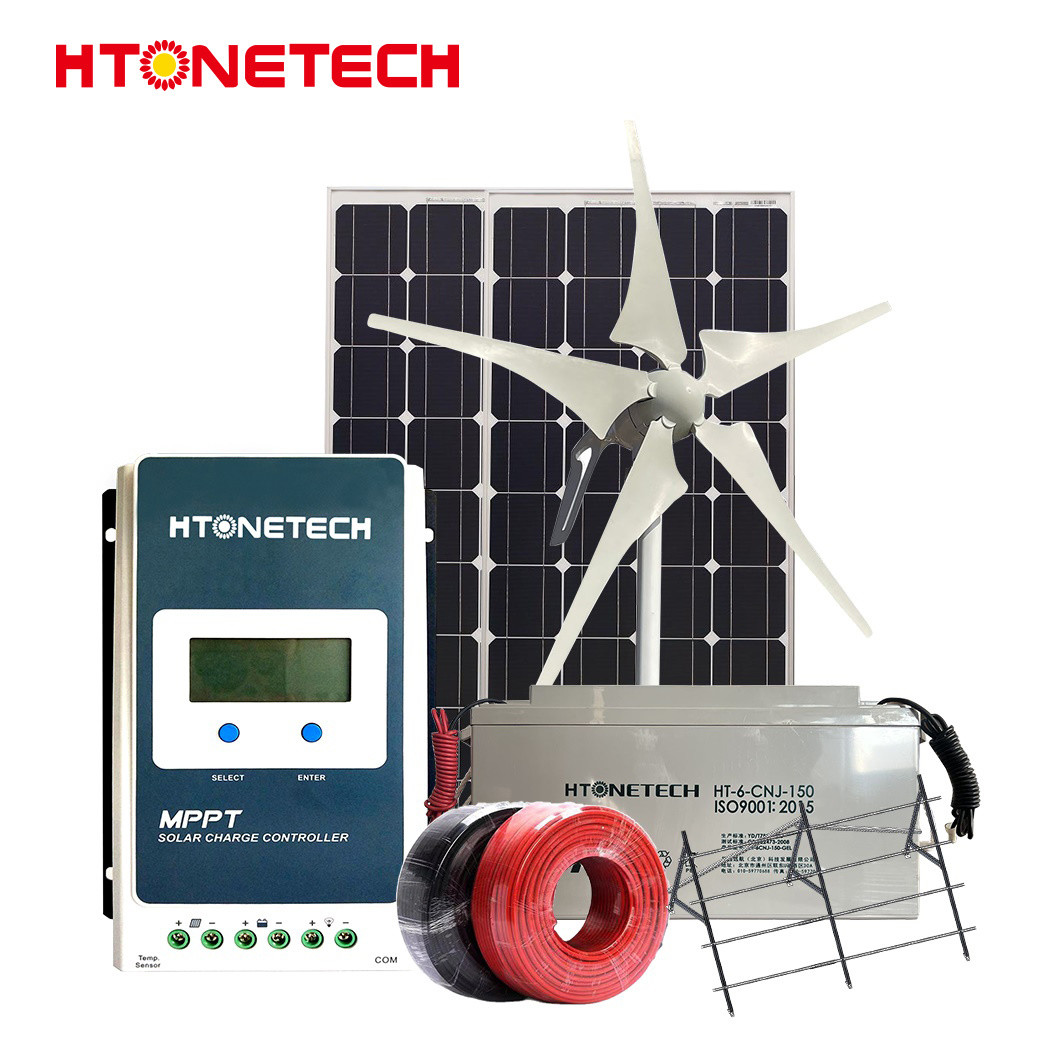

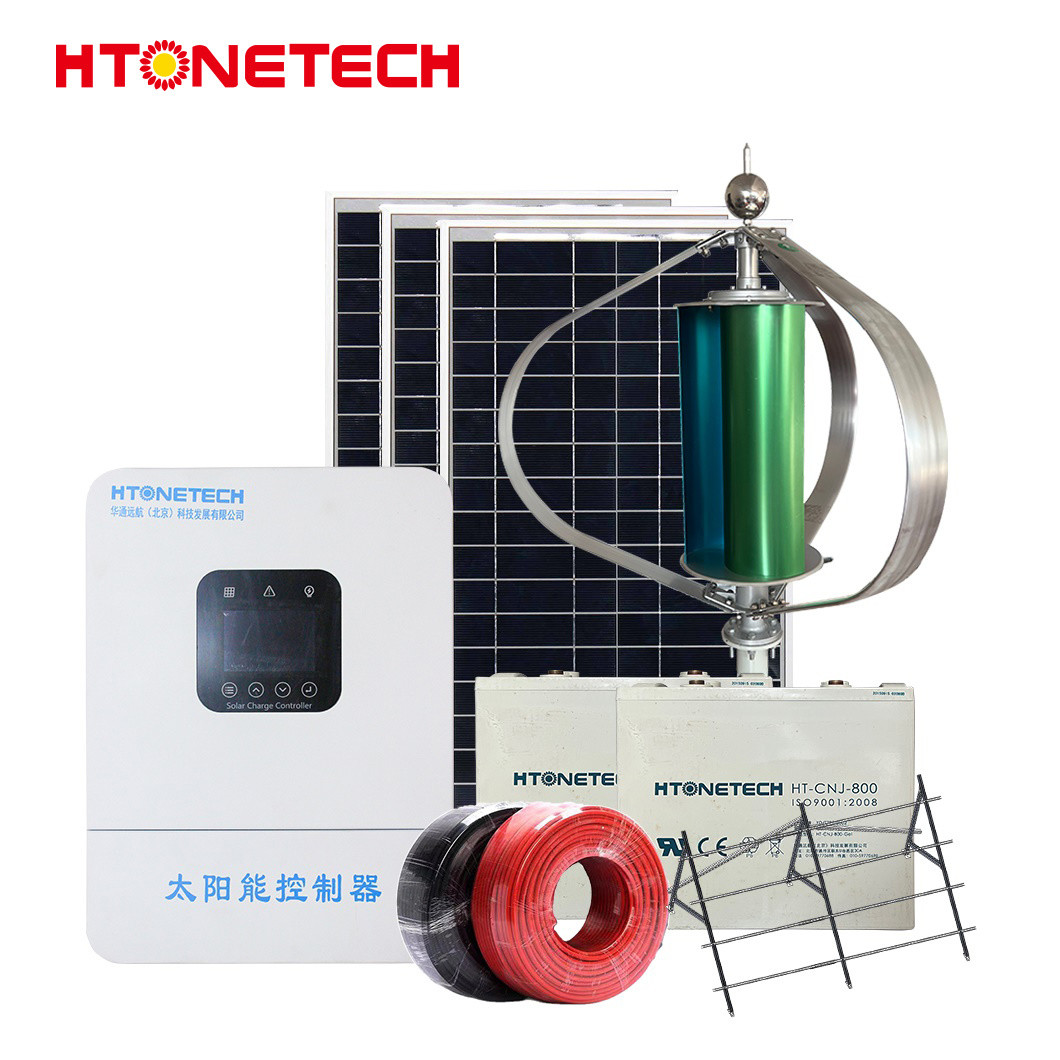

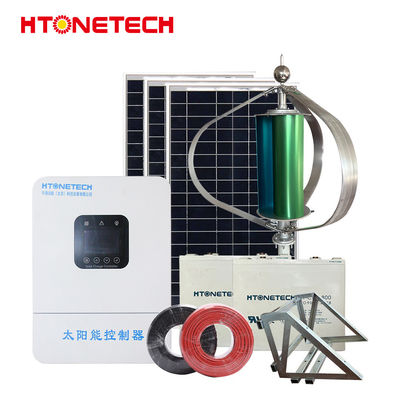

Detailed Photos
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw




Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw
  Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kwHtonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw







FAQ

1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China

2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;

3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems

4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
