Htonetech Wind Hybrid System Manufacturers 100kw 200kw Solar Wind Power System China 10 Khw 30 Khw 50 K
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel NO. | Wind And Solar Power System | Application | Home, Industrial, Commercial |
---|---|---|---|
Specification | Normal, Standard Specification Or Customized | Output Voltage (V) | 220V - 360V |
Work Time (H) | 24h | Mounting Type | Roof Mounting |
Battery Type | Lead-Acid, Lithium Ion | Battery | Lead-Acid Gel Battery |
OEM Or ODM | Accept | Color | White |
System Type | Hybrid Solar PV System | Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon |
Load Power (W) | 3kw, 50kw, 30kw, 8kw, 6kw, 20kw, 5kw, 10kw | Application For | Surveillance System |
Output Frequency | 50/60 Hz | Keywords | Wind And Solar Power System |
Type | Photovoltaic Solar Energy System | Product Name | Off Grid Solar System |
Transport Package | Standard Packaging Or Customized | Trademark | HTONETECH |
Origin | Beijing, China | Supply Ability | 50000000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
Warranty | 2year | Condition | New |
Product Description
System advantages:
HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.
1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.
Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.

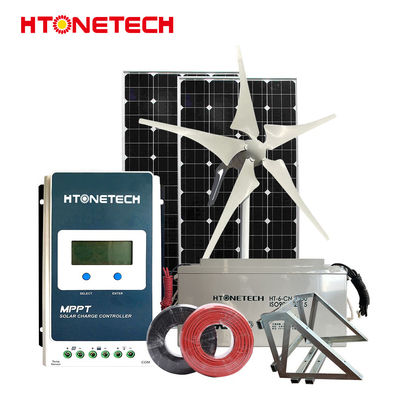

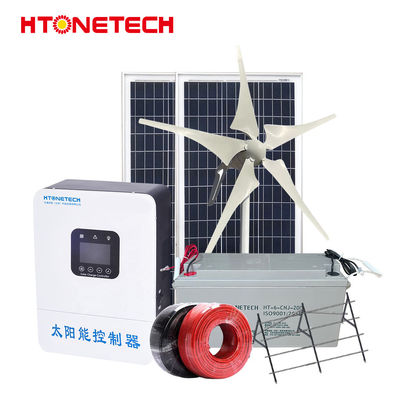

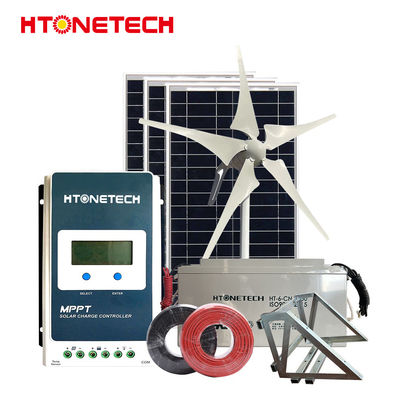

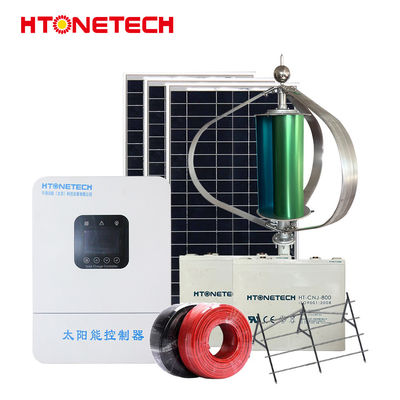

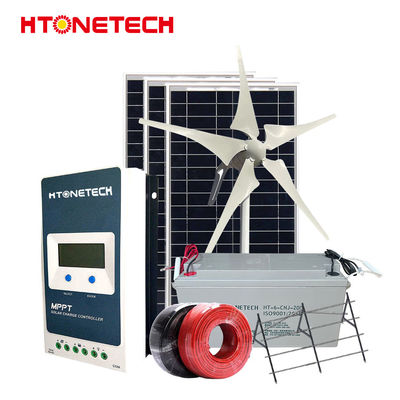

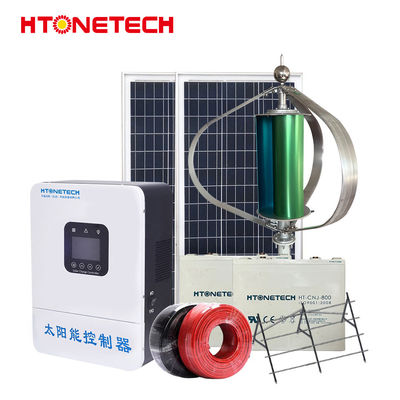

basic structure of a Solar Wind Power System:
- Solar Panels: These are photovoltaic (PV) cells that convert sunlight directly into electricity. The larger the panel, the more sunlight it can capture and the more electricity it can produce.
- Wind Turbines: These are devices that convert wind energy into electrical energy. The size and height of the turbine can affect the amount of electricity generated.
- Battery Storage System: Since solar and wind power are intermittent (the sun doesn’t always shine, and the wind doesn’t always blow), a battery storage system is usually included to store excess power for use when needed.
- Power Inverter: This is a device that converts the DC electricity produced by the solar panels and wind turbines into AC electricity, which is used by most household appliances.
- Charge Controller: This device regulates the voltage and current coming from the solar panels and wind turbines. It ensures that the battery is charged properly and prevents overcharging.
- Distribution System: This includes the electrical wiring and switches that distribute the electricity to where it’s needed.
BLACK MONO SOLAR PANELS
Peak Power Watts:280W(SP280M-60)
Maximum Power Voltage:31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current:9.33A
Dimensions:1650x992x35mm(65.0x39.1x1.38inches)
Weight:18.6 kg (41.0 b)
SOLAX HYBRID INVERTER &DATA LOGGING STICK
Max.DC Input Power.3KW/3.7KW/4.6KW/5KW
Max.DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional
TRIPLE-POWER LITHIUM BATTERY
Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A):30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety: CE, FCC, RCM, TUV (IEC 62619)
PV MOUNTING SYSTEM
Mounting Rail & Rail Splice Kit: Al6005 & SUS304Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger BoltOptional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Components | SP3KW-HY | SP3.7KW-HY | SP4.6KW-HY | SP5KW-HY |
280W Mono Solar Panel | 12 Piece | 14 Piece | 18 Piece | 20 Piece |
Dc Disconnect Switch | 1 Piece | 1 Piece | 2 Piece | 2 Piece |
Hybrid Inverter | X1-HYBRID-3.0T | X1-HYBRID-3.7T | X1-HYBRID-4.6T | X1-HYBRID-5.0T |
Triple Power Battery | 4.5 kWh | 4.5 kWh | 6.3 kWh | 6.3 kWh |
Dc Cable 4mm2 | 100 meter | 100 meter | 200 meter | 200 meter |
AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece | 1 Piece |
MC4 Connector | 10 | 10 | 15 | 15 |
Mounting System | Standards Pitched Roof ( Customized Optional) | |||
PV Tools | 1 Set |
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
