xModel NO. | HT-K20-10A | Application | Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller |
---|---|---|---|
Rated Voltage | 12V | Grounding | Positve |
Temperature Compensation | -3mv/ºC/2V | Self-Consumption | ≤20mA(12V);≤16mA(24V) |
Operating Temperature Range | -25ºC~+45ºC | Rated Charge/Discharge Current | 10A |
Protection Degree | IP30 | Float Voltage | 13.8V |
Low Voltage Disconnect Voltage | 11.1V | Low Voltage Reconnect Voltage | 12.6V |
Equalization Charging Voltage | Seal:14.6V,Flooded:14.8V | Boost Voltage | Gel:14.2V. Seal:14.4V.Flooded:14.6V |
Battery Input Voltage Range | 8V-32V | Transport Package | Wooden Box |
Specification | 252x180x63mm | Trademark | Htonetech |
Origin | China | Supply Ability | 50000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
Warranty | 5year | Condition | New |
High Light | ISO Solar Charge Controller,Solar Charge Controller 63mm,Solar Controller 12v 252x180x63mm |

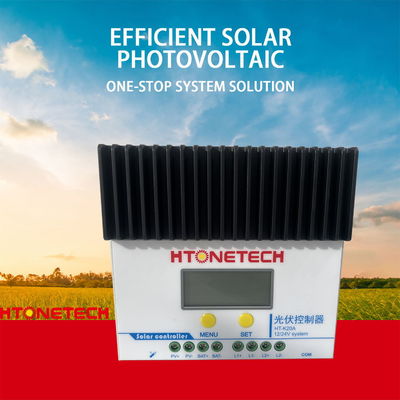

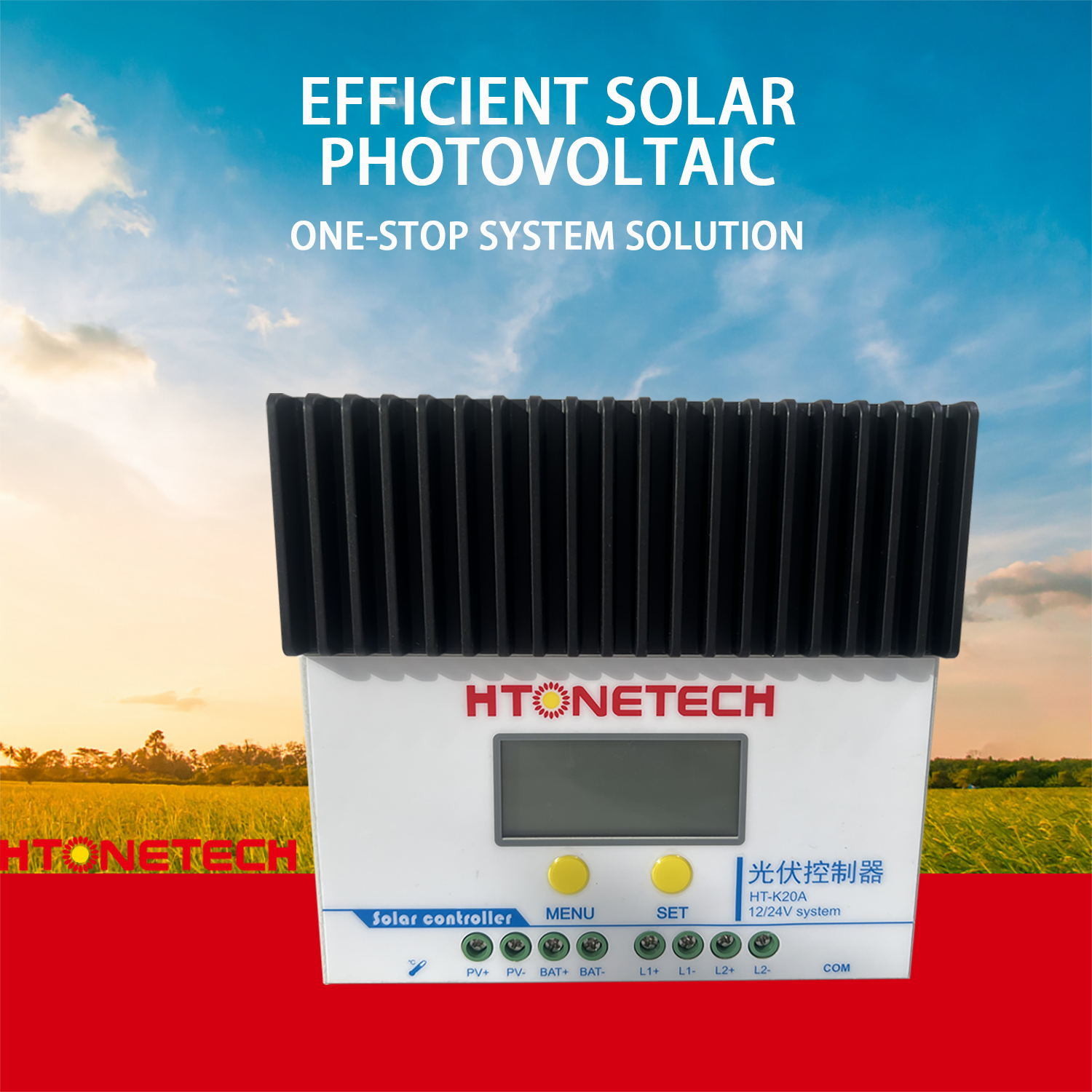

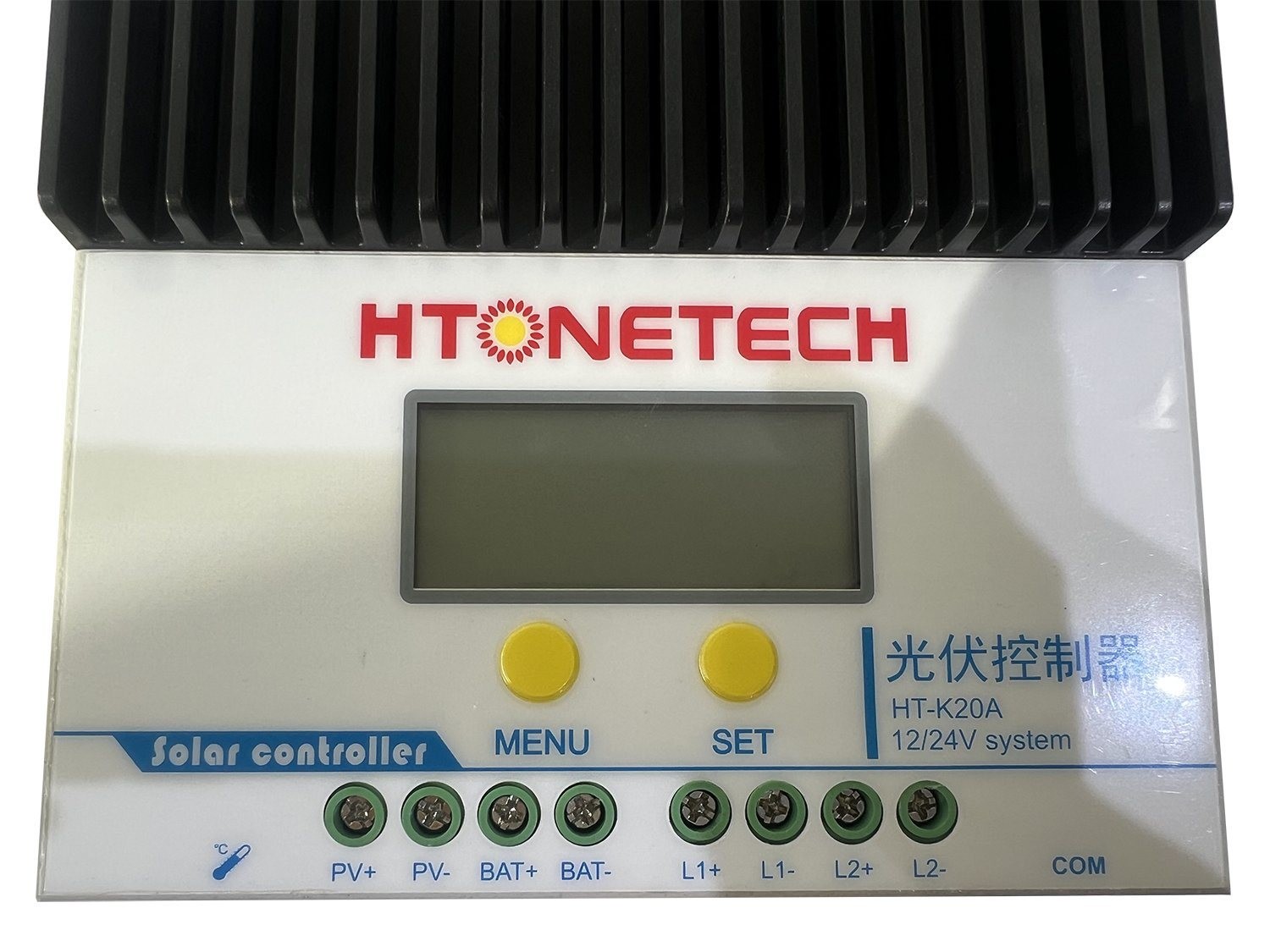

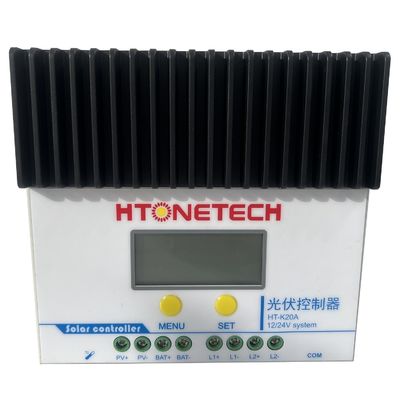

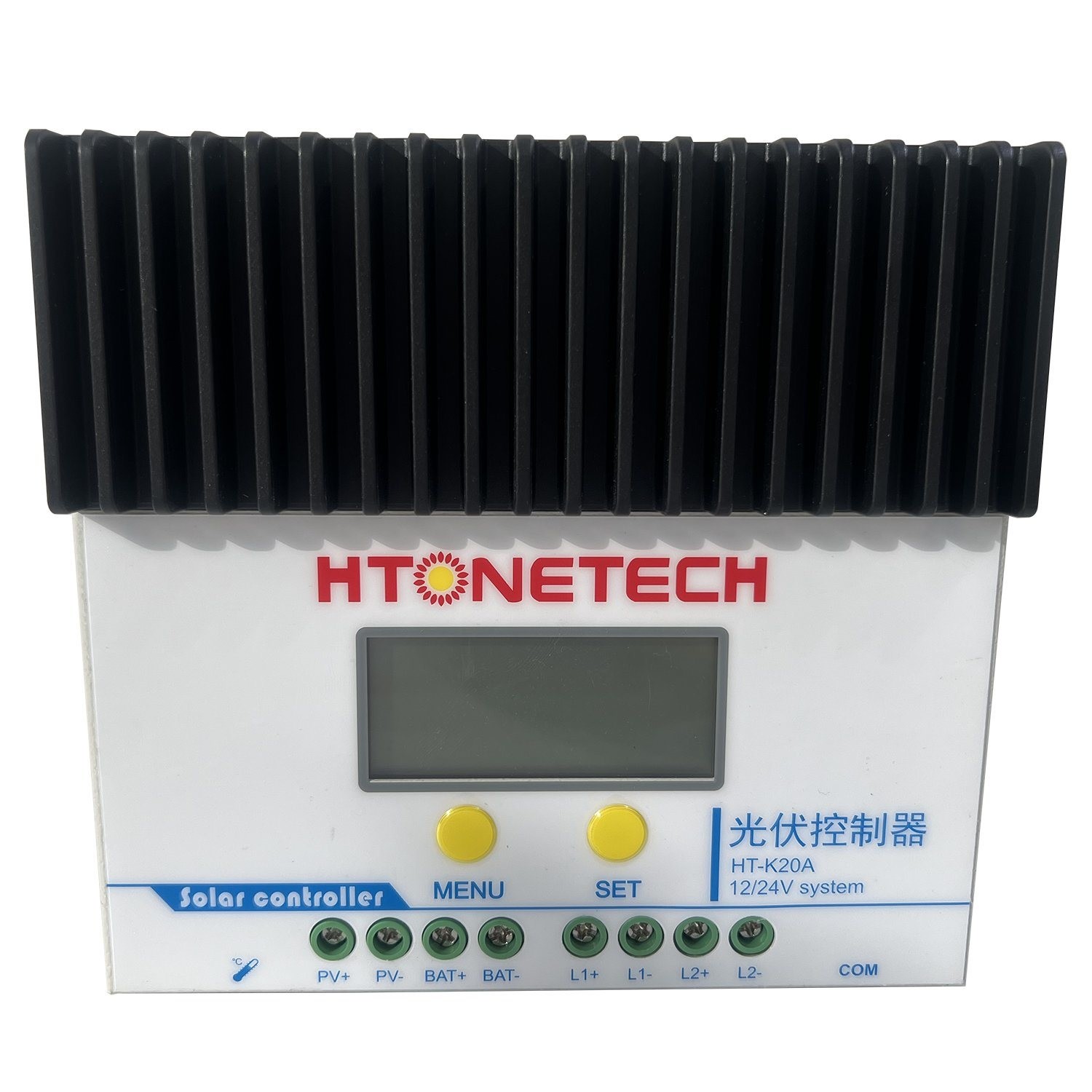

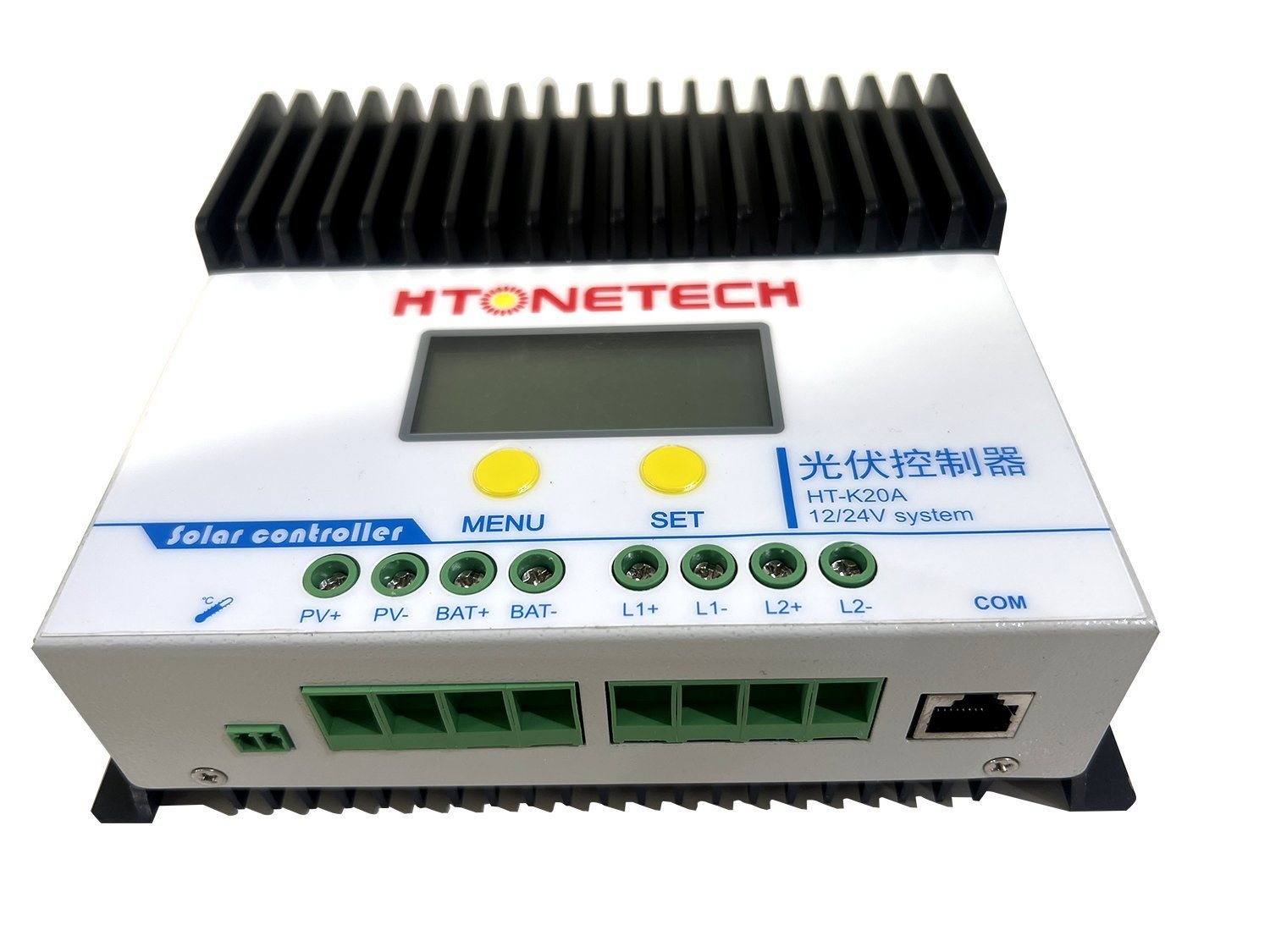

ISO Solar Charge Controller Solar Controller 12v 252x180x63mm
Product Description
Solar charge controllers have various applications in solar energy systems. Here are some common applications of solar charge controllers:
Off-grid solar systems: Solar charge controllers are essential components in off-grid solar systems, where there is no connection to the electrical grid. They regulate the charging of batteries from solar panels and protect them from overcharging and overdischarging. This ensures a reliable and efficient power supply for off-grid applications such as cabins, remote homes, RVs, boats, and telecommunications equipment.
- Hybrid solar systems: Solar charge controllers are used in hybrid solar systems that combine solar power with other energy sources like grid electricity or diesel generators. In such systems, the charge controller manages the charging of batteries from both solar panels and the additional energy source to optimize power utilization and stabilize the energy supply.
- Grid-tied solar systems with battery backup: Solar charge controllers are employed in grid-tied solar systems that incorporate battery backup. In these systems, the charge controller regulates the charging and discharging of batteries. During grid outages, the batteries provide backup power to critical loads, and the charge controller ensures efficient utilization and replenishment of energy from solar panels.
- Solar street lighting: Solar charge controllers are used in solar street lighting systems to control the charging and discharging of batteries. They regulate the power flow from solar panels to the batteries during the day and control the discharge of energy to power the streetlights during the night. The charge controller
SOLAR CHARGE CONTROLLER | ||||
Model | HT-K20-10A | HT-K20-20A | HT-K20-30A | HT-K20-40A |
Nominal system voltage | 12/24V 12/24VDC/Auto | |||
Rated charge/discharge current | 10A | 20A | 30A | 40A |
Rated load current | 10A | 20A | 30A | 40A |
Battery input voltage range | 8V-32V | |||
Max. PV open circuit voltage | 100V(At minimum operating environment temperature),92V(25ºCAt 25°C environment temperature | |||
Max PV input power |
12V130W | 12V260W | 12V390W | 12V520W |
24V260W | 24V520W | 24V780W | 24V1040W | |
Equalization Charging Voltage | seal:14.6V,flooded:14.8V | |||
Boost voltage | Gel:14.2V, seal:14.4V,flooded:14.6V | |||
Float voltage | 13.8V | |||
Low voltage reconnect voltage | 12.6V | |||
Low voltage disconnect voltage | 11.1V | |||
Self-consumption | ≤20mA(12V);≤16mA(24V) | |||
Grounding | Positve | |||
Temperature compensation | -3mV/ºC/2V | |||
Dimensions(LxWxH)(mm) | 172x139x44mm | 220x154x52mm | 228x164x55mm | 252x180x63mm |
Net weight | 0.6KG | 1.1KG | 1.2KG | 1.9KG |
Protection Degree | IP30 | |||
Operating temperature range | -25ºC~+45ºC |
FAQ
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
