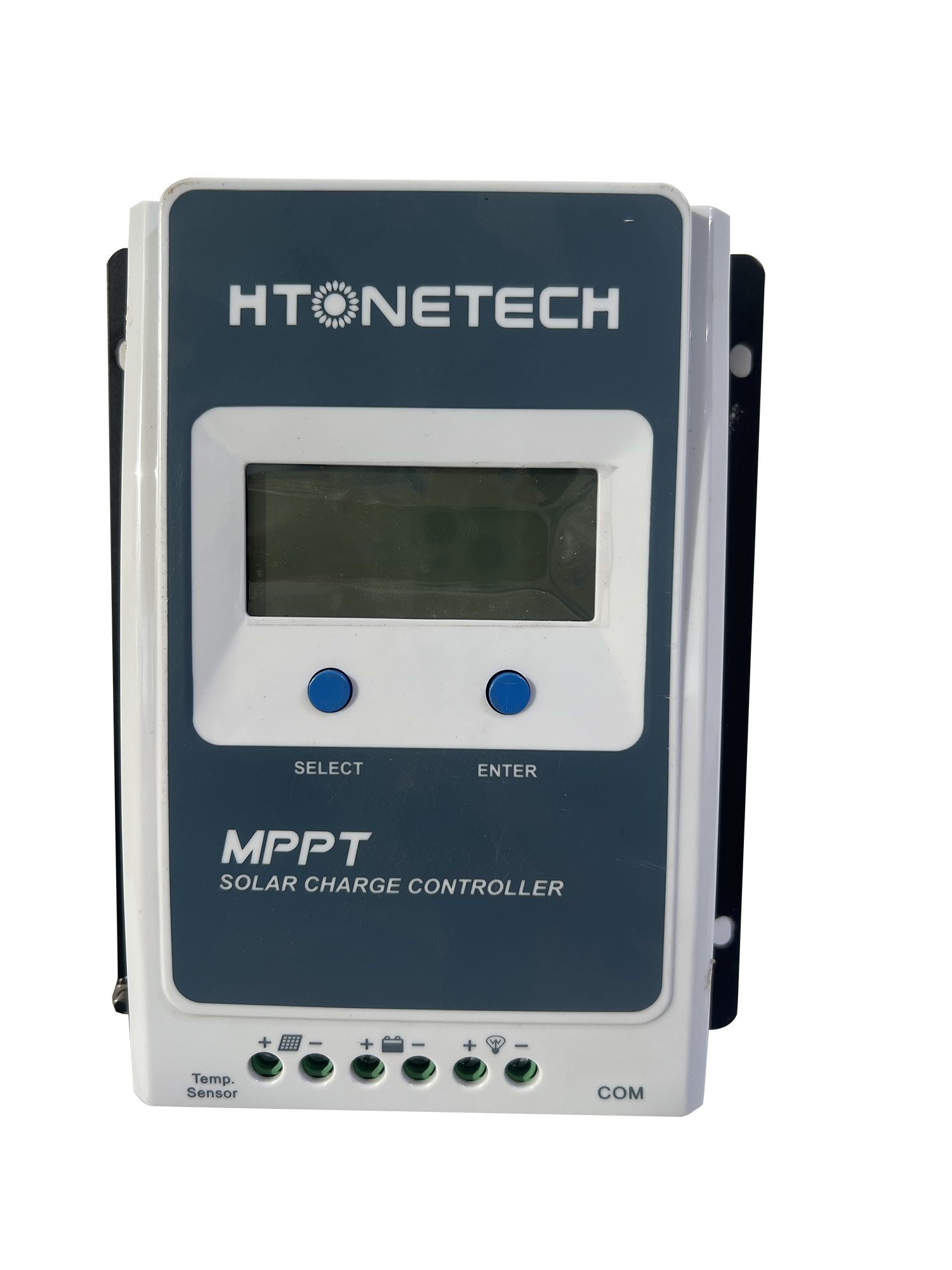

IP30 Solar Charge Controller 10A 13.8V Solar Battery Controller

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Model NO. HT-K20-10A MPPT
Application Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller Rated Voltage 12V
Grounding Positve Temperature Compensation -3mv/ºC/2V
Self-Consumption ≤20mA(12V);≤16mA(24V) Operating Temperature Range -25ºC~+45ºC
Rated Charge/Discharge Current 10A Protection Degree IP30
Float Voltage 13.8V Low Voltage Disconnect Voltage 11.1V
Low Voltage Reconnect Voltage 12.6V Equalization Charging Voltage Seal:14.6V,Flooded:14.8V
Boost Voltage Gel:14.2V. Seal:14.4V.Flooded:14.6V Battery Input Voltage Range 8V-32V
Transport Package Wooden Box Specification 252x180x63mm
Trademark Htonetech Origin China
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 5year Condition New
High Light

IP30 Solar Charge Controller

,

Solar Charge Controller 10A

,

13.8V Solar Battery Controller

Leave a Message
Product Description

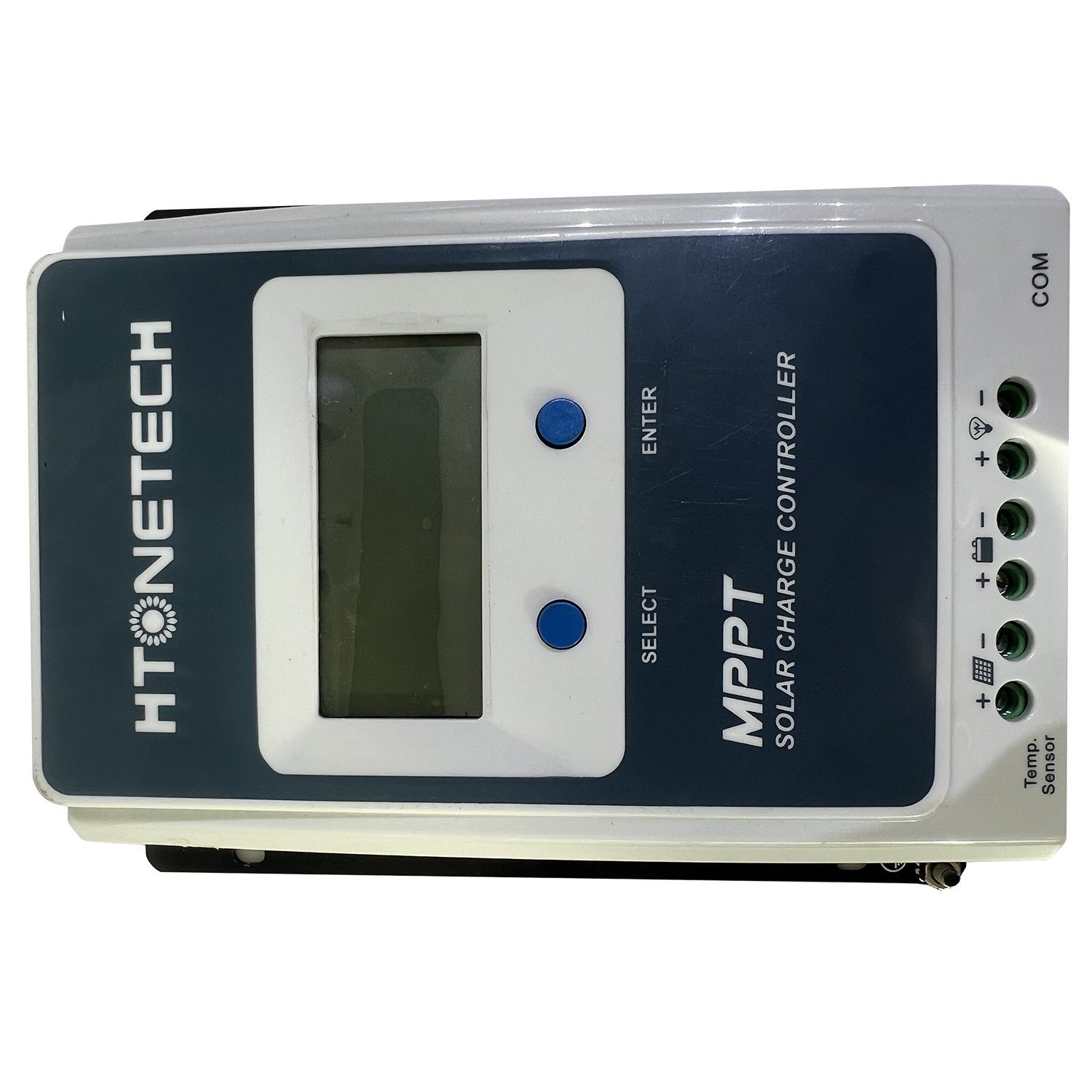

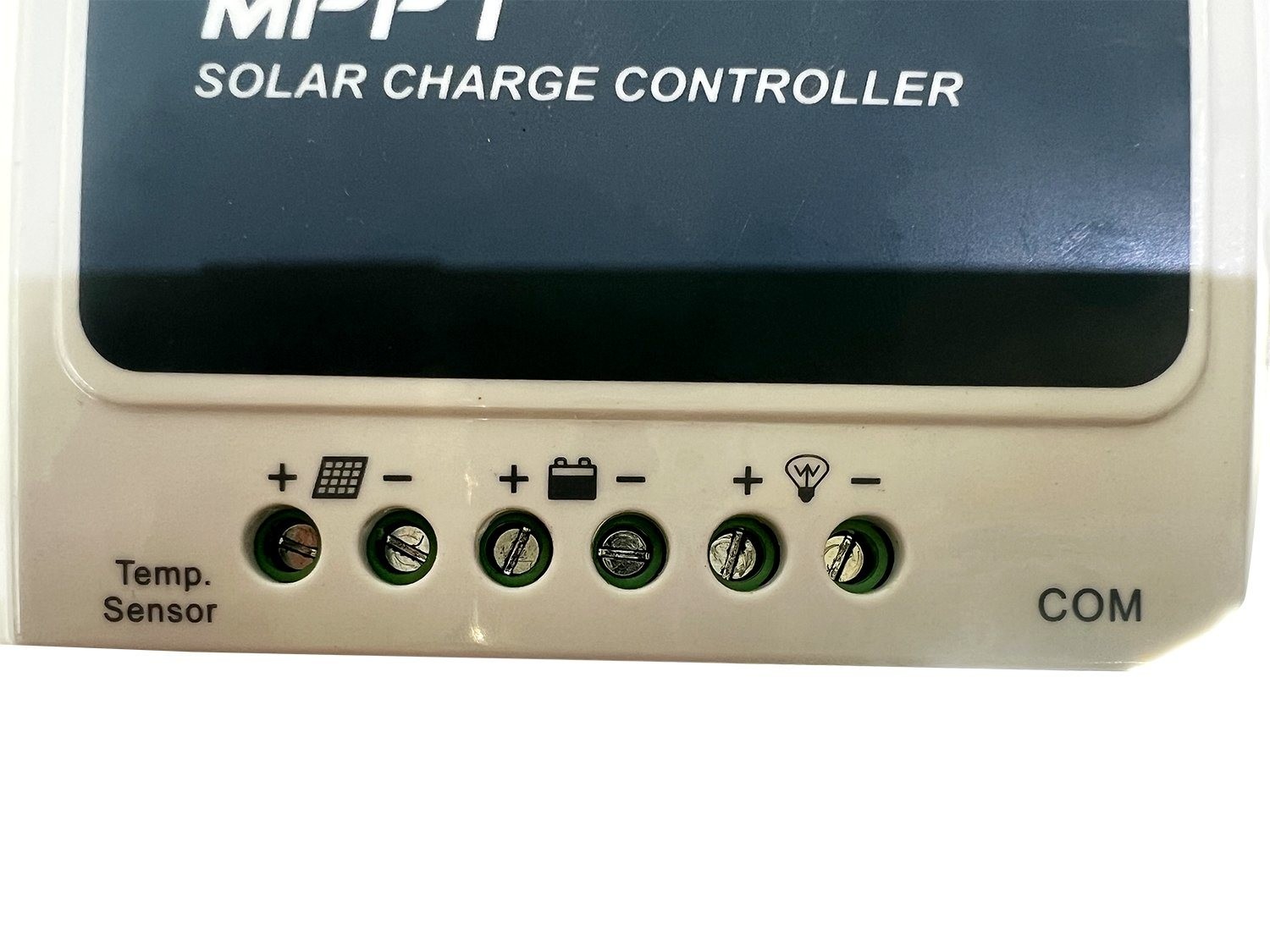

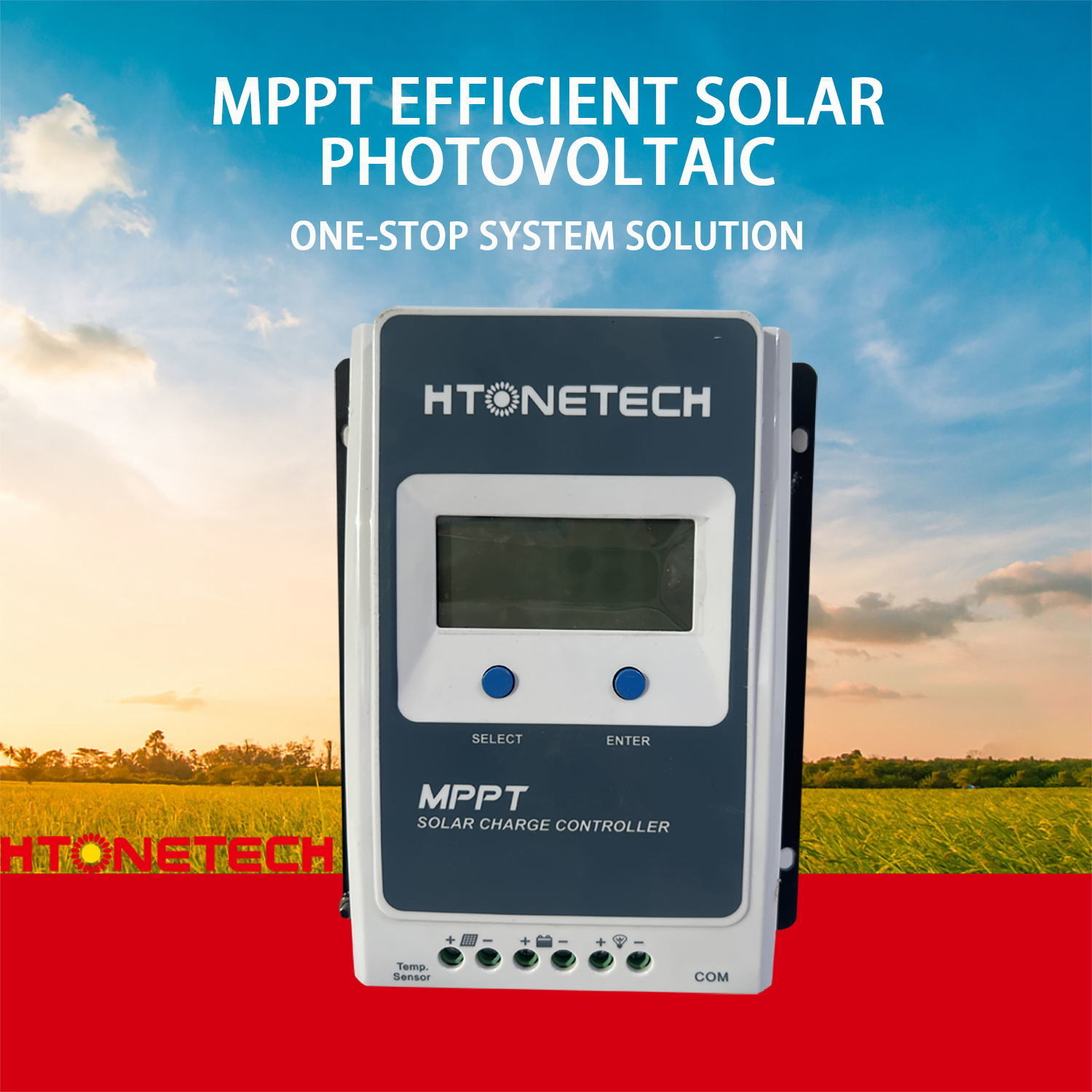

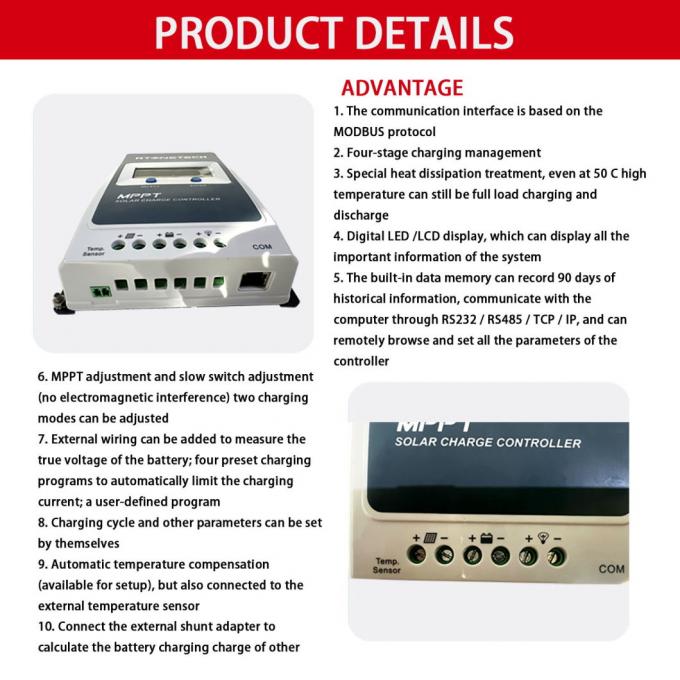

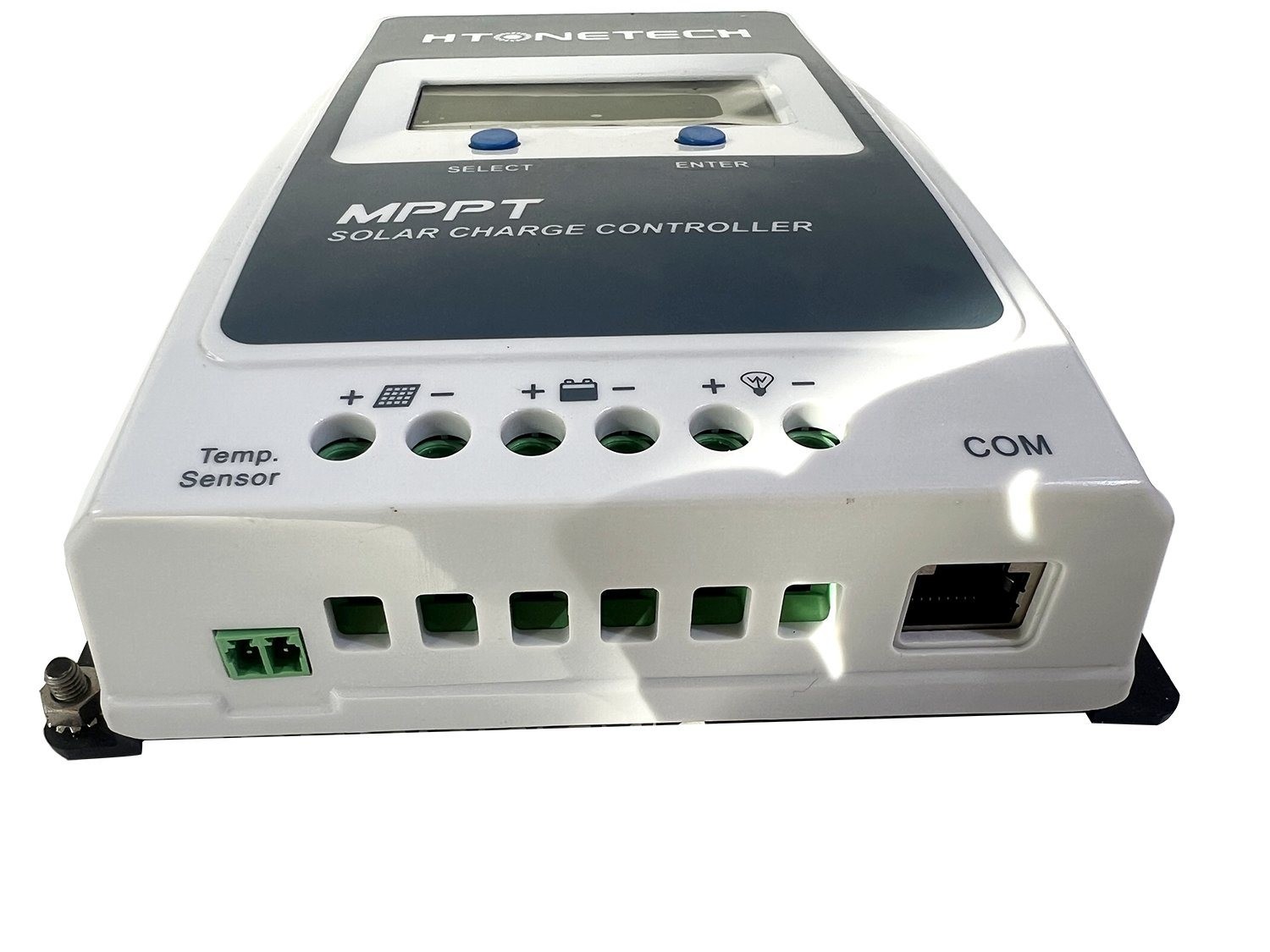

IP30 Solar Charge Controller 10A 13.8V Solar Battery Controller

Product Description

A solar charge controller, also known as a solar regulator, is a device used in solar energy systems to regulate and control the charging of batteries from solar panels. Its primary function is to prevent overcharging or overdischarging of the batteries, ensuring optimal charging and extending their lifespan. Here are some key points about solar charge controllers:

  • Charging regulation: Solar charge controllers monitor the voltage and current from the solar panels and regulate the charging process to ensure the batteries receive the appropriate amount of charge. They prevent overcharging by reducing or stopping the charging current when the battery reaches its maximum voltage level.
  • Battery protection: Solar charge controllers protect batteries from overdischarging by disconnecting the load from the battery when its voltage drops to a critical level. This prevents damage to the battery and extends its lifespan. Some advanced charge controllers also offer features like temperature compensation to optimize charging based on environmental conditions.
  • System monitoring: Many solar charge controllers come with built-in monitoring capabilities to display important system parameters such as battery voltage, charging current, solar panel output, and overall system performance. This allows users to keep track of their system's operation and troubleshoot any issues.
  • Load control: Some solar charge controllers have load control functionality, allowing them to directly power DC loads such as lights, fans, or small appliances. They can automatically turn on or off the connected loads based on the battery's state of charge, ensuring efficient utilization of stored energy.
Solar Controller System Charge Home Industry Power Energy with MPPT Solar Power GeneratorSolar Controller System Charge Home Industry Power Energy with MPPT Solar Power GeneratorSolar Controller System Charge Home Industry Power Energy with MPPT Solar Power Generator
 SOLAR CHARGE CONTROLLER
Model HT-K20-10A HT-K20-20A HT-K20-30A HT-K20-40A
Nominal system voltage 12/24V  12/24VDC/Auto
Rated charge/discharge current 10A 20A 30A 40A
Rated load current 10A 20A 30A 40A
Battery input voltage range 8V-32V
Max. PV open circuit voltage 100V(At minimum operating environment temperature),92V(25ºCAt 25°C environment temperature

Max PV input power
12V130W 12V260W 12V390W 12V520W
24V260W 24V520W 24V780W 24V1040W
Equalization Charging Voltage seal:14.6V,flooded:14.8V
Boost voltage Gel:14.2V, seal:14.4V,flooded:14.6V
Float voltage 13.8V
Low voltage reconnect voltage 12.6V
Low voltage disconnect voltage 11.1V
Self-consumption ≤20mA(12V);≤16mA(24V)
 Grounding  Positve
 Temperature compensation  -3mV/ºC/2V
Dimensions(LxWxH)(mm) 172x139x44mm 220x154x52mm 228x164x55mm 252x180x63mm
Net weight 0.6KG 1.1KG 1.2KG 1.9KG
Protection Degree IP30
Operating temperature range -25ºC~+45ºC
Solar Controller System Charge Home Industry Power Energy with MPPT Solar Power GeneratorSolar Controller System Charge Home Industry Power Energy with MPPT Solar Power GeneratorSolar Controller System Charge Home Industry Power Energy with MPPT Solar Power GeneratorSolar Controller System Charge Home Industry Power Energy with MPPT Solar Power Generator

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
