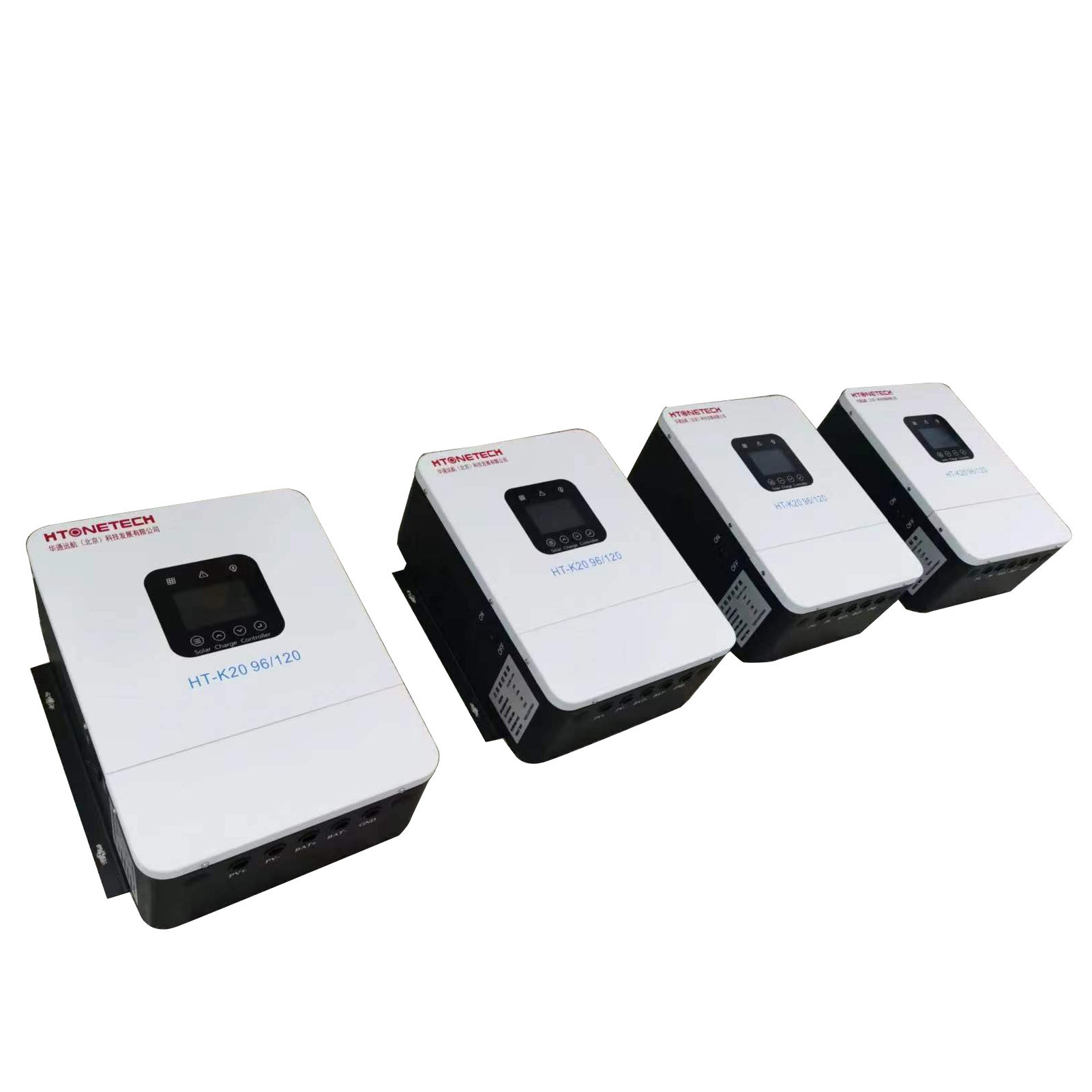

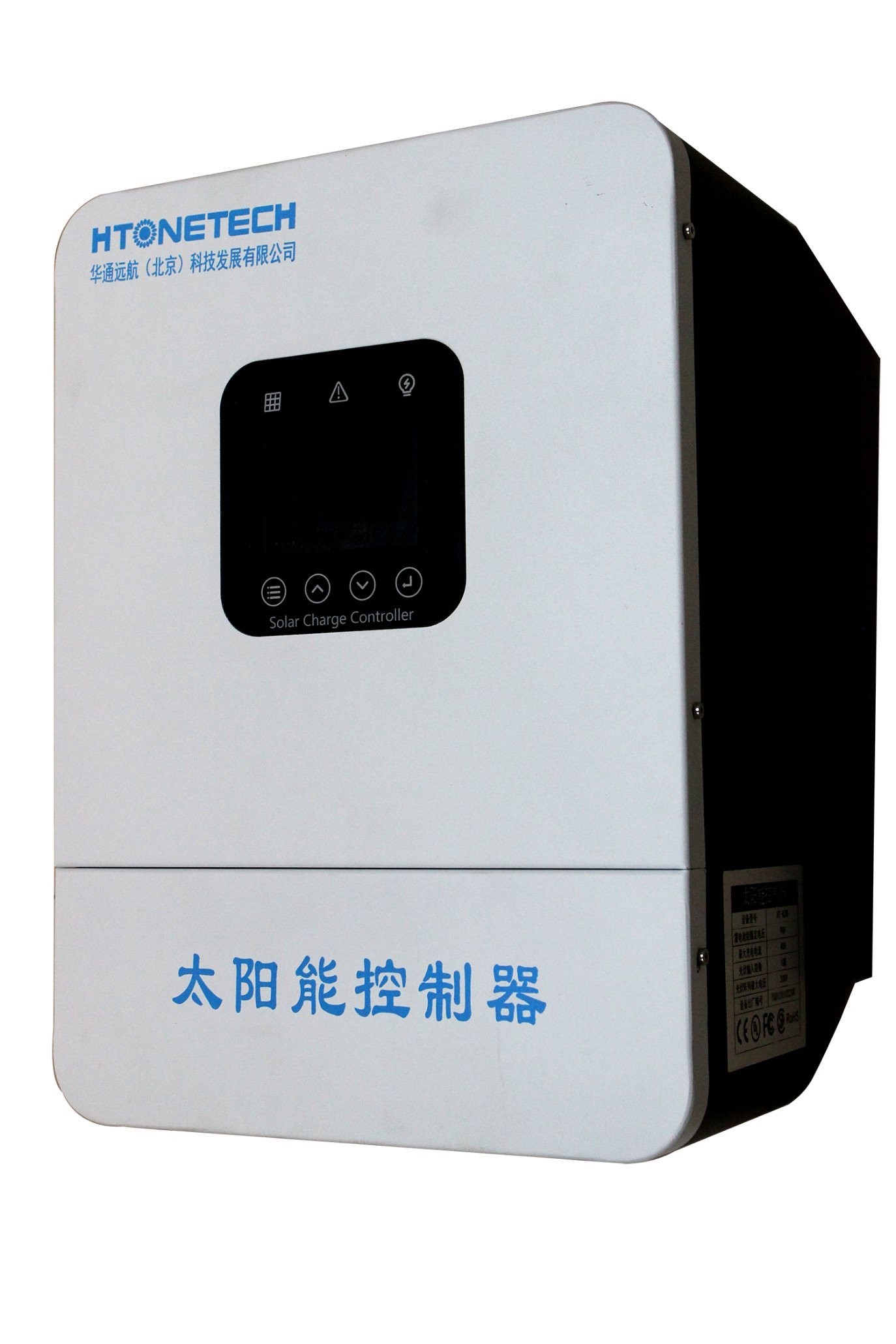

RS485 Solar Charge Controller LCD Screen Solar Charge Regulator IP32

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. HT-SD20-10A Application Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller
Rated Voltage 12V Display Language Bilingual: Chinese And English Switching
Display Color LCD Screen + Touch Keys Cooling Mode Temperature-Controlled Fan Forced Air Cooling
Noise(dB) <30dB Protection Grade IP32 [Indoor]
Ambient Humidity 0%~98% Without Condensation Connecting Tc Series Barrier Wiring Connection
Communication Modbus RTU,RS485(Optional) Night Standby Loss(W) <0.5W
Equal-Charging Duration 120 Minutes Transport Package Wooden Box
Specification 252x180x63mm Trademark Htonetech
Origin China Supply Ability 50000pieces/Year
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 5year Condition New
High Light

RS485 Solar Charge Controller

,

Solar Charge Controller LCD Screen

,

Solar Charge Regulator IP32

Leave a Message

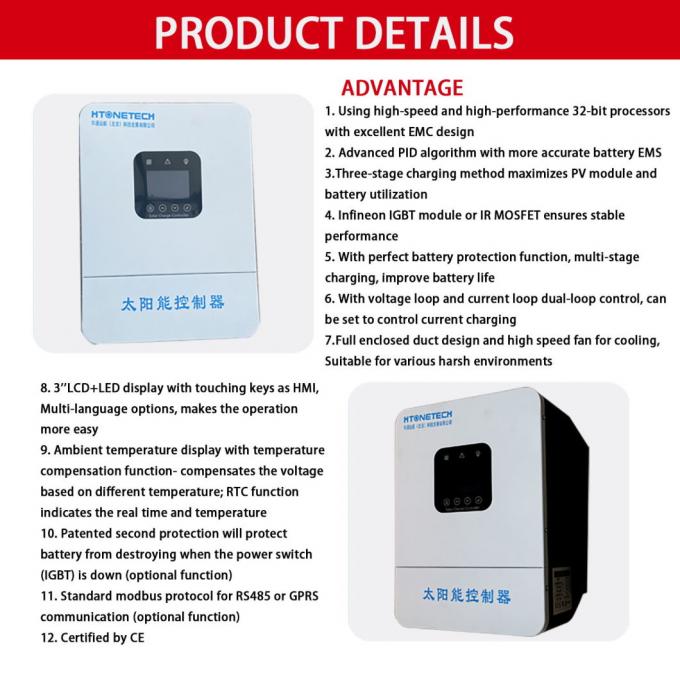

Product Description

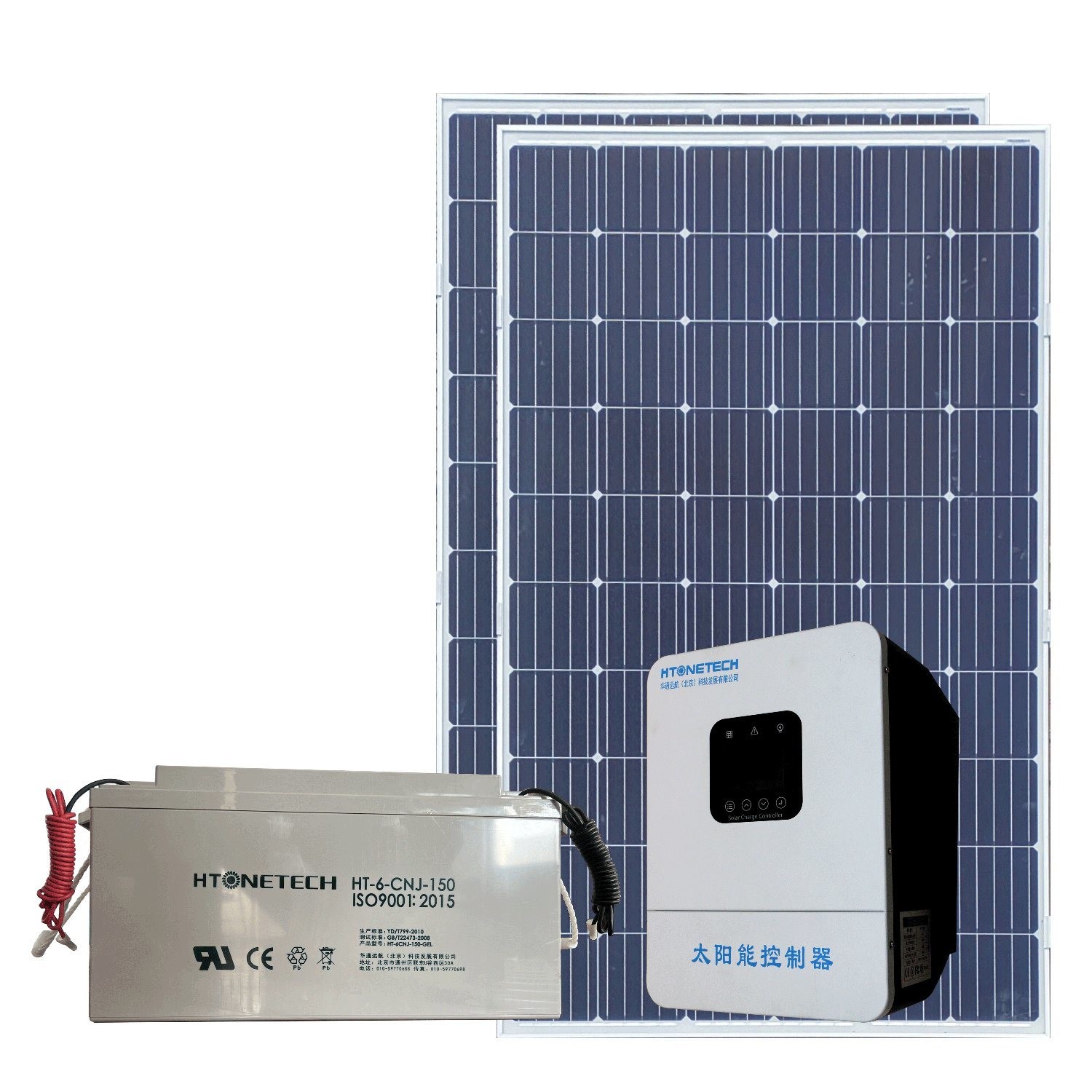

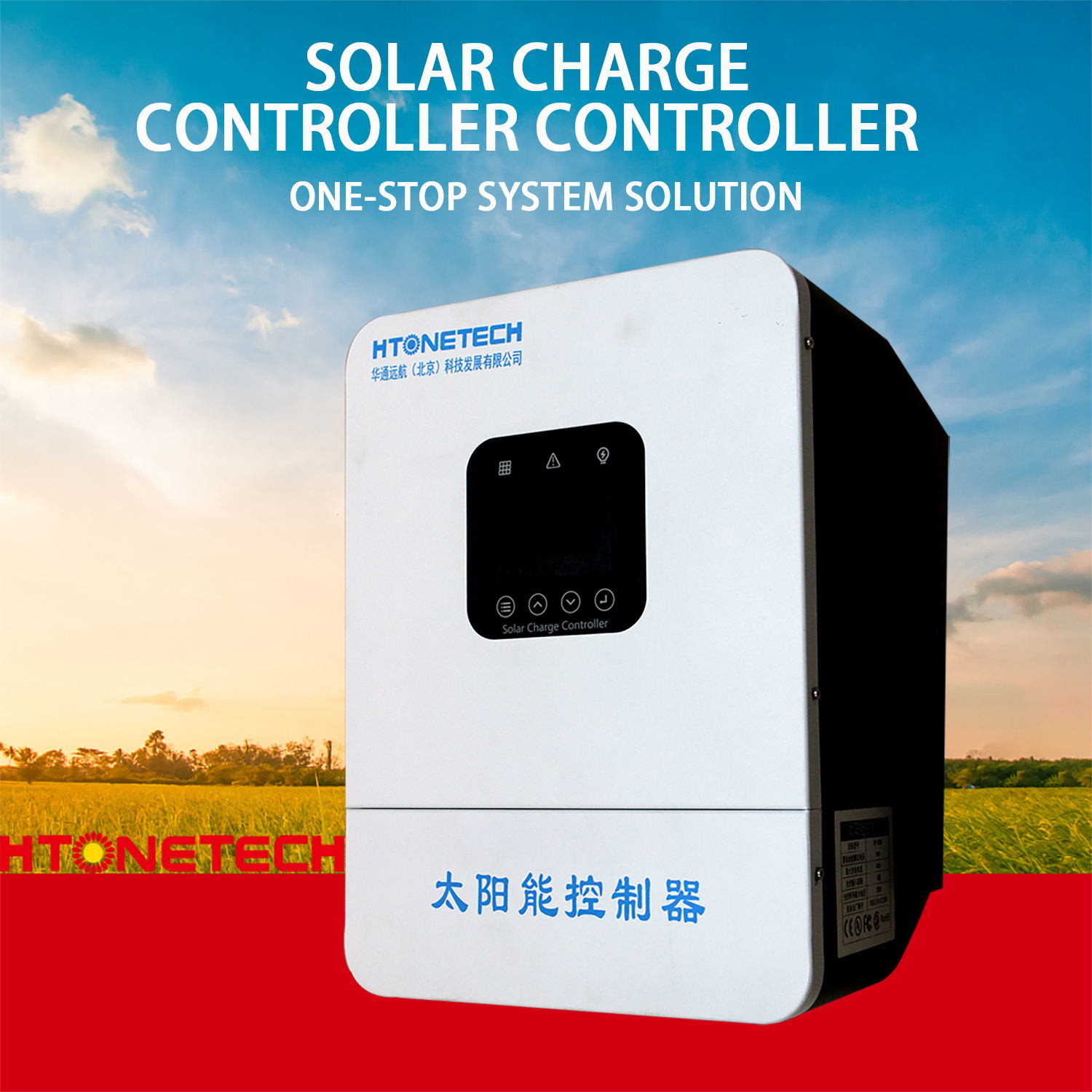

RS485 Solar Charge Controller LCD Screen Solar Charge Regulator IP32

Product Description

Solar charge controllers come with various features that enhance their functionality and efficiency within solar energy systems. Here are some common features found in solar charge controllers:

Maximum Power Point Tracking (MPPT): MPPT technology allows the charge controller to optimize the power output from the solar panels by continuously tracking and adjusting the operating point to ensure maximum power extraction. MPPT controllers are more efficient than PWM controllers, especially in systems with higher voltage solar panels.

  1. Multiple charging stages: Advanced charge controllers offer multiple charging stages, including bulk, absorption, and float stages. Each stage provides a different charging voltage and current profile, ensuring efficient and complete charging of the batteries.
  2. Battery type compatibility: Charge controllers are designed to be compatible with specific battery chemistries, such as lead-acid (including flooded, gel, and AGM) or lithium-ion. They have charging algorithms tailored to the specific charging requirements of the battery type, ensuring optimal charging and battery lifespan.
  3. Battery temperature compensation: Some charge controllers have temperature sensors to monitor the battery temperature. They adjust the charging voltage based on the temperature to compensate for temperature variations, ensuring accurate and efficient charging.
  4. Load control and timers: Charge controllers with load control functionality allow direct powering of DC loads such as lights or appliances. They can automatically turn on or off the connected loads based on the battery's state of charge or set schedules through timers.
  5. LCD display and monitoring: Many charge controllers come with built-in LCD displays that provide real-time monitoring of important system parameters, such as battery voltage, charging current, solar panel output, and load status. This allows users to easily monitor the system's performance and make informed decisions.
MPPT Solar Power Generator Controller System Charge Home Industry Power Energy with IndustryMPPT Solar Power Generator Controller System Charge Home Industry Power Energy with Industry
Product Type HT-SDC48V-80A HT-SDC96V-120A HT-SDC120V-50A HT-SDC220V-50A
System specification
Rated Battery Voltage(Vdc) 48V 96V 120V 220V
Rated charge current(A) 80A-150A 50A-150A 50A-150A 50A-150A
Maximum solar panel in-put voltage(Vdc) 100V <200V ≤240V ≤440V
Maximum solar panel in-put power (kW) 3840W 11.5KW 6KW-18KW 11KW-33KW
Solar panel in-put array    1 1 1/2
Electrical Specification
three-phase charging mode Fast charging, Euqal-charging, Float charging
Euqal-charging voltage(Vdc) 57.6V 115.2V 144V 264V
Fast charge recovery voltage(Vdc) 52.8V 105.6V 132V 242V
Floating charge voltage(Vdc) 55.2V 110.4V 138V 253V
Overcharge protection voltage(Vdc) 64V 120V 160V 293.3V
Overcharge recovery voltage(Vdc) 60V 117.6V 150V 275V
Equal-charging duration  120 minutes
Night standby loss(W) <0.5W
Operating ambient temperature range (ºC) -25ºC~+55ºC
Ambient Humidity 0%~98% without condensation
Communication MODBUS RTU,RS485(optional)
Hardware specification
Connecting  TC series barrier wiring connection
Display Color LCD screen + touch keys
Display language  Bilingual: Chinese and English switching
Protection grade IP32 [Indoor]
Cooling mode  Temperature-controlled fan forced air cooling
Noise(dB) <30dB
Working altitude(m) 3000m,More than 3000m need to be derated
Installation Wall-mounted
Dimension [width/depth/height] 420*342*175mm
Net weight(kg) 10KG
MPPT Solar Power Generator Controller System Charge Home Industry Power Energy with IndustryMPPT Solar Power Generator Controller System Charge Home Industry Power Energy with IndustryMPPT Solar Power Generator Controller System Charge Home Industry Power Energy with IndustryMPPT Solar Power Generator Controller System Charge Home Industry Power Energy with Industry

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
