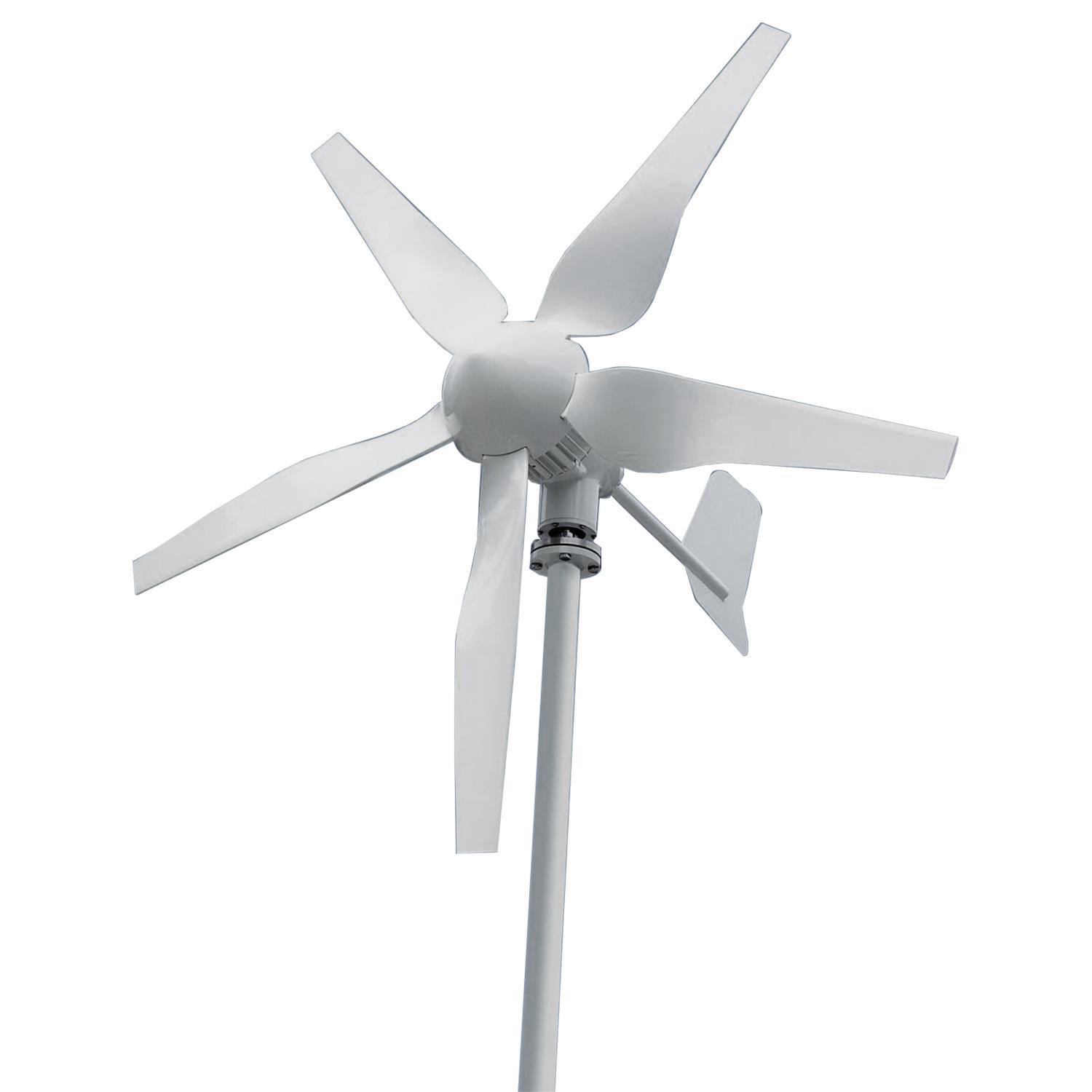

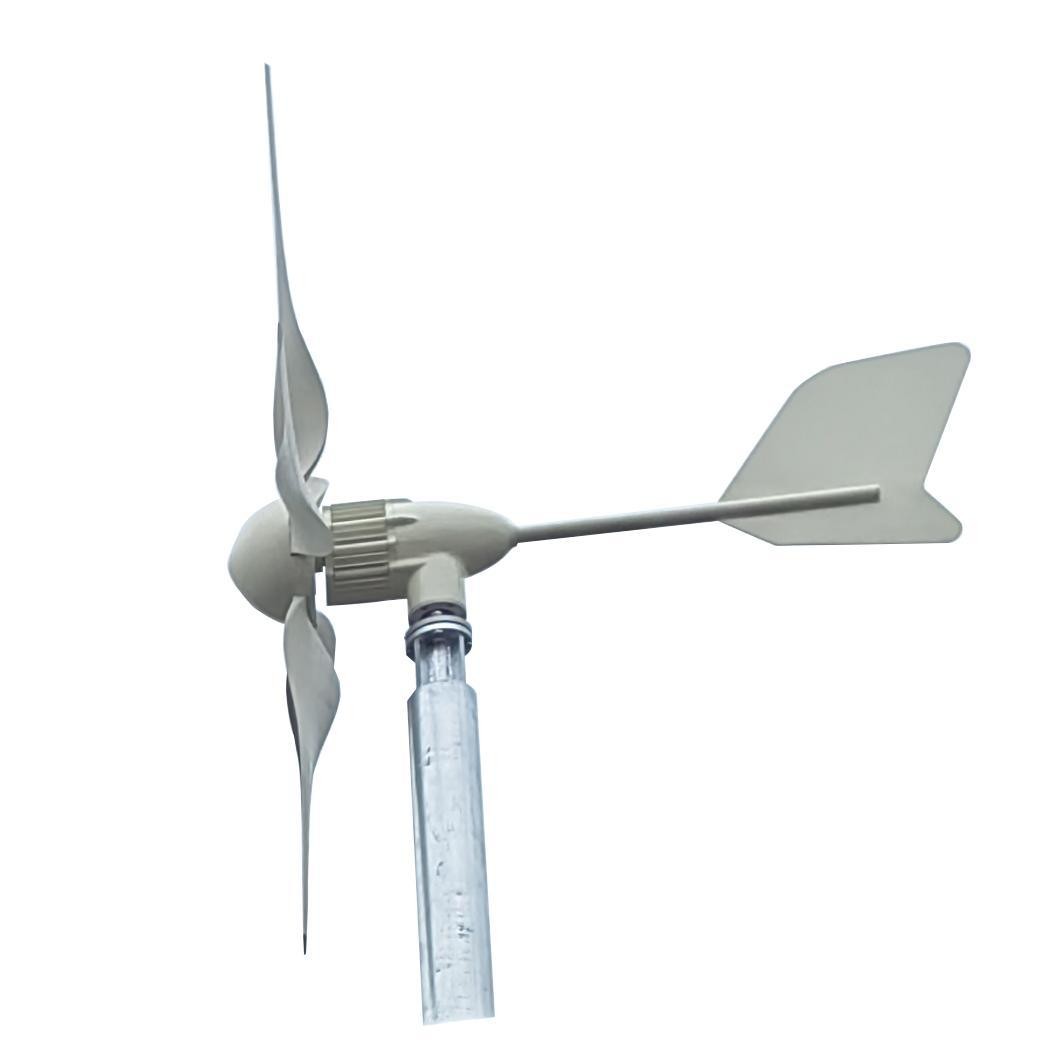

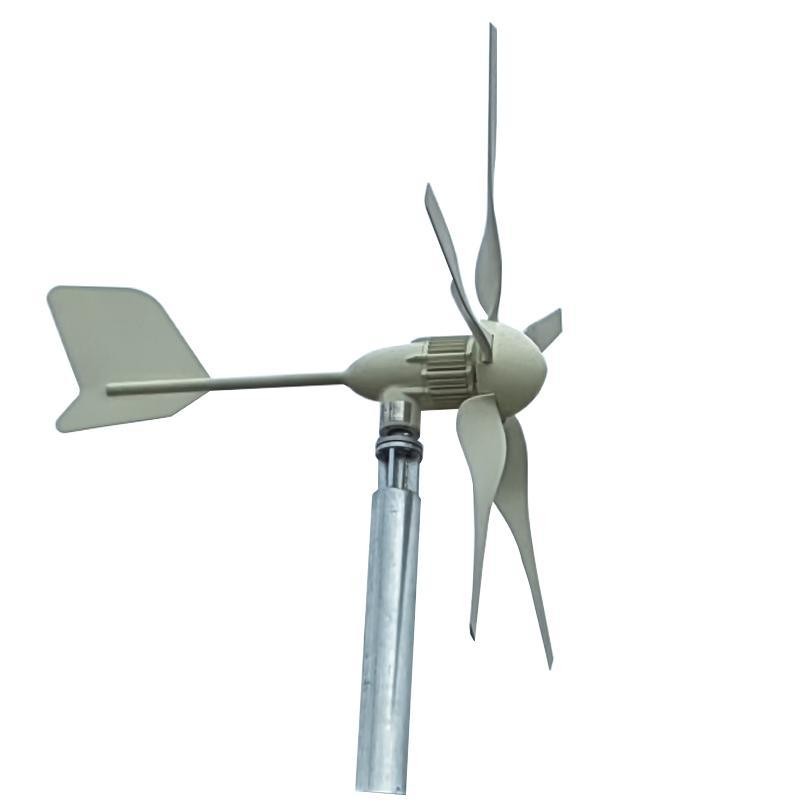

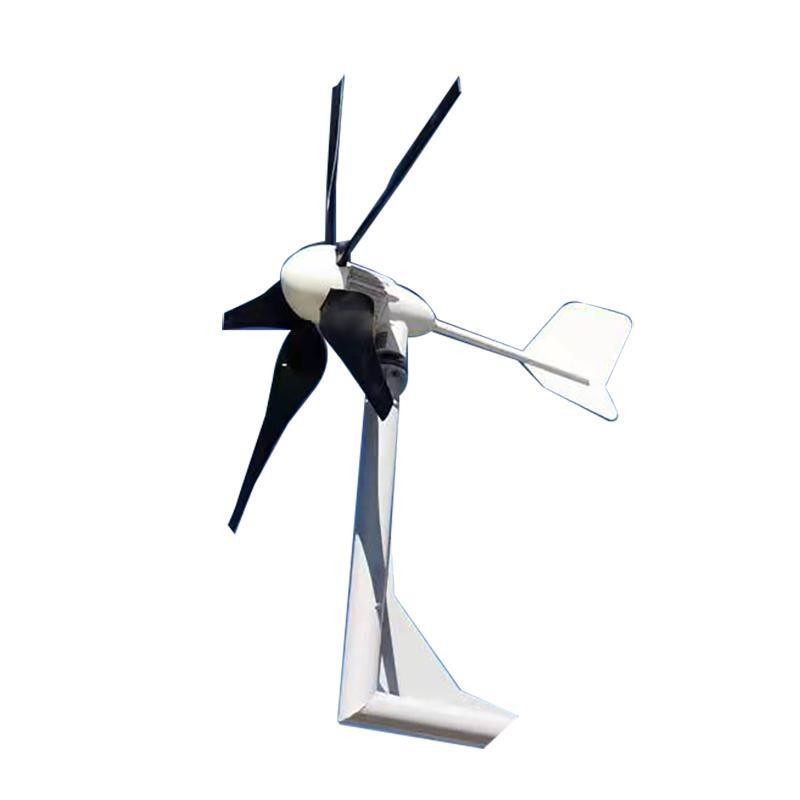

3-5 Blade Solar Wind Turbine Horizontal Wind Turbine For Home

  • 3-5 Blade Solar Wind Turbine Horizontal Wind Turbine For Home
  • 3-5 Blade Solar Wind Turbine Horizontal Wind Turbine For Home
  • 3-5 Blade Solar Wind Turbine Horizontal Wind Turbine For Home
  • 3-5 Blade Solar Wind Turbine Horizontal Wind Turbine For Home
  • 3-5 Blade Solar Wind Turbine Horizontal Wind Turbine For Home
Brand Name Htonetech
Certification CE
Model Number HT-300

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. HT-300 Number Of Blade 3-5
Rotating Shaft Horizontal Stress Way Of Blade Lift Force
Power 300W Phase Single-Phase
Braking Mode Electromagnetism Operating Temperature -40ºC~80ºC
Wind Direction Adjustment Automatic Adjustment Of Windward Angle Control System Resistance Unloading+Automatic Adjustment Of Windw
Gernator Housing Material Die-Cast Aluminum Gernator Type Three Phase Pma
Specification 482x605x267mm After-sales Service Yes
Warranty 5year Output Type DC
High Light

5 Blade Solar Wind Turbine

,

3 Blade Solar Wind Turbine

,

Solar Horizontal Wind Turbine For Home
Leave a Message
Product Description

Wind Turbine Horizontal Axis Home Power Generation Combination Solar System Generator Small Wind Power



Product Description:



Features Of Solar Wind Turbine :



  • Dual energy source: The system combines both wind and solar energy to generate electricity, providing a reliable and efficient source of power.
  • Horizontal axis wind turbine: The wind turbine is designed to operate in low to moderate wind speeds, making it suitable for a wide range of locations.
  • Solar panel array: The solar panels generate electricity during daylight hours, complementing the wind turbine's energy production.
  • Battery storage: The energy generated by the wind turbine and solar panels is stored in a battery bank for later use, ensuring a continuous supply of power.
  • Easy installation: The system is designed for easy installation and can be installed by a qualified technician.



Applications Of Solar Wind Turbine :

  • Residential homes: The system is ideal for homeowners who want to generate their own power, reduce their energy bills, and become more self-sufficient.
  • Farms: The system can be used to power farm operations, such as irrigation systems, animal feeders, and lighting.
  • Remote locations: The system is ideal for remote locations where grid power is not available, such as cabins, cottages, and off-grid homes.
  • Small-scale commercial operations: The system can be used to power small-scale commercial operations, such as campgrounds, small businesses, and outdoor events.
  • Emergency backup power: The system can be used as an emergency backup power source during power outages or natural disasters.



Wind Turbine Horizontal Axis Home Power Generation Combination Solar System Generator Small Wind Power Generation EquipmentWind Turbine Horizontal Axis Home Power Generation Combination Solar System Generator Small Wind Power Generation Equipment

Specification Of Wind Turbine:

  Wind Turbine
Type HT-300 HT-400 HT-500 HT-600 HT-1000 HT-1500 HT-3000 HT-5000
Rated Power 300W 400W 500W 600W 1000W 1500W 3000W 5000W
Max Power 320W 410W 510W 610W 1200W 1800W 3500W 5200W
Rated Voltage 12V/24V 12V/24V 24V/48v 24V/48v 24v48V110V 24/48/120V 48/110/220 200/240/400V
start-up wind speed  2.0m/s 2.0m/s 2.5m/s 2.5m/s 2.5m/s 2.5m/s 2.5m/s 2.5m/s
Rated wind speed 11m/s 11.5m/s 12m/s 12m/s 12m/s 12m/s 12m/s 11m/s
survival wind speed 50m/s 50m/s 45m/s 45m/s 50M/S 50m/s 50m/s 60m/s
Net weight 9.2kg 9.2kg 9.8kg 10.2kg 27.5kg 35kg 70kg 400kg
Rotar Diameter 1.35m 1.35m 1.55m 1.55m 1.95m 2.0m 3.0m 5.6m
Blade quantity 3/5piece
Blade material Nylon fiber Reinforced glass fiber
Gernator type three phase PMA
control system Resistance unloading+automatic adjustment of windward angle
Gernator housing material Die-cast aluminum
Braking mode Electromagnetism
Wind direction adjustment automatic adjustment of windward angle
operating temperature  -40ºC~80ºC



ABOUT US:

Huatong Yuanhang (Beijing) Technology Development Co., Ltd.

Is a high-tech certified enterprise established in 2008, located in Beijing Zhongguancun Jinqiao Science and Technology Industrial Park. By insisting on the development idea of combining low-carbon, wisdom and technology, we have become the innovator of solar/wind complementary power system solutions.

Huatong Yuanhang focuses on providing high-quality power solutions for industrial customers, and its business is widely involved in the fields of army, transportation, security, petroleum, electric power, water conservancy, communication, forestry, agriculture, border defense and the three system operators of China network(Mobile, Unicom and Telecom). The solutions are widely provided to many countries in Latin America, Africa and Southeast Asia.

Huatong Yuanhang provides off-grid power supply systems for domestic and foreign provinces and cities without electricity through wind and solar complementary power supply systems, solar power supply systems, small and medium-sized photovoltaic power plants and distributed photovoltaic products.



FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
