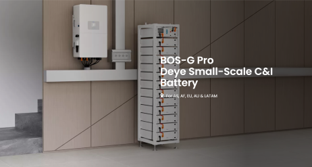

30KW 50KWH ESS High Voltage Three Phase Hybrid Solar Energy Storage System

Large Image : 30KW 50KWH ESS High Voltage Three Phase Hybrid Solar Energy Storage System

Product Details:

Place of Origin:	CHINA
Brand Name:	DEYE
Model Number:	30KW/50KWH ESS BOS-G Pro 50 SUN-30K-SG02HP3-EU-AM3/BOS-G-Pack5.1 /BOS-G-PDU-2/3U-HRACK

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	USD 11900
Delivery Time:	45-90 workdays
Payment Terms:	T/T

Contact Now chat now

Detailed Product Description

Start-up Voltage:

180 V

Rated PV Voltage:

600 V

Max Input Current:

36A + 36A + 36A

Max Short-Circuit Current:

54A + 54A + 54A

Highlight:

30KW solar energy storage system

50KWH solar energy storage system

Hybrid solar battery storage system

DEYE 30KW/50KWH ESS BOS-G Pro 50 SUN-30K-SG02HP3-EU-AM3/BOS-G-Pack5.1 /BOS-G-PDU-2/3U-HRACK

Product Description

The DEYE 30KW / 50KWH ESS BOS-G Pro is a high-voltage three-phase hybrid solar energy storage system designed for commercial and industrial applications. It combines a 30KW hybrid inverter with a modular lithium iron phosphate (LiFePO4) battery storage system, delivering efficient energy conversion, intelligent management, and reliable backup power.

The system supports advanced PV input configurations, high-voltage battery integration (160–700V), and scalable rack-mounted battery modules, making it suitable for grid-tied, off-grid, and hybrid energy storage projects.

Product System Composition

Hybrid Inverter: SUN-30K-SG02HP3-EU-AM3
Battery System: BOS-G Pro 5.12kWh LiFePO4 Modules
Battery Pack Options: BOS-G25 / G40 / G60 / G80 Pro
Battery Cluster Control Box (HV Rack System)
19-inch Rack Installation System
Optional Wi-Fi / GPRS / 4G Monitoring System

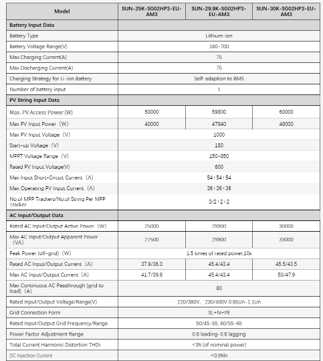

Hybrid Inverter Specifications (SUN-30K-SG02HP3-EU-AM3)

PV Input Data

Item	Specification
Max PV Input Power	48,000 W
Max PV Access Power	60,000 W
Max PV Input Voltage	1000 V
MPPT Voltage Range	150–850 V
Start-up Voltage	180 V
Rated PV Voltage	600 V
MPPT Trackers	3
Strings per Tracker	2+2+2
Max Input Current	36A + 36A + 36A
Max Short-Circuit Current	54A + 54A + 54A

AC Output Data

Item	Specification
Rated Power	30 kW
Max Apparent Power	33 kVA
Peak Power	1.5× rated power (10s)
Grid Voltage	220/380V, 230/400V
Frequency Range	50Hz (45–55Hz) / 60Hz (55–65Hz)
Max Continuous Current	80A
Efficiency	Up to 98.5%

Battery Input Data

Item	Specification
Battery Type	Lithium-ion (LiFePO₄ compatible)
Voltage Range	160–700V
Max Charge Current	75A
Max Discharge Current	75A
BMS Communication	Self-adaptive

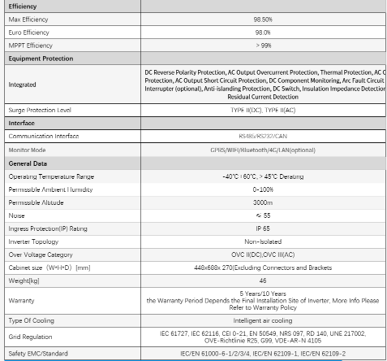

Protection & Features

DC Reverse Polarity Protection
Overcurrent / Overvoltage / Short Circuit Protection
Arc Fault Protection (optional)
Anti-islanding Protection
Surge Protection Type II (AC/DC)
Intelligent Air Cooling
IP65 Protection Rating
Efficiency up to 98.5%
RS485 / CAN / RS232 Communication
Wi-Fi / 4G / LAN Monitoring (optional)

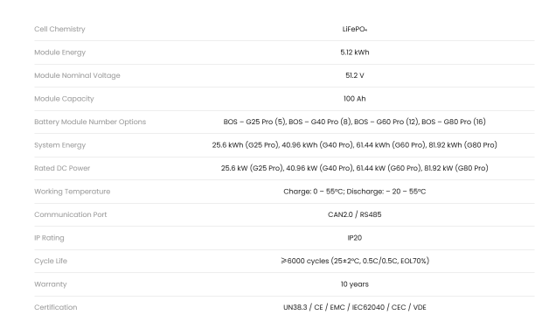

BOS-G Pro Battery System Specifications

Battery Module (5.12kWh)

Item	Specification
Chemistry	LiFePO₄
Module Energy	5.12 kWh
Nominal Voltage	51.2V
Capacity	100Ah
Cycle Life	≥6000 cycles
Communication	CAN2.0 / RS485
IP Rating	IP20
Warranty	10 Years

System Configuration Options

Model	Battery Modules	Total Energy	Rated Power
G25 Pro	5 modules	25.6 kWh	25.6 kW
G40 Pro	8 modules	40.96 kWh	40.96 kW
G60 Pro	12 modules	61.44 kWh	61.44 kW
G80 Pro	16 modules	81.92 kWh	81.92 kW

Battery System Features

Modular Rack-Mounted Design (19-inch Standard Rack)
High Voltage Scalable Architecture
Intelligent BMS with CAN/RS485 Communication
Long Cycle Life ≥6000 Cycles
High Safety LiFePO4 Chemistry
Compatible with DEYE Hybrid Inverters
Stable Performance for Industrial Applications
Easy Expansion and Maintenance

System Features

Integrated 30KW Three-Phase Hybrid Solar Solution
High-Efficiency Energy Conversion (Up to 98.5%)
Scalable Energy Storage Up to 81.92kWh
Smart Energy Management System (EMS Ready)
Wide PV Input Range for Flexible Solar Design
Grid-Tied and Off-Grid Operation Capability
Intelligent Cooling and High Protection Design
Remote Monitoring via Wi-Fi / 4G / LAN
Industrial-Grade Reliability for Long-Term Operation
