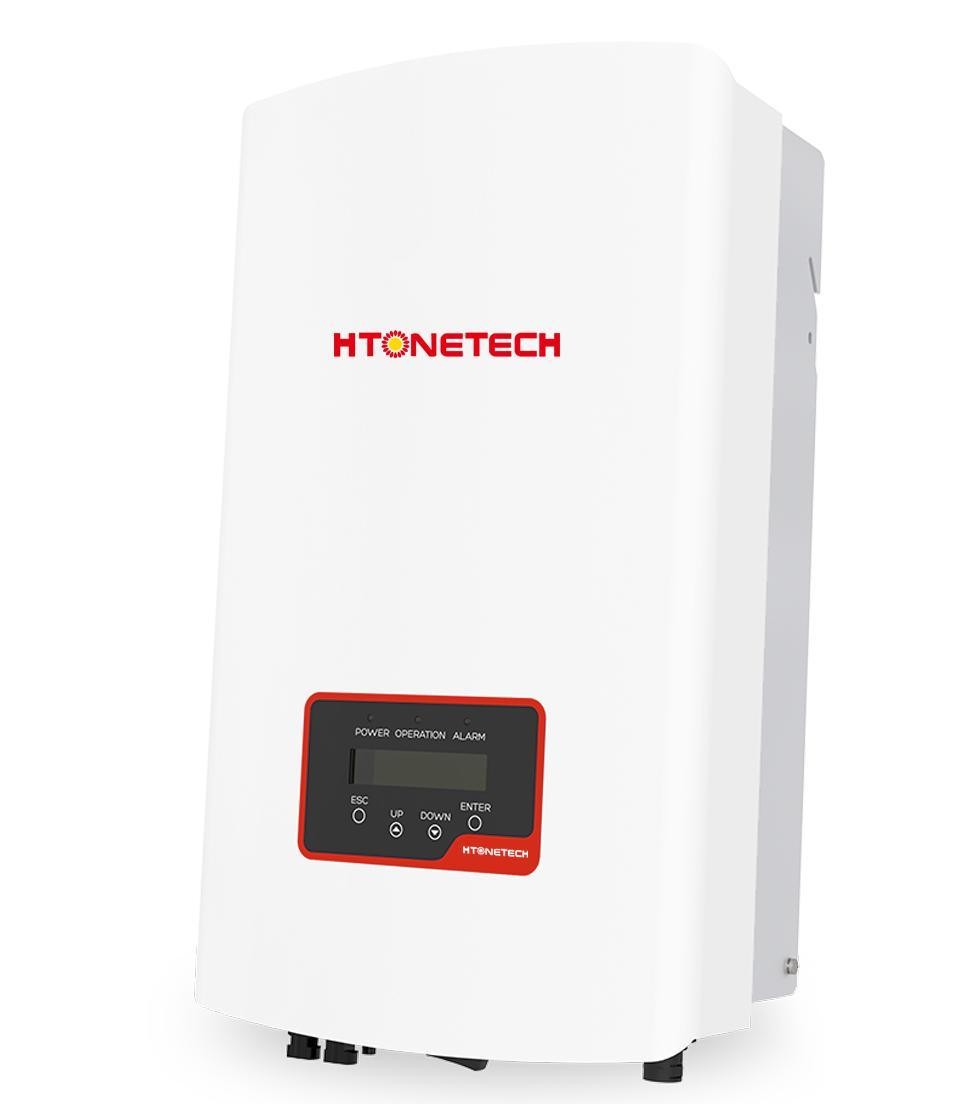

Grid Tied MPPT Solar Inverter For 5K Household Rooftop ISO

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Application Home, Industrial, Commercial
Specification Normal, 270W*433H*105D(mm) The Working Environment Humidity En61000-6-1:2007: En61000-6-3:2007
Safety Gauge / EMC Standard IEC62109-1 / -2: As3100; Nb / T32004 Grid-Connected Standards En50438,G83/2as4777VDE0126-1-11ec61727,Nb/T320040~
Design Working Year > 20 Years Display Screen LCD, 2X20z
Communication Interface RS485.WiFi/GPRS (Optional) AC Port IP67 Protection Class Connector
DC Port Original Factory Mc4 Supporting Terminal Noise (Typical) <30 Dba
Protection Level IP65 The Highest Working Elevation 4000 Meters
Cooling Way Natural Convection Topology Without A Transformer
The Working Environment Temperature 25c~60c Self Consumption <1W (Night)
Transport Package Wooden Box Trademark Htonetech
Origin China Shipping Cost To Be Negotiated| Freight Cost Calculator
After-sales Service Yes Warranty 3year
Condition New
High Light

Grid Tied MPPT Solar Inverter

,

MPPT Solar Inverter 5K

,

mpp solar inverter Household Rooftop

Leave a Message
Product Description

Grid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected

Product Description

Grid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected Inverters and off Grid Solar Power Generation SystemsGrid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected Inverters and off Grid Solar Power Generation Systems

MODEL HT-M700 HT-M1000 HT-M1500 HT-M2000 HT-M2500 HT-3K-2G-ST HT-3.6K-2G-ST HT-5K-2G HT-10K HT-15K HT-20K-HV HT-40K-HV
New energy power generation mode   photovoltaic power generation
input
Max input power  900 watt 1.2KW 1.8KW 2.4KW 3.0KW 3.5KW 4.2kw 5.8kw 11.5kw 16.5kw 20kw 45kw
Maximum input voltage   450V 500v 500v 600V 1000v
starting voltage       60V 600V 330v 350v
The MPPT voltage range  50-400V 100-500V 200-800v
Maximum input current  10A 18A 15A+15A 18A+18A 18A+18A+18A+18A
Quaintity of MPP / maximum input path  1/1 1/2 2/2 2/4 4/8
output
Rated output power  0.7kw 1KW 1.5KW 2KW 2.5KW 3KW 3.6kw 5kw 10kw 15kw 20kw 40kw
Max output power  0.8kW 1.1KW 1.65KW 2.2KW 2.5KW 3.3KW 4kw 5kw 11kw 15kw 20kw 40kw
Rated power grid voltage  220 / 230V 380v/400v 480v 480v
Grid voltage range from  180 to 270 V (adjustable) 313-470v(adjustable) 384-576v(adjustable)
Rated power grid frequency  50 / 60Hz
Grid phase single-phase three-phase
Maximum output current   4.4A 6.1A 9.2A 12.2A 13.9A 15.7A 16A 23.8A 16.7A 25A 25A 48.1A
Output power factor  0.8 ahead...0.8 lag
Maximum measured flow harmonic  TotalTHD <3%
The DC component value of the power grid   <20 mA
Operating frequency range of  47-52Hz or 57-62Hz (adjustable)
Operating frequency range of  47-52Hz or 57-62Hz (adjustable)
The maximum efficiency  96.70% 97.50% 97.80% 98.30% 98.60%
The European efficiency  96.20% 96.80% 97% 97.50% 98.30%
The MPPT efficiency was  99.90%
Protection
DC backconnection protection YES
Communication short circuit protection YES
AC-output overcurrent protection YES
Output overvoltage protection YES
Protection of insulation impedance YES
Residual current (RCD) detection YES
surge protection YES
Grid-connected monitoring YES
Island protection YES
Temperature protection YES
The Integrated DC switch selectable
Basic parameter
Size  270W*433H*105D(mm) 339W*585H*172.5D(mm) 430W*613H*269D(mm) 530W*700H*356.5D(mm)
Weight            5.2kg 13.8KG 30kg 58.2kg
Grid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected Inverters and off Grid Solar Power Generation SystemsGrid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected Inverters and off Grid Solar Power Generation SystemsGrid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected Inverters and off Grid Solar Power Generation SystemsGrid-Tied Inverter Price Discount for 5K Household Rooftop Photovoltaic Products Used in Grid Connected Inverters and off Grid Solar Power Generation Systems

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
