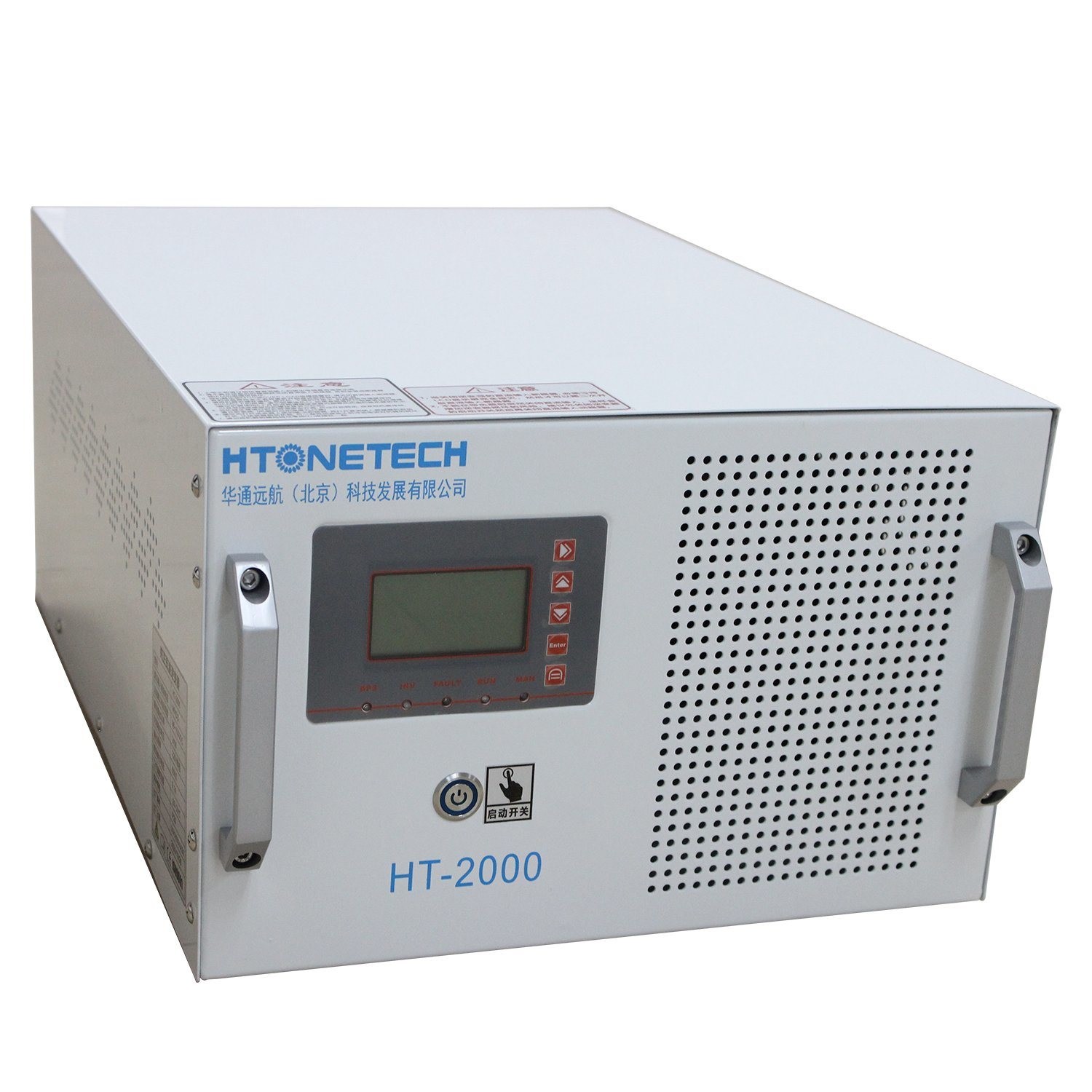

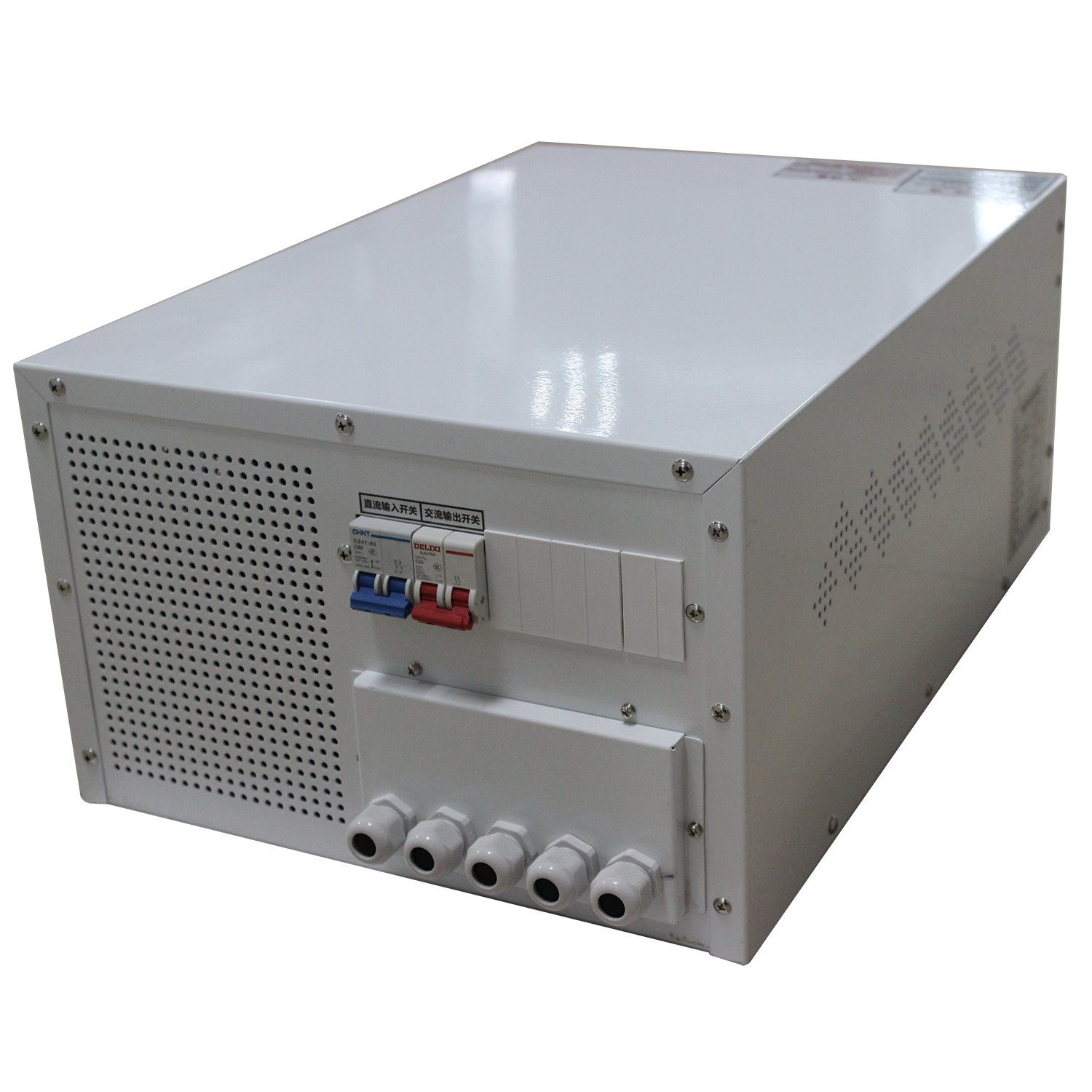

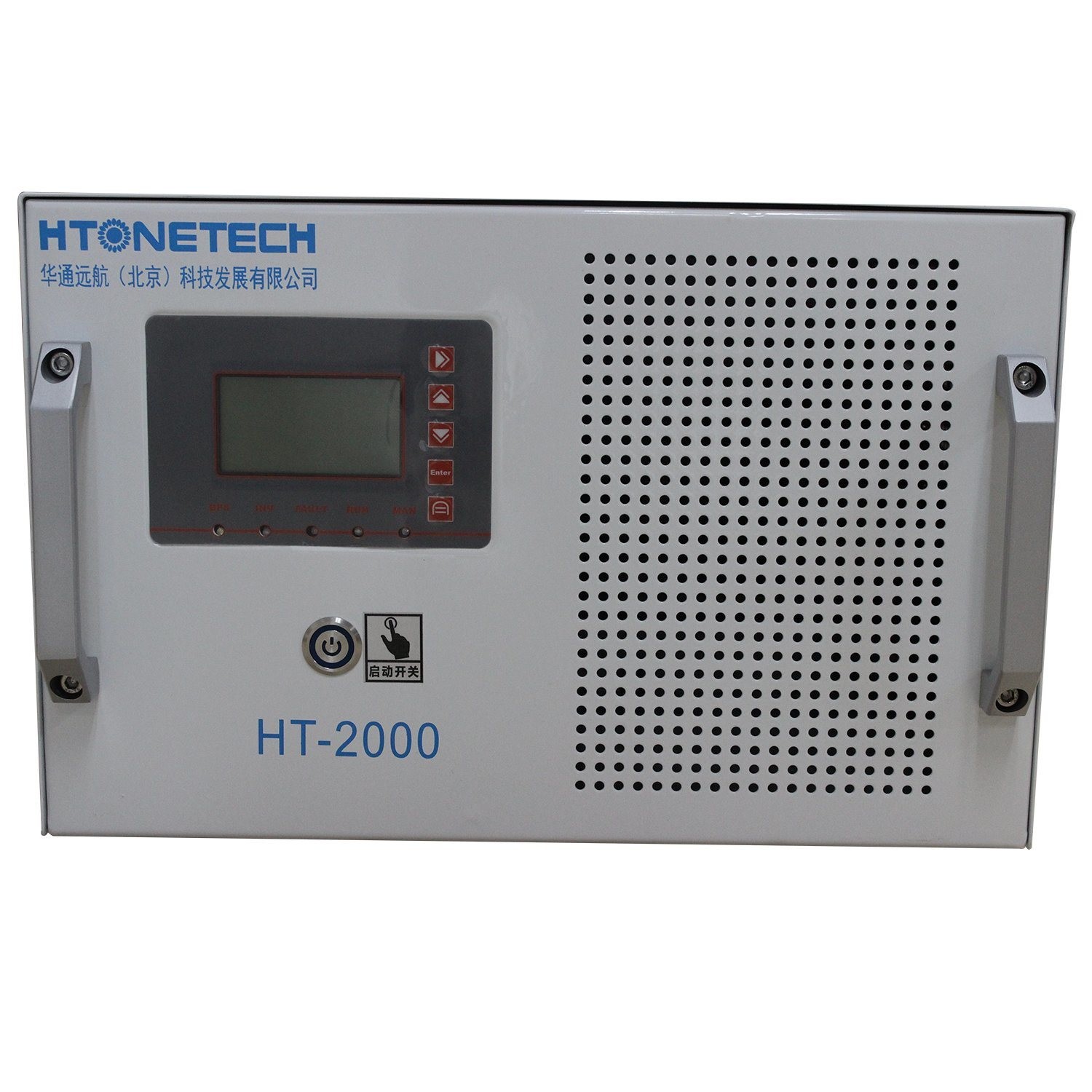

3kw MPPT Solar Inverter Three Phase Mppt Hybrid Inverter Low Frequency
| Certification | CE, ISO9001 |
|---|
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HT-SDP3KW | Phase | Three |
|---|---|---|---|
| Output Power | 3000W | Brand | Htonetech |
| Type | DC/AC Inverters | Power Source | Solar Power |
| Nature Of Wave String | Square Wave Inverter | Overload Ability | 150%,10s |
| Display | LCD+LED | Electrical Insulation Properties | 2000VAC,1 Minute |
| Degree Of Protection | IP20 (Indoor) | Working Altitude ( M) | ≤3000m |
| Communication Interface | RS485 (Optional) | Dynamic Response Time | 5%, S50ms |
| Inverter Efficiency | >90% | Power Factor (PF) | 0.99 |
| Output Frequency | 50Hz +0.05 (Can Be Set 60Hz) | Wavefor Distortion Rate (Thd) | Linear Loads2% |
| Waveform | Pure Sine Wave | Transport Package | Wooden Box |
| Specification | 482x605x267mm | Trademark | Htonetech |
| Origin | China | Supply Ability | 50000pieces/Year |
| Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
| Warranty | 3year | Nature Of Source Flow | Active Inverter |
| Highlight | 3kw MPPT Solar Inverter,MPPT Solar Inverter Three Phase,Mppt Hybrid Inverter Low Frequency |
||
Product Description
off Grid Inverter 3kw DC AC Solar System Low Frequency Solars off Grid Inverter Three Phase
Product Description
| Model | HT-SDP5KW | HT-SDP3KW |
| lsolation mode | Low Frequency Transformer | |
| Dc Input | ||
| Rated voltage (Vdc) | 48Vdc | |
| Rated current (A) | 104A | 62.5A |
| Input voltage range (Vdc) | 43-100V | |
| AC Output | ||
| Rated power (KW) | 5KW | 3KW |
| Rated voltage | 220V+3% | |
| Number of phases | Single phase | |
| Rated current (A) | 23A | 13.7A |
| Output frequency | 50Hz +0.05 (Can be set 60Hz) | |
| waveform | Pure sine wave | |
| Wavefor distortion rate (THD) | Linear loads2% | |
| Dynamic Response time | 5%, s50ms | |
| Power Factor (PF) | 0.99 | |
| Inverter Efficiency | >90% | |
| Electrical insulation properties | 2000Vac,1 Minute | |
| Protection Function | ||
| Overload Ability | 150%,10s | |
| Protection | input reverse polanity. under voltage, overvoltage, output over-current, short circuit, overheating etc. | |
| Display | LCD+LED | |
| Communication interface | RS485 (optional) machine | |
| Method of working | Working continuously | |
| Cooling method | intelligent fan-cooled | |
| Short-circuit protection | No automatic recovery. need to restart the machine | |
| Working Environment 8 Mechanical dimension | ||
| Degree of protection | IP20 (indoor) | |
| Working Altitude ( m) | ≤3000m | |
| Working temperature (C) | -20~+50C | |
| Relative humidity (C) | 0-90%. No condensation | |
| Noise (1 meter) | ≤55dB | |
| Unit size: (W x D X H) | 482x605x267mm | 482x605x267mm |
| Rererence weight (Kg) | 65Kg | 52kg |
| Our company can adjust parameter configuration according to user's requirement. | ||
FAQ
1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
