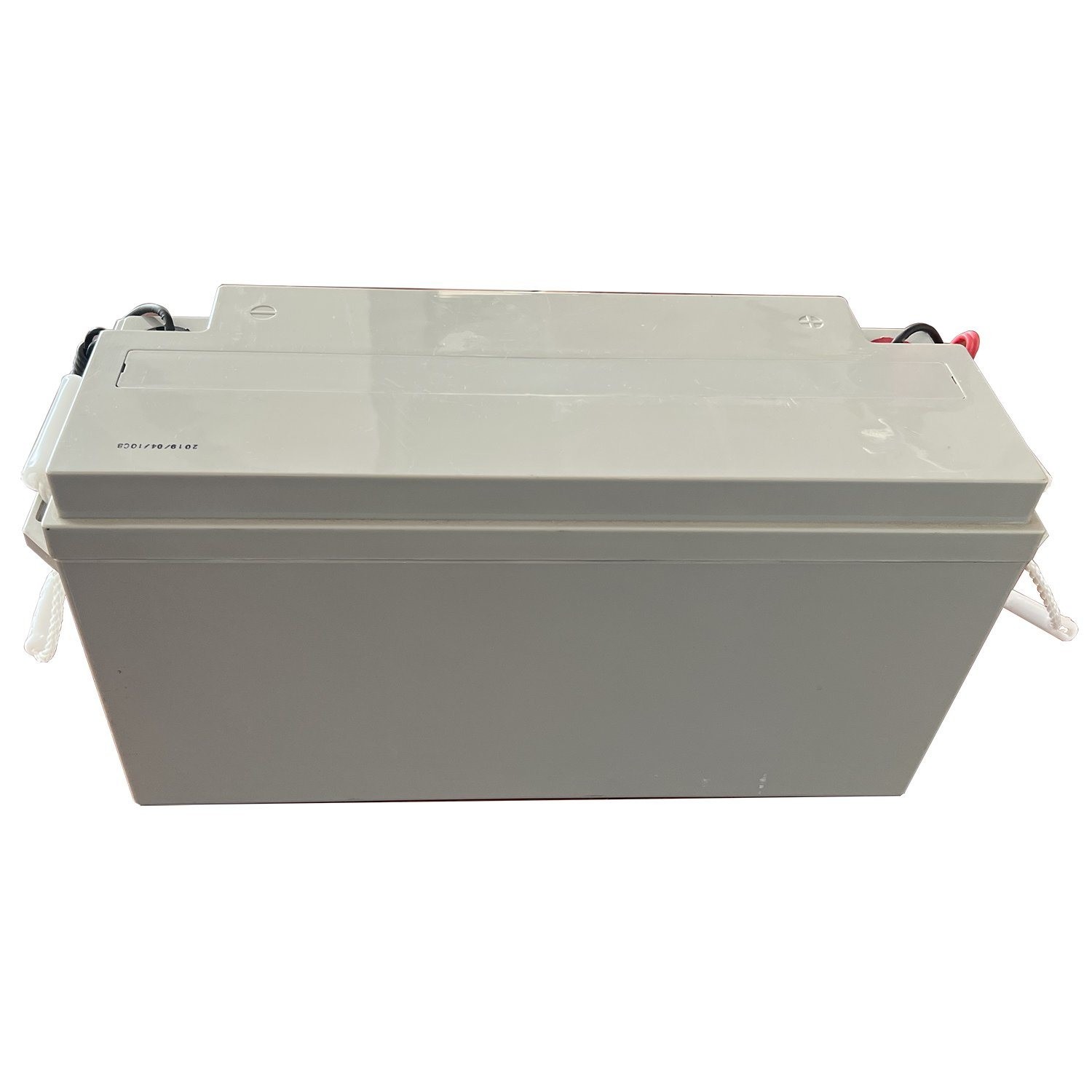

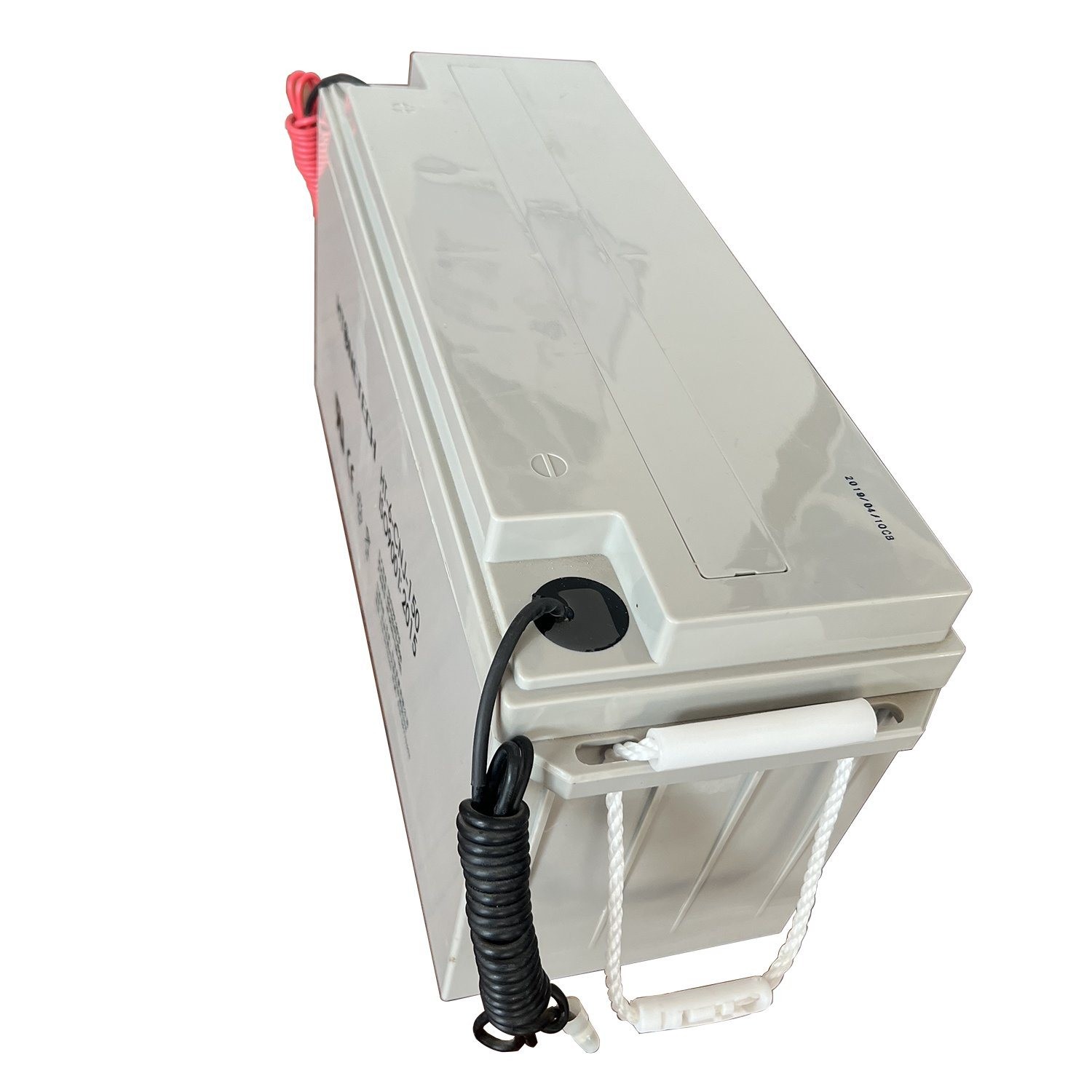

12V 150ah Front Terminal Solar Energy Storage Battery Deep Cycle Gel

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

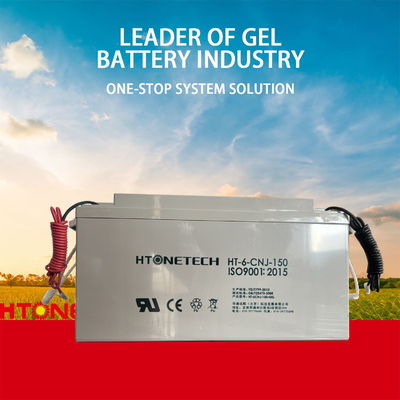

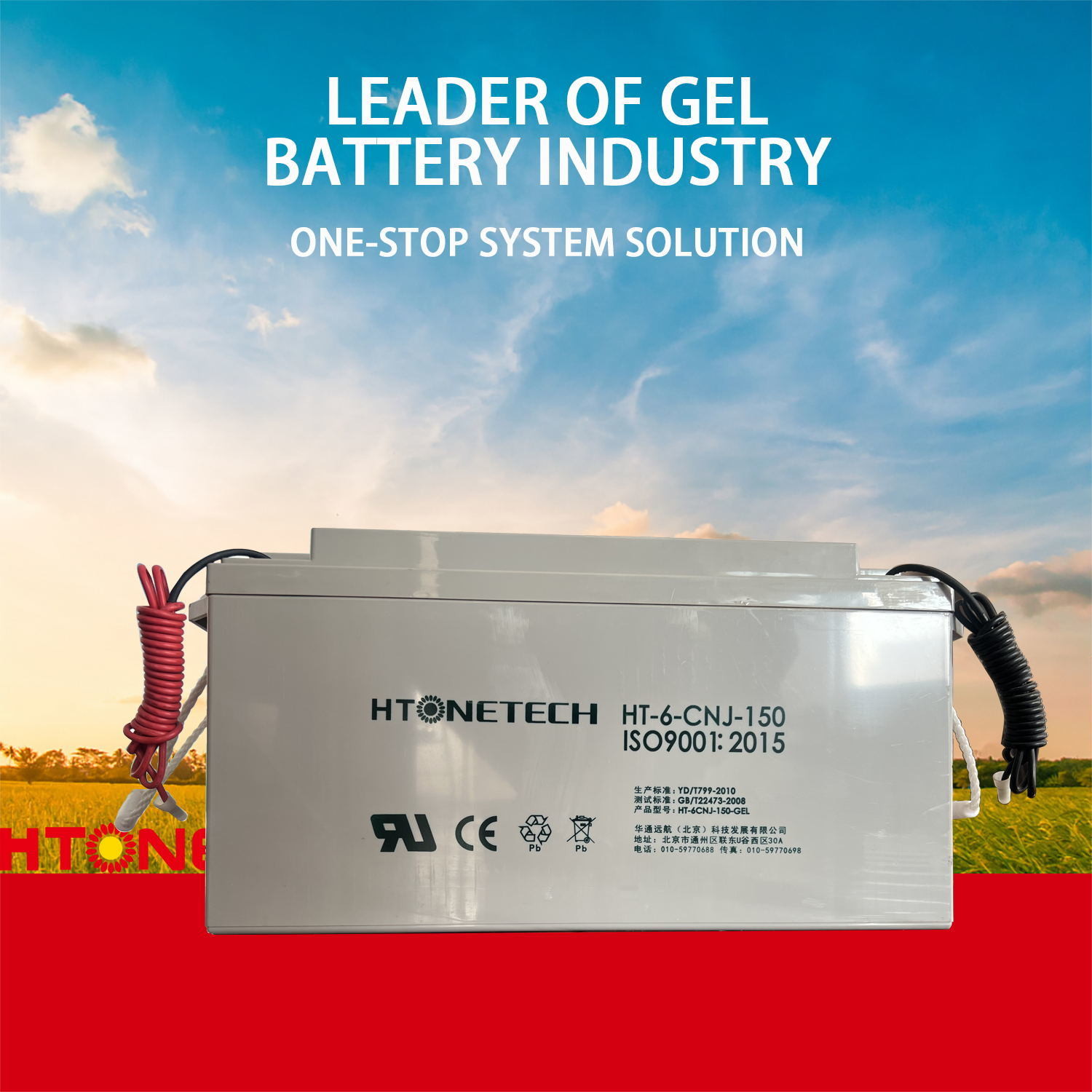

Supply Ability 50000pieces/Year Model NO. HT-6-CNJ-150
Discharge Rate Low Discharge Rate Shape Square Battery
Electrolyte Acid Installation Packaged
Rechargeable Chargeable Storage Temperature -20~40ºC
Fields Of Application Street Lights, Surveillance, UPS, Off-Grid Systems Discharge Temperature -40~50ºC
Charging Temperature -0~45ºC(Heating Plate Optional) Transport Package Wooden Box
Specification 483x170x240(mm) Trademark Htonetech
Origin China Shipping Cost To Be Negotiated| Freight Cost Calculator
Type Lead-Acid Batteries Usage Electric Power, Solar
Nominal Voltage 12V
High Light

Front Terminal Solar Energy Storage Battery

,

Solar Energy Storage Battery Deep Cycle

,

150ah deep cell gel batteries

Leave a Message
Product Description

Gel Battery Lead-Acid Storage Deep Cycle 12V 150ah Front Terminal for Solar and Data Center

Product Description

A deep cycle gel battery is a type of rechargeable battery commonly used for solar energy storage systems. It falls under the category of lead-acid batteries, but with a gel electrolyte instead of a liquid electrolyte. Deep cycle gel batteries are designed to provide long-lasting power output and withstand deep discharges repeatedly.

Here are some key points about deep cycle gel batteries for solar energy storage:

  1. Deep cycling capability: Deep cycle gel batteries are specifically designed to handle deep discharges and recharges, making them suitable for solar energy storage applications. They can be discharged to a significant extent without experiencing a significant loss of capacity or performance.
  2. Gel electrolyte: Unlike traditional flooded lead-acid batteries, deep cycle gel batteries use a gel electrolyte. This gel is created by adding a silica-based thickening agent to the electrolyte, which immobilizes it. This design offers advantages such as reduced maintenance, improved safety, and resistance to leakage even if the battery is damaged.
  3. Maintenance-free: Deep cycle gel batteries are typically maintenance-free. Since the gel electrolyte is immobilized, there is no need to add water or check electrolyte levels regularly. This makes them convenient and easy to use in solar energy storage systems.
  4. Vibration resistance: Gel batteries have a higher resistance to vibrations compared to flooded lead-acid batteries. This makes them more suitable for mobile or off-grid solar applications where the battery may be subject to movement or transportation.

Gel Cell Solar Cell Energy Storage High Capacity 2V 250ah Photovoltaic off Grid Power Generation SystemGel Cell Solar Cell Energy Storage High Capacity 2V 250ah Photovoltaic off Grid Power Generation System

12V 80A 25.5KG 6.2mΩ 20.0A -35~60ºC 329 172 214 236 ABS
100A 28.6KG 5.3mΩ 25.0A 329 172 214 236
150A 42.2KG 4.0mΩ 37.5A 483 170 240 240
200A 58.3KG 3.3mΩ 50.0A 522 240 219 244
250A 69.3KG 2.9mΩ 62.5A 520 269 220 245
2V 100Ah 5.5KG 0.85mΩ 25A 170 76 214 223
200Ah 13.3KG 0.66mΩ 50A 171 106 330 342
250Ah 16.6kg 0.56mΩ 62.5A 171 151 330 342
300Ah 18.4kg 0.46mΩ 75A 171 151 330 342
400Ah 23.6KG 0.41mΩ 100A 196 171 330 342
600Ah 35.2KG 0.31mΩ 150A 285 171 330 342
800Ah 48.2kg 0.23mΩ 200A 383 171 330 342
1000Ah 58.3kg 0.21mΩ 250A 471 171 330 342
1500Ah 84.9kg 0.17mΩ 375A 318 341 341 351
2000Ah 114.6kg 0.14mΩ 500A 433 342 341 351
2500Ah 160.8kg 0.13mΩ 625A 629 346 341 351
3000Ah 170.9kg 0.11mΩ 750A 329 346 341 351
Rated Voltage Rated Capacity Approximate Weight Internal Resistance Maximum Charge Current Ambient Temperature Length Width Height Total Height Case
Gel Cell Solar Cell Energy Storage High Capacity 2V 250ah Photovoltaic off Grid Power Generation SystemGel Cell Solar Cell Energy Storage High Capacity 2V 250ah Photovoltaic off Grid Power Generation SystemGel Cell Solar Cell Energy Storage High Capacity 2V 250ah Photovoltaic off Grid Power Generation SystemGel Cell Solar Cell Energy Storage High Capacity 2V 250ah Photovoltaic off Grid Power Generation System

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
