200Ah 250Ah Solar Lithium Iron Phosphate Battery 350mAh 1300mAh 650mAh
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Solar Gel Battery | Discharge Rate | Low Discharge Rate |
|---|---|---|---|
| Shape | Square Battery | Electrolyte | Alkaline |
| Installation | Packaged | Rechargeable | Chargeable |
| Battery Type | Gel / AGM Lead Acid | Battery | Sealed Rechargeable Battery |
| Rated Voltage | 1000 DVC | Voltage | 12V- 24V |
| Application | RV/Boat/Solar System/Energy Storage/Solar Storage. | OEM Order | Yes(Accepted) |
| Voltage Class | 2V/6V/12V | Power Source | Car, Gas Generator, Solar Panel, Other |
| Inverter Type | Pure Sine Wave | Material | Gel 13-% And Lead Acid 87% |
| Controller Type | MPPT | Capacity | 100ah 200ah 250ah |
| Keywords | Lead-Acid Gel Battery | Other Name | Lead Acid Battery |
| Product Name | Solar Gel Battery | Transport Package | Standard Shipping Package Or Customized |
| Specification | Standard Specification Or Customized | Trademark | HTONETECH |
| Origin | Beijing, China | Supply Ability | 500000 Pieces Per Month |
| Shipping Cost | To Be Negotiated| Freight Cost Calculator | Type | Lead-Acid Batteries |
| Usage | Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat | Nominal Voltage | 12V |
| Samples | US$ 200/Piece 1 Piece(Min.Order) | | ||
| High Light | 250Ah Solar Lithium Iron Phosphate Battery,Solar Lithium Iron Phosphate Battery 350mAh,lithium iron phosphate battery 1300mAh solar |
||
Product Description
Product Description

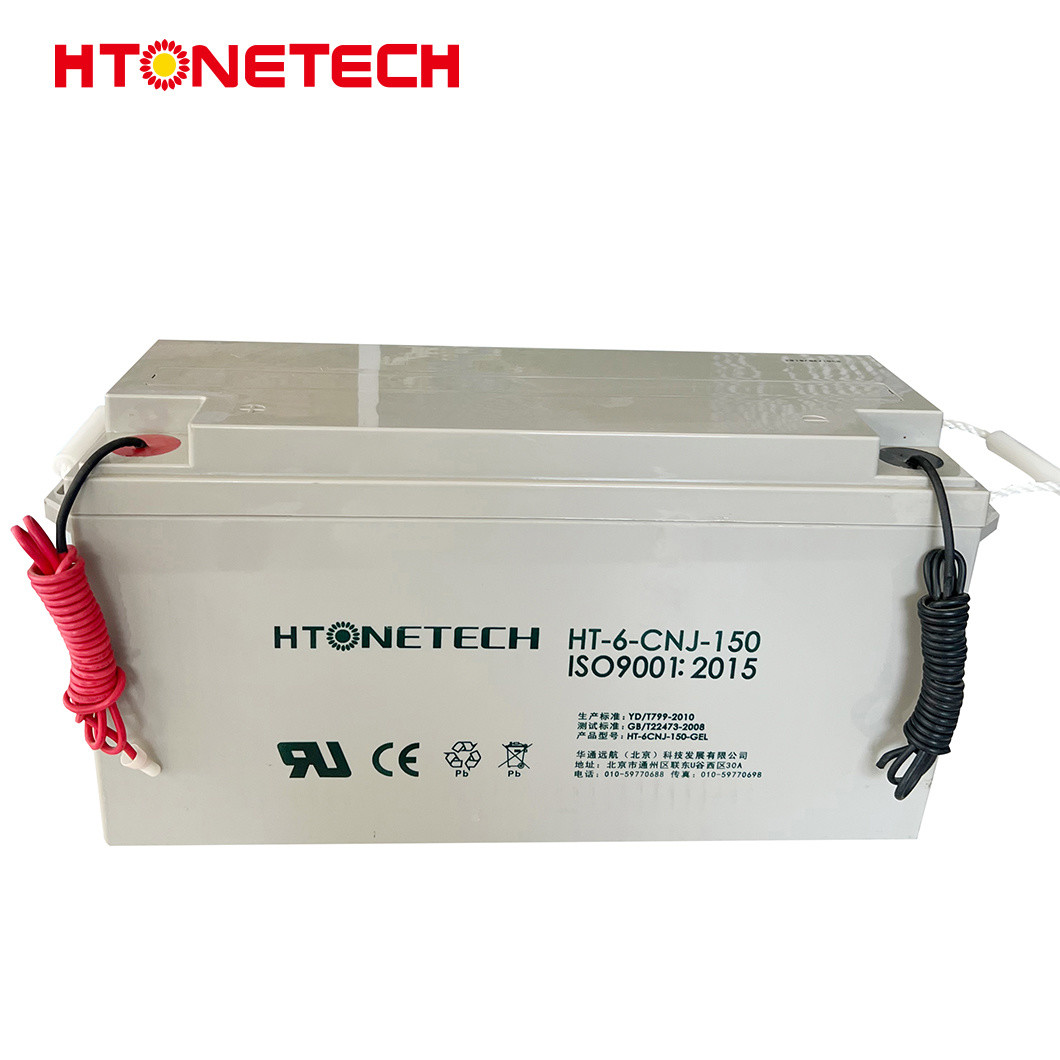

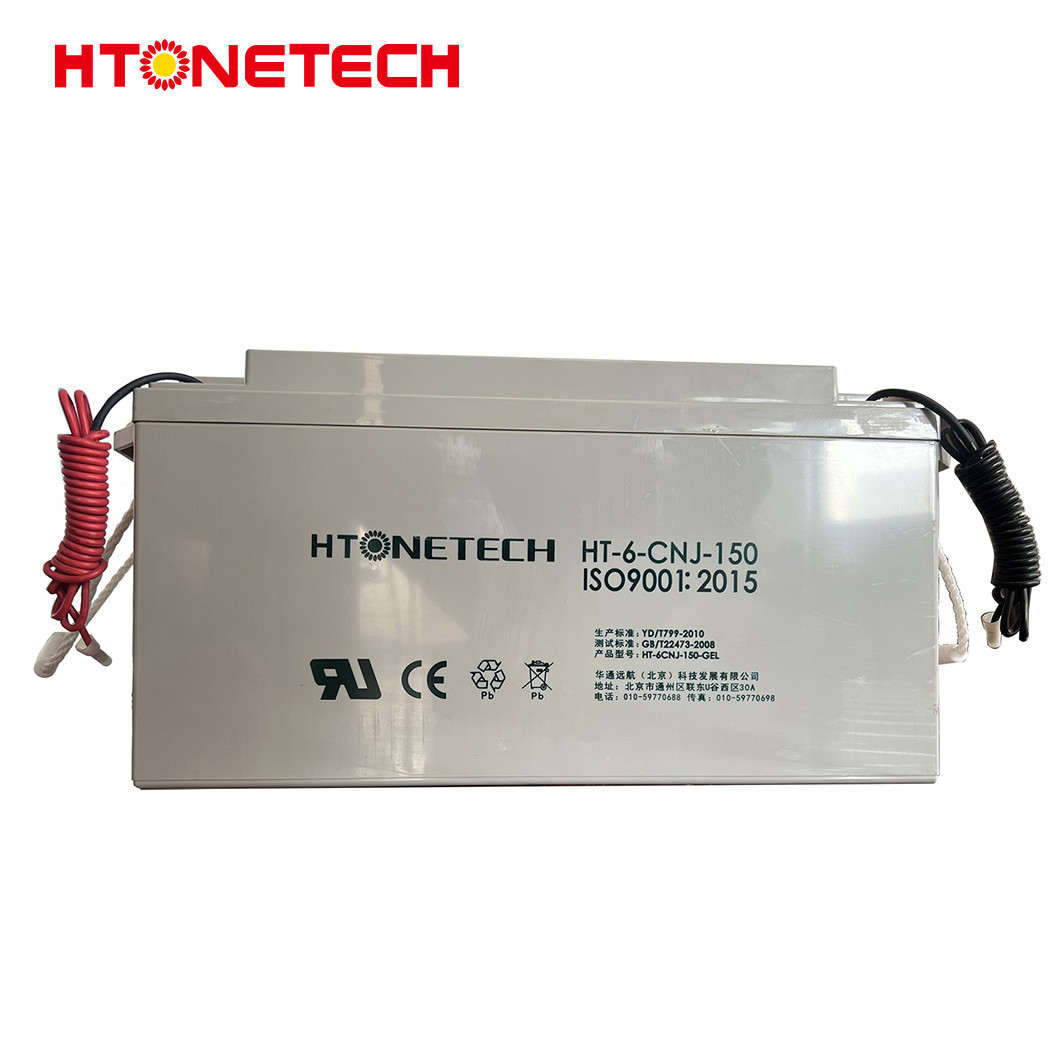

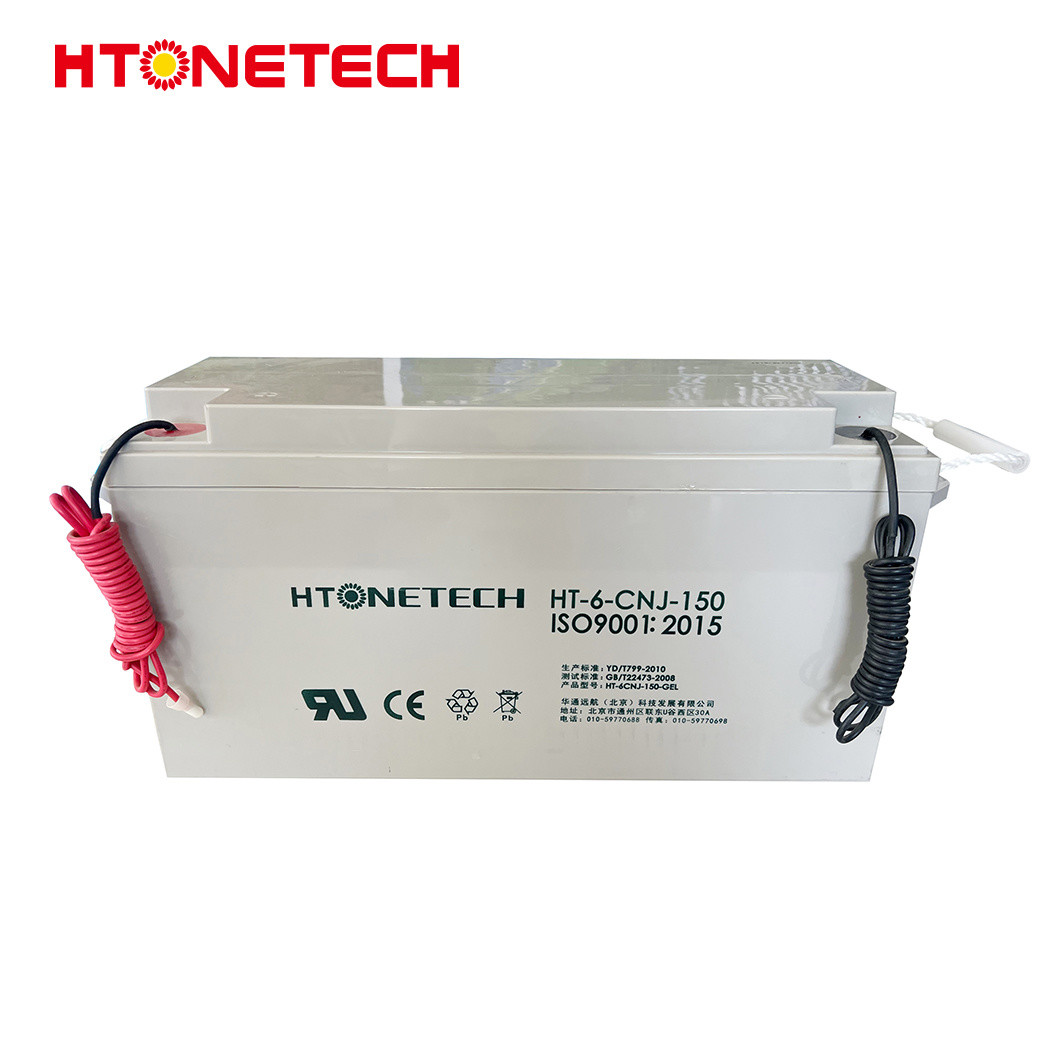

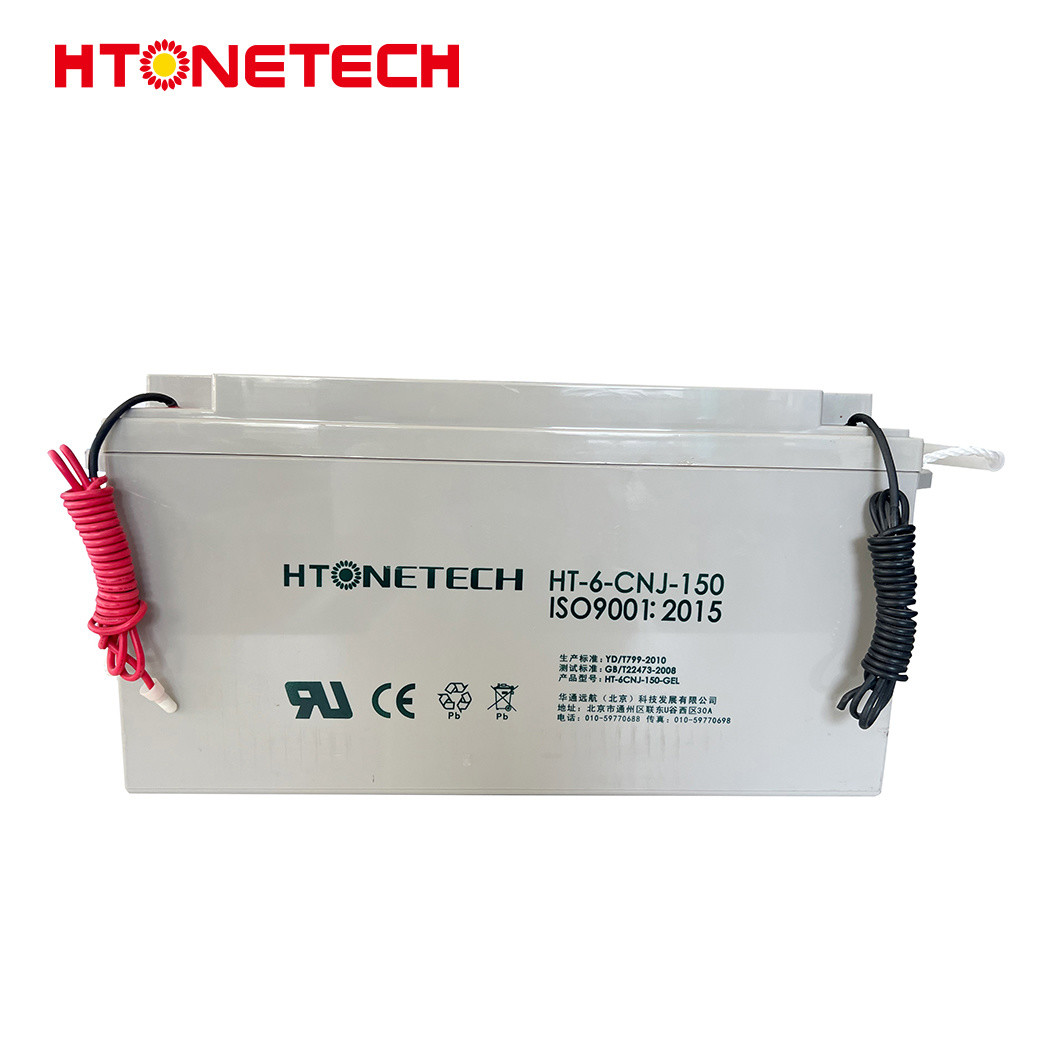

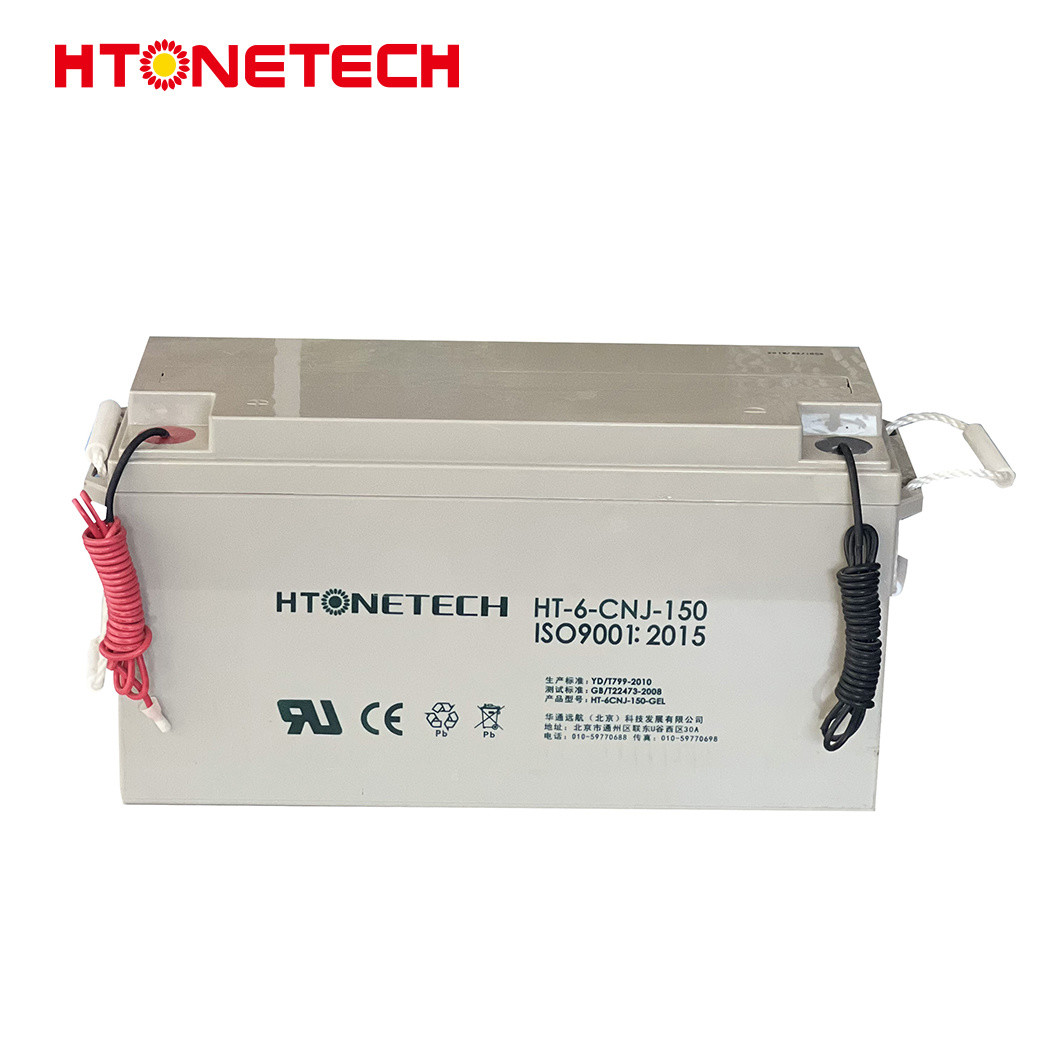

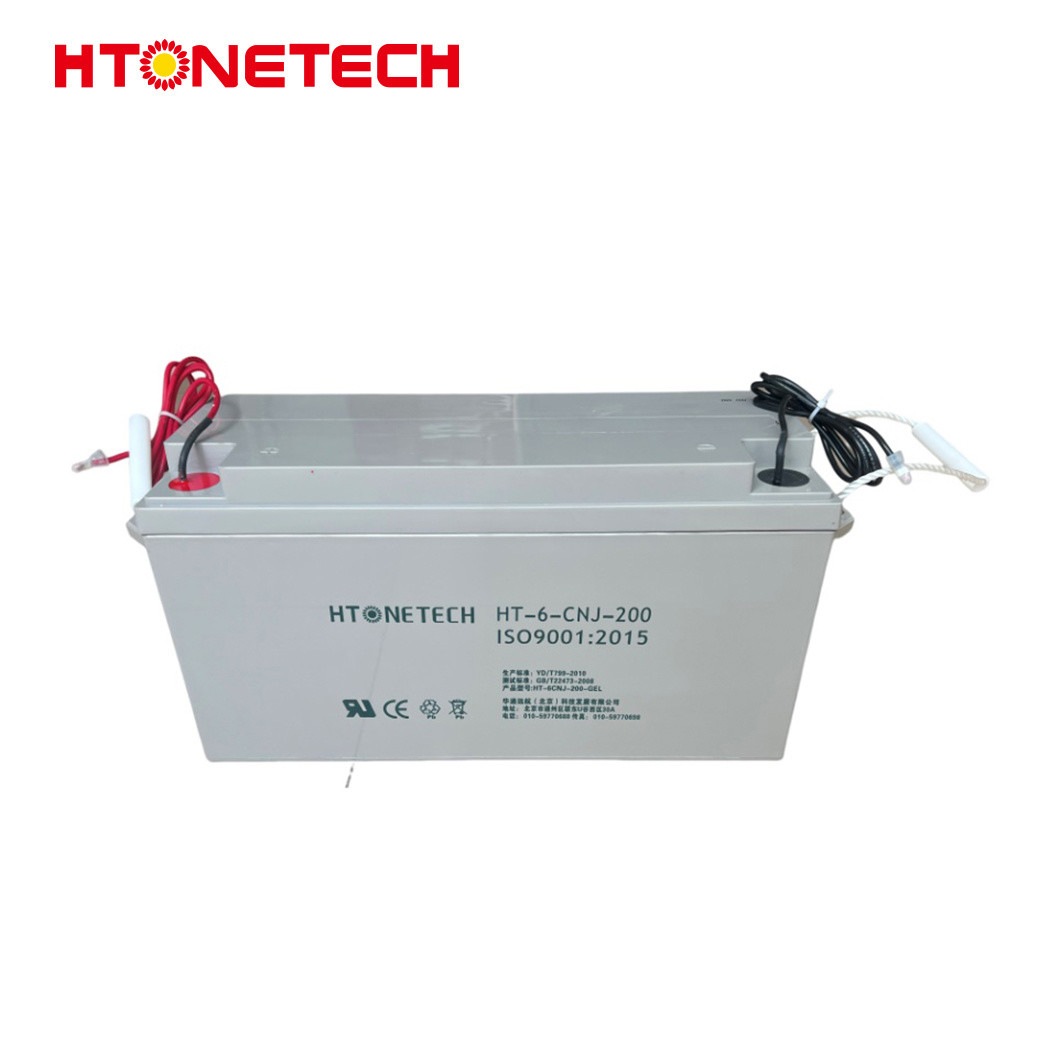

HTONETECH 350mAh 1300mAh 650mAh Storage Battery Manufacturers Non-Adjustable Deep Cycle Gel Battery China Remote Control 100Ah 200Ah 250Ah Solar Gel Battery
Solar lithium iron phosphate batteries offer several notable features that make them an attractive choice for solar energy storage. Here are some key features of solar lithium iron phosphate batteries:
- High energy density: Solar lithium iron phosphate batteries have a high energy density, allowing for efficient storage of a significant amount of energy in a compact size. This makes them suitable for installations with limited space.
- Long cycle life: These batteries have a long cycle life, meaning they can undergo a high number of charge-discharge cycles without significant capacity degradation. They can typically handle thousands of cycles, providing long-lasting energy storage for solar systems.
- Enhanced safety: Lithium iron phosphate batteries are considered one of the safest lithium-ion battery chemistries. They have excellent thermal stability and are less prone to thermal runaway or overheating. This makes them a reliable and safe choice for solar energy storage applications.
- Fast charging and high efficiency: Solar lithium iron phosphate batteries can be charged at a high rate and have a high charging efficiency. This allows for faster charging times and efficient utilization of solar power, maximizing the system's overall performance.
LiFePO4 Point:
1. Grid refining technology and the thicker plates are used to extend the battery standby Recognized by life and reduce the plate grid corrosion speed.
2. Using oxygen recombination technology: maintenance-free
3. Unique vent valve design: control water loss, and prevent air and spark from going inside.

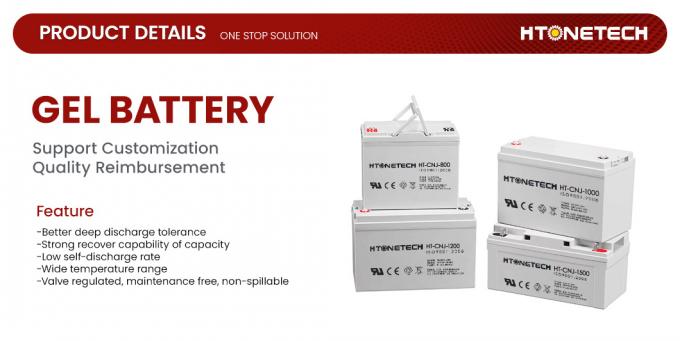

Key Features :
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel-like, immobile, and does not leak, enabling uniform reaction of each part of the plate.
♦High rate discharge performance due to tight assembly technology.
♦Strong heat dissipation and wide operating temperature range.
♦Avoid acid mist being separated out, environment friendliness.
♦Efficient venting system releases excessive gas automatically.
Applications :

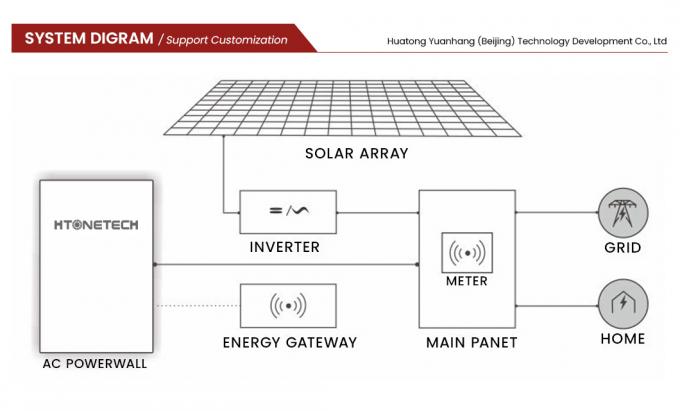

♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system, emergency lighting system, security system
♦Telecommunication Equipment
♦Power plant and transmission system
|

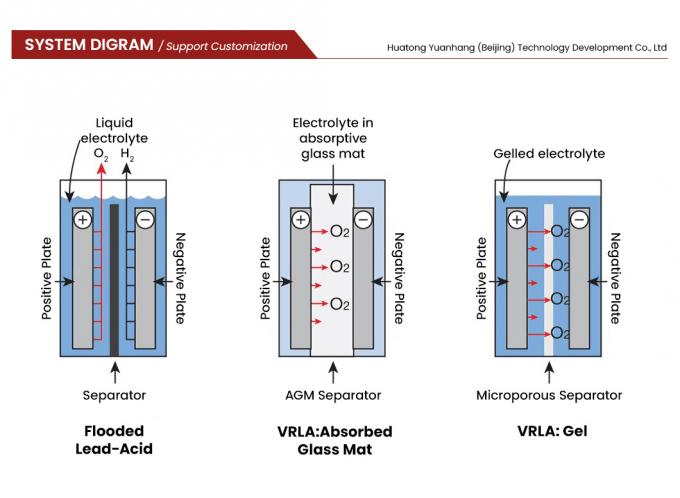

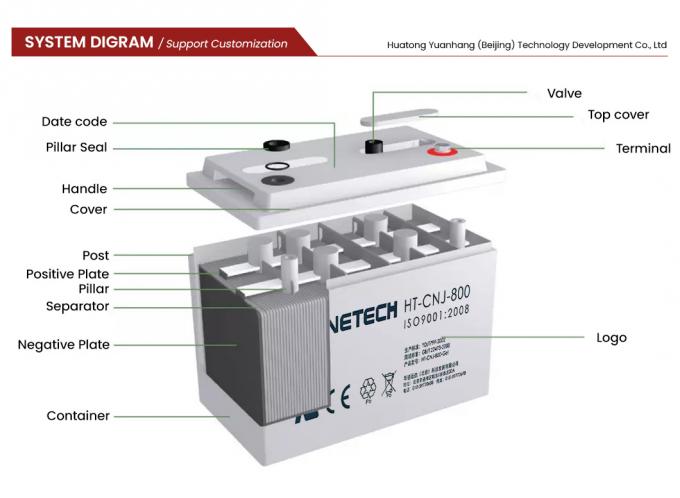

Components
|
GEL BATTERY
|
Ordinary Lead-Acid Battery
|
|
Design life
|
8-12 years or so
|
3-5 years or so
|
|
Temperature
|
-30° C~60° C
|
-30° C~60° C
|
|
Safety
|
No sour, no explosion
|
Sour phenomenon; There will be an explosion
|
|
Electrolyte Adsorption Technology
|
Colloid adsorption technology
|
Adsorption technology of glass cotton
|
|
Advantage 1 |
Extremely reliable and no "dry" phenomenon under high-temperature operation or over-charging. The battery has a wide temperature
range from low to high. |
The "Dry" phenomenon happens if the battery has low reliability when operated under high temperatures or being.
|
|
Advantage 2 |
50% of the original capacity will be maintained after two years of storage.
|
The store for 6 months or so must be updated. Extended storage time, the battery will face the possibility of damage.
|
|
Advantage 3 |
A deep discharge battery can still be connected to the load. Charging within four weeks does not impair the performance of the
battery. The nominal capacity of the battery will soon be restored after charging, it will not affect the battery life. |
Once deep discharged, if the battery is not being charged in a short period of time, the battery will immediately be scrapped. That
is, the full-length charge of the battery will have partial capacity restored, the battery life and reliability will be greatly reduced. |
|
Advantage 4
|
The low specific gravity of acid has relatively low corrosion of the plate itself.
|
The high proportion of acid has relatively high corrosion of the plate itself.
|
|

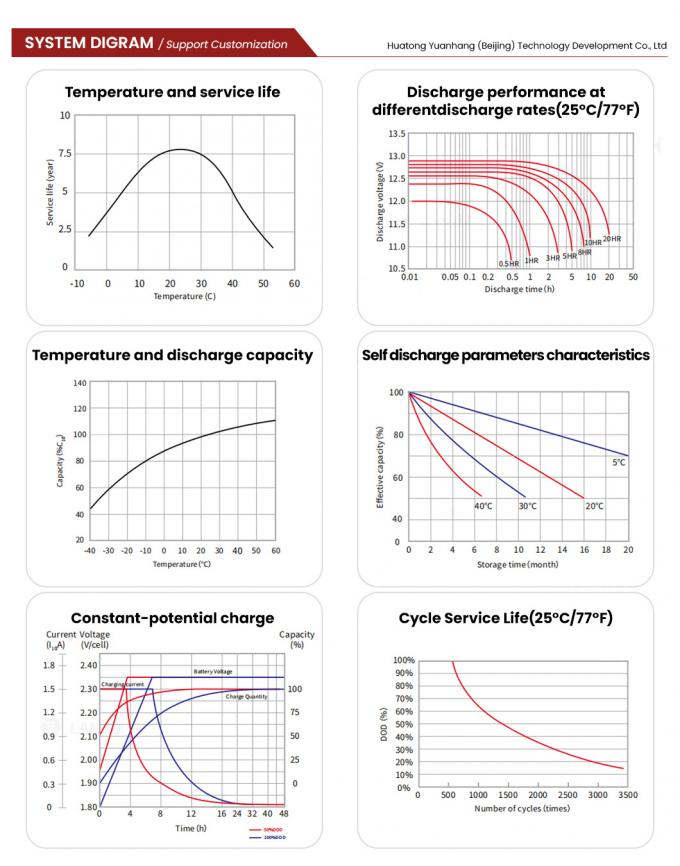

Nominal Voltage
|
12V
|
|
|
Nominal Capacity(10HR)
|
250AH
|
|
|
Dimension
|
Length
|
522 ±3mm (20.55 inches)
|
|
Width
|
268 ±2mm (10.55 inches)
|
|
|
Container Height
|
220 ±2mm (8.66inches)
|
|
|
Total Height (withTerminal)
|
225 ±2mm (8.86 inches)
|
|
|
Approx Weight
|
Approx 63.8 kg (140.65lbs)
|
|
|
Terminal
|
T11
|
|
|
Container Material
|
ABS
|
|
|
Rated Capacity
|
257.3AH/12.8A
|
(20hr ,1.80V/cell,25ºC/77ºF)
|
|
250.0 AH/25.0A
|
(10hr,1.80V/cell,25ºC/77ºF)
|
|
|
218.7 AH/43.7A
|
(5hr,1.75V/cell,25ºC/77ºF)
|
|
|
198.7 AH/66.2A
|
(3hr,1.75V/cell,25ºC/77ºF)
|
|
|
161.5 AH/161.5A
|
(1hr,1.60V/cell,25ºC/77ºF)
|
|
|
Max. Discharge Current
|
2000A (5s)
|
|
|
Internal Resistance
|
Approx 2.0mΩ
|
|
|
Operating Temp.Range
|
Discharge : -30~50ºC (5~122ºF)
|
|
|
Charge : 0~40ºC (32~104ºF)
|
||
|
Aircraft signal Storage : -30~40ºC (5~104ºF)
|
||
|
Nominal Operating Temp. Range
|
25 ±3ºC (77 ±5ºF )
|
|
|
Cycle Use
|
Initial Charging Current less than 75.0A.Voltage Communication power supply 14.4V~14.9V at 25ºC(77ºF)Temp. Coefficient -30mV/ºC
|
|
|
Standby Use
|
No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25ºC(77ºF)Temp. Coefficient -20mV/ºC
|
|
|
Capacity affectedby Temperature
|
40ºC (104 ºF)103%
|
|
|
25ºC ( 77 ºF )100%
|
||
|
0ºC ( 32ºF ) 86%
|
||
|
Self Discharge
|
Techfine batteries may be stored for up to 6 months at 25ºC(77ºF) and the battery should be recharged before use. For higher
|
|
|
temperatures the time interval will be shorter.
|
||
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
