xModel NO. | TOP18-1230AH-L-LD | Battery Weight | -40~50celsius Degree |
---|---|---|---|
Storage Temperature | -20~40celsius Degree | Finished Internal Resistance | 100mΩ |
Discharge Cut-off Voltage | 10V | Transport Package | Wooden Box |
Specification | 153*98*150mm | Trademark | Htonetech |
Origin | China | Supply Ability | 50000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | Type | Lithium Metal Battery |
Rechargeable | Yes | Size | Large |
High Light | 30ah Solar Energy Storage Battery,Solar Energy Storage Battery Discharge |

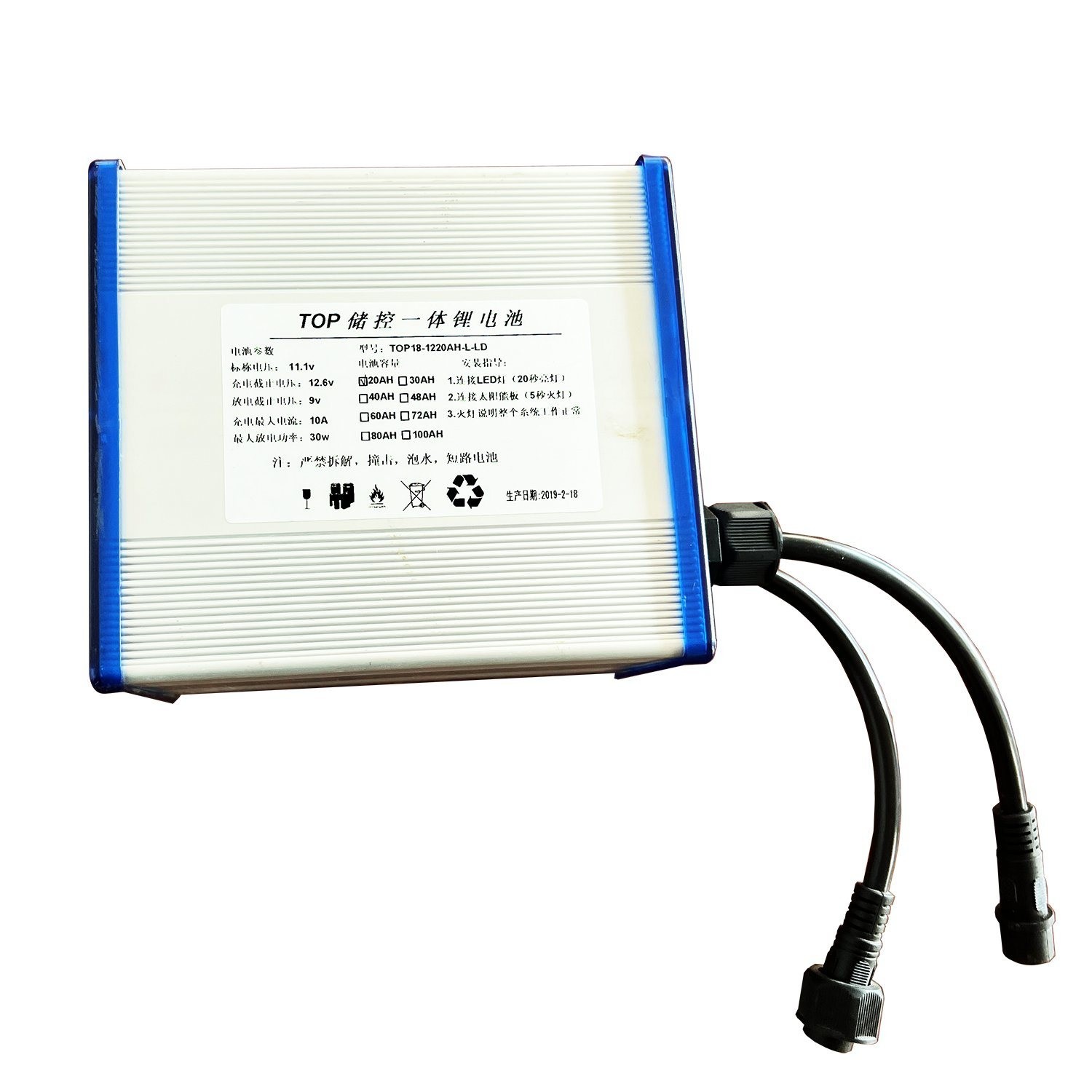

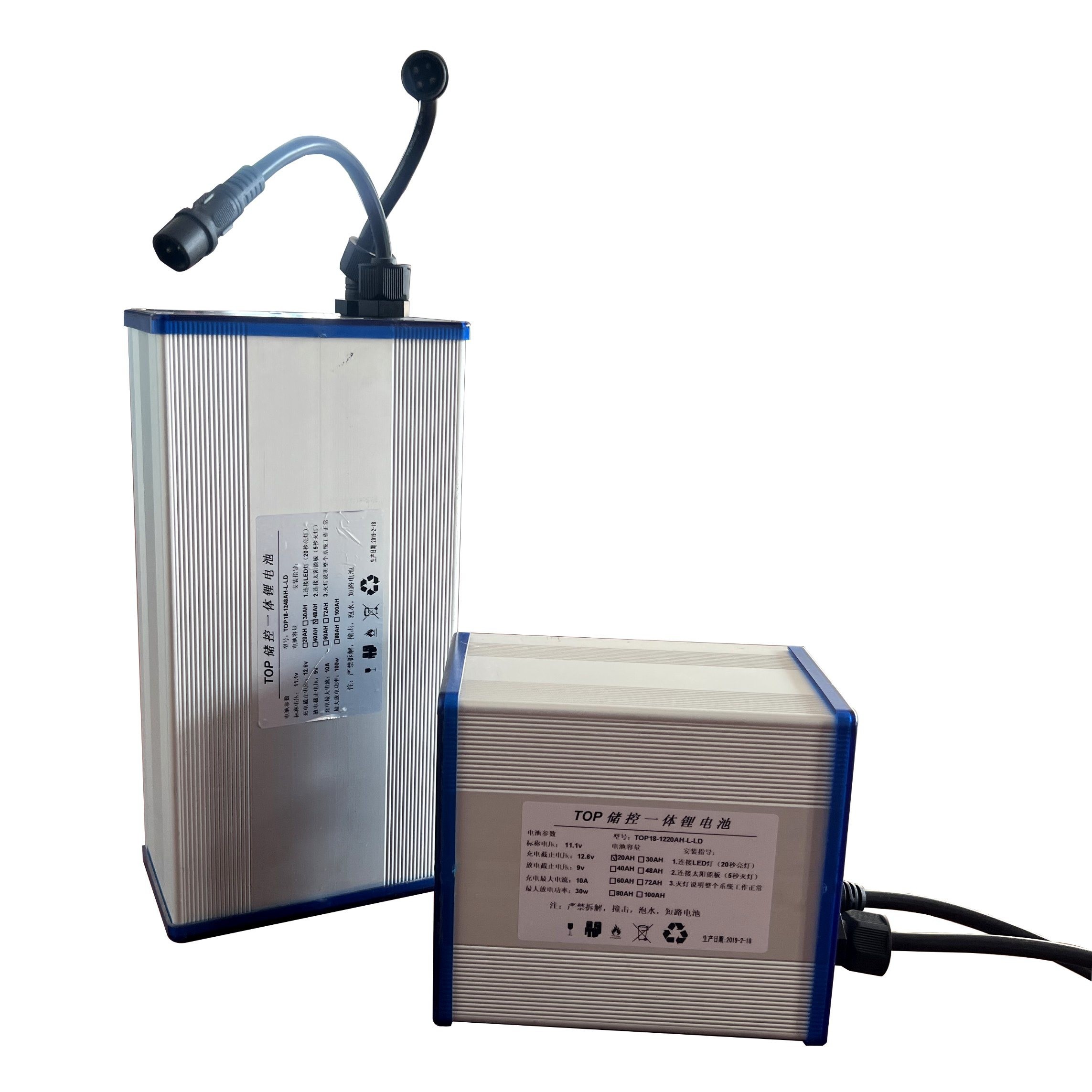

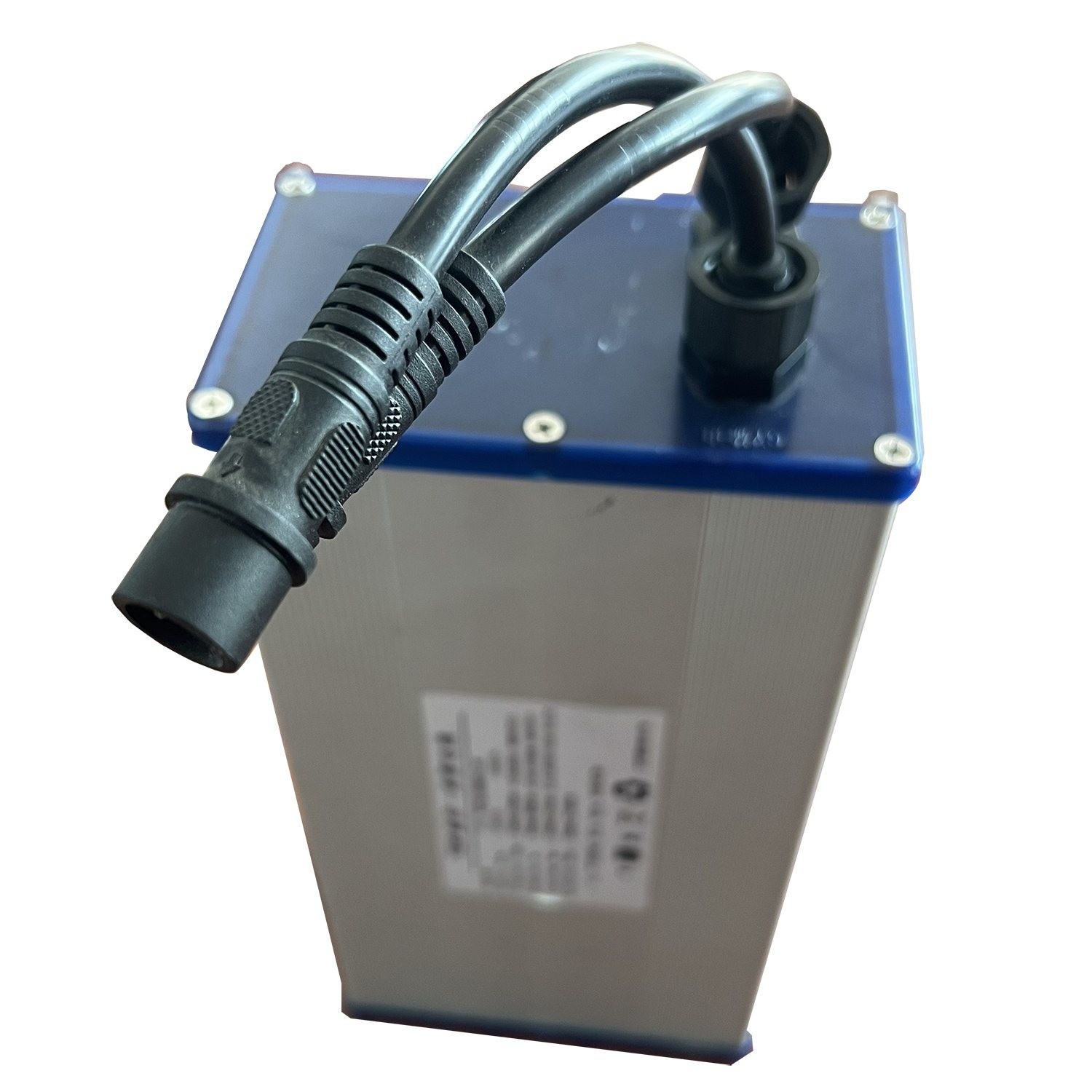

Solar Lithium Battery Efficient Power Supply 12V 30ah Charge and Discharge Large Capacity
Product Description
Solar energy storage batteries are devices used to store electricity generated by solar panels for later use. They play a crucial role in maximizing the efficiency and benefits of solar energy systems. Here are some key features and aspects of solar energy storage batteries:
- Energy storage capacity: Solar batteries come in various sizes and capacities, ranging from small residential units to large-scale commercial installations. The capacity determines how much energy can be stored and utilized during periods of low solar generation or grid outages.
- Battery chemistry: Different battery chemistries are used in solar energy storage systems, including lithium-ion, lead-acid, and flow batteries. Each chemistry has its own characteristics in terms of energy density, cycle life, efficiency, and cost. Lithium-ion batteries, especially those using lithium iron phosphate (LiFePO4) chemistry, are commonly used due to their high energy density, long cycle life, and fast-charging capabilities.
- Depth of discharge: Solar batteries are designed for deep cycling, meaning they can discharge a significant portion of their stored energy without experiencing performance degradation. The depth of discharge (DoD) indicates the percentage of the battery's capacity that can be safely used before recharging is required. Higher DoD values allow for more usable energy from the battery.
Model | TOP18-1220AH-L-LD | TOP18-1230AH-L-LD | TOP18-1240AH-L-LD | TOP18-1245AH-L-LD | TOP18-1250AH-L-LD | TOP18-1260AH-L-LD | ||||
Nominal voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | ||||
Nominal capacity | 12V20AH | 12V30AH | 12V40AH | 12V45AH | 12V50AH | 12V60AH | ||||
Charging voltage | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | ||||
Maximum charging current | 10A-30A (optional) | 10A-50A (optional) | ||||||||
Instantaneous discharge current | 10A-30A (optional) | 10A-50A (optional) | ||||||||
Discharge cut-off voltage | 10V | 10V | 10V | 10V | 10V | 10V | ||||
Finished internal resistance | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ||||
Battery weight: | 2.5KG | 4.5KG | 4.5KG | 6.5KG | 7.5KG | 8.5KG | ||||
Product size MM: (without controller) | 153*98*150 | 153*98*270 | 153*98*270 | 153*98*380 | 153*98*400 | 153*98*520 | ||||
Charging temperature: | -0~45ºC(heating plate optional) | |||||||||
Discharge temperature: | -40~50ºC | |||||||||
Storage temperature: | -20~40ºC | |||||||||
Lithium battery protection | Short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection | |||||||||
Fields of application: | Street lights, surveillance, UPS, off-grid systems |
