xDischarge Rate | Low Discharge Rate | Shape | Square Battery |
---|---|---|---|
Electrolyte | Acid | Installation | Packaged |
Rechargeable | Chargeable | Storage Temperature | -20~40ºC |
Fields Of Application | Street Lights, Surveillance, UPS, Off-Grid Systems | Discharge Temperature | -40~50ºC |
Charging Temperature | -0~45ºC(Heating Plate Optional) | Transport Package | Wooden Box |
Specification | 483x170x240(mm) | Trademark | Htonetech |
Origin | China | Supply Ability | 50000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | Type | Lead-Acid Batteries |
Usage | Electric Power, Solar | Nominal Voltage | 12V |
High Light | Solar Energy Storage Battery High Capacity,Square Solar Energy Storage Battery |

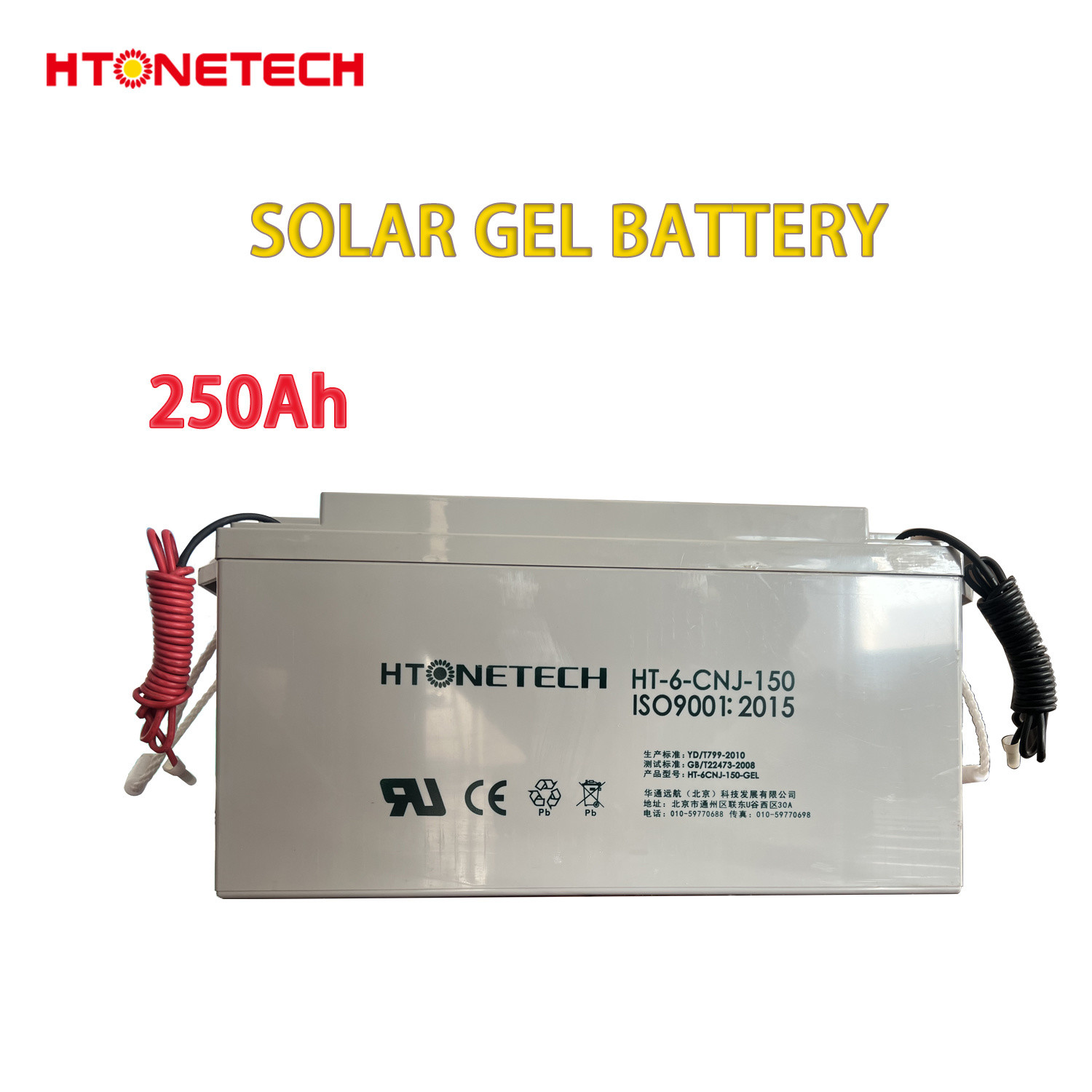

Gel Cell Solar Cell Energy Storage High Capacity 12V 250ah Photovoltaic off Grid Power Generation System
Product Description
A solar energy storage battery, also known as a solar battery or solar storage system, is a device that stores electricity generated by solar panels for later use. It allows for the efficient utilization of solar energy by capturing and storing excess electricity during times of high solar generation and releasing it when needed, such as during nighttime or periods of low sunlight.
Here are some key points about solar energy storage batteries:
- Energy storage: Solar batteries store the surplus electricity produced by solar panels. This stored energy can be used during times when the solar panels are not actively generating electricity, ensuring a continuous power supply and reducing reliance on the electrical grid.
- Maximizing self-consumption: Solar energy storage batteries enable homeowners and businesses to maximize self-consumption of solar energy. Instead of exporting excess electricity back to the grid, which may not provide favorable compensation, the stored energy can be used directly, increasing the proportion of solar energy consumed on-site.
- Backup power: One of the primary advantages of solar energy storage batteries is their ability to provide backup power during grid outages. In the event of a power failure, the stored energy can be utilized to power critical appliances or systems, offering a reliable source of electricity when the grid is down.
- Time shifting and load management: Solar batteries allow for time shifting of electricity consumption. Excess solar energy generated during the day can be stored and used during periods of high energy demand or when electricity rates are higher, optimizing energy usage and reducing costs.
12V | 80A | 25.5KG | 6.2mΩ | 20.0A | -35~60ºC | 329 | 172 | 214 | 236 | ABS |
100A | 28.6KG | 5.3mΩ | 25.0A | 329 | 172 | 214 | 236 | |||
150A | 42.2KG | 4.0mΩ | 37.5A | 483 | 170 | 240 | 240 | |||
200A | 58.3KG | 3.3mΩ | 50.0A | 522 | 240 | 219 | 244 | |||
250A | 69.3KG | 2.9mΩ | 62.5A | 520 | 269 | 220 | 245 | |||
2V | 100Ah | 5.5KG | 0.85mΩ | 25A | 170 | 76 | 214 | 223 | ||
200Ah | 13.3KG | 0.66mΩ | 50A | 171 | 106 | 330 | 342 | |||
250Ah | 16.6kg | 0.56mΩ | 62.5A | 171 | 151 | 330 | 342 | |||
300Ah | 18.4kg | 0.46mΩ | 75A | 171 | 151 | 330 | 342 | |||
400Ah | 23.6KG | 0.41mΩ | 100A | 196 | 171 | 330 | 342 | |||
600Ah | 35.2KG | 0.31mΩ | 150A | 285 | 171 | 330 | 342 | |||
800Ah | 48.2kg | 0.23mΩ | 200A | 383 | 171 | 330 | 342 | |||
1000Ah | 58.3kg | 0.21mΩ | 250A | 471 | 171 | 330 | 342 | |||
1500Ah | 84.9kg | 0.17mΩ | 375A | 318 | 341 | 341 | 351 | |||
2000Ah | 114.6kg | 0.14mΩ | 500A | 433 | 342 | 341 | 351 | |||
2500Ah | 160.8kg | 0.13mΩ | 625A | 629 | 346 | 341 | 351 | |||
3000Ah | 170.9kg | 0.11mΩ | 750A | 329 | 346 | 341 | 351 | |||
Rated Voltage | Rated Capacity | Approximate Weight | Internal Resistance | Maximum Charge Current | Ambient Temperature | Length | Width | Height | Total Height | Case |
FAQ
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
