10 Feet 20-30 Feet Solar Panel Cable PE Solar Panel Wire for Reliable Connection

Place of Origin Beijing, China

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Black/red Test Voltage 6500V
Jacket PE Number Of Conductors Single Core
Name Solar Panel Cable Apply Provide A Reliable Connection For Solar Panels
Insulation Material PVC Insulation Polyolefin (flame Retardant)
High Light

30 Feet Solar Panel Cable


10 Feet Solar Panel Cable


PE Solar Panel Wire

Leave a Message
Product Description

10 Feet 20-30 Feet 50-100 Feet PE Solar Cable for Reliable Connection

Product Description:

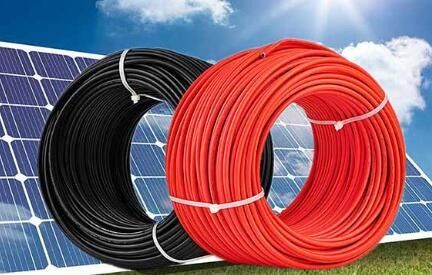

Solar Panel Cable is a specialized cable for connecting solar panels to the power grid. It is designed to be both flexible and durable, making it ideal for outdoor applications. The cable is constructed from tinned copper stranded conductor, with a polyolefin insulation and a black/red outer sheath. This cable has a rated current of 55A, allowing it to safely carry the large amounts of power generated by solar installations. It is also flame retardant, providing additional safety and protection from external elements. Solar Panel Cable is perfect for any solar panel installation, allowing for both reliable and efficient power transfer.



This 4 square single core photovoltaic cable has a nominal cross section of 4mm2, model PV1-F, and rated current of 55A. The number of cores is NO. 1 with a copper wire structure 56/0.28. The outer diameter of conductor stranded is 2.60mm with a small wall thickness of 0.5mm for both the insulation and sheath. As such, the outer diameter of finished wire is 6.1±0.1mm, and the conductor resistance (20℃) is ≤ 5.09Ω/km upon a test voltage of 6.5/5Nobreakdown.

The rated temperature of the cable is -40~﹢90℃ with a conductor temperature of ﹢120℃ and a reference short-circuit allowable temperature of 200℃5S. Its service life of more than 25 years is promising, with a rated voltage of DC: 1.8kv ACU. /U:0.6/1kv and a working voltage of AC/DC (KV): 0.6~1.0/1.8. It is UV resistant and flame retardant, with a single vertical burning test passing the IEC60332-1. Additional tests, such as the daylight resistance test HD605/A1 and the ozone resistance test EN50396, have also been successful. Furthermore, its smoke density complies with IEC61034, EN50268-2, and its release of halogen acid pass the IEC670754-1 EN50267-2-1 requirements.

The weight of the cable is 0.08 Kg/m.


Technical Parameters:

Parameter Value
Color Black/red
Nominal section 4 Mm2/6 Mm2
Temperature range Ambient + 90°C Cable 120°C
Number of conductors Single Core
Application Provide A Reliable Connection For Solar Panels
Installation temperature -30/0 + 120°C
Insulation Polyolefin (flame Retardant)
Length 10 Feet 20-30 Feet 50-100 Feet
Bending radius Ø < 12mm: 3XD; Ø≤12mm: 4XD
Jacket PE


Solar Panel Cable from HTONETECH, located in Beijing, China, is the perfect solution for solar power connection. This cable is made of Tinned Copper Stranded Conductor, with a temperature range of Ambient + 90 °C Cable 120 °C. Rated current of 55A ensures it can handle all current needs. With features such as Thermal Stability, Chemical Stability, and UV Resistance, this cable is designed to last. The Nominal section of 4 Mm2/6 Mm2 makes it a perfect fit for all solar panel needs. Solar Panel Cable from HTONETECH, the perfect solution for solar power connection.


Support and Services:

We provide technical support and service for our Solar Panel Cable product. We have a dedicated team of experienced professionals to answer any questions you may have about the product and its use. Our team is available to provide training and assistance in installation, maintenance, and troubleshooting. We also have a range of online resources to help you get the most out of your Solar Panel Cable product. Our website is regularly updated with the latest product information and tips for maximizing its performance. If you need assistance, please do not hesitate to contact us.



Q1. What is the Brand Name of this Solar Panel Cable?

A1. The Brand Name of this Solar Panel Cable is HTONETECH.

Q2. Where is this Solar Panel Cable made?

A2. This Solar Panel Cable is made in Beijing, China.

Q3. What is the length of this Solar Panel Cable?

A3. The length of this Solar Panel Cable is 10 feet.

Q4. What type of connectors does this Solar Panel Cable have?

A4. This Solar Panel Cable has MC4 connectors.

Q5. Is this Solar Panel Cable waterproof?

A5. Yes, this Solar Panel Cable is waterproof.
