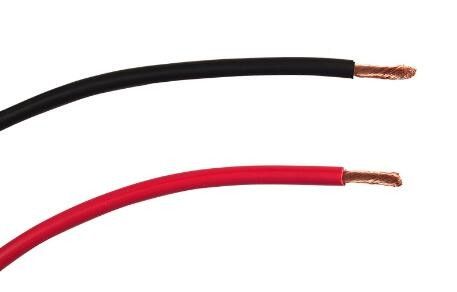

6500V Single Core Solar Cable Black / Red Tinned Copper Stranded Conductor

  • 6500V Single Core Solar Cable Black / Red Tinned Copper Stranded Conductor
Place of Origin Beijing, China
Brand Name HTONETECH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Range Ambient + 90 °C Cable 120 °C Number Of Conductors Single Core
Apply Provide A Reliable Connection For Solar Panels Installation Temperature -30/0 + 120 °C
Bending Radius Ø < 12mm: 3XD; Ø≤12mm: 4XD Conductor Tinned Copper Stranded Conductor
Features Thermal Stability, Chemical Stability, And UV Resistance Jacket PE
High Light

6500V Single Core Solar Cable

,

Single Core Solar Cable Black

,

cable for solar system Tinned Copper
Leave a Message
Product Description

6500V Solar Panel PV Cable Single Core Black/Red

Product Description:

Solar Panel Cable

Solar panel cables are specially designed for the solar power system. Featuring thermal stability, chemical stability and UV resistance, the cable is applicable for an ambient temperature range of +90°C and a cable temperature of 120°C. It has a flexible bending radius of Ø<12mm-3XD or Ø≤12mm-4XD, which makes it ideal for a variety of solar panel wiring applications. The cable is available in different lengths – 10 feet, 20-30 feet, and 50-100 feet – to meet various power requirements.

This cable is perfect for a variety of applications in solar systems, such as connecting solar panels, solar controllers, and other solar devices. It is a reliable and durable cable ideal for both indoor and outdoor use. The solar panel cable 4mm is highly flexible, making it easy to install and move around. It is designed to provide maximum performance in harsh environments and can withstand extreme temperatures.

For reliable and safe wiring in a solar system, this solar panel cable is a great choice. It is designed to meet the highest quality standards and offers superior performance. Whether you are looking for a cable for solar system, solar panel cable 4mm, or flexible solar cable, this cable is the perfect choice for your needs.



Features:

We are introducing a 4 square single core photovoltaic cable. This item has a nominal cross section of 4mm2. The model is PV1-F. The rated current is 55A. This cable has a single core and the number of cores is NO. 1. The conductor is a copper wire structure and the NO./mm is 56/0.28. The outer diameter of the conductor stranded is 2.60mm. The insulation small wall thickness is 0.5mm. The sheath small wall thickness is also 0.5mm. The outer diameter of the finished wire is 6.1 ± 0.1mm. The conductor resistance at 20℃ is ≤5.09Ω/km. The test voltage is 6.5/5 Nobreakdown.

The rated temperature of this item is -40~﹢90℃. The conductor temperature is﹢120℃. The reference short-circuit allowable temperature is 200℃5S. The service life of this four square single core photovoltaic cable is more than 25 years. The rated voltage is DC:1.8kv ACU./U:0.6/1kv. The working environment temperature is -40~﹢90 ℃. The working voltage AC/DC (KV) is 0.6~1.0/1.8. The cable has a weather resistance of UV as well as the flame retardancy of single vertical burning (IEC60332-1). There is daylight resistance test of HD605/A1 and an ozone resistance test of EN50396. The smoke density for the item is according IEC61034 and EN50268-2.

The release of halogen acid is comply with IEC670754-1 EN50267-2-1. The weight of the four square single core photovoltaic cable is 0.08Kg/m. This cable is a reliable and long lasting product.



Technical Parameters:

Name Solar Panel Cable
Apply Provide A Reliable Connection For Solar Panels
Bending radius Ø < 12mm: 3XD; Ø≤12mm: 4XD
Test voltage 6500V
Nominal section 4 Mm2/6 Mm2
Keywords Pv Cable, Flexible Solar Cable, Solar Panel Power Cable, Flexible Solar Cable For Solar Panels
Jacket PE
Installation temperature -30/0 + 120 °C
Features Thermal Stability, Chemical Stability, And UV Resistance
Length 10 Feet 20-30 Feet 50-100 Feet


Applications:

HTONETECH Solar Panel Cables are designed for use in a variety of applications in which flexible and reliable power connection is required. These cables are designed to provide a durable and reliable connection between photovoltaic solar panels and other components, such as inverters and batteries. Made from tinned copper stranded conductor, our solar panel cables provide superior flexibility and stability in harsh environmental conditions. The cables are tested with a 6500V voltage to ensure their quality and safety. With a temperature range of Ambient + 90 °C Cable 120 °C, our solar panel cables can perform reliably in any weather condition. Our cables are available in two nominal sections, 4 Mm2/6 Mm2, that provide the perfect fit for your solar panel power supply. Our solar panel cables are designed to be flexible, durable, and reliable, and are perfect for a variety of applications, such as solar panel power supply, inverter power supply, and battery connection.

If you are looking for flexible solar cables, 6mm solar panel cables, solar panel cables 4mm, or solar panel cables 6mm, HTONETECH Solar Panel Cables are the perfect choice for you. Our cables are designed to withstand any kind of weather condition and provide a reliable and secure connection for your solar panel power supply.



Support and Services:

Solar Panel Cable Technical Support and Service

At XYZ Solar, we provide technical support and service for our Solar Panel Cables. Our technical support team can provide assistance with product selection, installation, warranty, and repair.

If you have any questions or concerns about the performance and/or installation of our Solar Panel Cables, please contact our technical support team via email at techsupport@xyzsolar.com or by phone at +1-123-456-7890.

Our technical support team is available Monday to Friday from 9am to 5pm EST. We can also provide extended technical support hours for customers with special needs.

We provide a comprehensive warranty plan for our Solar Panel Cables. If you experience any issues with our product, please contact our technical support team, and we will work with you to resolve the issue.

We also provide repair services for our Solar Panel Cables. If your product is damaged or malfunctioning, please contact our technical support team, and we can arrange for repair or replacement.

FAQ:

Q: What is the brand name of this solar panel cable?
A: The brand name of this solar panel cable is HTONETECH.
Q: Where is the place of origin of this solar panel cable?
A: This solar panel cable is from Beijing, China.
Q: What type of material is this solar panel cable made of?
A: This solar panel cable is made of copper.
Q: What is the length of this solar panel cable?
A: The length of this solar panel cable is 5 meters.
Q: What is the weather resistance of this solar panel cable?
A: This solar panel cable is waterproof and can withstand extreme temperatures.
