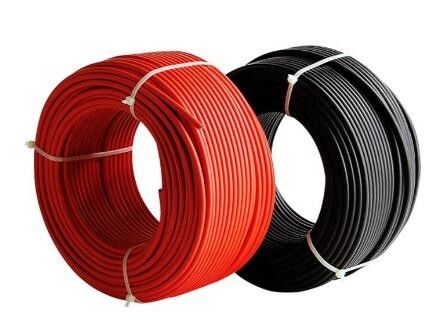

4mm Solar Panel Cable Test Voltage 6500V With Thermal Stability

  • 4mm Solar Panel Cable Test Voltage 6500V With Thermal Stability
Place of Origin Beijing, China
Brand Name HTONETECH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Range Ambient + 90 °C Cable 120 °C Installation Temperature -30/0 + 120 °C
Color Black/red Name Solar Panel Cable
Test Voltage 6500V Keyword Pv Cable
Insulation Material PVC Jacket PE
High Light

4mm Solar Panel Cable

,

Solar Panel Cable Thermal Stability

,

solar pv wire 6500V
Leave a Message
Product Description

4mm Solar Panel PV Cable with Thermal Stability

Product Description:

Solar Panel Cable is an ideal choice for reliable connection of solar panels. It is made of high-grade material, featuring excellent electrical properties and UV resistance, as well as good thermal stability. The color of the cable is black/red and the bending radius is Ø < 12mm: 3XD; Ø≤12mm: 4XD. The 6mm solar panel cable is perfect for outdoor use and can withstand harsh environment. Its durability and reliability make it a popular choice for solar panel users. With its excellent thermal stability, chemical stability and UV resistance, it can provide a secure connection and ensure the safety of the solar system.



Features:

4 square single core photovoltaic cable is designed with nominal cross section of 4mm2 and model of PV1-F. The rated current and the number of cores for this cable is 55A and NO.1 respectively. The manufactured copper wire structure with conductor size of 56/0.28, which gives a finished wire diameter of 6.1 ±0.1mm, has a low resistance valued at ≤5.09Ω/km at 20℃. The insulation wall and sheath of small wall thickess of 0.5mm improves the mechanical property. The temperature range of -40~﹢90℃ and the rated voltage of AC/DC (KV) between 0.6~1.0/1.8 make it consider for diverse applications. Additionally, various safety tests have been conducted to ensure it is safe to use under U.V., single vertical burning (IEC60332-1), HD605/A1, EN50396, IEC61034,EN50267-2-1. Furthermore, It does not give off halogen acid when subjected to fire as tested by IEC67075-4-1 EN50267-2-1. For its overall performance and features, this cable has a weight of 0.08Kg/m and is guarantee to serve more than 25 years.



Technical Parameters:

Name Parameter
Bending radius Ø < 12mm: 3XD; Ø≤12mm: 4XD
Insulation Polyolefin (flame Retardant)
Color Black/red
Application Provide A Reliable Connection For Solar Panels
Installation temperature -30/0 + 120 °C
Test voltage 6500V
Rated current 55A
Temperature range Ambient + 90 °C Cable 120 °C
Jacket PE
Number of conductors Single Core


Applications:

Solar Panel Cable Application and Scenario

HTONETECH Solar Panel Cable is a perfect choice for connecting solar panels to power inverters and other components of solar system. Suitable for outdoor and indoor use, this cable is designed to operate in temperature range from ambient + 90 °C to 120 °C. With Tinned Copper Stranded Conductor, this solar panel cable can handle up to 55A current. Available in black/red color, HTONETECH Solar Panel Cable is available in 4mm and 6mm sizes.

Ideal for use in all types of solar system, HTONETECH Solar Panel Cable has been designed and manufactured for reliability and durability. Suitable for connecting solar cells, solar panels, solar batteries and other components of solar system, this cable is designed for extreme temperature conditions and is capable of handling up to 55A current. With Tinned Copper Stranded Conductor, this solar panel cable is perfect for use in solar system.

HTONETECH Solar Panel Cable is perfect for connecting solar cells, solar panels, solar batteries and other components of solar system. Available in both 4mm and 6mm sizes, this cable is designed to operate in temperature range from ambient + 90 °C to 120 °C. It is capable of handling up to 55A current and is perfect for use in all types of solar system.

So if you're looking for a reliable and durable solar panel cable, then HTONETECH Solar Panel Cable is the perfect choice for you. With Tinned Copper Stranded Conductor, this cable is designed for extreme temperature conditions and is capable of handling up to 55A current. So why wait? Buy HTONETECH Solar Panel Cable now and get the best performance from your solar system.

Support and Services:

Solar Panel Cable Technical Support and Service

Our technical support and service team is available to help you with any questions or concerns you may have about our Solar Panel Cable. We can provide you with advice on installation and use, as well as guidance on troubleshooting and maintenance. Our team is friendly, knowledgeable, and always willing to help in any way we can.

If you have any questions or concerns, please don’t hesitate to contact us. Our customer service team is available 24/7 to answer any questions you may have.

Thank you for choosing Solar Panel Cable! We look forward to helping you make the most of your purchase.



FAQ:



  • Q: What is the Brand Name of Solar Panel Cable?
    A: The Brand Name of Solar Panel Cable is HTONETECH.
  • Q: Where is the Place of Origin of Solar Panel Cable?
    A: The Place of Origin of Solar Panel Cable is Beijing, China.
  • Q: What are the features of Solar Panel Cable?
    A: Solar Panel Cable has a high current carrying capacity, excellent electrical insulation, great anti-aging performance and long service life.
  • Q: What are the applications of Solar Panel Cable?
    A: Solar Panel Cable is widely used in photovoltaic power generation systems, solar water heaters, and solar energy systems.
  • Q: What is the voltage of Solar Panel Cable?
    A: The voltage of Solar Panel Cable is 0.6/1kV.
