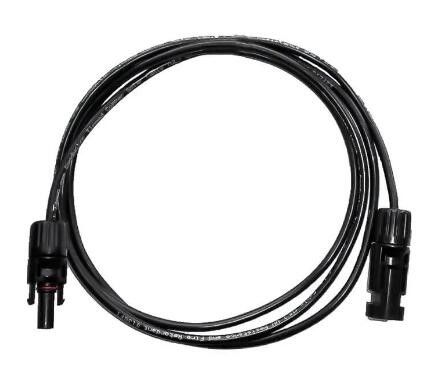

6mm Polyolefin Solar Panel Cable Flame Retardant Solar Panel Wire
Place of Origin
Beijing, China
Brand Name
HTONETECH
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x
Product Details
Apply
Provide A Reliable Connection For Solar Panels
Nominal Section
4 Mm2/6 Mm2
Insulation Material
PVC
Number Of Conductors
Single Core
Insulation
Polyolefin (flame Retardant)
Keyword
Pv Cable
Test Voltage
6500V
Installation Temperature
-30/0 + 120 °C
High Light
Polyolefin Solar Panel Cable
,
6mm Solar Panel Cable
,
Flame Retardant Solar Panel Wire
Leave a Message
Product Description
6mm Polyolefin (Flame Retardant) Solar Panel Cable
Product Description:
Solar Panel Cable is an ideal choice for use in solar systems. Its superior electrical performance makes it an excellent choice for use in the most demanding solar applications. This cable is made with a nominal section of 4 mm2/6 mm2, a PE jacket, and is available in black/red. This cable is available in a single core, in lengths of 10 feet, 20-30 feet, and 50-100 feet. It is perfect for use with solar panel systems providing reliable power with high flexibility and superior electrical performance. Solar Panel Cable is the perfect cable for your solar system and is an ideal choice for powering your solar panel system.
Features:
This cable is rated at 4mm2 and the model number is PV1-F. It has a rated current of 55A and consists of one core. The conductor of this 4 square single core photovoltaic cable is copper wire structured with 56/0.28 NO./mm. The outer diameter of the stranded conductor is 2.60mm and it has small insulation and sheath walls with a thickness of 0.5mm each. The outer diameter of the finished wire is 6.1±0.1mm and a conductor resistance of ≤5.09Ω/km (200℃). It has a test voltage of 6.5/5Nobreakdown and temperatures for usage range from -40 to +90℃ with a rated temperature of +120℃.
The 4 Square single core photovoltaic cable has a reference short-circuit allowable temperature of 200℃5S and a service life of more than 25 years. The rated voltage for both AC and DC voltage is 0.6 to 1.0/1.8KV respectively. The working environment temperature is -40 to +90℃ and the flame retardant is for single vertical burning. It passes the breaking down test (HD605/A1) and ozone resistance test (EN50396). Smoke density tests are according to IEC61034 and EN50268-2, and it releases no halogen acid according to (IEC670754-1 EN50267-2-1). This cable weights 0.08Kg per meter.
Technical Parameters:
Parameter
Value
Insulation Material
PVC
Installation temperature
-30/0 + 120 °C
Application
Provide A Reliable Connection For Solar Panels
Number of Conductors
Single Core
Test Voltage
6500V
Conductor
Tinned Copper Stranded Conductor
Nominal Section
4 Mm2/6 Mm2
Insulation
Polyolefin (flame Retardant)
Features
Thermal Stability, Chemical Stability, And UV Resistance
Length
10 Feet 20-30 Feet 50-100 Feet
Applications:
HTONETECH's 6mm solar panel cable is a high-quality, flexible solar cable designed for solar power connection and distribution. Its single core is made of high-quality material, ensuring thermal stability, chemical stability, and UV resistance. Its length is available in 10 Feet 20-30 Feet 50-100 Feet, and its test voltage is 6500V, making it a reliable and safe cable for solar power connection. Moreover, its durable and lightweight design makes it easy to install and handle. This 6mm solar panel cable is the perfect choice for solar power connection and distribution.
Support and Services:
Solar Panel Cable Technical Support and Service
We provide comprehensive technical support and service for our Solar Panel Cable products. Our support team is available to answer any questions you may have about installation, operation, troubleshooting, and other technical aspects of our products. We also provide software updates and other resources to help you get the most out of your Solar Panel Cable.
If you experience any technical difficulties with your Solar Panel Cable, please contact our Customer Support team. We will do our best to resolve any issues you may have as quickly as possible.
FAQ:
Solar Panel Cable
Q&A
Q: What is the brand name of the Solar Panel Cable? A: The brand name of the Solar Panel Cable is HTONETECH.
Q: Where is the Solar Panel Cable manufactured? A: The Solar Panel Cable is manufactured in Beijing, China.
Q: What type of cables are used to connect with Solar Panel Cable? A: The Solar Panel Cable is compatible with all types of cables.
Q: What types of solar panel can be connected to the Solar Panel Cable? A: The Solar Panel Cable is compatible with any type of solar panel.
Q: What is the length of the Solar Panel Cable? A: The length of the Solar Panel Cable is 5 meters.
