Thermal Stability Solar Panel Cable Solar Pv Cable For Professional Use

Place of Origin Beijing, China

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Number Of Conductors Single Core Temperature Range Ambient + 90 °C Cable 120 °C
Length 10 Feet 20-30 Feet 50-100 Feet Bending Radius Ø < 12mm: 3XD; Ø≤12mm: 4XD
Keyword Pv Cable Rated Current 55A
Nominal Section 4 Mm2/6 Mm2 Color Black/red
High Light

Thermal Stability Solar Panel Cable


Solar Panel Cable Professional


Solar Pv Cable Professional

Leave a Message
Product Description

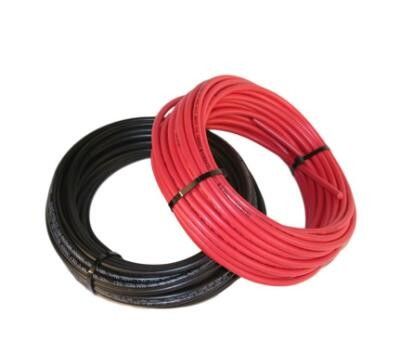

Thermal Stability Solar Panel PV Cable for Professional Use

Product Description:

Solar Panel Cable is a perfect cable choice for solar system. It is a flexible cable which provides a reliable connection for solar panels. It's available in different length from 10 feet to 20-30 feet and 50-100 feet. With a temperature range of Ambient + 90°C and Cable 120°C, it is an ideal choice of cable for solar panel installations. This cable is designed to ensure consistent and reliable performance in any environment. It is a durable, reliable and flexible cable that provides superior performance and connectivity for solar applications.



This 4 square single core photovoltaic cable has a nominated cross section of 4mm2 and a model of PV1-F. Its rated current is 55A, and it comes with a single strand copper wire core having a diameter of 56/0.28mm and a total outer diameter of 6.1±0.1mm when finished. The conductor's resistance is ≤5.09Ω/km and it can withstand a test voltage of 6.5/5 with no breakdown.

The temperature for the conductor is set at 120℃, the temperature it can tolerate during short-circuits to be 200℃/5s. Its service life prolongs up to 25 years when used in the recommended temperature range of -40 to 90℃. The AC/DC voltages for the operating environment is between 0.6 and 1.0 and 1.8KV respectively.

The cable is UV-resistant, flame retardant (IEC60332-1), durable against UV light (HD605/A1), ozone (EN50396), smoke (IEC61034, EN50268-2), and halogen acid (IEC670754-1 EN50267-2-1). It has a low weight of 0.08kg/m.


Technical Parameters:

Parameter Value
Jacket PE
Number of conductors Single Core
Rated current 55A
Length 10 Feet 20-30 Feet 50-100 Feet
Insulation Polyolefin (flame Retardant)
Temperature range Ambient + 90 °C Cable 120 °C
Bending radius Ø < 12mm: 3XD; Ø≤12mm: 4XD
Insulation Material PVC
Nominal section 4 Mm2/6 Mm2
Color Black/Red
Flexible Solar Cable Yes
Solar Power Cable Yes
6mm Solar Panel Cable Yes


HTONETECH Solar Panel Cable is the perfect choice for solar power system. It is made of tinned copper stranded conductor and can withstand a temperature range from -30/0 to 120 °C. This single core cable also features thermal stability, chemical stability, and UV resistance. It is the ideal cable for solar system, solar power cable, and solar panel cable 4mm.


Support and Services:

We provide technical support and service for Solar Panel Cable. We have a team of trained technicians to help you with installation, troubleshooting and maintenance. Our technicians are available to answer any questions you may have about our products or services. We also provide online tutorials, FAQs and other resources to help you get the most out of your Solar Panel Cable.

Our technical support team is available 24/7 to assist you with any issues you may have. You can contact us via email, phone or our website. We provide fast and comprehensive support to ensure that your Solar Panel Cable is functioning optimally.

We also offer maintenance services for Solar Panel Cable. Our technicians can check for damage, replace parts and perform other necessary maintenance tasks. We also provide regular updates to keep your Solar Panel Cable running smoothly.

We believe in providing the best possible service to our customers. Our technicians are certified and experienced in providing support and services for Solar Panel Cable. We are committed to providing you with the highest level of customer service.



Q: What is the brand of the Solar Panel Cable?
A: The brand of the Solar Panel Cable is HTONETECH.
Q: Where is the Solar Panel Cable from?
A: The Solar Panel Cable is from Beijing, China.
Q: What is the material of the Solar Panel Cable?
A: The Solar Panel Cable is made of high quality PVC material.
Q: What is the length of the Solar Panel Cable?
A: The length of the Solar Panel Cable is 10 meters.
Q: What are the features of the Solar Panel Cable?
A: The Solar Panel Cable has high temperature resistance, flame retardant, anti-aging, corrosion resistance, and strong insulation.
