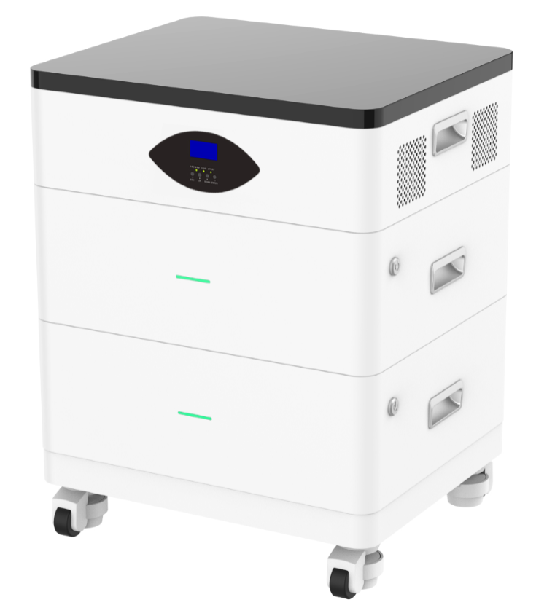

SunPhoton-All-In-One-Y-5KW-10KWh BESS+Solar Hybrid Inverter

Large Image : SunPhoton-All-In-One-Y-5KW-10KWh BESS+Solar Hybrid Inverter

Product Details:

Place of Origin:	Made By China
Brand Name:	SunPhoton
Certification:	CE
Model Number:	SP-AIO-Y-5K-10H

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ to contact sales
Price:	FOB or DAP/DDP to contact sales
Packaging Details:	Different packaging methods are adopted according to different modes of transport.
Delivery Time:	5-30 working days
Payment Terms:	T/T
Supply Ability:	10000+Set+per Month

Contact Now chat now

Detailed Product Description

Highlight:

All-In-One solar hybrid inverter

5KW solar hybrid inverter

10KWh solar hybrid inverter

attery Capacity: 10.24kWh (51.2V, 200Ah)
Rated Power: 5000W / Peak 10000VA
AC Voltage (Battery Mode): (220Vac~240Vac) ±5%, 230Vac
Cycle Life: 6000 cycles
AC Charging: Max. 80A
MPPT Charging: 6000W, 60-450VDC, Max. 80A
Recommended Charging Current: 40A
Max Charging Voltage: 58.4V
Max Charging Current: 200A
Recommended Discharging Current: 100A
Max Discharging Current: 200A
Supported Functions: Bluetooth & APP support (optional, additional fee applies)
Product Dimensions: 548×458×650mm
Net Weight: 123kg; Gross Weight: 130kg
Package Dimensions: 580×480×230mm*2, 580×480×190mm*2
Pallet Dimensions: 96×116×12cm (8 units per 2-layer pallet)
20ft Container Loading Qty: 88 units
40ft Container Loading Qty: 176 units
