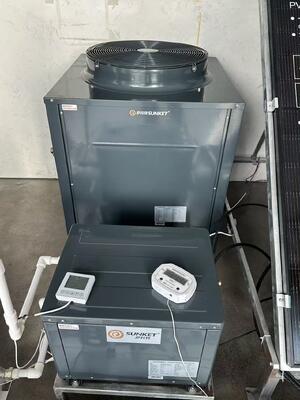

SunPhoton-HiMasterV R290 Heat Pump With German BAFA Certificate

SunPhoton-HiMasterV R290 Monobloc Air Source Heat Pump

CE/SG/ErP

SunPhoton Comfort your life with silent tech

europe@pvsolarpowersystem.com; xiaaimin@pvsolarpowersystem.com

www.pvsolarpowersystem.com

High Efficiency

A+++

Eco-friendly

The Hi-Master V Series can meet highest class A+++, providing our customers the best eco-friendly performance for the heat pump system.

R290 Natural Refrigerant

Low GWP and low carbon life

Using the natural refrigerant R290 (with a GWP of only 3),the Hi-Master V Series heat pump has a minimal impact on global warming and zero harm to the ozone layer, making it the best choice for the low carbon heating system. Designed to optimize efficiency and reduce energy consumption, this heat pump provides customers the affordable sustainable heating solutions.

Quiet Operation

No noise to disturb the neighbors

Through effective noise reduction solutions, the Hi-Master V Series can achieve a sound pressure level down to 31dB(A) at 1m and 24dB(A) at 3m, lower than the sound in a library. You'll barely notice it's working, so your neighbors won't be disturbed by the noise.

Within 1m: 31 dB(A) Ultra-low Noise Level

Aesthetic Appearance Design

Decorate your home

With its chic metallic gray finish and sleek lines, the Hi-Master V Series heat pump effortlessly complements a variety of home styles, from modern apartments to quaint cottages, brick homes and traditional villas. Its stylish design seamlessly enhances the ambiance and effortlessly blends in to aesthetically elevate your space.

Easy Remote Control and Management

WIFI, APP & IoT

Use the built-in Wi-Fi connectivity, Eco-Home app and IoT technology to effortlessly manage and control your heat pump from anywhere, ensuring personalized comfort tailored to your preferences.

• Heating Curve Setting
• BMS Central Control
• Multilingual Menu
• Two Heating Zones

Key Upgrades – Better Performance

1. 7-inch IPS Screen(HMI)

Extra-large screen ensures easy operation and pleasant user experience.

2. Flow Meter

Use vortex flow meter to accurately read the real-time water flow of the unit.

3. R290 Sensor

Detect the concentration of refrigerant in the cavity. When it reaches the safety setting value or above, you will be reminded by an alarm and the power supply will be switched off promptly.

4. Separator

The gas separator integrates exhaust, filtration, magnetic decontamination, and safe pressure relief.

Featured Functions – Enhanced Capabilities

MULTIPLE DEFROST MEASURES

Intelligent defrost, chassis electric heating, centralized drainage are designed to prevent icing.

MULTIPLE NOISE REDUCTION MEASURES

CFD-based EPP deflector, extra-large silent fan blades, compressor with 4-level sound insulation, double-layer bracket and optimized piping vibration design ensure extreme-quiet operation.

ADAPTIVE ENERGY-SAVING ALGORITHM

Self-developed algorithm fits the actual heat load of the building to achieve high energy efficiency and low noise.

MULTI-MODE ADAPTIVE OPERATION OF WATER PUMP

The pumps can adaptively operate in three modes: target temperature difference, target flow rate, and target speed.

ENERGY CALCULATION

A self-developed algorithm enables real-time display and statistics by time period, providing a fast overview of energy output, energy consumption, and energy efficiency ratio.

MULTIPLE SAFETY MEASURES

Electrical isolation, Active refrigerant gas venting channel, gas and magnetic separator and Refrigerant leak detector to guarantee full safety.

Integrated Solution

Efficient installation and flexible connectivity

The Hi-Master V Series monobloc heat pump integrates control system and hydronic module into one indoor box, simplify the piping to increase installation efficiency. Such design will offer flexible connectivity for old house retrofits with original water piping, or new apartments.

It offers three indoor unit options to meet diverse household demands and fit various spaces:

1. Control Module CM10

Centralized control for domestic heating, cooling and DHW

Advanced energy statistics algorithms

7-Inch user-friendly controller interface

Integrated WIFI remote control

Suitable for standard set-up and hybrid systems

2. Hydraulic Station HS10

Centralized control for domestic heating, cooling and DHW

Hydraulic components integrated, including 8L expansion water tank

Integrated with all the functions of the Control Module CM10

3-way valve for Space heating, cooling and DHW

Equipped with 3/9kW auxiliary electric heater

3. Hydraulic Tower HT10

Centralized control for domestic heating, cooling and DHW

Hydraulic components integrated, including 8L expansion water tank

Integrated with all the functions of the Control Module CM10

3-way valve for Space heating, cooling and DHW

Equipped with 3/9kW auxiliary electric heater

SG Function

Allows heat pumps to support the power grid, achieve lower carbon footprint and deliver more cost-effective operation.

Technical Parameter Table

Model: NE-F	Control Module CM10	Hydraulic Station HS10-1P	Hydraulic Station HS10	Hydraulic Tower HT10-1P	Hydraulic Tower HT10
Power Supply	220-240V~/50HZ	220-240V~/50HZ	380-415V 3N~/50HZ	220-240V~/50HZ	380-415V 3N~/50HZ
Max.Heating Power(kW)	/	3	9	3	9
Max.Heating Current(A)	/	13.1	13.7	13.1	13.7
Max.Outlet Water Temp(℃)	/	75	75	75	75
Water IN/OUT Connection ﹙inch)	/	G1-1/4”	G1-1/4”	G1-1/4”	G1-1/4”
DHW IN/OUT Connection(inch)	/	G1”	G1”	G1”	G1”
H&C IN/OUT Connection(inch)	/	G1”	G1”	G1”	G1”
TAP Water Connection(inch)	/	/	/	G1”	G1”
Sound Pressure dB﹙A)at 1m	/	30	30	31	31
Controller	7-Inch / IPS 1024×600	7-Inch / IPS 1024×600	7-Inch / IPS 1024×600	7-Inch / IPS 1024×600	7-Inch / IPS 1024×600
Remote Control	WIFI / APP / IOT	WIFI / APP / IOT	WIFI / APP / IOT	WIFI / APP / IOT	WIFI / APP / IOT
Net Weight(kg)	7.96	34	37.67	150	150
Net Dimensions(L×W×H)(mm)	390×100×420	418×310×750	418×310×750	640×750×1950	640×750×1950
Shipping Dimensions (L×W×H) (mm)	450x200x550	520x390x905	520x390x905	740x850x2090	740x850x2090
Shipping Weight (kg)	15	40	42.28	160	160
Shipping Dimensions (L×W×H) (mm)	505x330x580	535x520x920	535x520x920	750x860x2100	750x860x2100
Shipping Weight (kg)	20	45	45	218	218
Water Proof Class	IPX1	IPX1	IPX1	IPX1	IPX1
Electricity Shock Proof	I	I	I	I	I
Water Tank(L)	/	/	/	200	200

Notice:The above data is for reference only. The specs data is subject to actual product.

Core Product Advantages

High Energy Efficiency | Built-in WiFi | Silent Operation | Innovative Structure

Main Outdoor Unit Models

130HCR5TINVMV2, 60HCR5INVMV2, 90HCR5INVMV2, 130HCR5INVMV2, 160HCR5TINVMV2, 90HCR5TINVMV2, 160HCR5INVMV2

[Space Heating Test Condition]

Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C.

Equivalent Maximum Heat Production(kW)	6	9	9	13	13	16	16	18	22
P rated (Pdesignh, Average climate)(kW)	4.8/4.9	7.1/7.1	7.1/7.1	10.0/9.7	10.0/9.9	12.9/12.6	12.9/12.6	15.0/15.0	17.0/17.0
η s (Average climate)(%)	200/144	199/146	199/146	203/149	199/149	200/145	200/145	198/145	197/144
SCOP (EN14825 Average climate)(W/W)	5.08/3.66	5.05/3.73	5.05/3.73	5.14/3.79	5.05/3.80	5.07/3.69	5.07/3.69	5.02/3.70	5.01/3.68
ErP Level (EN14825 Average climate)	A+++/A++	A+++/A++	A+++/A++	A+++/A++	A+++/A++	A+++/A++	A+++/A++	A+++/A++	A+++/A++
Heat Output(EN14511-2)(kW)	4.2/4.1	5.9/5.9	5.9/5.9	7.9/7.9	7.8/7.9	10.1/10.1	10.1/10.1	12.0/12.0	13.7/13.5
COP(EN14511-2)(W/W)	5.1/3.2	4.9/3.2	4.9/3.2	5.0/3.1	5.0/3.1	5.1/3.2	5.1/3.2	5.1/3.2	5.1/3.2
Sound Power Level (EN12021-1)(dB(A))	47/46	54/54	54/54	54/52	55/55	53/54	53/54	56/56	58/58
Sound Pressure Level at 1m(dB(A))	32/31	38/38	38/38	38/37	40/39	38/39	38/39	41/41	43/43

[Space Cooling Test Condition]

Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.



Cooling Capacity (kW)	1.47~4.91	2.33~6.96	2.33~6.96	3.27~9.13	3.27~9.13	4.32~11.8	4.32~11.8	4.73~13.50	5.82~16.65
Power Input (kW)	0.34~1.60	0.54~2.23	0.54~2.23	0.75~2.99	0.75~2.99	0.98~3.78	0.98~3.78	1.09~4.45	1.35~5.55
EER (W/W)	4.32~3.07	4.31~3.12	4.31~3.12	4.34~3.06	4.34~3.06	4.38~3.12	4.38~3.12	4.34~3.03	4.31~3.00

[Domestic Hot Water Test Condition]

Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.



Heating Capacity (kW)	6.61	9.33	9.33	13.45	13.45	16.60	16.60	18.68	22.83
Power Input (kW)	1.52	2.14	2.14	3.11	3.11	3.82	3.82	4.34	5.33
COP	4.35	4.35	4.35	4.32	4.32	4.35	4.35	4.30	4.28
Max. Power Input (kW)	2.8	4.5	4.5	5.4	5.4	5.8	5.8	7.5	8.5
Max. Running Current (A)	14.3	19.8	7.0	23.5	8.25	25.2	8.9	11.6	13.2
Max. Outlet Water Temp. (°C)	75	75	75	75	75	75	75	75	75
Operation Ambient Range (°C)	-25~43	-25~43	-25~43	-25~43	-25~43	-25~43	-25~43	-25~43	-25~43
Power Supply Option	220-240V~/50Hz	220-240V~/50Hz	380-415V/3N~/50Hz	220-240V~/50Hz	380-415V/3N~/50Hz	220-240V~/50Hz	380-415V/3N~/50Hz	380-415V/3N~/50Hz	380-415V/3N~/50Hz
Rated Water Flow Rate (m³/h)	1.03	1.55	1.55	2.20	2.20	2.75	2.75	3.10	3.78
Compressor Brand	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary	MITSUBISHI/Rotary
Circulating Pump Brand	Wilo	Wilo	Wilo	Wilo	Wilo	Wilo	Wilo	Shinhoo	Shinhoo
Water Side Heat Exchanger	Plate	Plate	Plate	Plate	Plate	Plate	Plate	Plate	Plate
Air Side Heat Exchanger	Finned Tube	Finned Tube	Finned Tube	Finned Tube	Finned Tube	Finned Tube	Finned Tube	Finned Tube	Finned Tube
Fan/Motor Type	Axial/DC	Axial/DC	Axial/DC	Axial/DC	Axial/DC	Axial/DC	Axial/DC	Axial/DC	Axial/DC
Refrigerant Type	R290	R290	R290	R290	R290	R290	R290	R290	R290
Water Pipe Connection Spec	G1 1/4"	G1 1/4"	G1 1/4"	G1 1/4"	G1 1/4"	G1 1/4"	G1 1/4"	G1 1/4"	G1 1/4"
Protection Class	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Electricity Shock Proof Grade	Class Ⅰ	Class Ⅰ	Class Ⅰ	Class Ⅰ	Class Ⅰ	Class Ⅰ	Class Ⅰ	Class Ⅰ	Class Ⅰ
Net Weight (kg)	128	142	156	168	183	176	190	/	/
Net Dimensions (L×W×H) (mm)	1102×557×1021	1102×557×1021	1263×557×1021	1377×557×1021	1377×557×1021	1377×557×1021	1377×557×1021	1377×598×1021	1377×598×1021

Notice:

1. The above data is for reference only. The specs data is subject to actual product.
2. The equivalent maximum heat production is for reference only, and the actual operation will not run to the maximum heat production at ambient temperatures above 0 ℃.
