xModel NO. | TOP18-1250AH-L-LD | Battery Weight | -40~50celsius Degree |
---|---|---|---|
Storage Temperature | -20~40celsius Degree | Finished Internal Resistance | 100mΩ |
Discharge Cut-off Voltage | 10V | Transport Package | Wooden Box |
Specification | 153*98*150mm | Trademark | Htonetech |
Origin | China | Supply Ability | 50000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | Type | Lithium Metal Battery |
Rechargeable | Yes | Size | Large |
High Light | Solar Power Batteries 12V,Solar Power Batteries 50ah,Solar Lithium Battery Large Capacity |

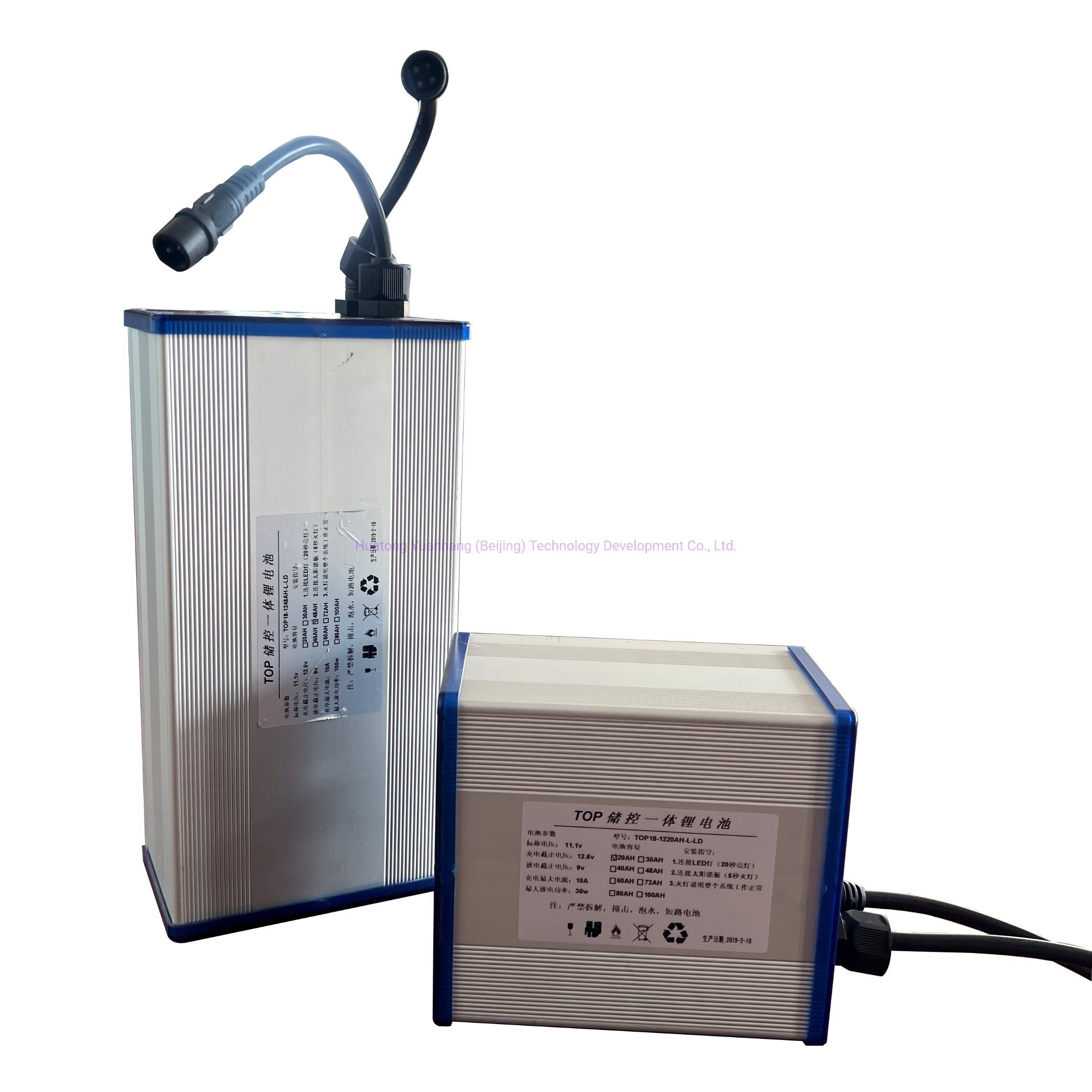

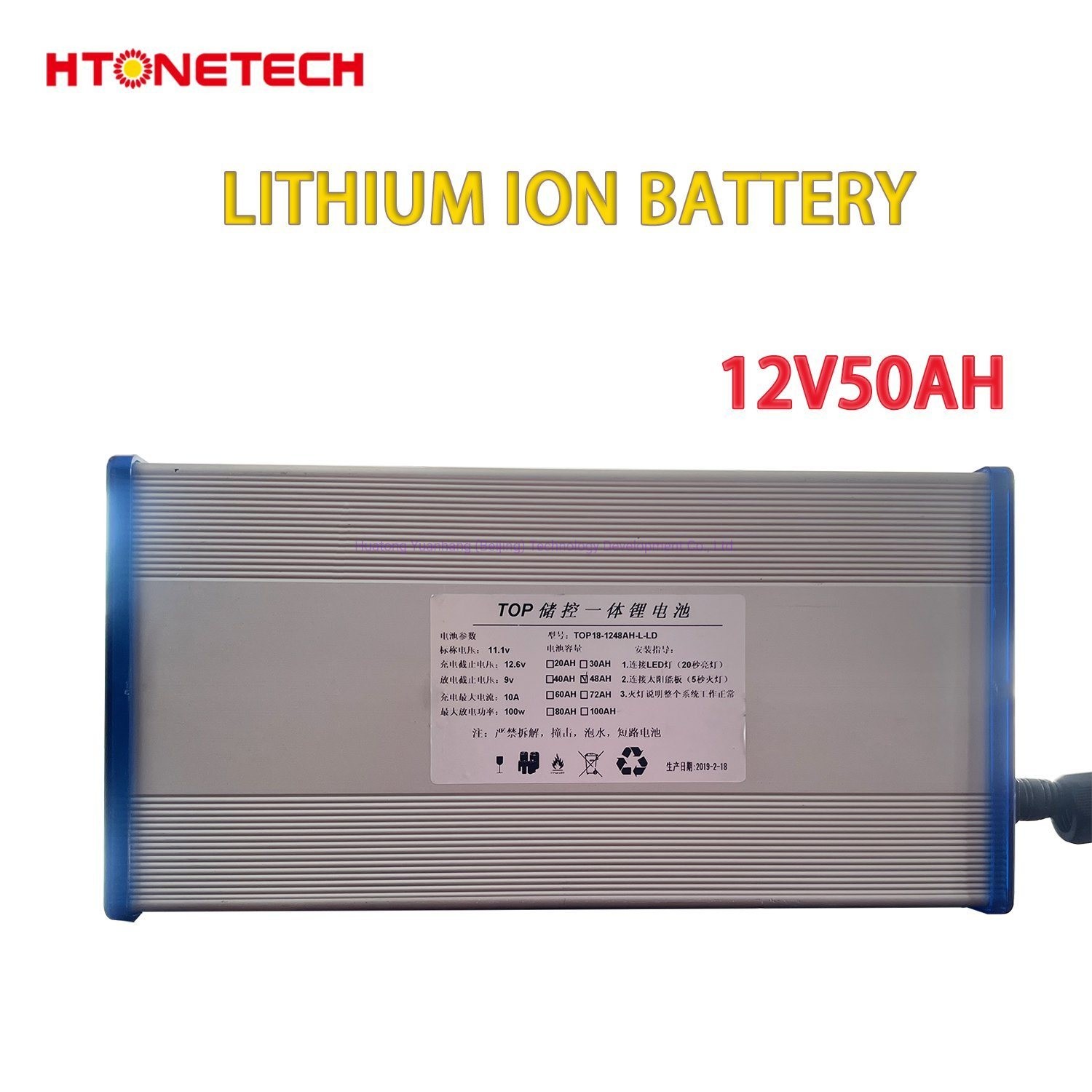

Solar Lithium Battery Efficient Power Supply 12V 50ah Charge and Discharge Large Capacity Product Description
A solar lithium battery, also known as a solar lithium-ion battery, is a type of rechargeable battery that is specifically designed for use in solar power systems. It combines the benefits of lithium-ion battery technology with the ability to store and release electrical energy generated from solar panels.
- Lithium-ion batteries are widely used in various applications due to their high energy density, light weight, and long cycle life. When it comes to solar power systems, lithium-ion batteries have become increasingly popular because they offer several advantages over other battery types.
- Here are some key features and benefits of solar lithium batteries:
- Energy storage: Solar lithium batteries allow you to store the excess energy generated by your solar panels during the day and use it during periods of low sunlight or at night. This helps you achieve energy independence and reduce reliance on the electrical grid.
- Efficiency: Lithium-ion batteries are known for their high energy efficiency, which means they can store and release energy with minimal loss. This makes them an ideal choice for solar power systems, where maximizing energy utilization is crucial.
- High energy density: Solar lithium batteries have a high energy density, meaning they can store a large amount of energy in a compact size. This is particularly important in solar installations where space may be limited.
Model | TOP18-1220AH-L-LD | TOP18-1230AH-L-LD | TOP18-1240AH-L-LD | TOP18-1245AH-L-LD | TOP18-1250AH-L-LD | TOP18-1260AH-L-LD | ||||
Nominal voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | ||||
Nominal capacity | 12V20AH | 12V30AH | 12V40AH | 12V45AH | 12V50AH | 12V60AH | ||||
Charging voltage | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | ||||
Maximum charging current | 10A-30A (optional) | 10A-50A (optional) | ||||||||
Instantaneous discharge current | 10A-30A (optional) | 10A-50A (optional) | ||||||||
Discharge cut-off voltage | 10V | 10V | 10V | 10V | 10V | 10V | ||||
Finished internal resistance | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ≤ 100mΩ | ||||
Battery weight: | 2.5KG | 4.5KG | 4.5KG | 6.5KG | 7.5KG | 8.5KG | ||||
Product size MM: (without controller) | 153*98*150 | 153*98*270 | 153*98*270 | 153*98*380 | 153*98*400 | 153*98*520 | ||||
Charging temperature: | -0~45ºC(heating plate optional) | |||||||||
Discharge temperature: | -40~50ºC | |||||||||
Storage temperature: | -20~40ºC | |||||||||

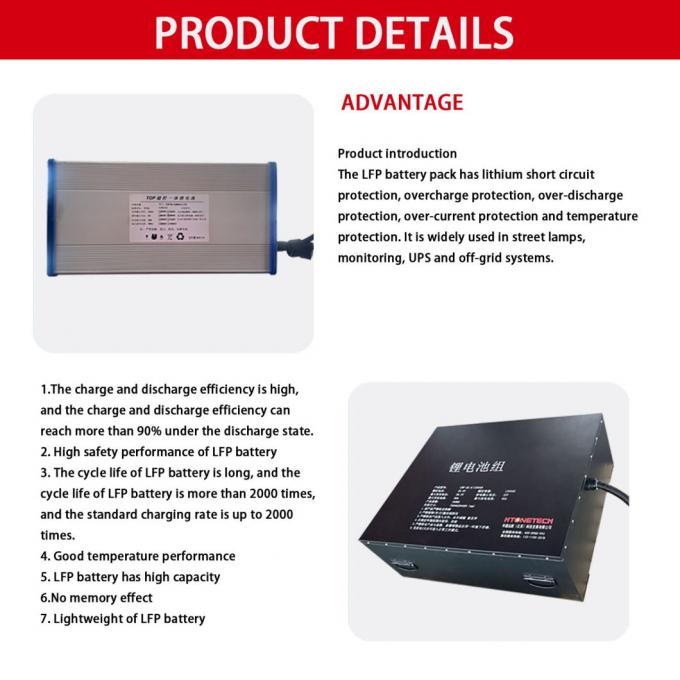

Lithium battery protection | Short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection | |||||||||
Fields of application: | Street lights, surveillance, UPS, off-grid systems |
FAQ
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
