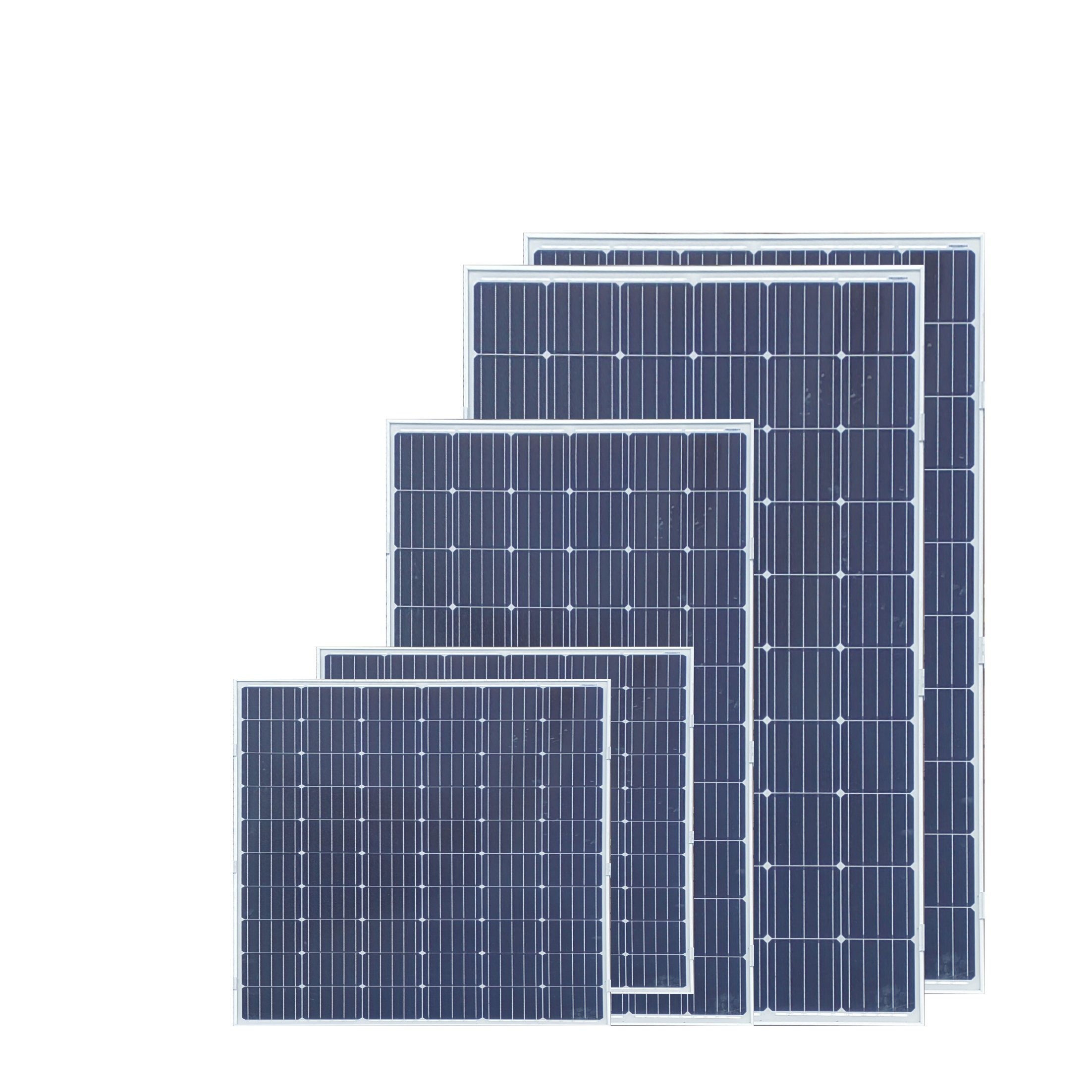

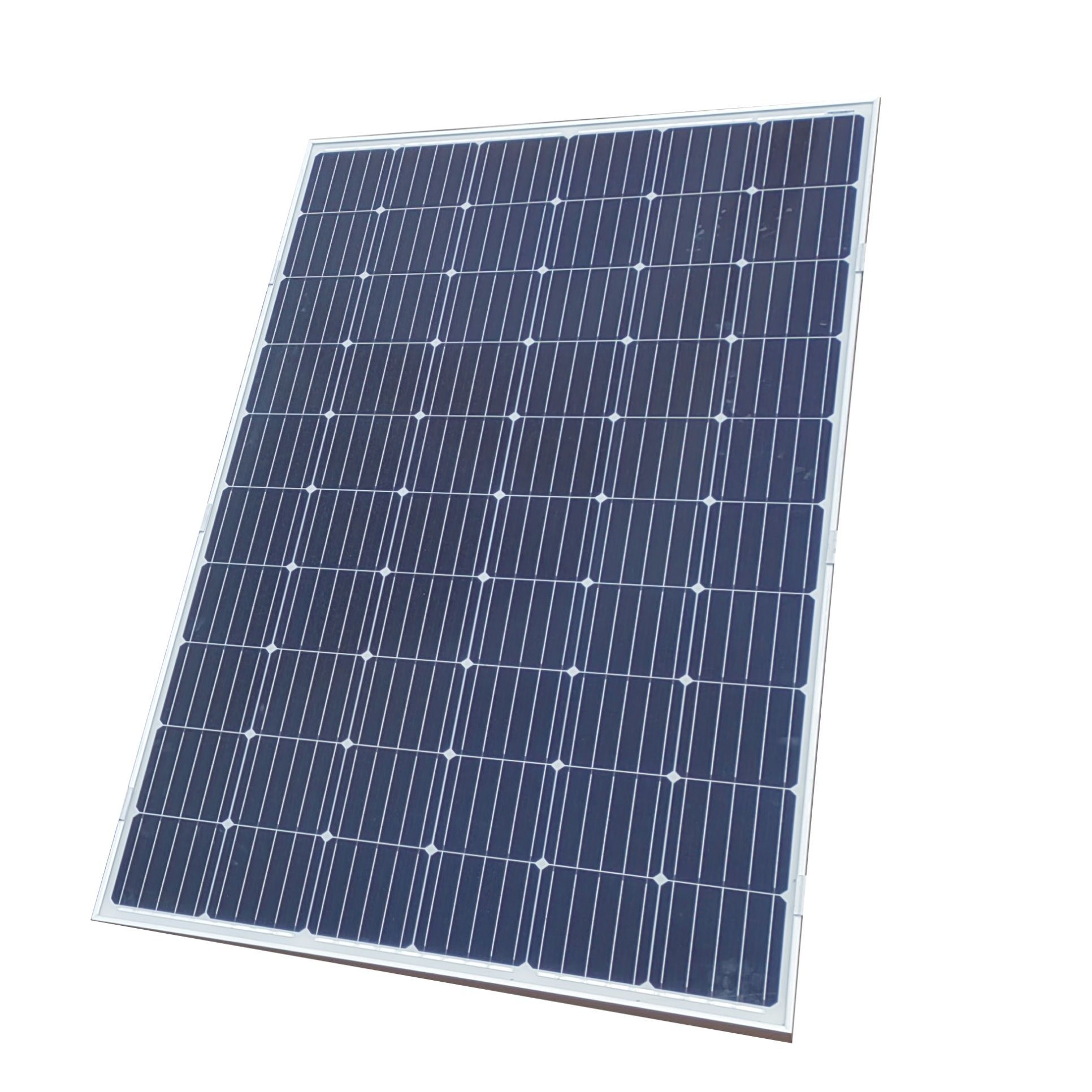

Class C Solar Photovoltaic Panel For Home / Industry All Fields
| Certification | ISO, CE |
|---|
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HT-S150-24M | Application | All Fields |
|---|---|---|---|
| Condition | New | Material | Monocrystalline Silicon |
| Application Level | Class A | Working Temperature (ºC) | -40~+85 |
| Rated Battery Working Temperature | 45±2ºC | Fire-Protection Rating | Class C |
| Junction Box | Protection Grade IP68 | Cable | 4.0mm2,900mm |
| Component Border | Anodic Oxidation | Transport Package | Wooden Box |
| Trademark | Htonetech | Origin | China |
| Supply Ability | 50000pieces/Year | Shipping Cost | To Be Negotiated| Freight Cost Calculator |
| After-sales Service | Yes | Warranty | 25 Years |
| Number Of Cells | 1 | ||
| High Light | Class C Solar Photovoltaic Panel,Solar Photovoltaic Panel Industry |
||
Product Description
Solar Panel Module PV Photovoltaic Monocrystalline Silicon Polycrystalline System Panels for Home/Industry
Product Description
Solar photovoltaic (PV) panels for home use are a popular and sustainable way to generate electricity and reduce reliance on traditional energy sources. Here's some important information about solar PV panels for home applications:
- Power Generation: Solar PV panels installed on residential rooftops or in the yard harness sunlight to generate electricity. The panels consist of multiple solar cells that convert sunlight directly into electrical energy. The power output of residential solar panels typically ranges from around 200 watts to 400 watts per panel.
- Energy Savings: By installing solar PV panels on your home, you can generate your own electricity, which can offset or even eliminate the need to purchase electricity from the grid. This can result in significant energy savings over the lifetime of the system, depending on factors such as your energy consumption, solar system size, and local solar resources.
- System Size: The size of a solar PV system for a home depends on several factors, including your energy consumption, available roof space, and budget. A professional solar installer can help determine the appropriate system size based on your specific needs and goals. Typically, residential solar PV systems range from a few kilowatts (kW) to tens of kilowatts in capacity.
- Net Metering: Many utility companies offer net metering programs, which allow homeowners with solar PV systems to receive credits for excess electricity they generate and send back to the grid. These credits can be used to offset electricity consumed during times when the solar system is not producing enough power, such as at night or during cloudy days.
- Financing Options: Various financing options are available to help homeowners invest in solar PV systems. These options include purchasing the system outright, leasing the system, or entering into a power purchase agreement (PPA) with a solar provider. Each option has its own advantages and considerations, so it's important to evaluate which one aligns best with your financial situation and goals
Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power
| Model | Peak power(WP) | Peak Voltage(V) | Peak Current(A) | Short circuit current (A) | Open circuit voltage (V) | Size |
| HT-S150-24M | 150 | 18 | 8.33 | 8.99 | 22.5 | 1480X670X35 |
| HT-S200-24M | 200 | 36 | 5.56 | 6.01 | 44.8 | 1580X808X35 |
| HT-S250-24M | 250 | 30 | 8.33 | 8.99 | 36.8 | 1640X992X40 |
| HT-S275-24M | 275 | 30 | 9.17 | 9.81 | 37.2 | 1640X992X40 |
| HT-S300-24M | 300 | 30 | 10 | 10.7 | 37.2 | 1650X992X35 |
| HT-S330-24M | 330 | 36 | 9.17 | 9.81 | 44.64 | 1956X992X40 |
| HT-S430-24M | 430 | 40.3 | 10.67 | 11.22 | 48.7 | 2102X1040X35 |
| HT-S450-24M | 450 | 41.0 | 10.98 | 11.53 | 49.6 | 2102X1040X35 |
| Maximum power Pmp temperature coefficient | =-0.35%/ºC | |||||
| The open-circuit voltage Voc | =-0.28%/ºC | |||||
| temperature coefficient Short-circuit current | 0.048%/"ºC | |||||
| Component border | anodic oxidation | |||||
| Junction box | Protection grade IP68 | |||||
| cable | 4.0mm2,900mm | |||||
| working temperature (ºC) | -40~+85 | |||||
| Application level | Class A | |||||
| fire-protection rating | Class C | |||||
| Rated battery working temperature | 45±2ºC | |||||
FAQ
1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
