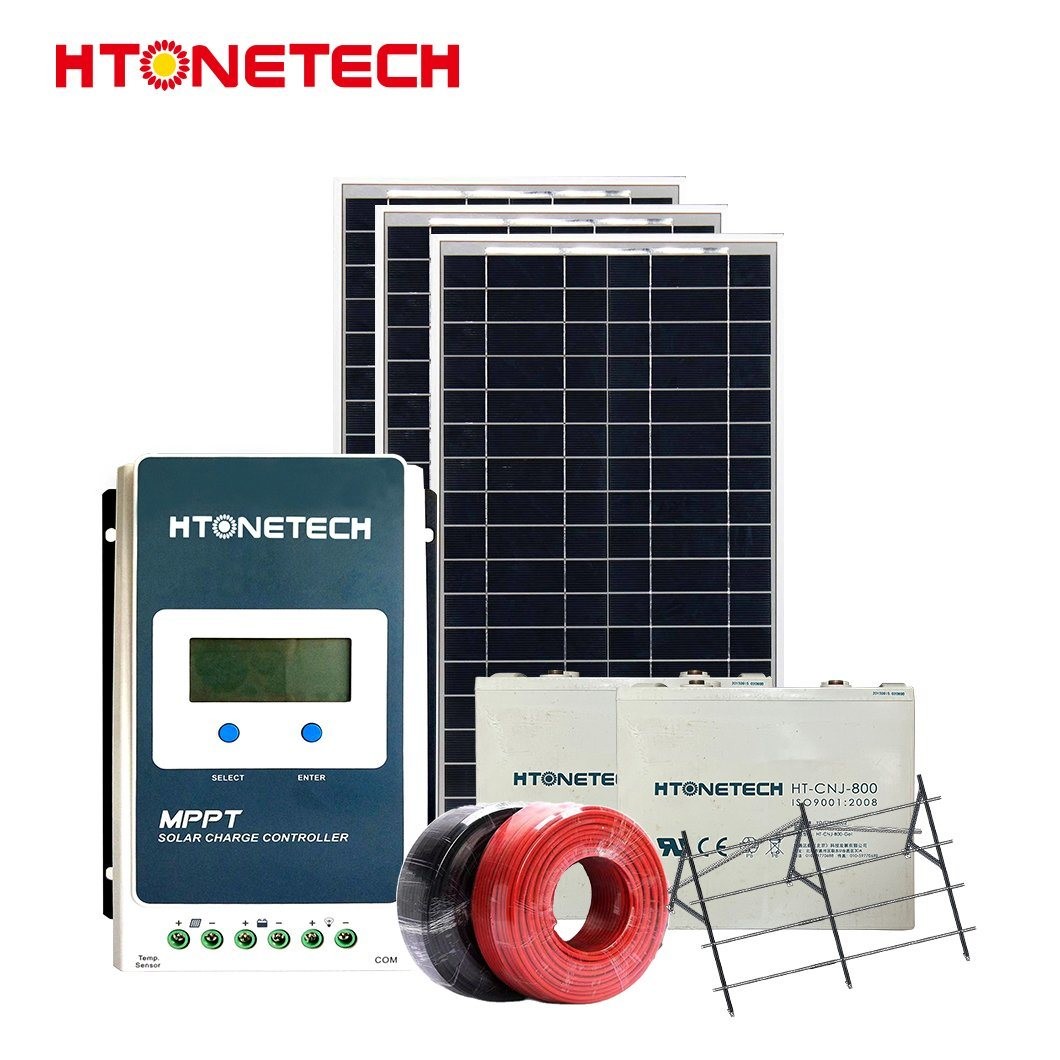

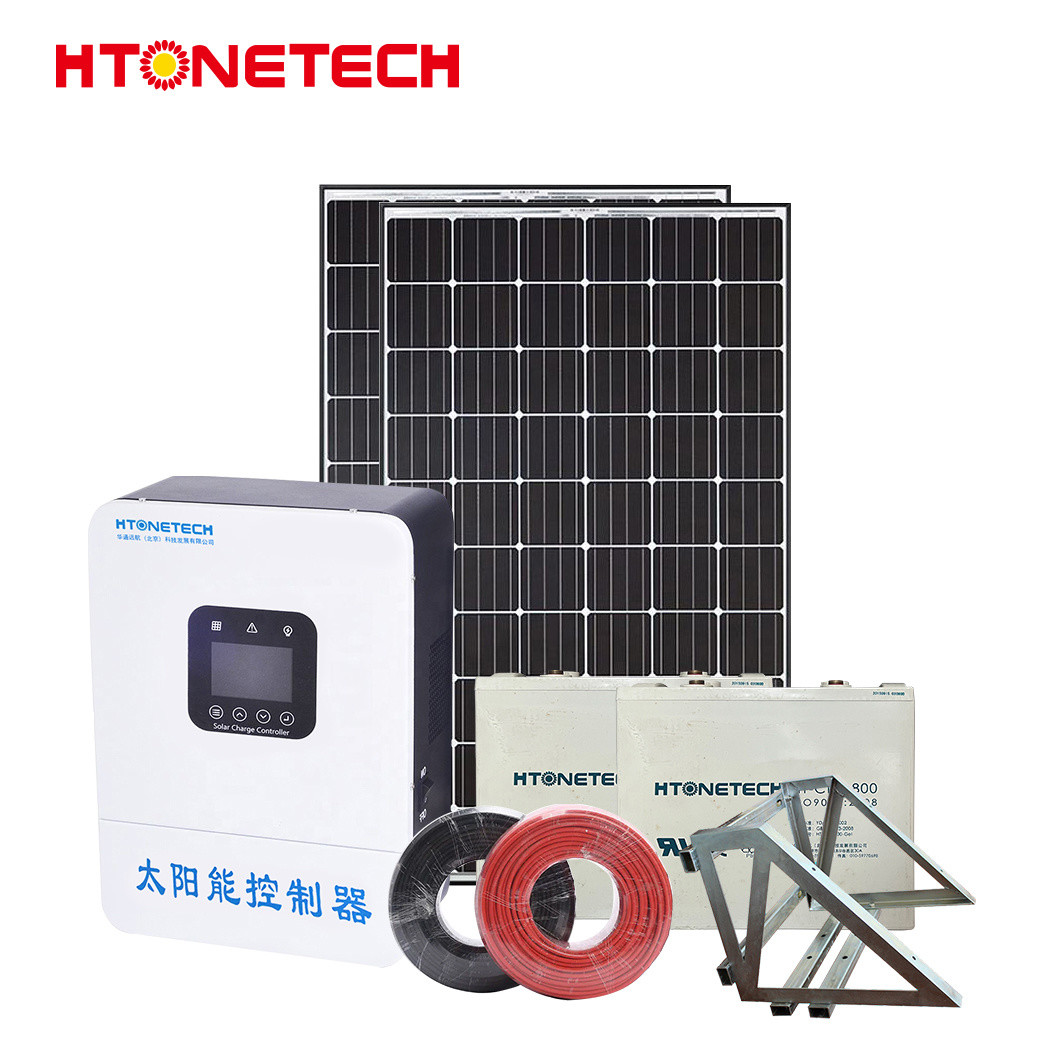

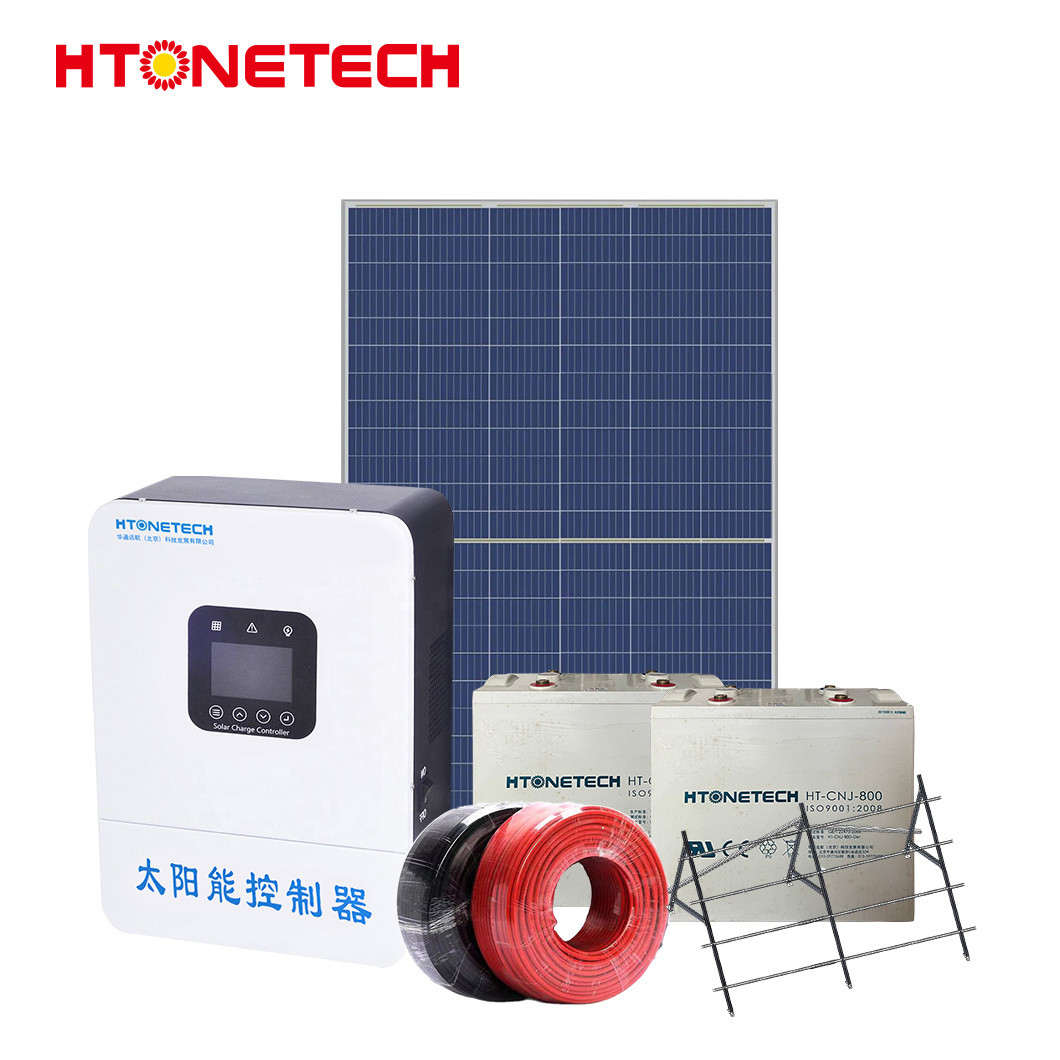

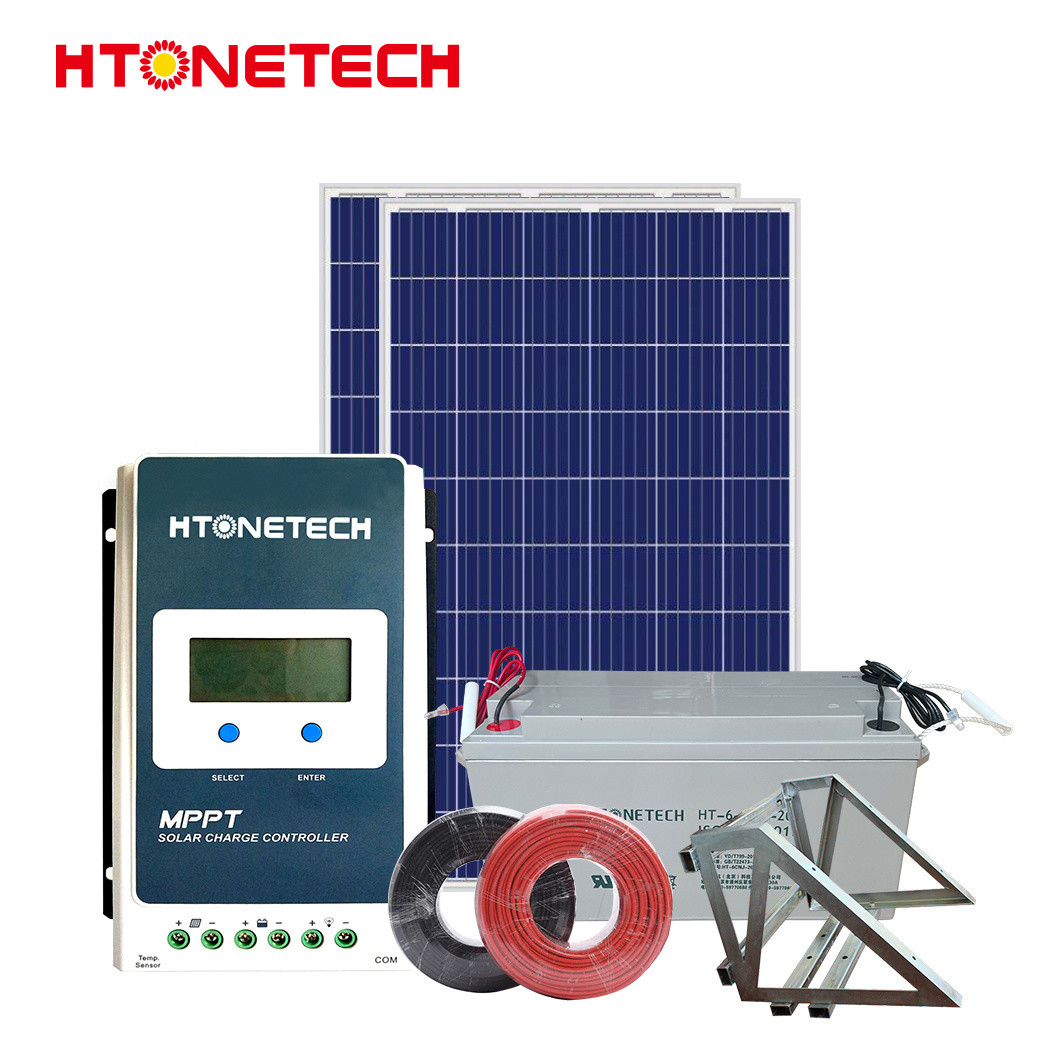

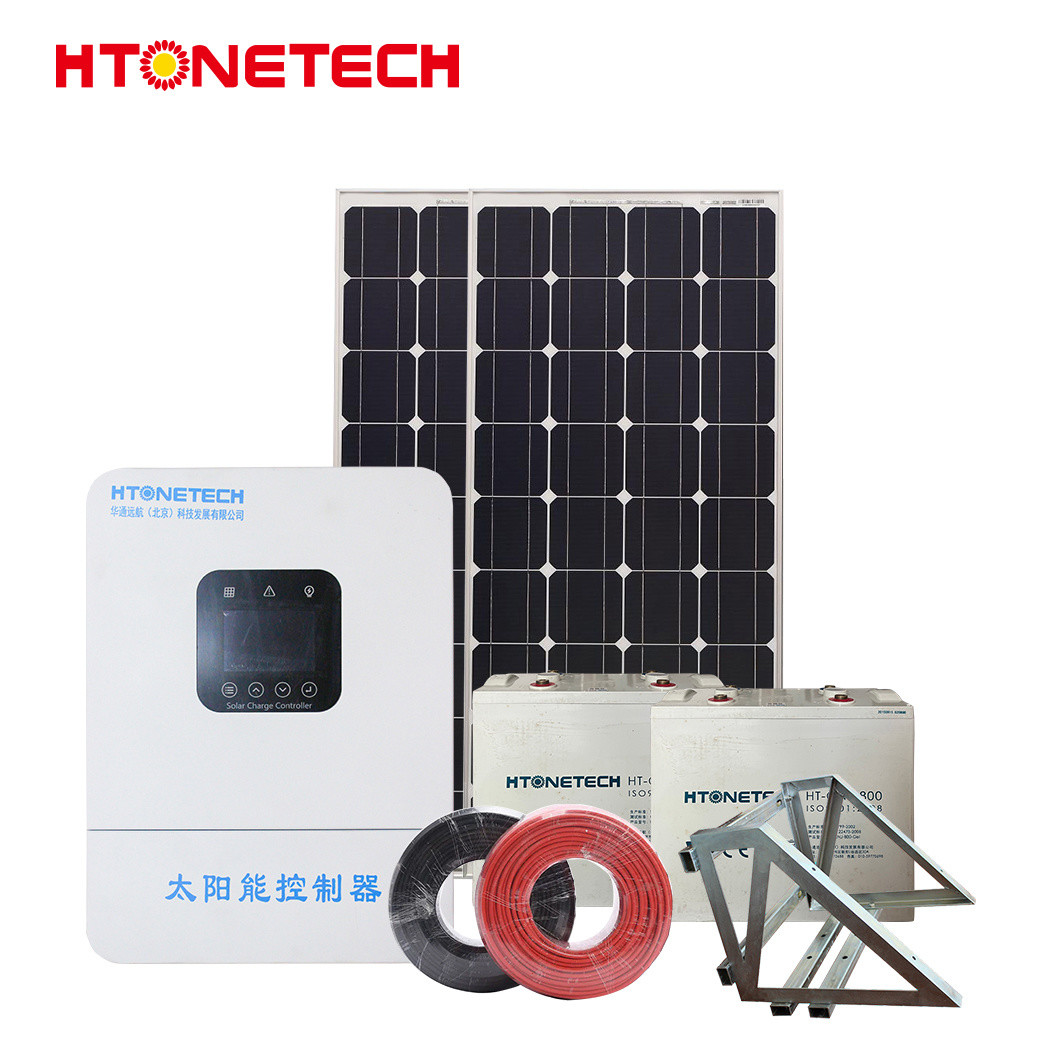

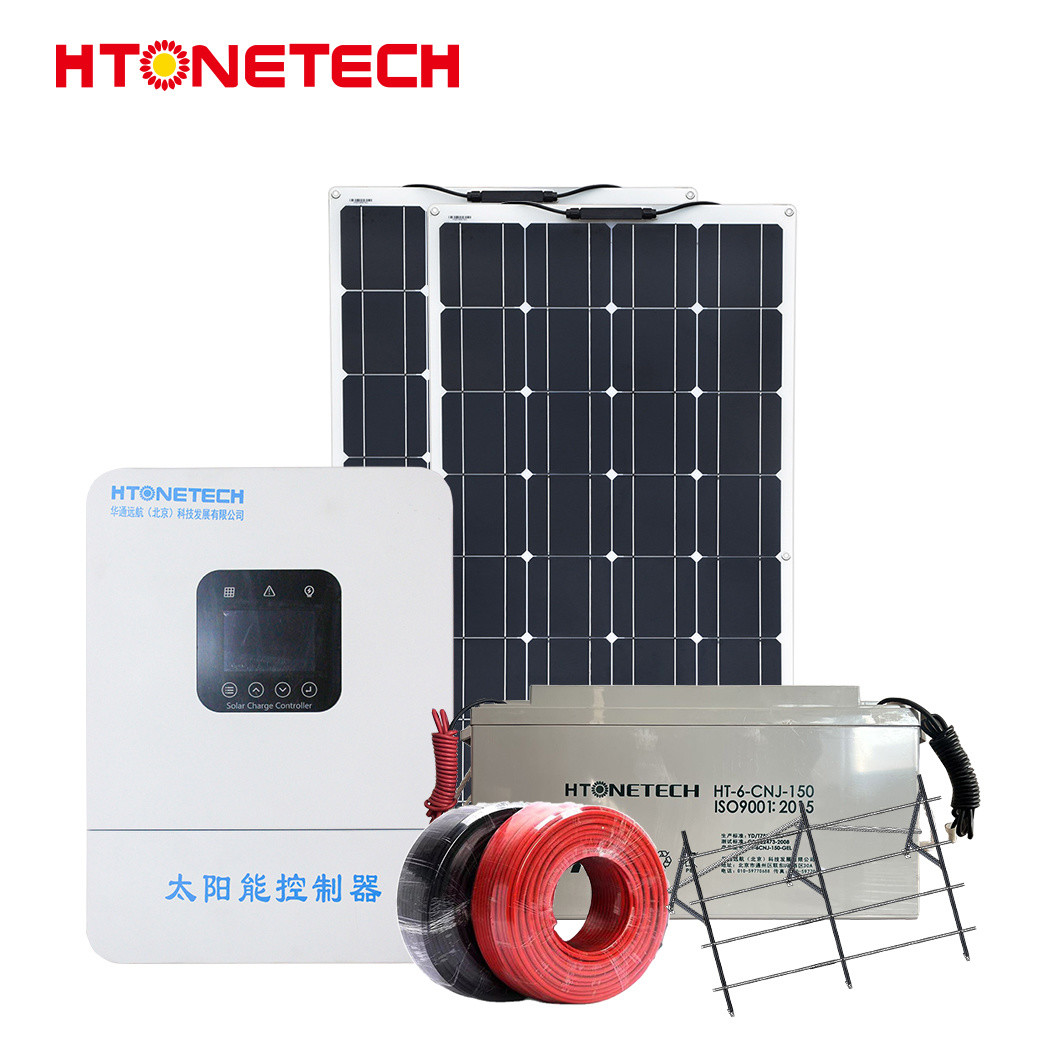

20Kw Large Off Grid Solar System 30KWH 40KWH 50KWH 99KWH With Battery
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel NO. | Solar Energy System | Application | Home, Industrial, Commercial |
---|---|---|---|
Specification | Mini, Standard Specification Or Customized | Controller Type | MPPT |
Rated Voltage | 12/24V/Self-Identification | Storage Power | 2400wh |
Nominal Capacity | 200ah | Junction Box | IP65 |
Core Components | Solar Photovoltaic Module+Battery+Solar Controller | Safety Performance | Reverse Connection/Overvoltage/Overcurrent |
Rated Current | 60A | Front Glass | High Transmittance Tempered Glass |
Panel Power | 375wp | Nominal Voltage | 12V |
Battery Type | Gel | Keywords | Solar Energy System |
Cell Type | Monocrystalline Silicon | Product Name | Off Grid Solar System |
Transport Package | Standard Packaging Or Customized | Trademark | HTONETECH |
Origin | Beijing, China | Supply Ability | 50000000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
Warranty | 2year | Condition | New |
High Light | 20Kw Large Off Grid Solar System,Large Off Grid Solar System 30KWH |
Product Description
System advantages:
HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.
1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.
Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.
Solar Photovoltaic Modules
Cell type: monocrystalline silicon
Panel power: 375Wp
Front glass: High transmittance tempered glass
Junction box: IP65
Total power of components: 1125WP
Gel Battery
Battery Type: Gel
Nominal voltage: 12V
Nominal capacity: 200AH
Storage power: 2400WH
Total battery capacity: 9600WH
Sun Controller
Controller Type: MPPT
Rated voltage: 12/24V/self-identification
Rated current: 60A
Safety performance: reverse connection, overvoltage, overcurrent, Undervoltage protection
DC24V 1125Wp Solar Power System
No. | Product Name | Specification Model |
1 | Solar photovoltaic modules | Monocrystalline silicon 375 |
2 | Photovoltaic mounting bracket | HT-S1125-ZJ |
3 | Gel battery | 12V 200AH |
4 | Battery box | HT-ABS-200*2 |
5 | Solar Controller | MPPT 24V 60A |
6 | Distribution box and accessories | HT-BL |
7 | Auxiliary materials and packaging are transported to the port (FOB) | PF1*4 20m BVR10 10m φ25 10m |
