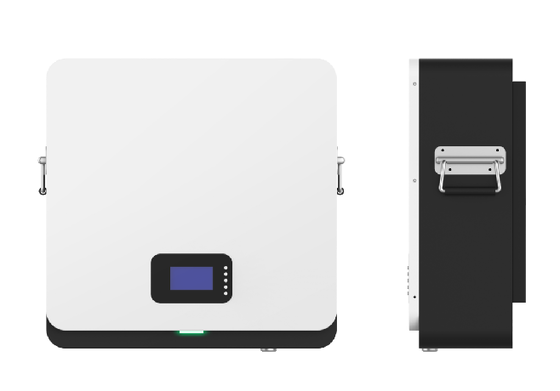

G-5000A 51.2V 100AH Home Solar Energy Storage System 5.12kWh Wall Mounted

Large Image : G-5000A 51.2V 100AH Home Solar Energy Storage System 5.12kWh Wall Mounted

Product Details:

Place of Origin:	CHINA
Brand Name:	YIFEI
Certification:	UN38.3
Model Number:	G-5000A 51.2V 100AH

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	USD 482
Delivery Time:	5-30 workdays
Payment Terms:	T/T

Contact Now chat now

Detailed Product Description

Cycle Life:

≥6000 Cycles (80% DOD, 25°C)

Communication Interface:

RS485 / CAN / RS232

Remote Monitoring:

Bluetooth (optional) / Wi-Fi

Parallel Capability:

Recommended 6 Units, Up To 16 Units Supported

Highlight:

100AH home solar energy storage system

51.2V home solar energy storage system

Wall Mounted home solar storage system

YIFEI Home Storage Battery G-5000A 51.2V 100AH

Product Description

The YIFEI Home Storage Battery G-5000A 51.2V 100Ah is a compact wall-mounted lithium iron phosphate (LiFePO4) energy storage battery designed for residential and small commercial solar energy systems. With a usable energy capacity of 5.12kWh, it provides reliable backup power and efficient energy storage for home solar applications.

This system features a high-performance BMS, strong compatibility with mainstream inverter brands, and flexible parallel expansion capability, making it ideal for scalable residential energy storage solutions.

Product Specifications

Item	Specification
Product Name	YIFEI Home Storage Battery G-5000A 51.2V 100Ah
Battery Capacity	5.12 kWh (51.2V, 100Ah)
Rated Capacity	100Ah
Cell Configuration	16S1P
BMS Configuration	16S100A
Rated Voltage	51.2V
Operating Voltage Range	44.8V – 58.4V
Rated Charge/Discharge Current	50A
Peak Current	100A continuous @ 105A for 10 seconds
Rated Charge/Discharge Power	2.56 kW
Peak Power	5.12 kW (continuous) / 5.38 kW peak
Cycle Life	≥6000 cycles (80% DOD, 25°C)
Communication Interface	RS485 / CAN / RS232
Remote Monitoring	Bluetooth (optional) / Wi-Fi
Parallel Capability	Recommended 6 units, up to 16 units supported
Mounting Method	Wall-mounted
Protection Rating	IP21
Operating Temperature	Charge: 0°C to 50°C / Discharge: -10°C to 60°C
Storage Temperature	<3 months: -10°C to 25°C / <1 year: 0°C to 25°C
Humidity Range	0% – 95%
Max Operating Altitude	2000 m
Supported Inverter Brands	SMA / Growatt / TBB / Deye / GOODWE / PYLON / Luxpowertek / Victron Energy / SOFAR / INVT
Dimensions (L×W×H)	450 × 455 × 181 mm
Net Weight	46 kg
Carton Gross Weight	49.2 kg
Crate Gross Weight	55.5 kg
Carton Size	500 × 505 × 245 mm
Crate Size	515 × 510 × 340 mm
20ft Container Capacity	240 units (carton) / 264 units (wooden crate)
40ft Container Capacity	528 units (carton) / 490 units (wooden crate)
