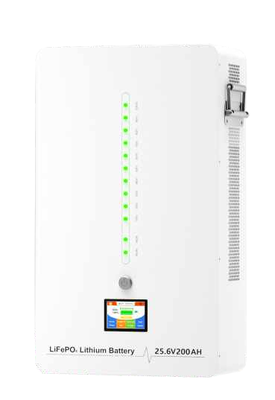

G-5000B 25.6V 200AH Home Solar Power Battery System 5.12kWh

Large Image : G-5000B 25.6V 200AH Home Solar Power Battery System 5.12kWh

Product Details:

Place of Origin:	CHINA
Brand Name:	YIFEI
Certification:	UN38.3
Model Number:	G-5000B 25.6V 200AH

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	USD 496
Delivery Time:	5-30workdays
Payment Terms:	T/T

Contact Now chat now

Detailed Product Description

Installation Method:

Wall-mounted

Cable Exit:

Bottom Exit

Compliance:

UN38.3 Transport Standard

Dimensions (L×W×H):

600 × 355 × 181 Mm

Highlight:

25.6V home solar power battery system

200AH home solar power battery system

5.12kWh home solar system battery storage

YIFEI Home Storage Battery G-5000B 25.6V 200AH

Product Description

The YIFEI Home Storage Battery G-5000B 25.6V 200Ah is a compact wall-mounted lithium iron phosphate (LiFePO4) energy storage battery designed for residential and small commercial solar power systems. With a usable energy capacity of 5.12kWh, it provides stable, safe, and efficient energy storage for home backup power and off-grid applications.

This low-voltage system is highly compatible with mainstream hybrid inverters and supports flexible parallel expansion, making it an ideal choice for modular and scalable residential energy storage solutions.

Product Specifications

Item	Specification
Product Name	YIFEI Home Storage Battery G-5000B 25.6V 200Ah
Battery Capacity	5.12 kWh (25.6V, 200Ah)
Rated Capacity	200Ah
Cell Configuration	8S2P
BMS Configuration	8S100A
Rated Voltage	25.6V
Operating Voltage Range	22.4V – 29.2V
Rated Charge/Discharge Current	50A
Peak Current	100A (105A for 10 seconds sustained)
Rated Charge/Discharge Power	1.28 kW
Peak Power	2.56 kW (2.68 kW for 10 seconds)
Cycle Life	≥6000 cycles (80% DOD, 25°C)
Communication Interface	RS485 / CAN / RS232
Remote Monitoring	Bluetooth (optional) / Wi-Fi
Parallel Capability	Recommended 6 units, supports up to 16 units
Mounting Method	Wall-mounted
Protection Rating	IP21
Operating Temperature	Charge: 0°C to 50°C / Discharge: -10°C to 60°C
Storage Temperature	<3 months: -10°C to 25°C / <1 year: 0°C to 25°C
Humidity Range	0% – 95%
Max Operating Altitude	2000 m
Supported Inverter Brands	SMA / Growatt / TBB / Deye / GOODWE / PYLON / Luxpowertek / Victron Energy / SOFAR / INVT
Installation Method	Wall-mounted
Cable Exit	Bottom exit
Compliance	UN38.3 Transport Standard
Dimensions (L×W×H)	600 × 355 × 181 mm
Net Weight	45 kg
Gross Weight	49 kg
Carton Size	670 × 425 × 265 mm
20ft Container Capacity	240 units
40ft Container Capacity	480 units
Pallet Size	110 × 110 cm (4 rows × 6 layers, 24 units)

Product Features

Compact Low-Voltage Wall-Mounted Energy Storage System
High-Safety LiFePO4 Battery Technology
Stable 25.6V Platform for Residential Applications
Intelligent 8S100A BMS Protection System
Strong Compatibility with Major Inverter Brands
Flexible Parallel Expansion (up to 16 units supported)
Optional Wi-Fi and Bluetooth Smart Monitoring
Long Cycle Life (≥6000 Cycles) for Durability
Wide Operating Temperature Range for Various Environments
Lightweight and Easy Installation Design

Applications

Residential Solar Energy Storage Systems
Home Backup Power Supply
Small Commercial Energy Storage Solutions
Off-Grid Solar Systems
Hybrid Inverter Energy Systems
Telecom Backup Power Supply
Energy Cost Reduction and Peak Shaving
Modular Battery Expansion Projects
Renewable Energy Integration Systems
