310 Watt PV Solar Power Systems 3Kw Small Off Grid Power Systems
| Certification | API, ISO, CB, CE |
|---|
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Wind And Solar Power System | Application | Home, Industrial, Commercial |
|---|---|---|---|
| Specification | Normal, Standard Specification Or Customized | Output Voltage (V) | 220V - 360V |
| Work Time (H) | 24h | Mounting Type | Roof Mounting |
| Battery Type | Lead-Acid, Lithium Ion | Battery | Lead-Acid Gel Battery |
| OEM Or ODM | Accept | Color | White |
| System Type | Hybrid Solar PV System | Solar Panel Type | Monocrystalline Silicon, Polycrystalline Silicon |
| Load Power (W) | 3kw, 50kw, 30kw, 8kw, 6kw, 20kw, 5kw, 10kw | Application For | Surveillance System |
| Output Frequency | 50/60 Hz | Keywords | Wind And Solar Power System |
| Type | Photovoltaic Solar Energy System | Product Name | Off Grid Solar System |
| Transport Package | Standard Packaging Or Customized | Trademark | HTONETECH |
| Origin | Beijing, China | Supply Ability | 50000000pieces/Year |
| Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
| Warranty | 2year | Condition | New |
| High Light | 310 Watt PV Solar Power Systems,PV Solar Power Systems 3Kw,3Kw Small Off Grid Power Systems |
||
Product Description
Product Description

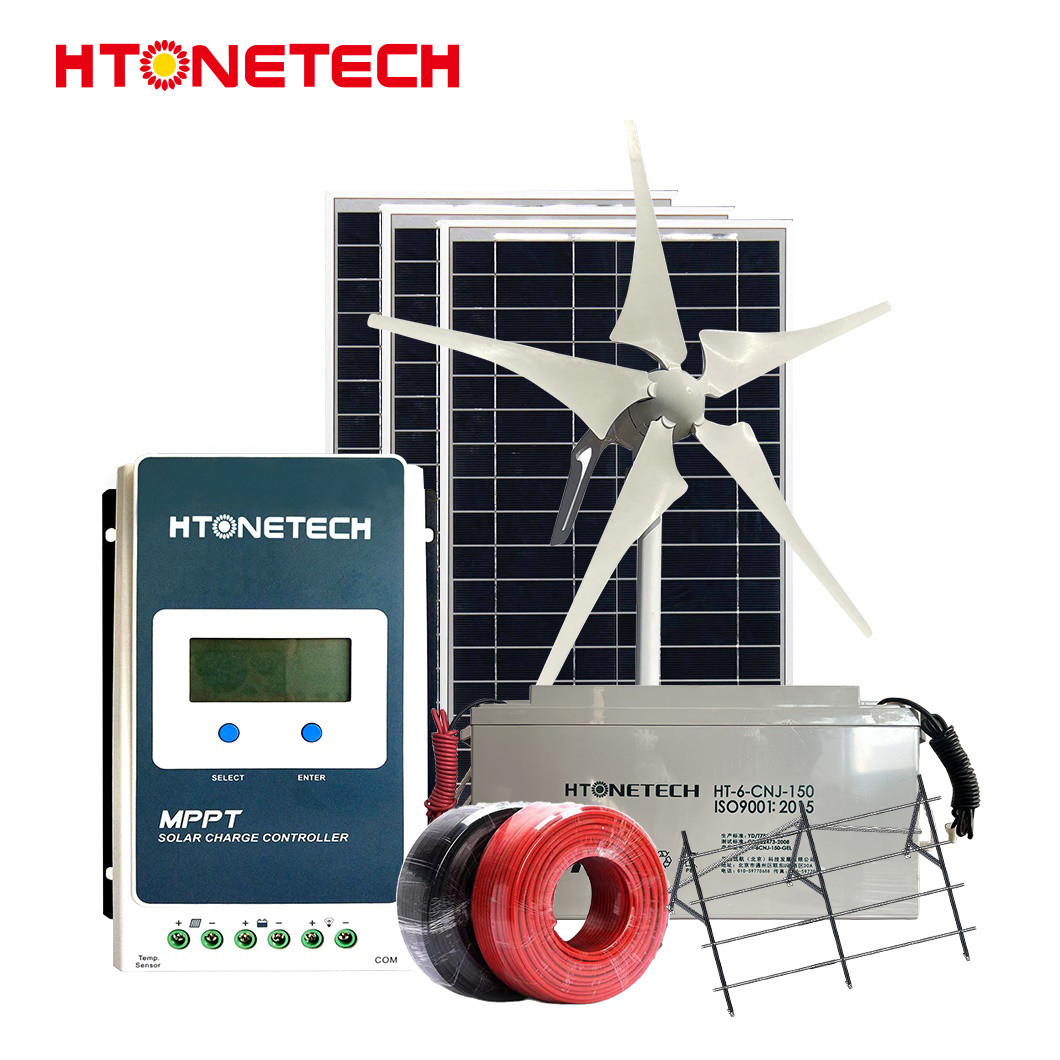

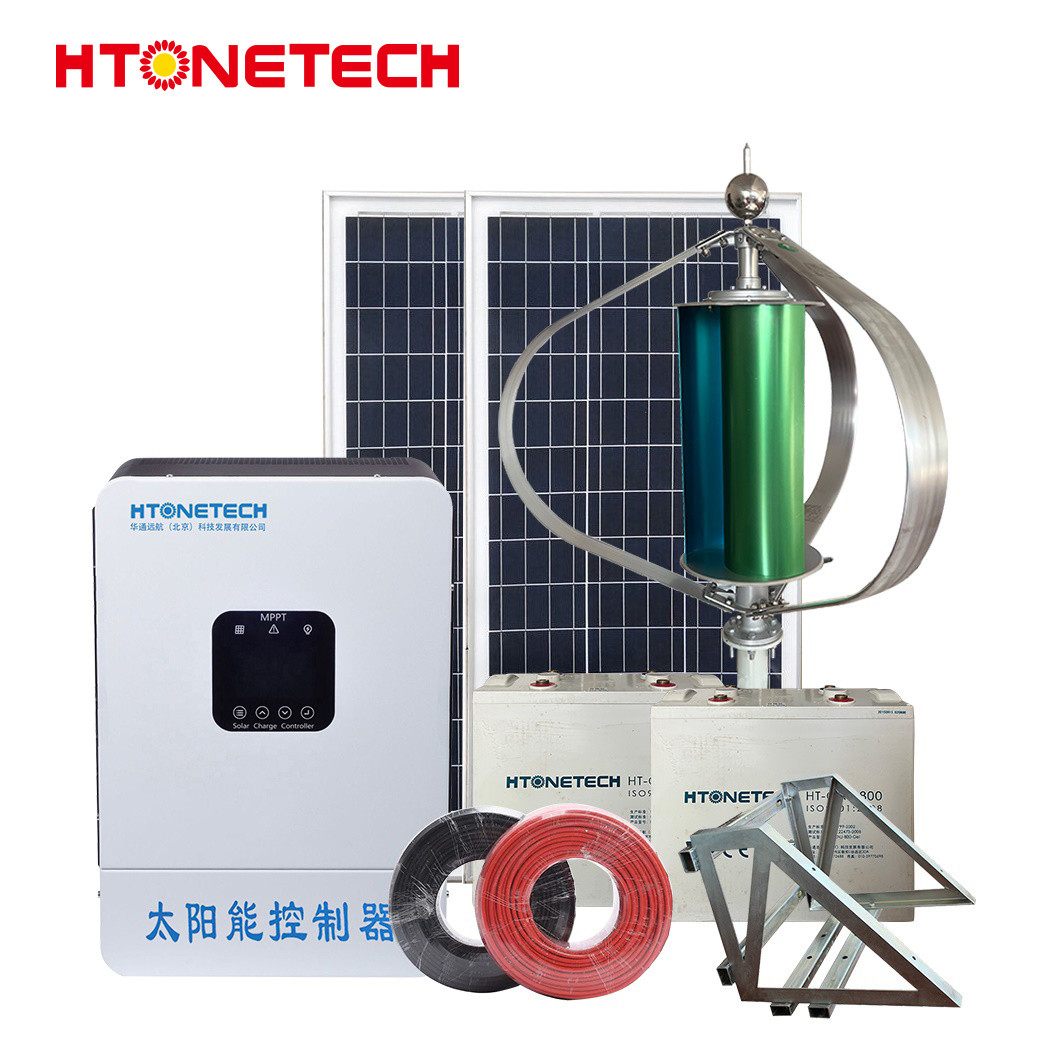

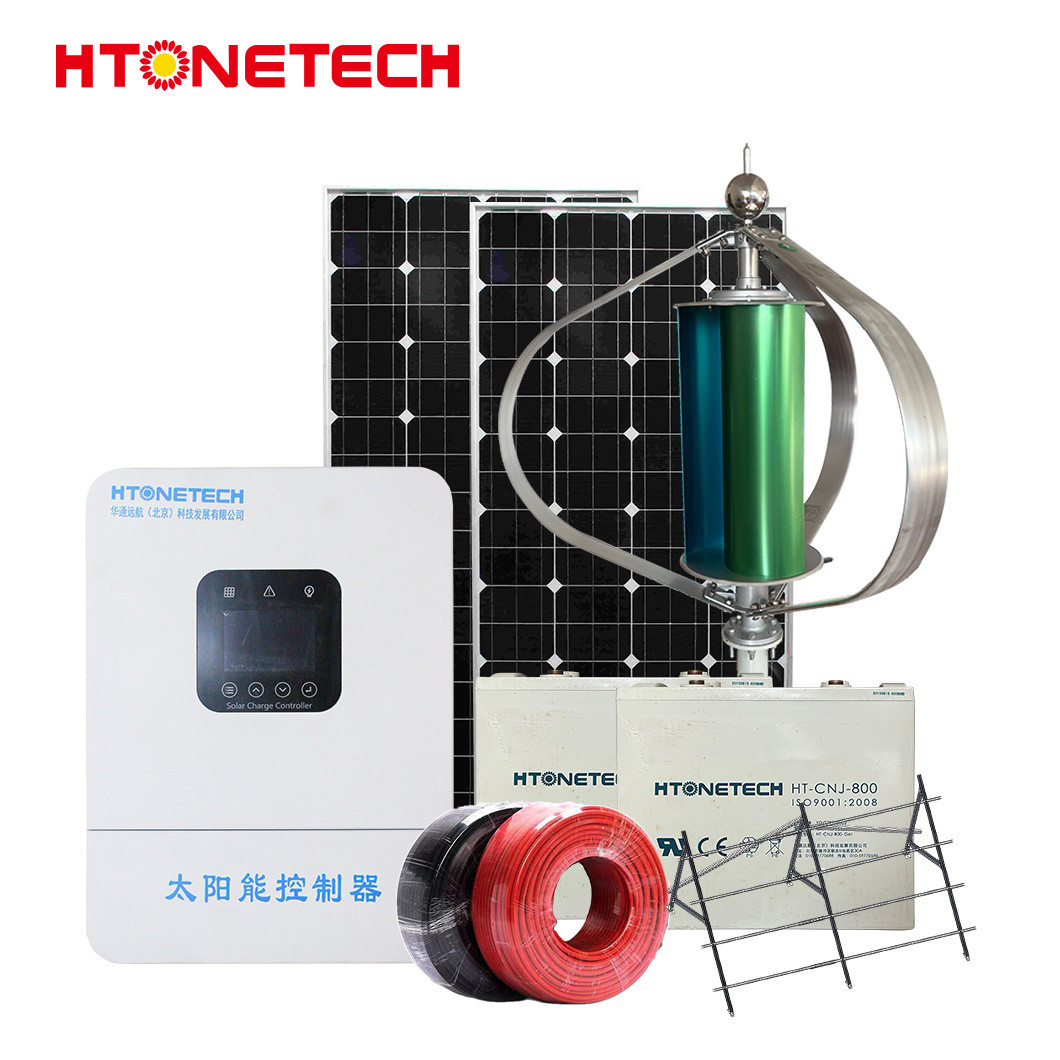

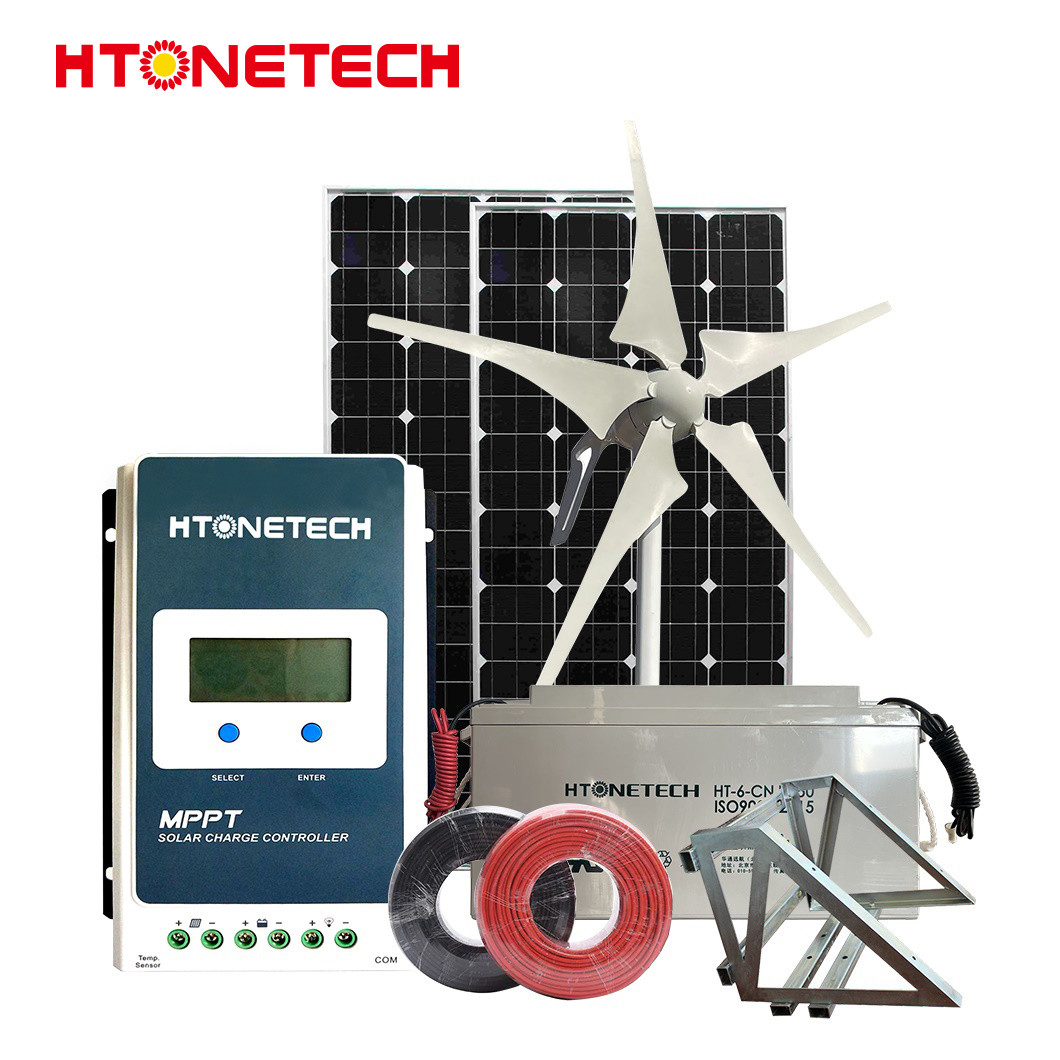

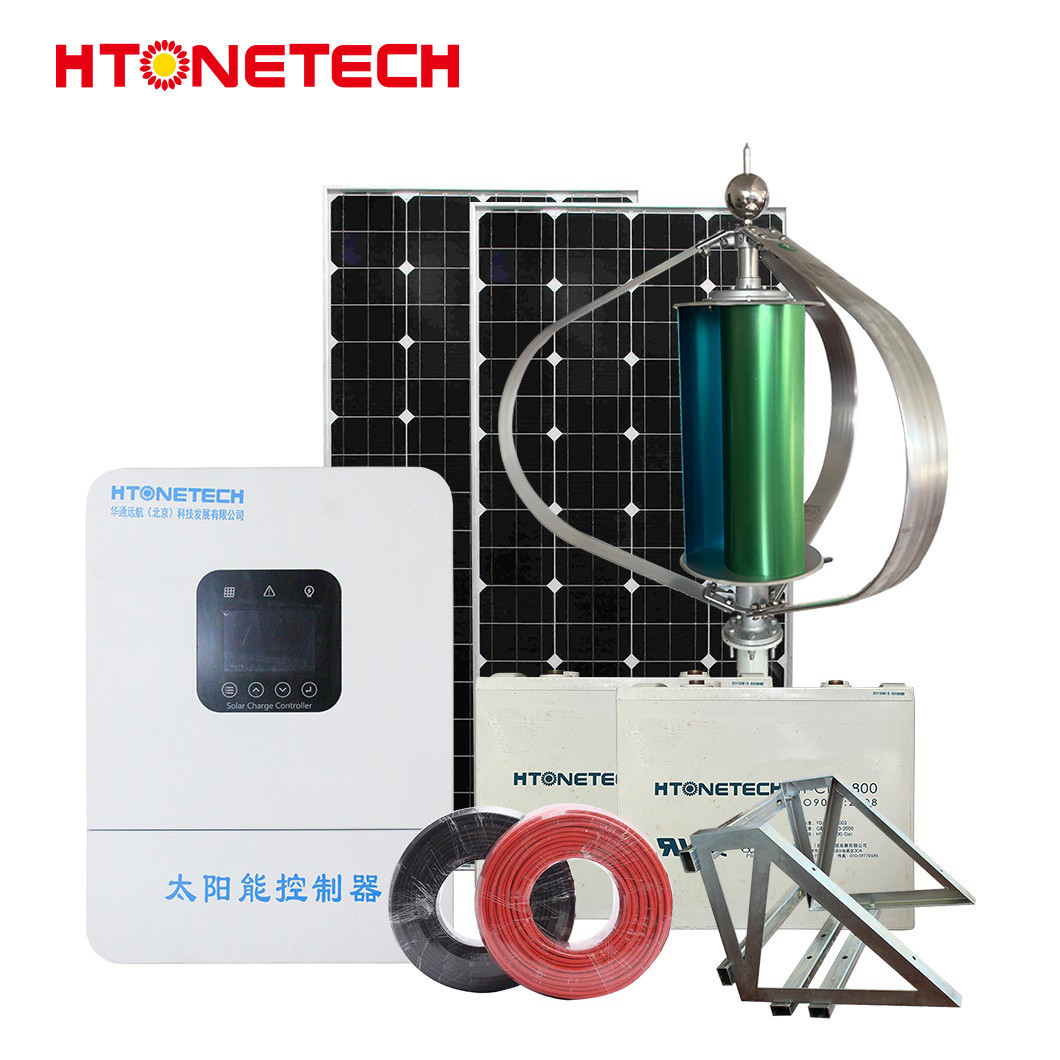

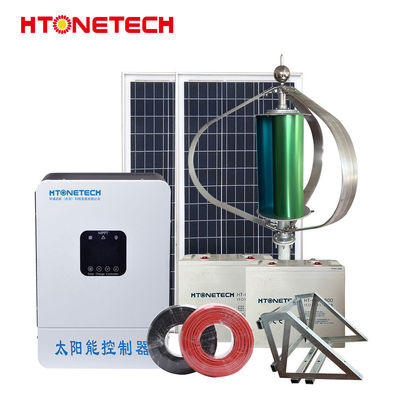

HTONETECH 310 Watt Mono Solar Panels Solar System Complete Set Power Panel 3Kw 5K China Solar Wind And Battery System With 3Kw Vertical Axis Wind Turbine
System advantages:
HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.
1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.
Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.
features:
- Panel Wattage: A 310 watt solar system would have solar panels totaling 310 watts of power output under standard test conditions (STC).
- Number of Panels: To achieve 310 watts, you'd need around 5-6 standard 60-cell solar panels, each rated at around 50-60 watts. Larger panels could reduce the number needed.
- Inverter: You'd need a solar inverter capable of handling the total wattage output of the panels, so a 310+ watt inverter suitable for a 12 volt or 24 volt battery bank.
- Battery Bank: To store and use the solar power, you'd need a deep cycle battery bank sized for your energy needs. 12 volt batteries would need around 100 amp-hours for a small system.
- Usage: A 310 watt system could provide basic off-grid power for lighting, small appliances, electronics charging in a cabin or small home, depending on energy efficiency and battery bank size.
BLACK MONO SOLAR PANELS
Peak Power Watts:280W(SP280M-60)
Maximum Power Voltage:31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current:9.33A
Dimensions:1650x992x35mm(65.0x39.1x1.38inches)
Weight:18.6 kg (41.0 b)
SOLAX HYBRID INVERTER &DATA LOGGING STICK
Max.DC Input Power.3KW/3.7KW/4.6KW/5KW
Max.DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional
TRIPLE-POWER LITHIUM BATTERY
Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A):30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety: CE, FCC, RCM, TUV (IEC 62619)
PV MOUNTING SYSTEM
Mounting Rail & Rail Splice Kit: Al6005 & SUS304Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger BoltOptional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
| Components | SP3KW-HY | SP3.7KW-HY | SP4.6KW-HY | SP5KW-HY |
| 280W Mono Solar Panel | 12 Piece | 14 Piece | 18 Piece | 20 Piece |
| Dc Disconnect Switch | 1 Piece | 1 Piece | 2 Piece | 2 Piece |
| Hybrid Inverter | X1-HYBRID-3.0T | X1-HYBRID-3.7T | X1-HYBRID-4.6T | X1-HYBRID-5.0T |
| Triple Power Battery | 4.5 kWh | 4.5 kWh | 6.3 kWh | 6.3 kWh |
| Dc Cable 4mm2 | 100 meter | 100 meter | 200 meter | 200 meter |
| AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 | 10 | 15 | 15 |
| Mounting System | Standards Pitched Roof ( Customized Optional) | |||
| PV Tools | 1 Set | |||
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
