Product Details:
Place of Origin: CHINA
Brand Name: YIFEI
Certification: UN38.3
Model Number: G-2500A 25.6V 100AH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD350
Delivery Time: 5-30workdays
Payment Terms: T/T
Detailed Product Description
Battery Capacity: 2.56 KWh (25.6V, 100Ah) Protection Rating: IP21
Operating Temperature: Charge: 0°C To 50°C / Discharge: -10°C To 60°C Storage Temperature: <3 Months: -10°C To 25°C / <1 Year: 0°C To 25°C
Highlight:

100AH home storage battery

,

25.6V home storage battery

,

IP21 home battery energy storage system

 YIFEI Home Storage Battery G-2500A 25.6V 100AH



Product Description

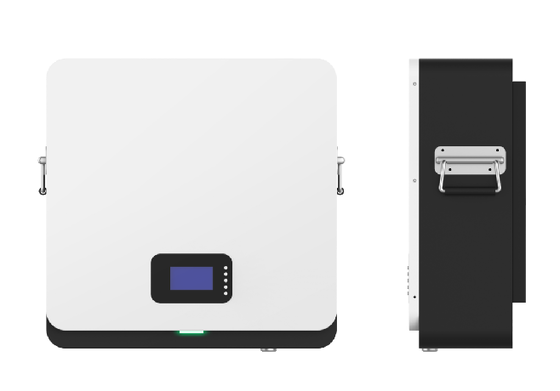

The YIFEI Home Storage Battery G-2500A 25.6V 100Ah is a compact wall-mounted lithium iron phosphate (LiFePO4) energy storage battery designed for small residential solar systems, backup power applications, and off-grid energy solutions. With a usable energy capacity of 2.56kWh, it provides efficient and stable power support for low-load household and light commercial use.

This model features a lightweight design, intelligent BMS protection, and wide inverter compatibility, making it an ideal entry-level energy storage solution with flexible parallel expansion capability.



Product Specifications

Item Specification
Product Name YIFEI Home Storage Battery G-2500A 25.6V 100Ah
Battery Capacity 2.56 kWh (25.6V, 100Ah)
Rated Capacity 100Ah
Cell Configuration 8S1P
BMS Configuration 8S100A
Rated Voltage 25.6V
Operating Voltage Range 22.4V – 29.2V
Rated Charge/Discharge Current 50A
Peak Current 100A (105A for 10 seconds sustained)
Rated Charge/Discharge Power 1.28 kW
Peak Power 2.56 kW (3.07 kW for 10 seconds sustained)
Cycle Life ≥6000 cycles (80% DOD, 25°C)
Communication Interface RS485 / CAN / RS232
Remote Monitoring Bluetooth (optional) / Wi-Fi (additional charge)
Parallel Capability Recommended 6 units, supports up to 16 units
Mounting Method Wall-mounted
Protection Rating IP21
Operating Temperature Charge: 0°C to 50°C / Discharge: -10°C to 60°C
Storage Temperature <3 months: -10°C to 25°C / <1 year: 0°C to 25°C
Humidity Range 0% – 95%
Max Operating Altitude 2000 m
Supported Inverter Brands SMA / Growatt / TBB / Deye / GOODWE / PYLON / Luxpowertek / Victron Energy / SOFAR / INVT
Mounting Type Wall-mounted
Cable Exit Bottom exit
Compliance UN38.3 Transport Standard
Dimensions (L×W×H) 336 × 360 × 181 mm
Net Weight 24.5 kg
Gross Weight 26.5 kg
Carton Size 385 × 410 × 245 mm
20ft Container Capacity 480 units + 50 loose units
40ft Container Capacity 1,008 units (weight-limited)
Pallet Size 116 × 83 cm (6 × 8 layers, 48 units)



Product Features

  • Ultra-Compact Wall-Mounted Energy Storage Design
  • Lightweight 2.56kWh LiFePO4 Battery System
  • Intelligent 8S100A BMS Protection System
  • High Compatibility with Major Inverter Brands
  • Flexible Parallel Expansion (up to 16 units supported)
  • Stable Power Output for Small Load Applications
  • Optional Wi-Fi and Bluetooth Smart Monitoring
  • Long Cycle Life (≥6000 Cycles) for Extended Durability
  • Wide Operating Temperature Range for Various Environments
  • Easy Installation and Maintenance-Friendly Design

Applications

  • Small Residential Solar Energy Systems
  • Home Backup Power Supply
  • Entry-Level Off-Grid Solar Systems
  • Small Lighting and Appliance Power Backup
  • Telecom and Communication Backup Systems
  • RV / Outdoor / Mobile Power Applications
  • Energy Storage Expansion Modules
  • Low-Power Solar Hybrid Systems
