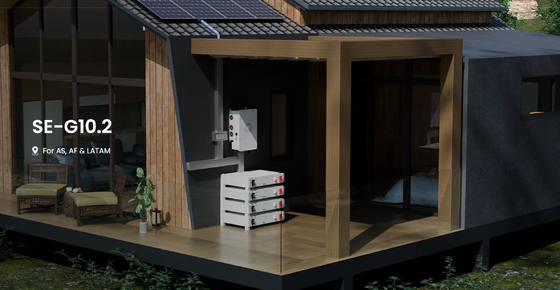

200Ah Hybrid Solar Inverter 10.24kWh Battery Energy Storage System

Battery System

PV Input Data

• Max PV Input Power: 20,000W
• Max DC Input Power: 16,000W
• Max DC Input Voltage: 500V
• MPPT Voltage Range: 150–425V
• Start-up Voltage: 125V
• MPPT Trackers: 3
• Strings per MPPT: 2+2+2
• Max PV Input Current: 32A × 3
• Max Short Circuit Current: 60A × 3

AC Input / Output Data

• Rated Output Power: 7.6kW / 8kW / 10kW / 12kW (model dependent)
• Rated Voltage: 220/230V
• Frequency Range: 50/60Hz
• Grid Connection: L+N+PE
• Max Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%
• Power Factor: 0.8 leading to 0.8 lagging
• Peak Power (Off-grid): 2× rated power (10s)
• THDi: <3%

Protection & Safety Features

• DC Reverse Polarity Protection
• AC Output Overcurrent Protection
• Short Circuit Protection
• Overvoltage Protection
• Arc Fault Circuit Interrupter (optional)
• Anti-islanding Protection
• Insulation & Residual Current Detection
• Surge Protection (Type II DC/AC)
• Intelligent Air Cooling System

General Data

• Operating Temperature: -40°C to +60°C (derating >45°C)
• Humidity Range: 0–100%
• Altitude: ≤2000m
• Noise Level: <45dB
• Protection Rating: IP65
• Cooling Method: Intelligent Air Cooling
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WiFi / Bluetooth / 4G / LAN (optional)
• Dimensions: 420 × 670 × 233 mm
• Weight: 35.6 kg
• Warranty: 5–10 years (site dependent)

Product Features

• High-Efficiency Hybrid Inverter System (up to 97.6%)
• Integrated Solar, Battery, and Grid Management
• Advanced MPPT Technology (>99% efficiency)
• Wide Battery Compatibility (Lithium & Lead-acid)
• Intelligent BMS Communication for Lithium Batteries
• Strong PV Input Capacity up to 20kW
• Flexible On-grid / Off-grid Operation
• Multiple Smart Monitoring Options (WiFi / 4G / LAN)
• Full Electrical Protection System
• Industrial-Grade Reliability and Safety Design
