xModel NO. | CNJ-200 | Discharge Rate | Low Discharge Rate |
---|---|---|---|
Shape | Square Battery | Electrolyte | Acid |
Installation | Packaged | Rechargeable | Chargeable |
Storage Temperature | -20~40ºC | Fields Of Application | Street Lights, Surveillance, UPS, Off-Grid Systems |
Discharge Temperature | -40~50ºC | Charging Temperature | -0~45ºC(Heating Plate Optional) |
Transport Package | Wooden Box | Specification | 483x170x240(mm) |
Trademark | Htonetech | Origin | China |
Supply Ability | 50000pieces/Year | Shipping Cost | To Be Negotiated| Freight Cost Calculator |
Type | Lead-Acid Batteries | Usage | Electric Power, Solar |
Nominal Voltage | 2V | ||
High Light | 2V Solar Energy Storage Battery,Solar Energy Storage Battery Photovoltaic,solar gel battery Off Grid |

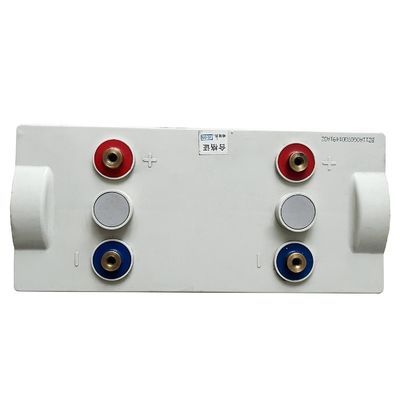

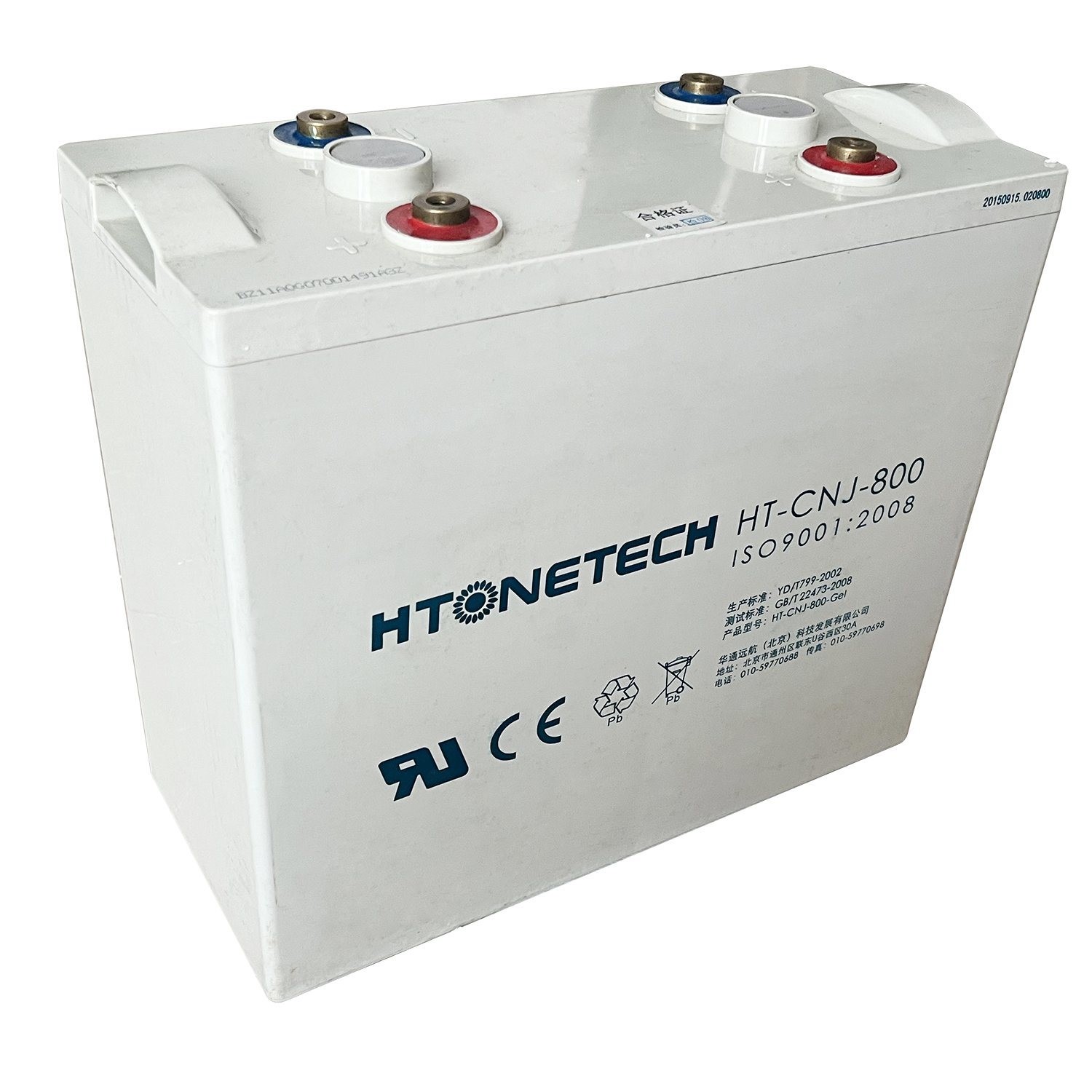

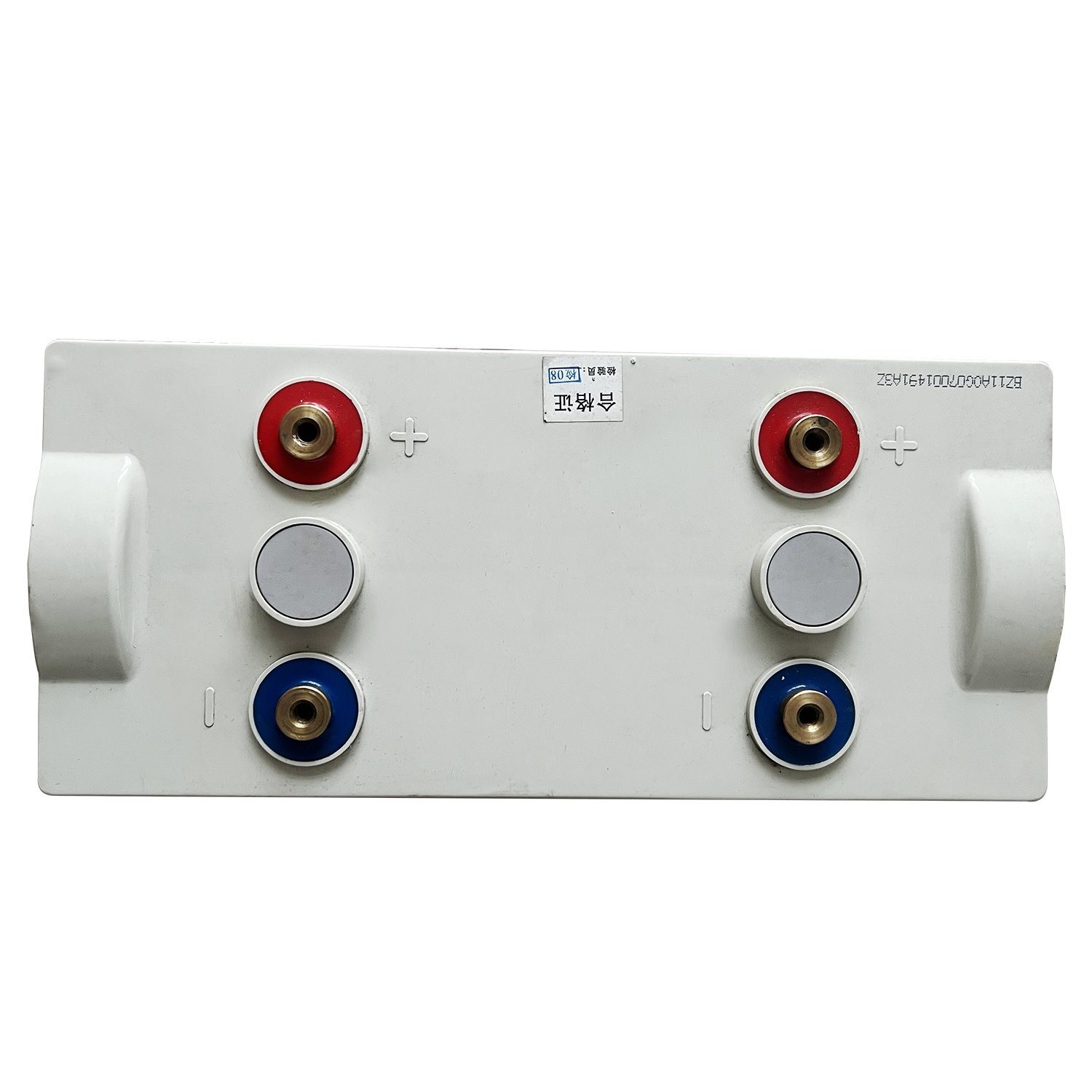

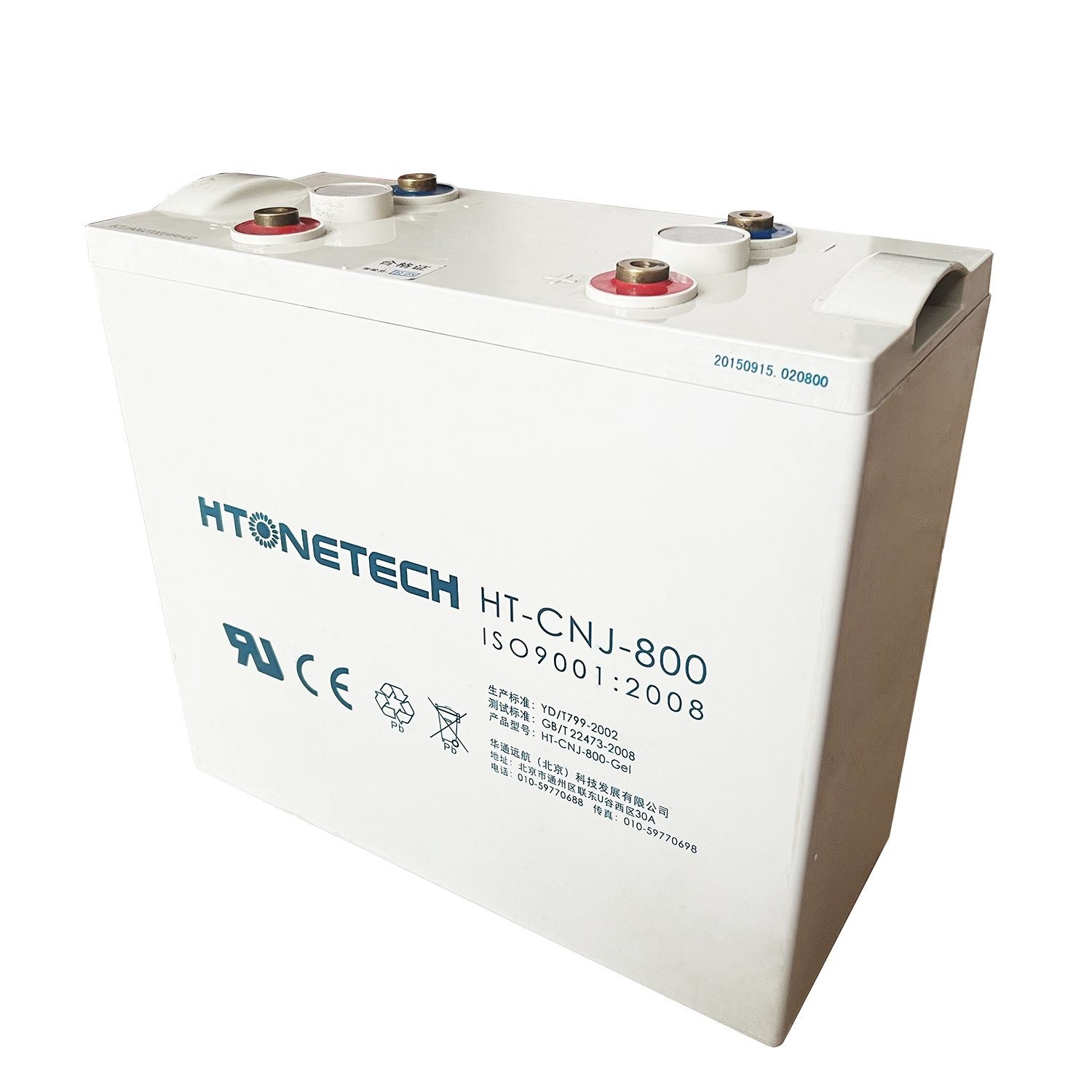

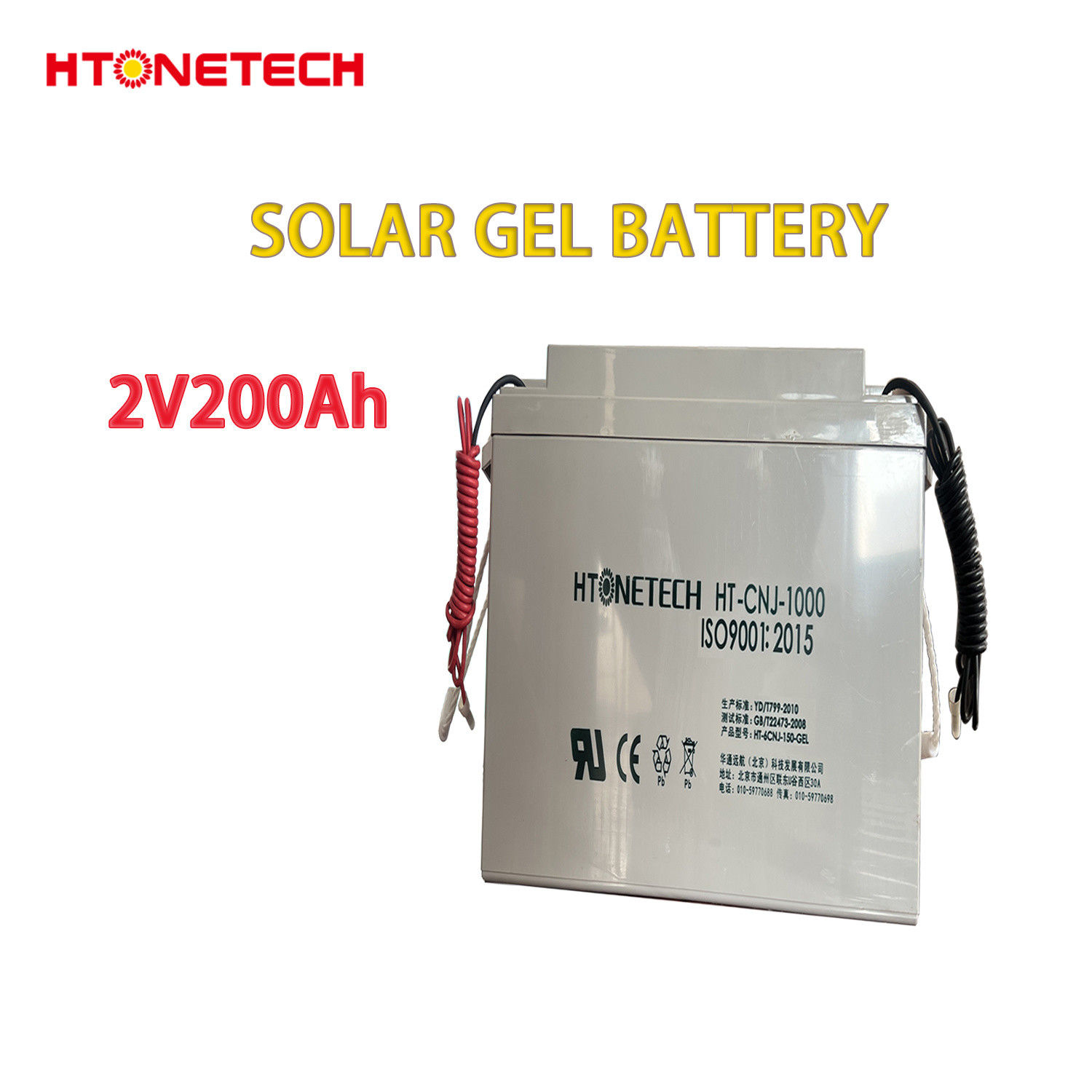

Gel Cell Solar Cell Energy Storage High Capacity 2V 200ah Photovoltaic off Grid Power Generation System
Product Description
Solar cell energy storage batteries, also known as solar batteries or solar energy storage systems, are devices that store the electricity generated by solar panels for later use. They work in conjunction with solar photovoltaic (PV) systems to maximize the utilization of solar energy and provide power when sunlight is not available, such as during nighttime or periods of low sunlight.
Solar cell energy storage batteries are typically rechargeable batteries that store the excess electricity produced by solar panels during the day. This stored energy can then be used during times when the solar panels are not actively generating electricity, ensuring a continuous power supply.
Here are some key points about solar cell energy storage batteries:
- Energy storage: Solar batteries store the surplus electricity generated by solar panels, allowing you to use it at a later time. This helps to balance energy supply and demand, ensuring a consistent power supply even when the sunlight is limited.
- Increased self-consumption: By storing excess solar energy, you can increase the amount of self-consumption in your solar system. Instead of exporting the surplus electricity back to the grid, which may not provide a favorable feed-in tariff, you can use it directly from the battery, reducing your reliance on the grid and maximizing the benefits of your solar installation.
- Backup power: Solar cell energy storage batteries provide backup power during grid outages. In the event of a power failure, the stored energy in the battery can be used to keep critical appliances or systems running until the grid is restored.
12V | 80A | 25.5KG | 6.2mΩ | 20.0A | -35~60ºC | 329 | 172 | 214 | 236 | ABS |
100A | 28.6KG | 5.3mΩ | 25.0A | 329 | 172 | 214 | 236 | |||
150A | 42.2KG | 4.0mΩ | 37.5A | 483 | 170 | 240 | 240 | |||
200A | 58.3KG | 3.3mΩ | 50.0A | 522 | 240 | 219 | 244 | |||
250A | 69.3KG | 2.9mΩ | 62.5A | 520 | 269 | 220 | 245 | |||
2V | 100Ah | 5.5KG | 0.85mΩ | 25A | 170 | 76 | 214 | 223 | ||
200Ah | 13.3KG | 0.66mΩ | 50A | 171 | 106 | 330 | 342 | |||
250Ah | 16.6kg | 0.56mΩ | 62.5A | 171 | 151 | 330 | 342 | |||
300Ah | 18.4kg | 0.46mΩ | 75A | 171 | 151 | 330 | 342 | |||
400Ah | 23.6KG | 0.41mΩ | 100A | 196 | 171 | 330 | 342 | |||
600Ah | 35.2KG | 0.31mΩ | 150A | 285 | 171 | 330 | 342 | |||
800Ah | 48.2kg | 0.23mΩ | 200A | 383 | 171 | 330 | 342 | |||
1000Ah | 58.3kg | 0.21mΩ | 250A | 471 | 171 | 330 | 342 | |||
1500Ah | 84.9kg | 0.17mΩ | 375A | 318 | 341 | 341 | 351 | |||
2000Ah | 114.6kg | 0.14mΩ | 500A | 433 | 342 | 341 | 351 | |||
2500Ah | 160.8kg | 0.13mΩ | 625A | 629 | 346 | 341 | 351 | |||
3000Ah | 170.9kg | 0.11mΩ | 750A | 329 | 346 | 341 | 351 | |||
Rated Voltage | Rated Capacity | Approximate Weight | Internal Resistance | Maximum Charge Current | Ambient Temperature | Length | Width | Height | Total Height | Case |
FAQ
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
