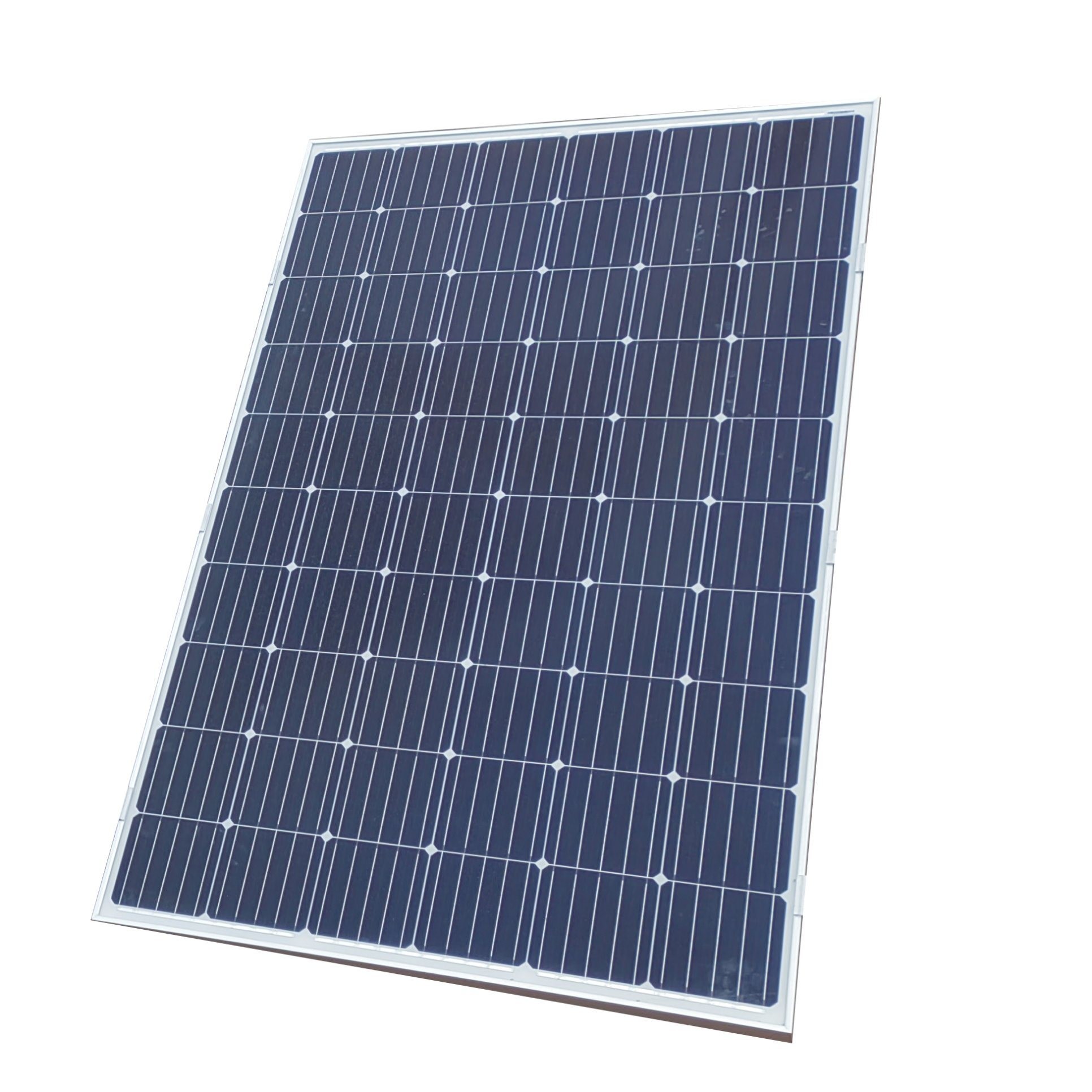

300W Solar Photovoltaic Panel Crystalline Solar Cells ISO CE

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Application All Fields
Condition New Material Monocrystalline Silicon
Application Level Class A Working Temperature (ºC) -40~+85
Rated Battery Working Temperature 45±2ºC Fire-Protection Rating Class C
Junction Box Protection Grade IP68 Cable 4.0mm2,900mm
Component Border Anodic Oxidation Transport Package Wooden Box
Trademark Htonetech Origin China
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 25 Years Number Of Cells 1
High Light

300W Solar Photovoltaic Panel

,

Solar Photovoltaic Panel Crystalline

,

Crystalline Solar Cells ISO

Leave a Message
Product Description

Solar PV Panel 300W Module Photovoltaic Monocrystalline Silicon Polycrystalline System Panels for Home

Product Description

A 300W solar photovoltaic (PV) panel refers to a solar panel that has a power rating of 300 watts. Here's some additional information about a 300W solar PV panel:

  • Power Output: The power output of a solar panel is measured in watts (W) and represents the maximum electricity it can generate under standard test conditions (STC). A 300W solar PV panel is a commonly available power rating for both residential and commercial applications.
  • Efficiency: Solar panel efficiency indicates how effectively the panel converts sunlight into electricity. Higher efficiency panels can generate more electricity from the same amount of sunlight. The efficiency of a 300W solar panel can vary depending on the technology used, such as monocrystalline or polycrystalline silicon, or thin-film materials. Typically, the efficiency of standard panels ranges from 15% to 20%.

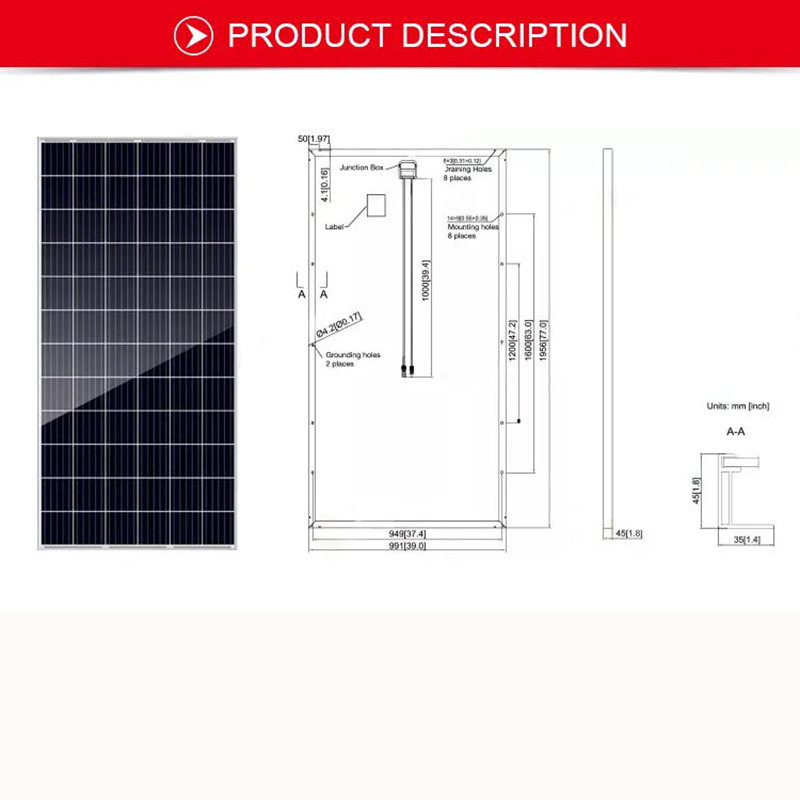

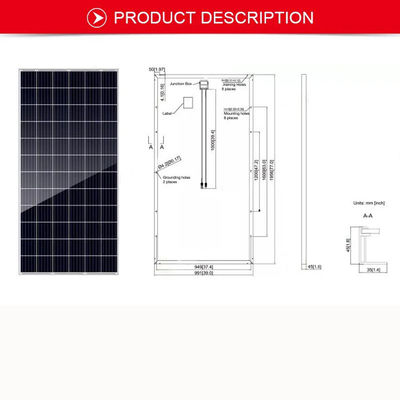

  • Size and Construction: The physical dimensions of a 300W solar panel can vary depending on the manufacturer and the specific design. Standard residential or commercial solar panels are typically around 1.6 meters (5.2 feet) in height and 1 meter (3.3 feet) in width. The panel construction involves multiple solar cells connected together, usually made from crystalline silicon or thin-film materials.
  • Applications: A 300W solar PV panel is suitable for a wide range of applications, including residential rooftops, commercial buildings, and utility-scale solar installations. It can be used to offset electricity consumption, reduce utility bills, and contribute to renewable energy generation.

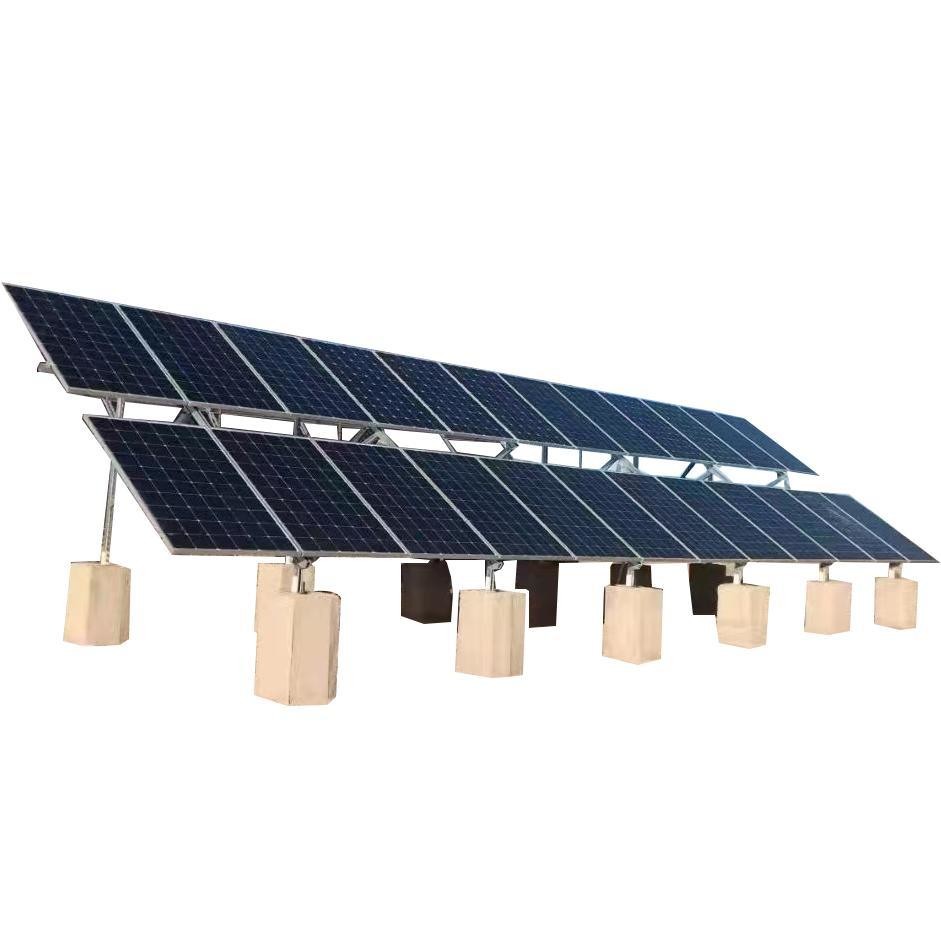

  • System Design: Solar PV panels are typically connected in series or parallel configurations to form an array or system. The configuration depends on the desired voltage and current requirements. Multiple 300W panels can be combined to meet the electricity needs of the specific application, and the panels are interconnected using wiring and connectors to ensure proper electrical flow.
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power
Model Peak power(WP) Peak Voltage(V) Peak Current(A) Short circuit current (A) Open circuit voltage (V) Size
HT-S150-24M 150 18 8.33 8.99 22.5 1480X670X35
HT-S200-24M 200 36 5.56 6.01 44.8 1580X808X35
HT-S250-24M 250 30 8.33 8.99 36.8 1640X992X40
HT-S275-24M 275 30 9.17 9.81 37.2 1640X992X40

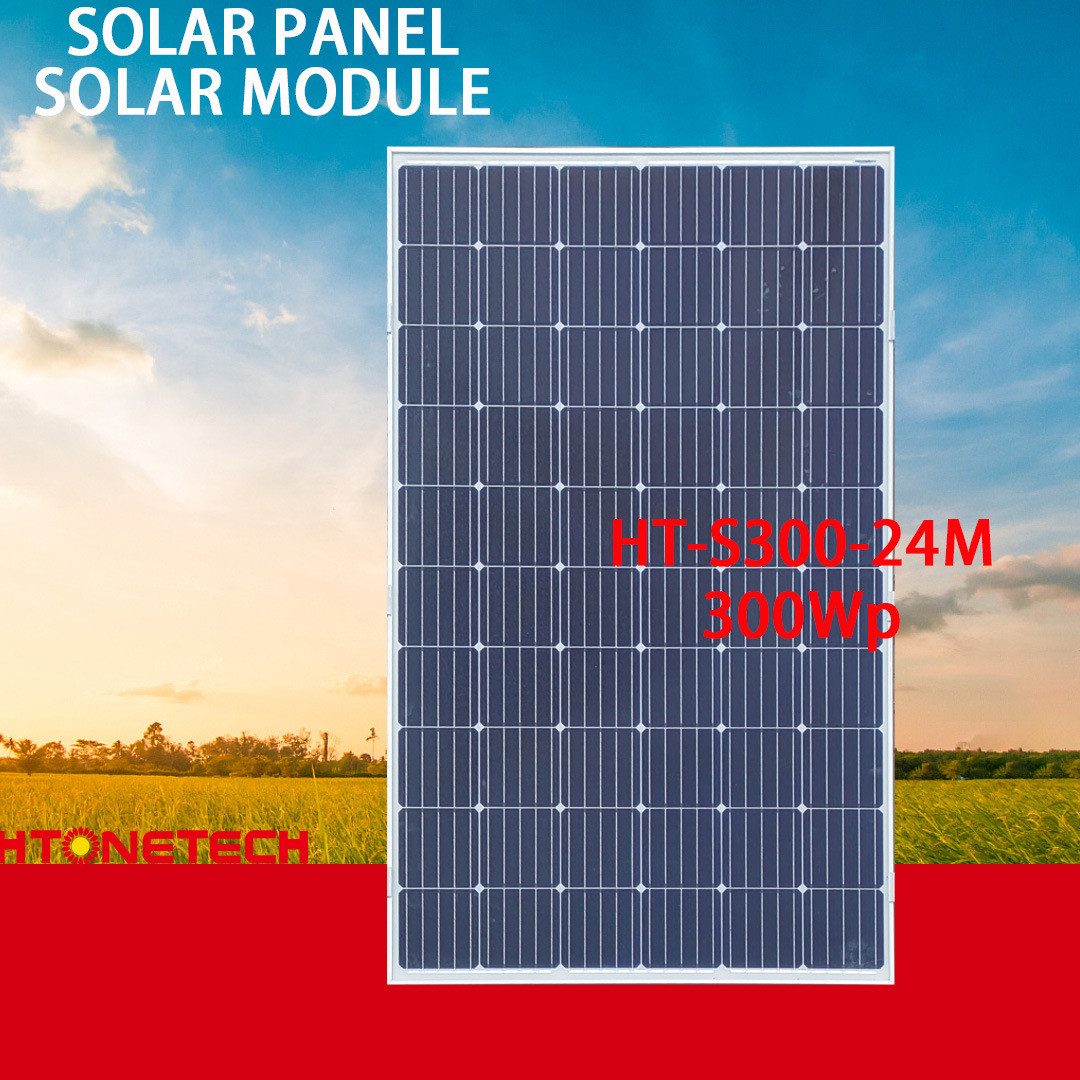

HT-S300-24M 300 30 10 10.7 37.2 1650X992X35
HT-S330-24M 330 36 9.17 9.81 44.64 1956X992X40
HT-S430-24M 430 40.3 10.67 11.22 48.7 2102X1040X35
HT-S450-24M 450 41.0 10.98 11.53 49.6 2102X1040X35
Maximum power Pmp temperature coefficient =-0.35%/ºC
The open-circuit voltage Voc =-0.28%/ºC
temperature coefficient Short-circuit current 0.048%/"ºC
Component border anodic oxidation

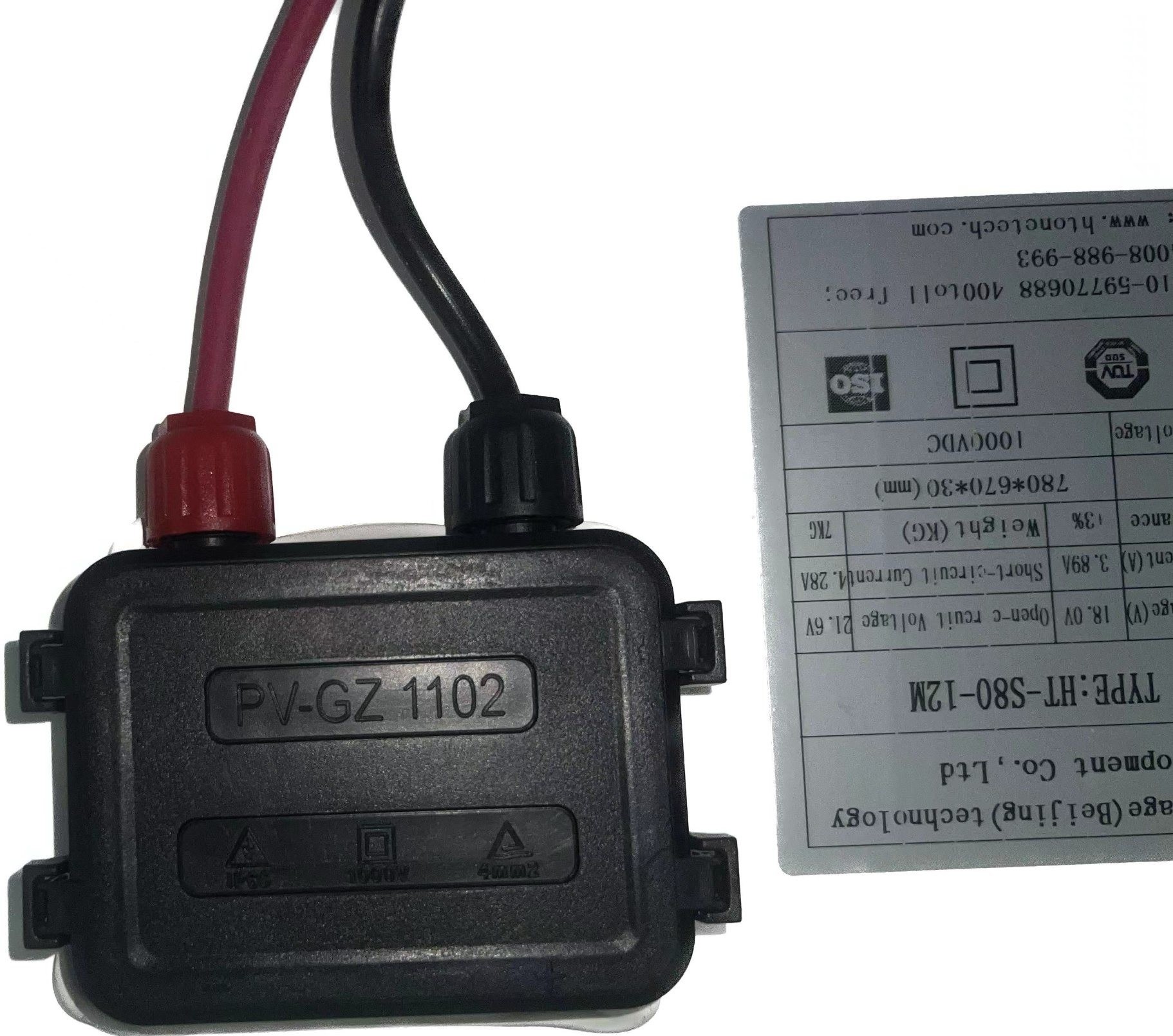

Junction box Protection grade IP68
cable 4.0mm2,900mm
working temperature (ºC) -40~+85
Application level Class A
fire-protection rating Class C
Rated battery working temperature 45±2ºC

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
