450W Solar Photovoltaic Cell Monocrystalline Polycrystalline For Home

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Application All Fields
Condition New Material Monocrystalline Silicon
Application Level Class A Working Temperature (ºC) -40~+85
Rated Battery Working Temperature 45±2ºC Fire-Protection Rating Class C
Junction Box Protection Grade IP68 Cable 4.0mm2,900mm
Component Border Anodic Oxidation Transport Package Wooden Box
Trademark Htonetech Origin China
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 25 Years Number Of Cells 1
High Light

450W Solar Photovoltaic Cell

,

Solar Photovoltaic Cell Monocrystalline

,

solar pv cell Home

Leave a Message
Product Description

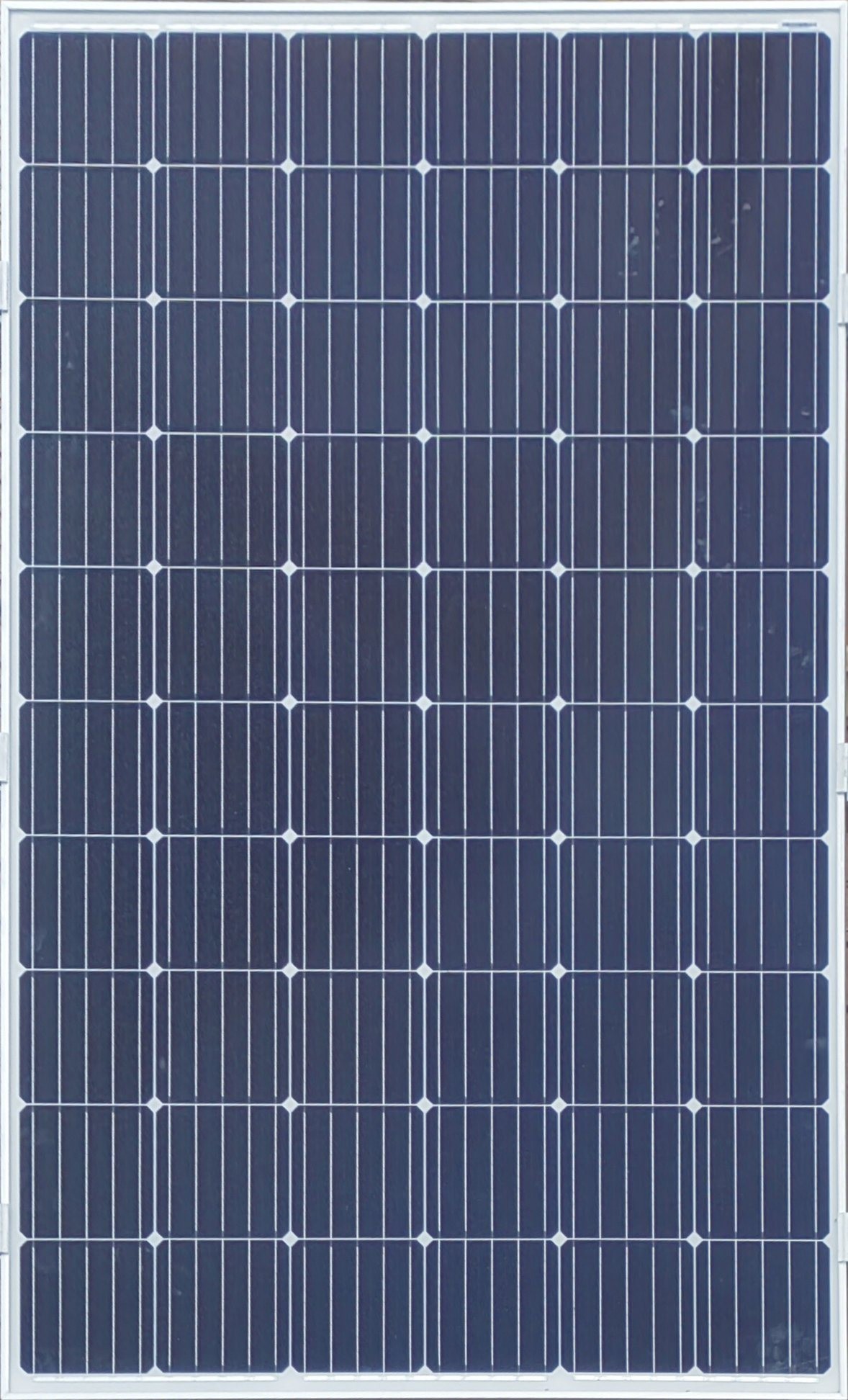

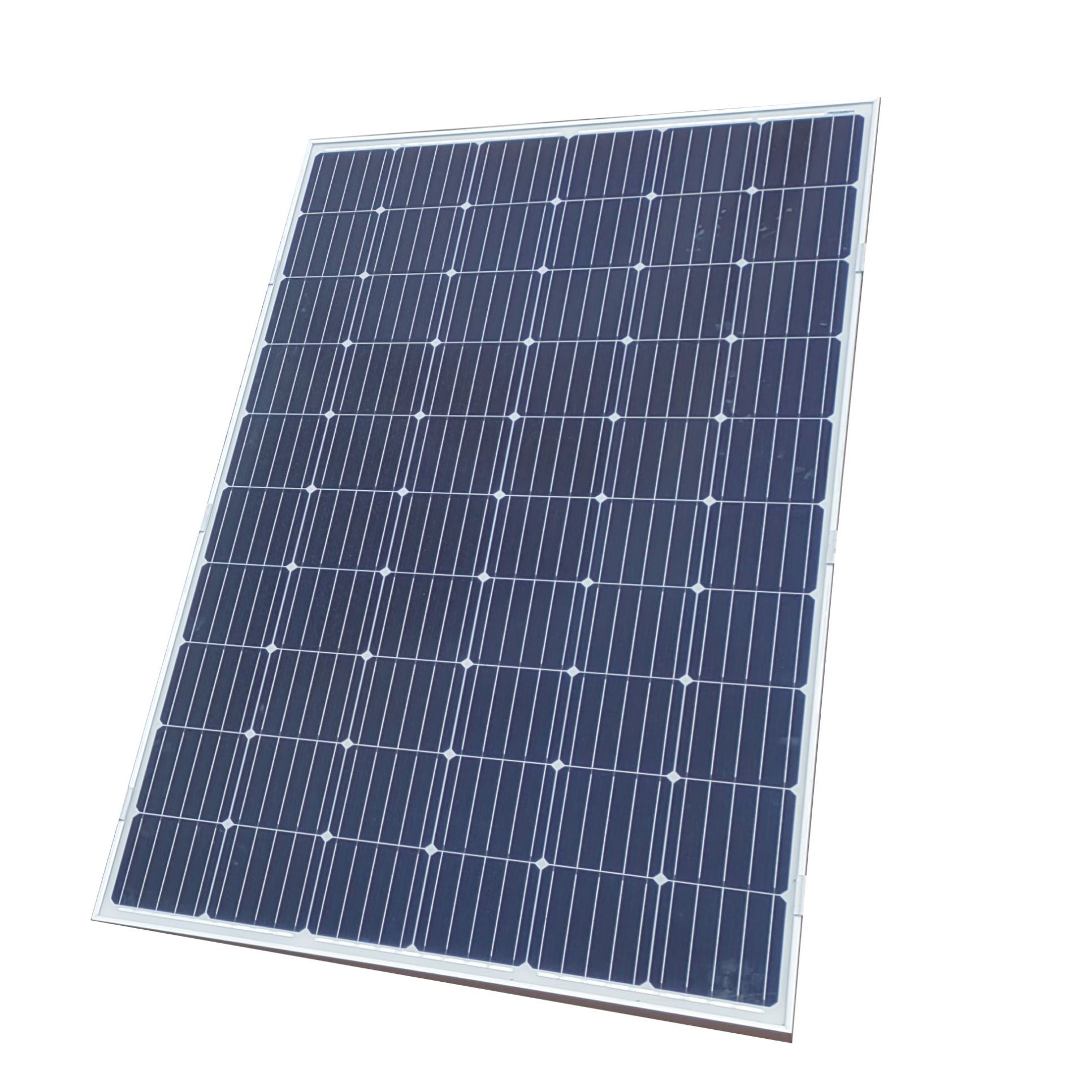

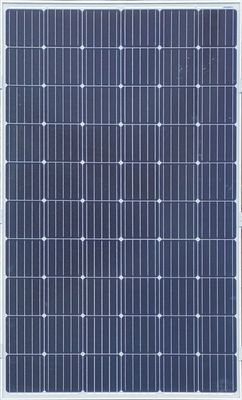

Solar PV Panel 450W Module Photovoltaic Monocrystalline Silicon Polycrystalline System Panels for Home

Product Description

A 450W solar photovoltaic (PV) cell refers to an individual solar cell with a power rating of 450 watts. Solar cells are the basic building blocks of solar PV panels, and they are responsible for converting sunlight into electricity. Here are some key points about a 450W solar PV cell:

  1. Power Output: The power output of a solar cell is measured in watts (W) and indicates the amount of electricity the cell can produce under standard test conditions (STC). A 450W solar cell has a higher power rating compared to standard residential or commercial solar panels, which typically range from 200W to 400W.
  2. Efficiency: Solar cell efficiency refers to the ability of the cell to convert sunlight into electricity. Higher efficiency cells can generate more electricity for a given amount of sunlight. The efficiency of a 450W solar PV cell can vary depending on the technology used, such as monocrystalline or polycrystalline silicon, or thin-film materials. Monocrystalline cells generally have higher efficiencies compared to other types.
  3. Size and Construction: The physical size of a solar cell can vary depending on the manufacturer and technology. A 450W solar cell may have larger dimensions compared to standard cells due to the increased power output. The construction of the cell typically involves a semiconductor material, such as silicon, with layers that facilitate the photovoltaic effect.
  4. Applications: A 450W solar PV cell can be used in various applications, including residential, commercial, and utility-scale solar installations. They can be integrated into solar panels or used in custom-designed systems, depending on the specific requirements and energy needs.
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power
Model Peak power(WP) Peak Voltage(V) Peak Current(A) Short circuit current (A) Open circuit voltage (V) Size
HT-S150-24M 150 18 8.33 8.99 22.5 1480X670X35
HT-S200-24M 200 36 5.56 6.01 44.8 1580X808X35
HT-S250-24M 250 30 8.33 8.99 36.8 1640X992X40
HT-S275-24M 275 30 9.17 9.81 37.2 1640X992X40
HT-S300-24M 300 30 10 10.7 37.2 1650X992X35
HT-S330-24M 330 36 9.17 9.81 44.64 1956X992X40
HT-S430-24M 430 40.3 10.67 11.22 48.7 2102X1040X35

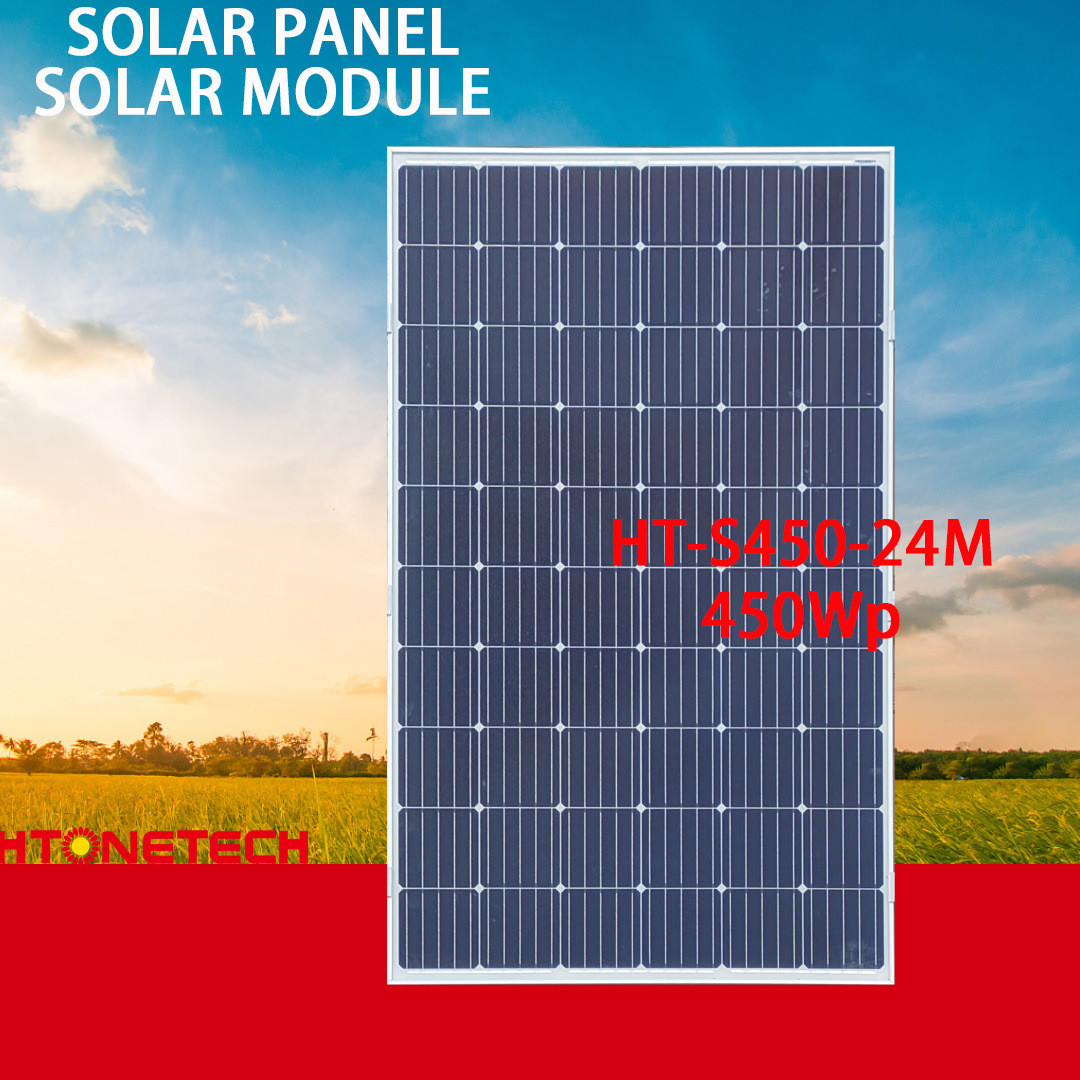

HT-S450-24M 450 41.0 10.98 11.53 49.6 2102X1040X35
Maximum power Pmp temperature coefficient =-0.35%/ºC
The open-circuit voltage Voc =-0.28%/ºC
temperature coefficient Short-circuit current 0.048%/"ºC
Component border anodic oxidation

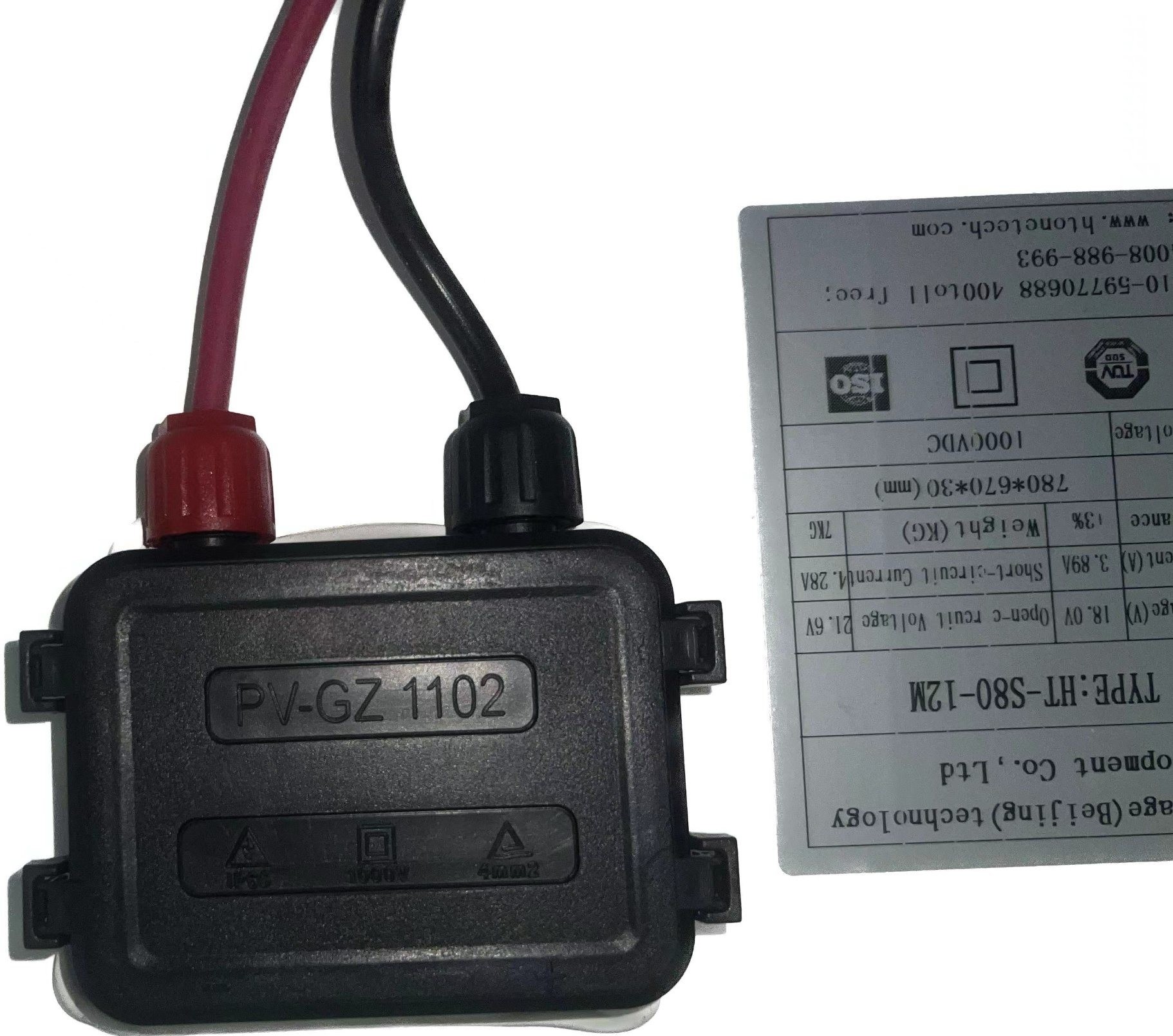

Junction box Protection grade IP68
cable 4.0mm2,900mm
working temperature (ºC) -40~+85
Application level Class A
fire-protection rating Class C
Rated battery working temperature 45±2ºC

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
