250W Pv Solar Module Panel Class a Anodic Oxidation Protection Grade IP68

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Application All Fields
Condition New Material Monocrystalline Silicon
Application Level Class A Working Temperature (ºC) -40~+85
Rated Battery Working Temperature 45±2ºC Fire-Protection Rating Class C
Junction Box Protection Grade IP68 Component Border Anodic Oxidation
Transport Package Wooden Box Trademark Htonetech
Origin China Shipping Cost To Be Negotiated| Freight Cost Calculator
After-sales Service Yes Warranty 25 Years
Number Of Cells 1
High Light

250W Solar Module Panel

,

Solar Module Panel Class A

,

sunpower pv module IP68

Leave a Message
Product Description

Solar Module Panel 250W PV Photovoltaic Monocrystalline Silicon Polycrystalline System Panels for Home

Product Description

A PV solar module, also known as a solar panel or solar module, is a device that converts sunlight into electricity using photovoltaic cells. It is a key component of a solar photovoltaic (PV) system. Here's some important information about PV solar modules:

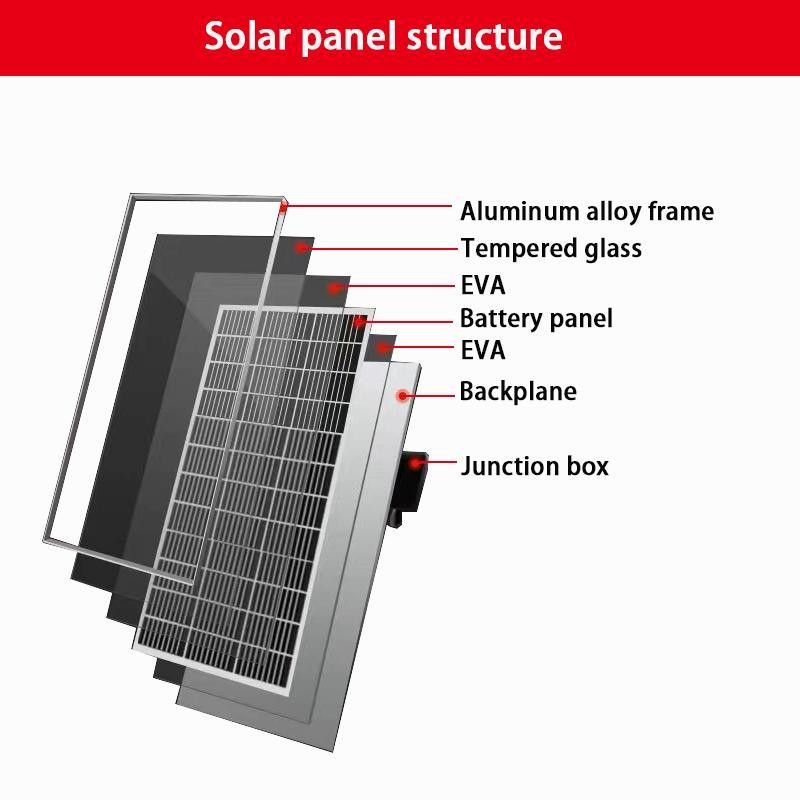

  1. Structure: A PV solar module is made up of multiple solar cells that are electrically connected and enclosed within a protective casing. The solar cells are typically made of silicon-based materials, such as monocrystalline or polycrystalline silicon, or thin-film materials like amorphous silicon, cadmium telluride, or copper indium gallium selenide (CIGS). The solar cells are sandwiched between a top glass cover and a backsheet, with additional layers for insulation and protection.
  2. Power Output: PV solar modules have a power rating measured in watts (W). The power rating represents the maximum electricity the module can produce under standard test conditions (STC). The power output of a PV solar module can vary depending on factors such as the size, efficiency, and technology used. Common residential and commercial modules have power ratings ranging from 200W to 400W, although higher power modules are also available.
  3. Efficiency: Efficiency refers to the ability of a PV solar module to convert sunlight into electricity. Higher efficiency modules can generate more electricity from the same amount of sunlight. The efficiency of PV solar modules can vary depending on the type of solar cells used. Monocrystalline solar modules generally have higher efficiencies compared to polycrystalline or thin-film modules.
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power

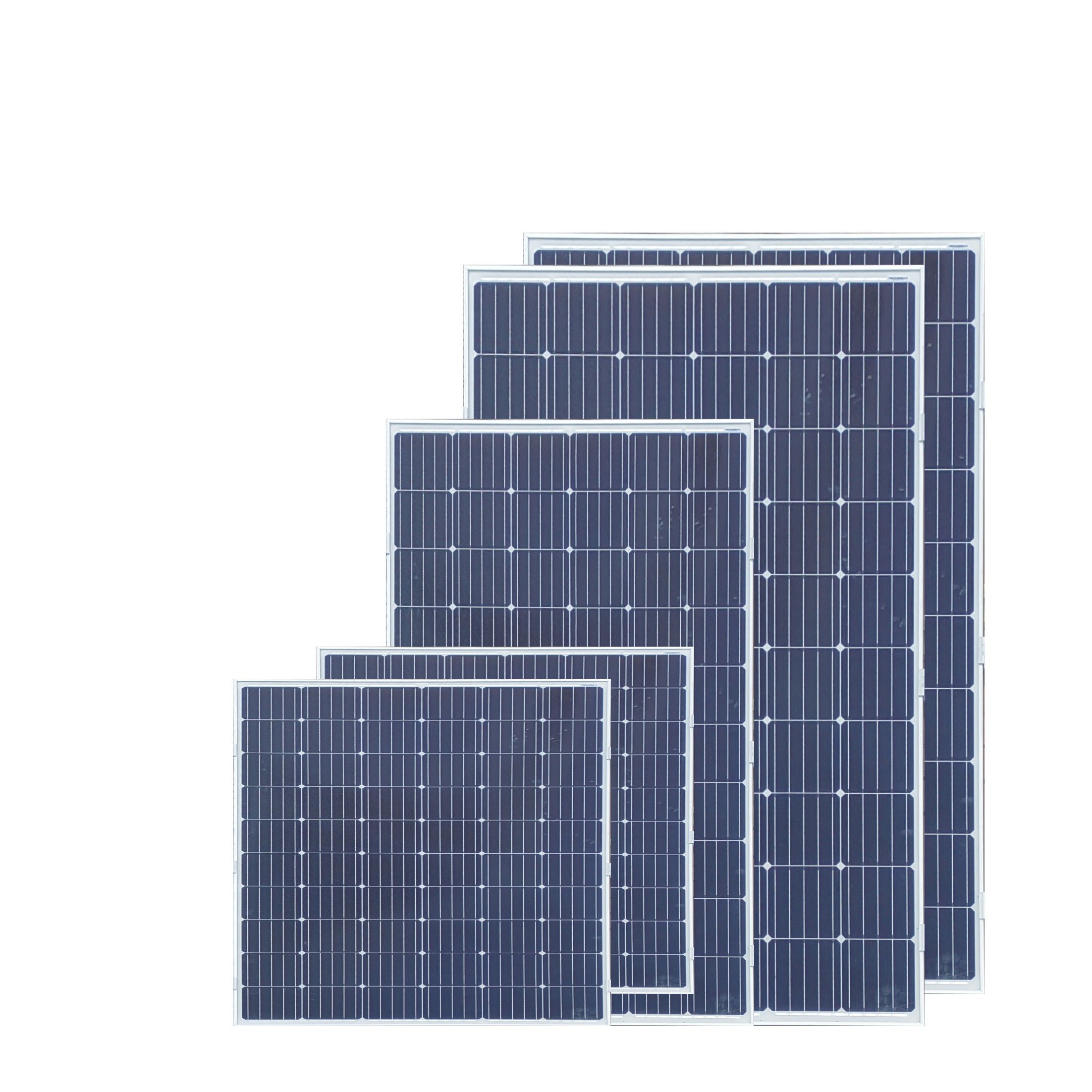

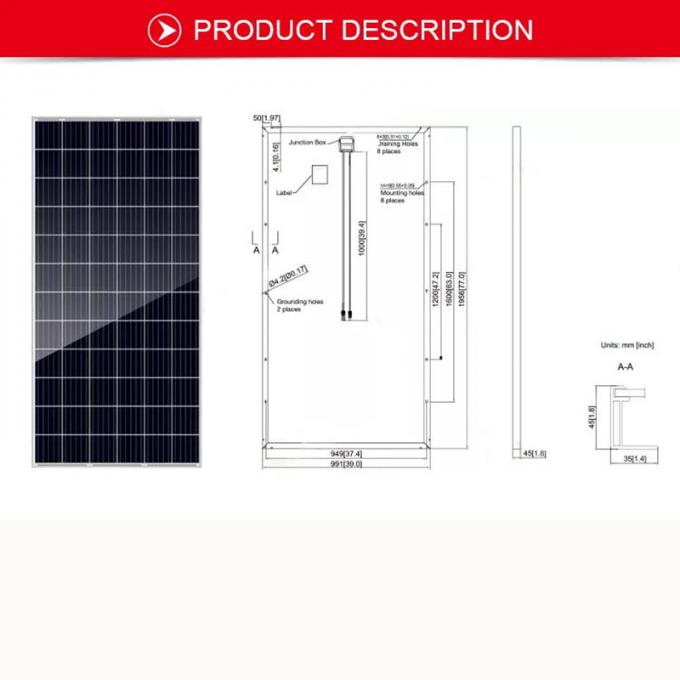

Model Peak power(WP) Peak Voltage(V) Peak Current(A) Short circuit current (A) Open circuit voltage (V) Size
HT-S150-24M 150 18 8.33 8.99 22.5 1480X670X35
HT-S200-24M 200 36 5.56 6.01 44.8 1580X808X35

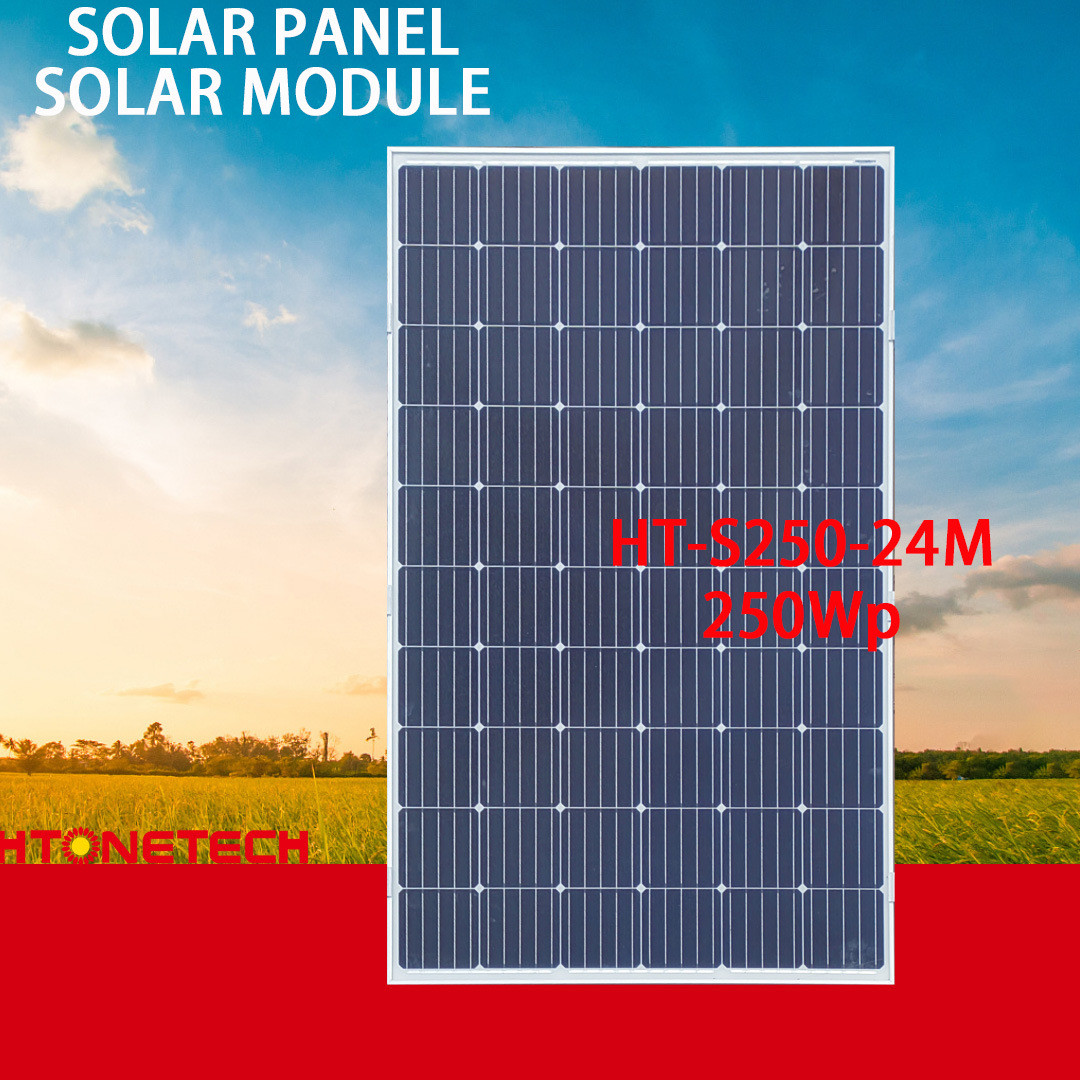

HT-S250-24M 250 30 8.33 8.99 36.8 1640X992X40
HT-S275-24M 275 30 9.17 9.81 37.2 1640X992X40
HT-S300-24M 300 30 10 10.7 37.2 1650X992X35
HT-S330-24M 330 36 9.17 9.81 44.64 1956X992X40
HT-S430-24M 430 40.3 10.67 11.22 48.7 2102X1040X35
HT-S450-24M 450 41.0 10.98 11.53 49.6 2102X1040X35
Maximum power Pmp temperature coefficient =-0.35%/ºC
The open-circuit voltage Voc =-0.28%/ºC
temperature coefficient Short-circuit current 0.048%/"ºC

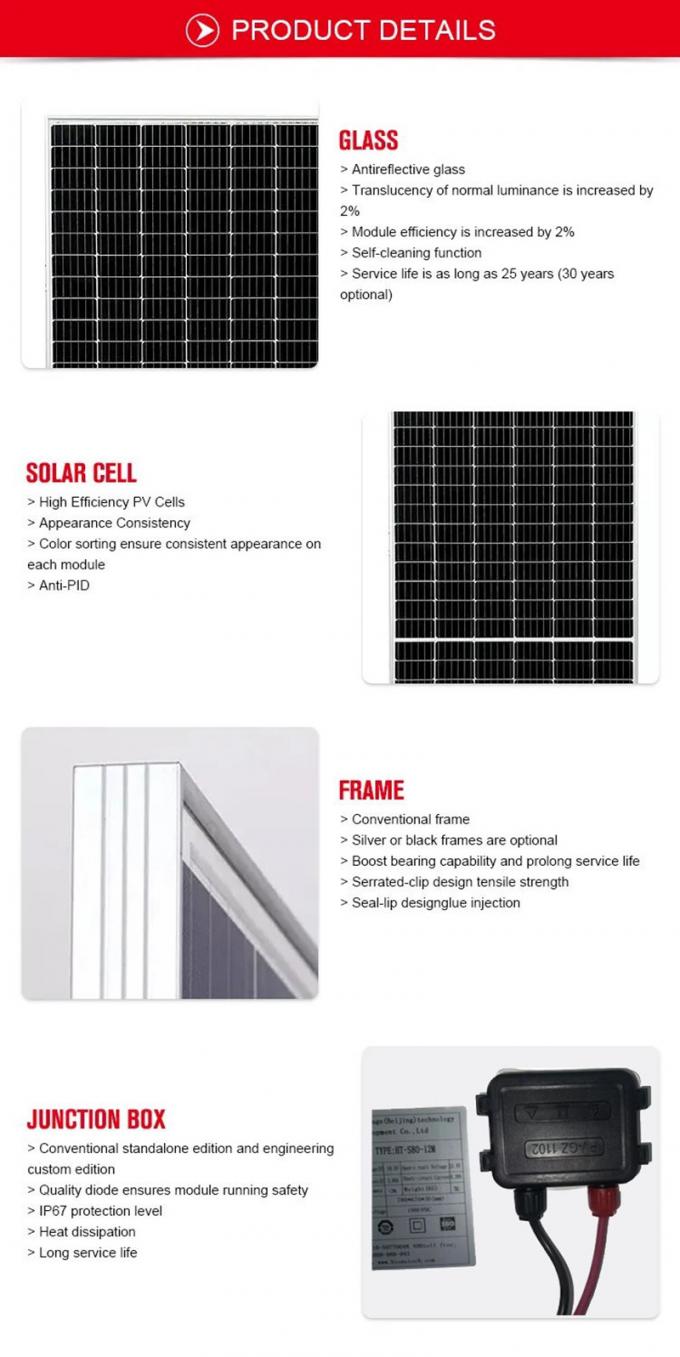

Component border anodic oxidation
Junction box Protection grade IP68
cable 4.0mm2,900mm
working temperature (ºC) -40~+85
Application level Class A
fire-protection rating Class C
Rated battery working temperature 45±2ºC

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household


FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
