Single Solar Photovoltaic Panel 250W Thin Film Solar Panels For Renewable Energy

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Application All Fields
Condition New Material Monocrystalline Silicon
Application Level Class A Working Temperature (ºC) -40~+85
Rated Battery Working Temperature 45±2ºC Fire-Protection Rating Class C
Junction Box Protection Grade IP68 Cable 4.0mm2,900mm
Component Border Anodic Oxidation Transport Package Wooden Box
Trademark Htonetech Origin China
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 25 Years Number Of Cells 1
High Light

Single Solar Photovoltaic Panel

,

Solar Photovoltaic Panel Thin Film

,

250W Thin Film Solar Panels

Leave a Message
Product Description

Price of 250W Single Crystal Photovoltaic Solar Panels for Renewable Energy Independent Power Generation

Product Description

A single solar photovoltaic (PV) panel refers to an individual unit or module of a solar PV system. It consists of multiple solar cells connected in series or parallel to generate electricity from sunlight. Here are some key points about a single solar PV panel:

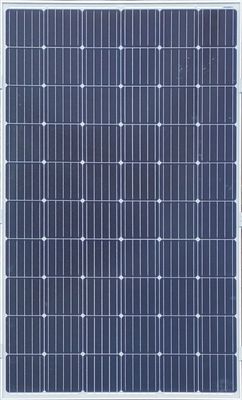

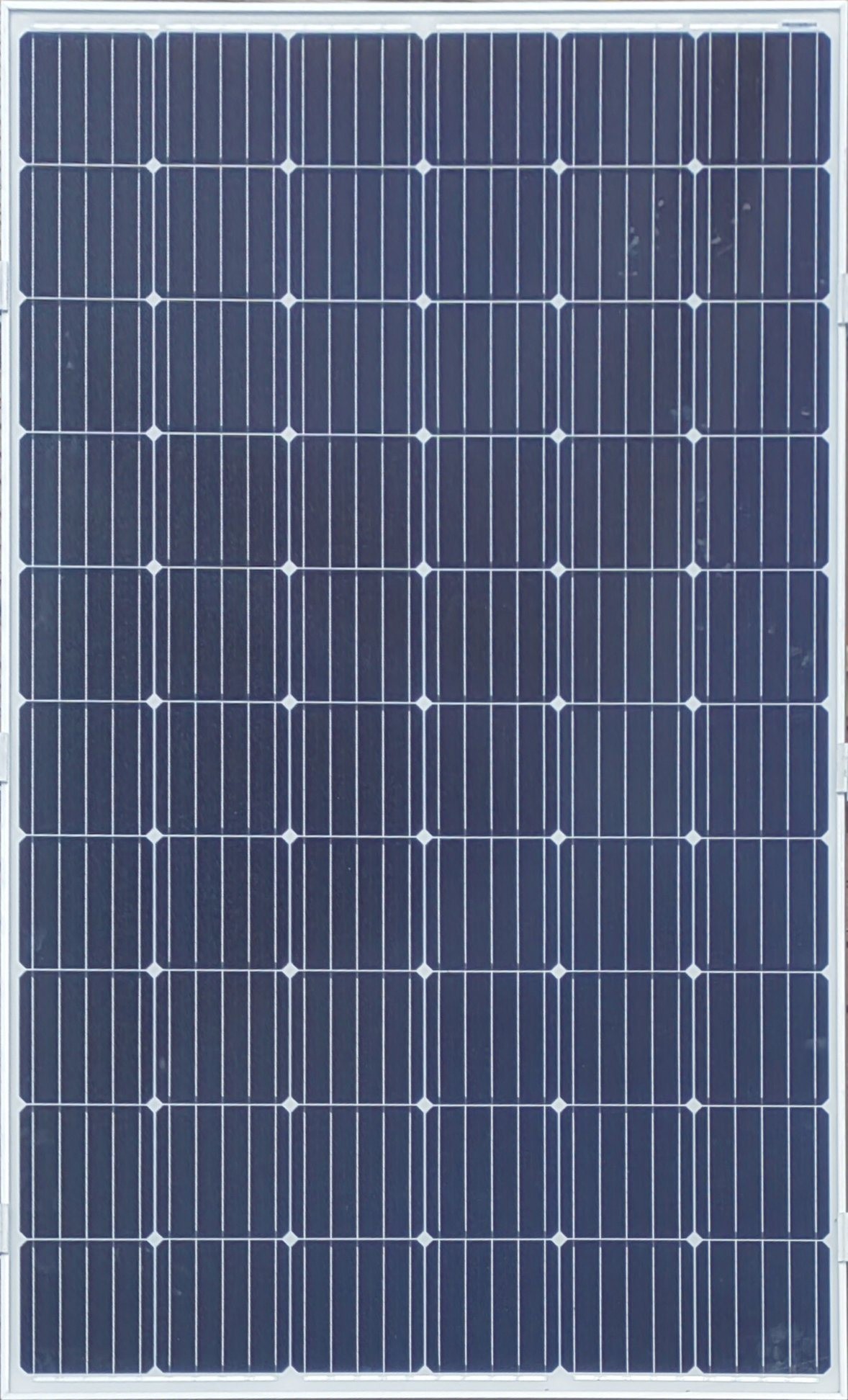

  1. Structure: A single solar PV panel is typically rectangular in shape and consists of several solar cells connected electrically. The cells are usually made of crystalline silicon, such as monocrystalline or polycrystalline silicon, or thin-film materials like amorphous silicon or cadmium telluride.
  2. Power Output: The power output of a single solar PV panel is measured in watts (W) and is typically indicated on the panel's specification sheet. The power rating can vary depending on the size, type, and efficiency of the panel. Common power ratings for residential panels range from 200 to 400 Watts, while commercial or utility-scale panels can have higher power ratings.
  3. Efficiency: Solar panel efficiency refers to the panel's ability to convert sunlight into electricity. Higher efficiency panels can generate more electricity from the same amount of sunlight. The efficiency of a single PV panel can vary depending on the technology used, with monocrystalline panels generally having higher efficiencies compared to polycrystalline or thin-film panels.
  4. Voltage and Current: A single solar PV panel produces a specific voltage and current output. The voltage output depends on the number of solar cells connected in series, while the current output is determined by the size and characteristics of the solar cells. These electrical parameters are important considerations when designing and connecting multiple panels in a solar PV system.

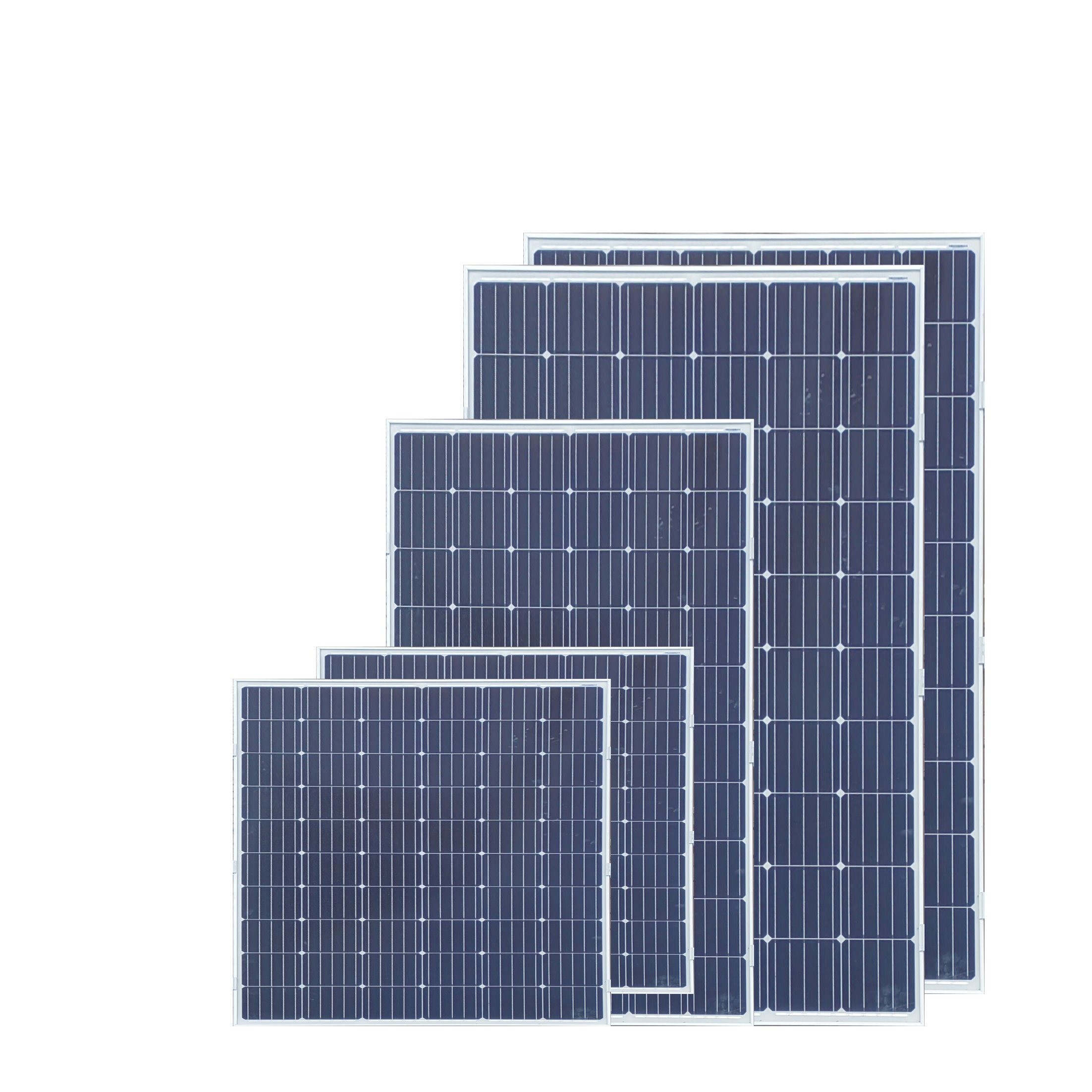

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power
Model Peak power(WP) Peak Voltage(V) Peak Current(A) Short circuit current (A) Open circuit voltage (V) Size
HT-S150-24M 150 18 8.33 8.99 22.5 1480X670X35
HT-S200-24M 200 36 5.56 6.01 44.8 1580X808X35
HT-S250-24M 250 30 8.33 8.99 36.8 1640X992X40
HT-S275-24M 275 30 9.17 9.81 37.2 1640X992X40
HT-S300-24M 300 30 10 10.7 37.2 1650X992X35
HT-S330-24M 330 36 9.17 9.81 44.64 1956X992X40
HT-S430-24M 430 40.3 10.67 11.22 48.7 2102X1040X35
HT-S450-24M 450 41.0 10.98 11.53 49.6 2102X1040X35
Maximum power Pmp temperature coefficient =-0.35%/ºC
The open-circuit voltage Voc =-0.28%/ºC
temperature coefficient Short-circuit current 0.048%/"ºC
Component border anodic oxidation

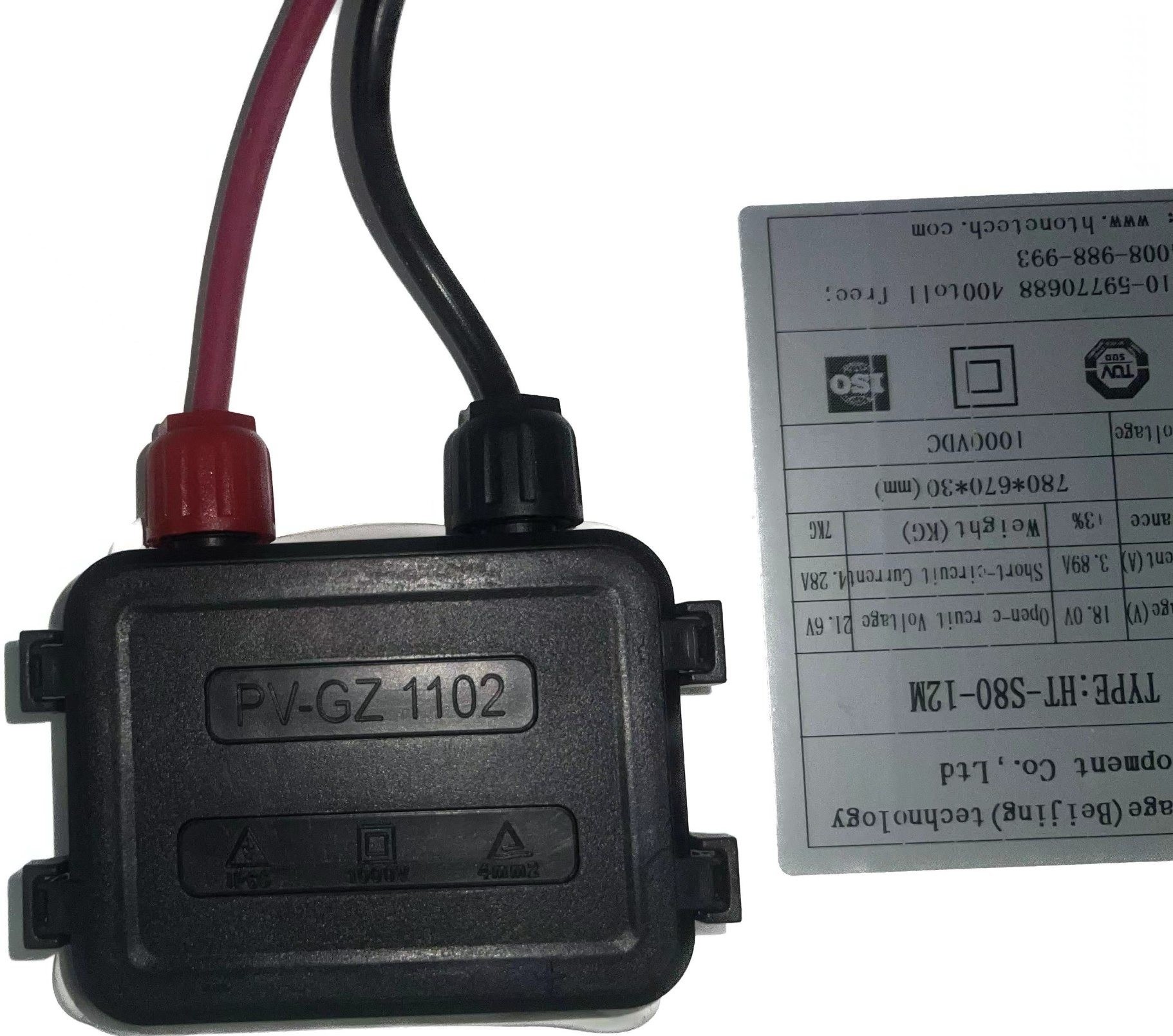

Junction box Protection grade IP68
cable 4.0mm2,900mm
working temperature (ºC) -40~+85
Application level Class A
fire-protection rating Class C
Rated battery working temperature 45±2ºC

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
