Htonetech Solar Photovoltaic Panel 275W Monocrystalline Pv Module

Certification ISO, CE

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Ability 50000pieces/Year Application All Fields
Condition New Material Monocrystalline Silicon
Application Level Class A Working Temperature (ºC) -40~+85
Rated Battery Working Temperature 45±2ºC Fire-Protection Rating Class C
Junction Box Protection Grade IP68 Cable 4.0mm2,900mm
Component Border Anodic Oxidation Transport Package Wooden Box
Trademark Htonetech Origin China
Shipping Cost To Be Negotiated| Freight Cost Calculator After-sales Service Yes
Warranty 25 Years Number Of Cells 1
High Light

Htonetech Solar Photovoltaic Panel

,

Solar Photovoltaic Panel 275W

,

275W Monocrystalline Pv Module

Leave a Message
Product Description

Solar PV Panel 275W Module Photovoltaic Monocrystalline Silicon Polycrystalline System Panels for Home

Product Description

A solar photovoltaic (PV) panel, commonly referred to as a solar panel, is a device that converts sunlight into electricity using the photovoltaic effect. It is the key component of a solar PV system. Here's some important information about solar photovoltaic panels:

Structure: Solar PV panels typically consist of multiple solar cells, which are usually made of crystalline silicon or thin-film materials. These cells are connected electrically and mounted on a supporting structure. The cells are encapsulated in a protective layer to shield them from the environment.

  • Power Output: Solar panels have a power rating measured in watts (W). The power rating indicates the maximum electricity the panel can produce under standard test conditions (STC). The power output of a solar panel can vary depending on factors such as the size, efficiency, and technology used. Residential and commercial panels typically range from 200W to 400W, although higher output panels are also available.
  • Efficiency: Solar panel efficiency refers to the panel's ability to convert sunlight into electricity. Higher efficiency panels can generate more electricity from the same amount of sunlight. The efficiency of solar panels can vary depending on the technology used, with monocrystalline panels generally having higher efficiencies compared to polycrystalline or thin-film panels.
  • Size and Dimensions: Solar panels come in various sizes and dimensions. The physical size of a panel depends on factors such as the number of cells it contains and the technology used. Standard residential or commercial solar panels are typically around 1.6 meters (5.2 feet) in height and 1 meter (3.3 feet) in width.
  • Applications: Solar panels are used in a wide range of applications, including residential, commercial, and utility-scale solar installations. They can be mounted on rooftops, integrated into building materials, or installed in ground-mounted arrays. Solar panels are used to generate electricity for powering homes, businesses, and communities, as well as for off-grid applications.
  • Installation: Solar panels are typically mounted on rooftops or ground-mounted structures to maximize exposure to sunlight. Proper installation and orientation are crucial to ensure optimal energy production. Mounting systems, such as racks or frames, are used to securely fix the panels in place and allow for adjustments to the tilt angle.
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household Solar Panel solar module 150W 200w 250W 275W 300W 330W 430W 450W Solar PV Solar Panel Kits 5kw High Quality! Solar Energy PV Power

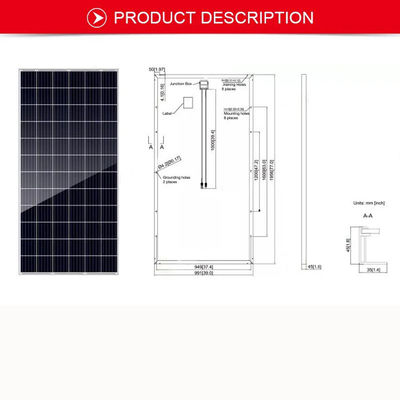

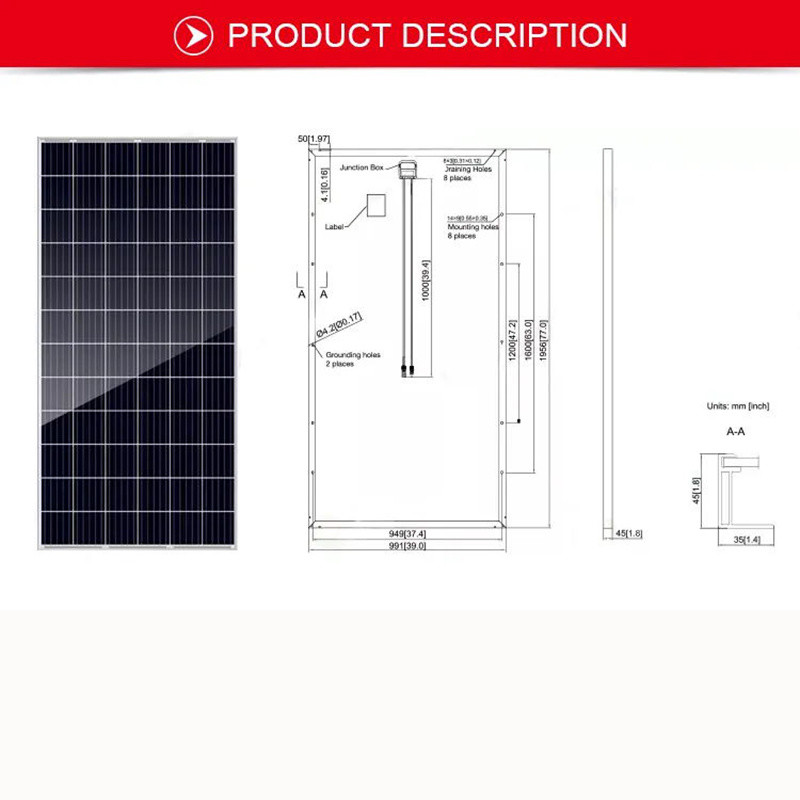

Model Peak power(WP) Peak Voltage(V) Peak Current(A) Short circuit current (A) Open circuit voltage (V) Size
HT-S150-24M 150 18 8.33 8.99 22.5 1480X670X35
HT-S200-24M 200 36 5.56 6.01 44.8 1580X808X35
HT-S250-24M 250 30 8.33 8.99 36.8 1640X992X40
HT-S275-24M 275 30 9.17 9.81 37.2 1640X992X40
HT-S300-24M 300 30 10 10.7 37.2 1650X992X35
HT-S330-24M 330 36 9.17 9.81 44.64 1956X992X40
HT-S430-24M 430 40.3 10.67 11.22 48.7 2102X1040X35
HT-S450-24M 450 41.0 10.98 11.53 49.6 2102X1040X35
Maximum power Pmp temperature coefficient =-0.35%/ºC
The open-circuit voltage Voc =-0.28%/ºC
temperature coefficient Short-circuit current 0.048%/"ºC
Component border anodic oxidation
Junction box Protection grade IP68
cable 4.0mm2,900mm
working temperature (ºC) -40~+85
Application level Class A
fire-protection rating Class C
Rated battery working temperature 45±2ºC

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household
Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and HouseholdSolar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System for Industrial, Agricultural, and Household


FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
