xApplication | All Fields | Condition | New |
---|---|---|---|
Material | Monocrystalline Silicon | Application Level | Class A |
Working Temperature (ºC) | -40~+85 | Rated Battery Working Temperature | 45±2ºC |
Fire-Protection Rating | Class C | Junction Box | Protection Grade IP68 |
Cable | 4.0mm2,900mm | Component Border | Anodic Oxidation |
Transport Package | Wooden Box | Trademark | Htonetech |
Origin | China | Supply Ability | 50000pieces/Year |
Shipping Cost | To Be Negotiated| Freight Cost Calculator | After-sales Service | Yes |
Warranty | 25 Years | Number Of Cells | 1 |
High Light | 50W High Output Solar Panels,High Output Solar Panels High Efficiency,High Efficiency Solar Panels Power Generation |

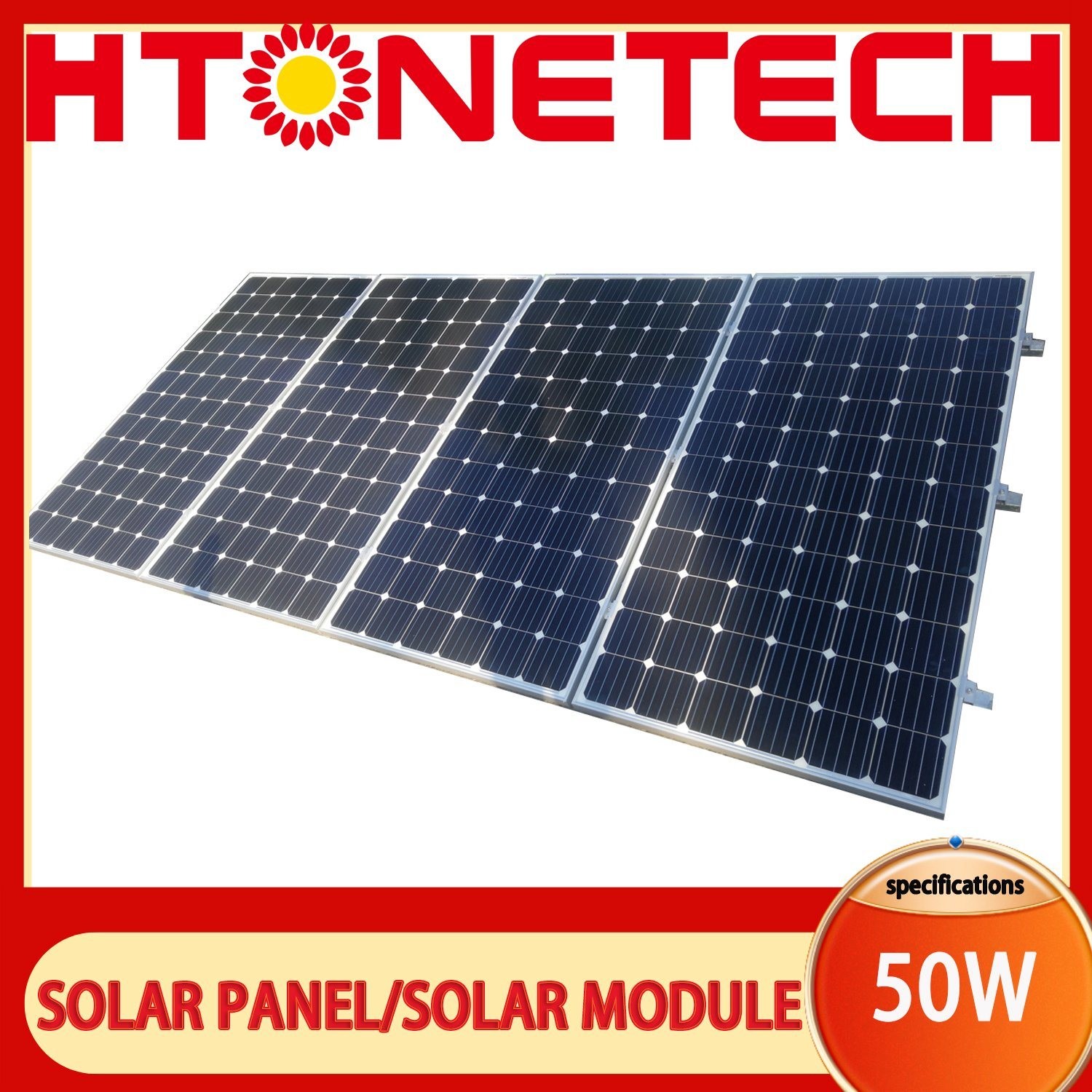

Solar Photovoltaic Panel 50W, Monocrystalline Silicon, Polycrystalline Silicon Power Generation System
Product Description
High-output solar panels refer to solar panels that have a higher power rating compared to standard panels. These panels are designed to generate more electricity from the same amount of sunlight. Here are some key points about high-output solar panels:
- Power Output: High-output solar panels typically have power ratings above the standard range of residential or commercial panels, which typically range from 200W to 400W. Power ratings for high-output panels can range from 400W to 600W or even higher. These panels can generate more electricity per unit area and are suitable for applications where space is limited or where higher energy production is desired.
- Efficiency: High-output panels often feature higher efficiency compared to standard panels. The efficiency of a solar panel indicates how effectively it converts sunlight into electricity. Higher efficiency panels can generate more electricity from the same amount of sunlight, which can be advantageous in situations with limited roof space or for maximizing energy production.
- Technology: High-output solar panels are typically based on advanced technologies that improve their efficiency and power output. These may include monocrystalline or polycrystalline silicon cells with optimized designs, advanced cell architectures, or innovative manufacturing processes. Some high-output panels may also utilize thin-film or multi-junction technologies to achieve higher performance.
- Size and Design: High-output solar panels may have different physical dimensions compared to standard panels. While the width and height of the panel may be similar, high-output panels are often thicker due to the increased number of cells or specialized design features. It is important to consider the panel dimensions and weight when planning for installation.
Model | Peak power(WP) | Peak Voltage(V) | Peak Current(A) | Short circuit current (A) | Open circuit voltage (V) | Size |
HT-S150-24M | 150 | 18 | 8.33 | 8.99 | 22.5 | 1480X670X35 |
HT-S200-24M | 200 | 36 | 5.56 | 6.01 | 44.8 | 1580X808X35 |
HT-S250-24M | 250 | 30 | 8.33 | 8.99 | 36.8 | 1640X992X40 |
HT-S275-24M | 275 | 30 | 9.17 | 9.81 | 37.2 | 1640X992X40 |
HT-S300-24M | 300 | 30 | 10 | 10.7 | 37.2 | 1650X992X35 |
HT-S330-24M | 330 | 36 | 9.17 | 9.81 | 44.64 | 1956X992X40 |
HT-S430-24M | 430 | 40.3 | 10.67 | 11.22 | 48.7 | 2102X1040X35 |
HT-S450-24M | 450 | 41.0 | 10.98 | 11.53 | 49.6 | 2102X1040X35 |
Maximum power Pmp temperature coefficient | =-0.35%/ºC | |||||
The open-circuit voltage Voc | =-0.28%/ºC | |||||
temperature coefficient Short-circuit current | 0.048%/"ºC | |||||
Component border | anodic oxidation | |||||
Junction box | Protection grade IP68 | |||||
cable | 4.0mm2,900mm | |||||
working temperature (ºC) | -40~+85 | |||||
Application level | Class A | |||||
fire-protection rating | Class C | |||||
Rated battery working temperature | 45±2ºC |
FAQ
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
