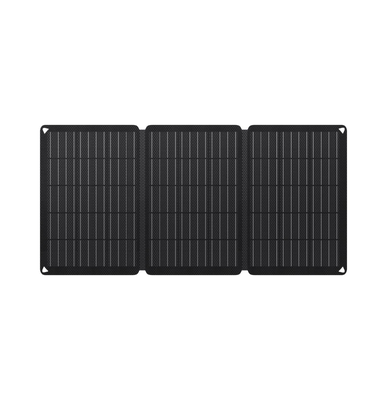

30W Foldable Solar Panel LS-SP30F Monocrystalline Silicon IP67

30W Foldable Solar Panel LS-SP30F Monocrystalline Silicon IP67
30W Foldable Solar Panel LS-SP30F Monocrystalline Silicon IP67

Large Image :  30W Foldable Solar Panel LS-SP30F Monocrystalline Silicon IP67

Product Details:
Contact Now chat now
Detailed Product Description
Net Weight: 0.8 Kg Cell Type: Monocrystalline Silicon
Conversion Efficiency: 23% Open Circuit Voltage (Voc): 24.51V ±5%
Highlight:

30W foldable solar panel

,

IP67 foldable solar panel

,

IP67 folding solar panels

30W Foldable Solar Panel LS-SP30F



Product Description

The LS-SP30F 30W Foldable Solar Panel is an ultra-compact portable photovoltaic charging solution designed for lightweight outdoor and emergency power needs. Featuring high-efficiency 23% monocrystalline silicon cells and ETFE laminated technology, it provides stable and reliable solar charging performance even in outdoor environments.

With its A4-paper-sized folded design, the LS-SP30F is extremely easy to carry, store, and hang on backpacks, making it ideal for hiking, camping, and travel. Integrated USB and Type-C outputs allow direct charging of mobile phones, cameras, and small electronic devices without requiring additional power stations.



Product Specifications

Electrical Parameters

Item Specification
Model LS-SP30F
Maximum Power 30W
Cell Type Monocrystalline Silicon
Cell Configuration MONO36
Conversion Efficiency 23%
Open Circuit Voltage (Voc) 24.51V ±5%
Short Circuit Current (Isc) 1.65A ±5%
Max Power Voltage (Vmp) 20.43V ±5%
Max Power Current (Imp) 1.58A ±5%
Process Technology ETFE Laminated Integrated Design



Mechanical Parameters

Item Specification
Net Weight 0.8 kg
Gross Weight 1.0 kg
Unfolded Size 636 × 311 × 10 mm
Folded Size 311 × 210 × 25 mm
Folding Design 3-Fold Structure



Output & System Parameters

Item Specification
Output Interfaces USB / Type-C Direct Charging
MC4 Connector Not supported
Protection Rating ≥ IP67
Maximum System Voltage 1500V DC
Operating Temperature -20°C ~ +60°C
Carton Size 345 × 225 × 40 mm



Product Features

  • Ultra-Compact Foldable Design (A4 Size When Folded)
  • High Conversion Efficiency up to 23%
  • Direct USB & Type-C Charging for Mobile Devices
  • IP67 Waterproof and Dustproof Protection
  • Lightweight Design Only 0.8 kg for Easy Portability
  • ETFE Laminated Surface for Durability and Self-Cleaning
  • Plug-and-Play Outdoor Charging Solution
  • Ideal for Emergency and Travel Power Needs
  • Reliable Performance in Harsh Outdoor Conditions
  • CE / FCC / RoHS Certified Safety Standard

Applications

  • Hiking and Camping Trips
  • Backpacking and Outdoor Travel
  • Emergency Mobile Device Charging
  • Camera and Small Electronics Power Supply
  • Outdoor Adventure and Survival Kits
  • Remote Field Activities
  • Lightweight Portable Energy Solutions
