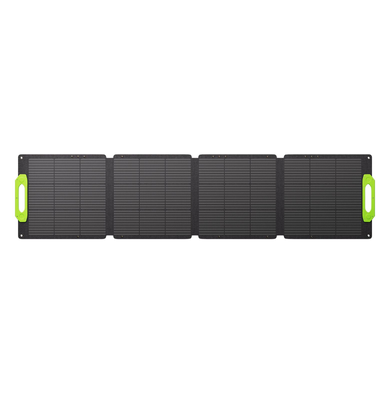

LS-SP Series Portable Folding Solar Panels 100W 200W 300W 400W 1500V DC

LS-SP Series Portable Folding Solar Panels 100W 200W 300W 400W 1500V DC
LS-SP Series Portable Folding Solar Panels 100W 200W 300W 400W 1500V DC

Large Image :  LS-SP Series Portable Folding Solar Panels 100W 200W 300W 400W 1500V DC

Product Details:
Contact Now chat now
Detailed Product Description
Maximum System Voltage: 1500V DC Operating Temperature: -20°C ~ +60°C
Conversion Efficiency: 23% Folding Design: 4-Fold
Highlight:

200W portable folding solar panels

,

100W portable folding solar panels

,

400W pv flexible solar panels

LS-SP Series Foldable Solar Panel 100W/200W/300W/400W



Product Description

The LS-SP Series Foldable Solar Panel is a high-efficiency portable photovoltaic solution designed for outdoor, mobile, and off-grid energy applications. Available in 100W, 200W, 300W, and 400W models, it delivers flexible power options to meet different usage scenarios—from small electronic device charging to RV and outdoor energy supply systems.

Built with 23% high-efficiency monocrystalline silicon cells and ETFE laminated technology, the panel ensures stable power generation and long-term durability. With IP67 waterproof protection and a foldable lightweight design, it is ideal for harsh outdoor environments such as rain, dust, and sand exposure.

The universal MC4 interface (compatible with Anderson, XT60, and DC adapters) makes it compatible with most portable power stations on the market, enabling plug-and-play convenience for users.



Product Specifications

Electrical Parameters

Parameter LS-SP100F LS-SP200F LS-SP300F LS-SP400F
Maximum Power 100W 200W 300W 400W
Cell Type Monocrystalline Silicon Monocrystalline Silicon Monocrystalline Silicon Monocrystalline Silicon
Cell Configuration MONO144 MONO144 MONO168 MONO256
Conversion Efficiency 23% 23% 23% 23%
Open Circuit Voltage (Voc) 24.48V ±5% 24.51V ±5% 28.62V ±5% 43.84V ±5%
Short Circuit Current (Isc) 6.09A ±5% 10.61A ±5% 13.27A ±5% 12.30A ±5%
Max Power Voltage (Vmp) 20.01V 20.43V 23.83V 36.19V
Max Power Current (Imp) 5.75A 10.13A 12.67A 11.63A



Mechanical Parameters

Parameter LS-SP100F LS-SP200F LS-SP300F LS-SP400F
Net Weight 4.26 kg 7.54 kg 12.5 kg 17 kg
Gross Weight 5.3 kg 8 kg 12.5 kg 17 kg
Unfolded Size 1620 × 470 × 10 mm 2130 × 590 × 10 mm 2500 × 685 × 10 mm 2650 × 885 × 10 mm
Folded Size 410 × 460 × 47 mm 570 × 590 × 47 mm 655 × 685 × 47 mm 705 × 885 × 47 mm
Folding Design 4-Fold 4-Fold 4-Fold 4-Fold



System & Environmental Parameters

Parameter Specification
Connector Type MC4 (compatible with Anderson / XT60 / DC5521 adapters)
Maximum System Voltage 1500V DC
Protection Rating ≥ IP67
Operating Temperature -20°C ~ +60°C
Process Technology ETFE Laminated Integrated Design
Certifications CE / FCC / RoHS



Product Features

  • Multiple Power Options: 100W / 200W / 300W / 400W for Flexible Use
  • High Efficiency Up to 23% Monocrystalline Solar Cells
  • IP67 Waterproof and Dustproof Protection
  • Lightweight Foldable Design for Easy Transport
  • ETFE Surface with Self-Cleaning and High Durability
  • Universal MC4 Interface Compatible with Most Power Stations
  • Plug-and-Play Outdoor Energy Solution
  • Durable Construction for Harsh Outdoor Environments
  • Suitable for Portable and Emergency Power Applications
  • Certified Safety and Quality Standards (CE / FCC / RoHS)

Applications

  • Camping and Outdoor Activities
  • RV, Caravan, and Marine Power Systems
  • Portable Power Station Charging
  • Emergency Backup Power Supply
  • Hiking, Backpacking, and Off-Grid Travel
  • Remote Field Work and Outdoor Operations
  • Small Electronic Device Charging
  • Temporary Outdoor Energy Solutions
