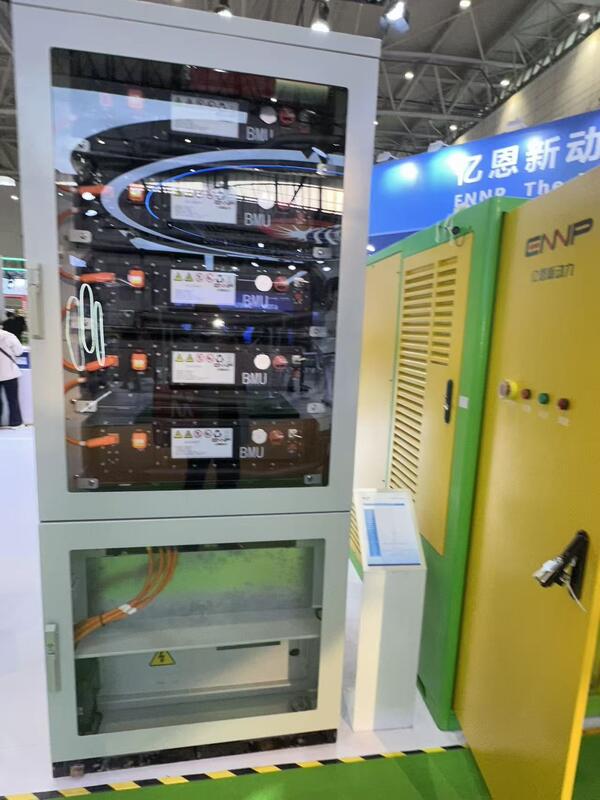

Liquid-cooled ESS Cabinet 232kWh / 372kWh

Model: 232kWh liquid-cooled commercial & industrial ESS cabinet / 372kWh liquid-cooled commercial & industrial ESS cabinet
Cell Type: Lithium Iron Phosphate (LFP)
Cell Specification: 3.2V / 280Ah LFP cell
Module Configuration: 52 cells in 1 parallel; defines series-parallel structure of cells inside the module
System Configuration: The 232kWh model consists of 5 modules in series; the 372kWh model consists of 8 modules in series
Rated Capacity: 232kWh model: 232.96kWh; 372kWh model: 372.7kWh
Rated DC Voltage: 232kWh model: 832V; 372kWh model: 1331.2V
Operating Voltage Range: 232kWh model: 728V~949V; 372kWh model: 1164.8V~1497.6V
Charging Current: Standard charging current 140A, charge rate 0.5C
Discharging Current: Standard discharging current 140A, discharge rate 0.5C
Depth of Discharge: Max. 90% DOD
Cycle Life: >8,500 cycles at 80% DOD under standard test conditions
Dimensions: 1300 × 1300 × 2340 mm
Weight: 232kWh model: 2150 kg; 372kWh model: 3500 kg
Operating Altitude: Suitable for use at altitudes ≤ 2000 m
Noise Level: Original parameters may have input errors; similar liquid-cooled ESS cabinets operate at ≤ 65dB at 1m, with low noise
Protection Rating: IP55; effective dustproof and waterproof for outdoor use
Operating Temperature Range: -20℃ ~ 55℃; the unit will derate automatically at high temperatures
Operating Humidity: ≤ 85% RH (non-condensing)
Storage Temperature Range: -30℃ ~ 45℃
Communication Interfaces: CAN / RS485 / Wireless WIFI; compatible with most common energy management platforms
Warranty: 10 years official warranty
Certifications: Pending certification; planned certifications include UL1973, UL9540A, IEC/EN62619 and other international ESS safety standards
