SunPhoton Photon Robotics
MOW Series
Robotic Lawn Mowers
Unified Smart Ecosystem｜Optional BC Solar Charging Autonomous Lawn Care for Homes, Villas & Commercial Landscapes
Power your lawn with intelligent robotics & solar energy by SunPhoton

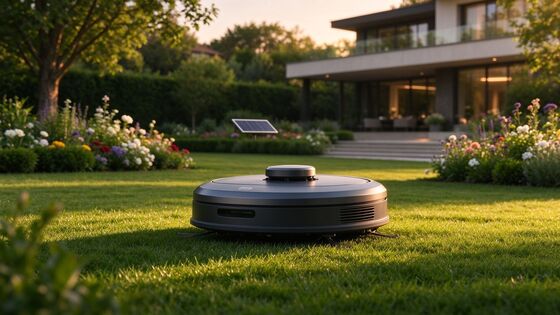

SunPhoton MOW Series Robotic Lawn Mowers
Product Brochure
Unified Ecosystem｜Optional BC Solar Charging｜Smart Autonomous Lawn Care
SunPhoton Photon Robotics
Table of Contents
- Brand Introduction
- Product Matrix Overview
- MOW S – Entry-level Robotic Lawn Mower
- MOW M – Mid-range Robotic Lawn Mower
- MOW L – Flagship Large-yard Robotic Lawn Mower
- MOW XL – Commercial Cluster Robotic Lawn Mower
- Shared Smart Ecosystem
- Global Certifications & General Warranty
1. Brand Introduction
SunPhoton Photon Robotics delivers intelligent robotic lawn solutions tightly integrated with our PV and energy storage ecosystem. Our MOW family covers small residential yards, medium villas, large premium estates and commercial landscapes. All models share the SunPhoton Smart App, unified open API for ESS & BIPV connection, and optional BC back-contact solar charging kits. No perimeter wire required for virtual boundary mapping. From home users to commercial EPC partners, we provide autonomous, low-energy lawn maintenance for worldwide markets.
2. Product Matrix Overview
|
Model
|
Positioning
|
Navigation
|
Recommended Lawn Area
|
Optional BC Solar Kit
|
| MOW S |
Entry-level small yard |
Single LiDAR + AIVI 3D Vision |
300–800 ㎡ |
200W BC (SP-SOL-S200) |
| MOW M |
Mid-range villa |
Dual 360° LiDAR + AIVI 3D Vision |
800–1200 ㎡ |
350W BC (SP-SOL-M350) |
| MOW L |
Flagship large villa |
RTK + Dual 360° LiDAR + AIVI 3D Vision |
2500–2800 ㎡ |
600W BC (SP-SOL2500-600) |
| MOW XL |
Commercial farm & cluster |
RTK + Dual 360° LiDAR + AIVI 3D Vision, 4WD |
3000–5000 ㎡ per unit |
600W BC (SP-SOL-XL600) |
3. SunPhoton MOW S Robotic Lawn Mower
Header: SunPhoton Photon Robotics | MOW S
Entry-level Robotic Lawn Mower
Optional 200W BC Solar Kit
Smart Navigation, Simple Operation, Reliable Lawn Care
Overview
SunPhoton MOW S is our entry model for small and medium residential yards. Equipped with single LiDAR + AIVI 3D vision fusion navigation, no RTK required. Compact, quiet and easy to deploy. The optional 200W BC solar kit is ideal for eco-conscious users or locations with unstable grid supply.
Key Advantages
- Single LiDAR + AIVI 3D vision for precise mapping & obstacle avoidance
- Compact low-noise design, safe for families with kids and pets
- Virtual boundary, no perimeter wire required
- Optional 200W BC solar supplementary charging
- Unified SunPhoton Smart App ecosystem
Specification
|
Item
|
MOW S
|
| Navigation |
Single LiDAR + AIVI 3D Vision Fusion |
| Recommended lawn area |
300–800 ㎡ |
| Max climbing slope |
40% |
| Cutting system |
Single cutting disc |
| Cutting width |
220 mm |
| Cutting height |
2.5–7 cm, electronically adjustable |
| Battery |
24V Li-ion pack |
| Continuous mowing time |
60 min, fast full charge within 40 min |
| IP Rating |
IPX6, suitable for light rain |
| Communication |
Wi‑Fi, OTA upgrade |
| Noise |
≤56dB(A) |
| Weight |
12 kg |
Optional Solar Kit SP-SOL-S200
200W SunPhoton BC back-contact module, integrated MPPT, anti-reverse & surge protection. Ground bracket installation, solar data viewable inside App. Retrofittable.
Standard Package
Robot host, AC charging dock, power adapter, spare blades, installation toolkit, user manual Optional: SP-SOL-S200 solar kit, spare blade set, extended warranty
Safety & Certifications
Blade stop sensor on collision / lift-up, child lock, IPX6 CE RED, LVD, EMC, FCC, RoHS, UKCA, California battery compliance
Warranty
Robot host: 2-year global warranty PV module: 12-year linear power warranty | Solar controller: 2-year warranty
4. SunPhoton MOW M Robotic Lawn Mower
Header: SunPhoton Photon Robotics | MOW M
Mid-range Robotic Lawn Mower
Optional 350W BC Solar Kit
Smart Mapping, Smooth Mowing, Mid-size Yard Favorite
Overview
SunPhoton MOW M targets medium-sized villa yards. Dual 360° LiDAR + AIVI 3D vision fusion navigation (no RTK). Stable mapping performance in yards with trees, flower beds and complex landscaping. Optional 350W BC solar kit for low-power or off-grid scenarios.
Key Advantages
- Dual 360° LiDAR + AIVI 3D vision, reliable mapping under light tree shade
- Zero‑Edge boundary cutting, dual discs for cleaner grass finish
- Multi-zone mapping and flexible mowing schedules
- Optional 350W BC solar charging kit
- Open API for SunPhoton ESS & BIPV energy linkage
Specification
|
Item
|
MOW M
|
| Navigation |
Dual 360° LiDAR + AIVI 3D Vision Fusion |
| Recommended lawn area |
800–1200 ㎡ |
| Max climbing slope |
48% |
| Cutting system |
Dual cutting discs, Zero‑Edge boundary cutting |
| Cutting width |
280 mm |
| Cutting height |
2.5–8 cm, electronically adjustable |
| Battery |
28V Li-ion pack |
| Continuous mowing time |
70 min, fast full charge within 42 min |
| IP Rating |
IPX6, suitable for light rain |
| Communication |
Wi‑Fi + optional 4G module, OTA upgrade |
| Noise |
≤57dB(A) |
| Weight |
18 kg |
Optional Solar Kit SP-SOL-M350
350W SunPhoton BC back-contact module, MPPT controller with anti-reverse, surge & overcharge protection. Galvanized ground bracket, solar generation statistics on App. Retrofittable.
Standard Package
Robot host, AC charging dock, power adapter, spare blades, installation toolkit, user manual Optional: SP-SOL-M350 solar kit, 4G module, spare battery, premium blade set, anti-theft kit, extended warranty
Safety & Certifications
Collision & lift blade stop sensor, child lock, tilt alarm, geofence (4G version) CE RED, LVD, EMC, FCC, RoHS, UKCA, California battery compliance
Warranty
Robot host: 2-year global warranty PV module: 12-year linear power warranty | Solar controller: 2-year warranty
5. SunPhoton MOW L Robotic Lawn Mower
Header: SunPhoton Photon Robotics | MOW L
Flagship Large-yard Robotic Lawn Mower
Optional 600W BC Solar Kit
Centimeter Precision, Extended Runtime, Integrated Solar & Energy Storage
Overview
SunPhoton MOW L is our flagship residential model for large premium yards up to 2800㎡. RTK + dual 360° LiDAR + AIVI 3D vision fusion navigation greatly reduces positioning drift under tree canopy. Optional 600W BC solar kit for villas, off-grid sites and solar-storage integrated projects.
Key Advantages
- Centimeter RTK positioning + dual LiDAR + AIVI 3D obstacle recognition
- Zero‑Edge cutting, dual cutting discs
- Higher 55% climbing capacity for sloped terrain
- Optional high-power 600W BC solar kit with excellent low-light performance
- Open API to connect SunPhoton BIPV and ESS whole-yard energy system
- Support multi-machine coordinated operation with edge gateway
Specification
|
Item
|
MOW L
|
| Navigation |
RTK GNSS + Dual 360° LiDAR + AIVI 3D Vision Fusion |
| Recommended lawn area |
2500–2800 ㎡ |
| Max climbing slope |
55% |
| Cutting system |
Dual cutting discs, Zero‑Edge boundary cutting |
| Cutting width |
330 mm |
| Cutting height |
3–9 cm, electronically adjustable |
| Battery |
32V Li-ion pack |
| Continuous mowing time |
75 min, fast full charge within 45 min |
| IP Rating |
IPX6, suitable for light rain |
| Communication |
Wi‑Fi + optional 4G module, OTA upgrade |
| Noise |
≤58dB(A) |
| Weight |
24.5 kg |
Optional Solar Kit SP-SOL2500-600
600W SunPhoton BC back-contact module, integrated MPPT, lightning, surge and overcharge protection. Galvanized heavy ground bracket. Real-time generation dashboard in App. Retrofittable.
Standard Package
Robot host, AC charging dock, RTK antenna, power adapter, spare blades, installation toolkit, user manual Optional: SP-SOL2500-600 solar kit, 4G module, spare battery, premium blade set, anti-theft kit, extended warranty
Safety & Certifications
Collision / lift blade stop sensor, child lock, tilt alarm, geofence remote alert CE RED, LVD, EMC, FCC, RoHS, UKCA, California battery compliance
Warranty
Robot host: 2-year global warranty PV module: 12-year linear power warranty | Solar controller: 2-year warranty Optional paid extended warranty available for commercial deployment
6. SunPhoton MOW XL Robotic Lawn Mower
Header: SunPhoton Photon Robotics | MOW XL
Commercial Cluster Robotic Lawn Mower
Optional 600W BC Solar Kit · Multi-Machine Cluster Ready
Centimeter RTK, Four-Wheel Drive, Collaborative Farm Mowing
Overview
MOW XL is industrial commercial robotic mower built for farms, golf fairways, public parks, resorts and large communal landscapes. RTK fusion navigation + 4WD rugged chassis. Native multi-robot cluster scheduling via SunPhoton edge gateway. Optional 600W BC solar kit for remote off-grid commercial sites.
Key Advantages
- High-precision RTK fusion navigation, stable under partial tree canopy
- Four-wheel drive, outstanding climbing & off-road capability (60% slope)
- Native cluster protocol: task split & coordinated mowing for multiple robots
- Heavy-duty dual cutting discs, wide cutting width for high throughput
- Compatible with SunPhoton farm ESS & BIPV system
- Industrial hardware for long-hour continuous commercial operation
Specification
|
Item
|
MOW XL
|
| Navigation |
RTK GNSS + Dual 360° LiDAR + AIVI 3D Vision Fusion |
| Recommended lawn area |
3000–5000 ㎡ per unit, expandable via cluster |
| Max climbing slope |
60% |
| Cutting system |
Heavy-duty dual cutting discs, Zero‑Edge boundary cutting |
| Cutting width |
400 mm |
| Cutting height |
4–10 cm, electronically adjustable |
| Battery |
48V large-capacity Li-ion pack |
| Continuous mowing time |
90 min, fast full charge within 50 min |
| IP Rating |
IPX6, suitable for light rain |
| Communication |
Wi‑Fi + standard 4G module, OTA, cluster bus |
| Noise |
≤60dB(A) |
| Weight |
32 kg |
Optional Solar Kit SP-SOL-XL600
600W SunPhoton BC back-contact module, industrial-grade MPPT controller with lightning protection, anti-reverse and surge protection. Heavy galvanized bracket, farm energy dashboard support. Retrofittable.
Standard Package
Robot host, AC charging dock, RTK antenna, built-in 4G module, power adapter, heavy-duty blades, installation toolkit, user manual Optional: SP-SOL-XL600 solar kit, cluster edge gateway, spare battery, industrial blade pack, lightning protection kit, 3/4-year extended commercial warranty
Safety & Certifications
Collision/lift blade stop + physical emergency stop button, site safety lock, RTK/GPS tracking, remote lock CE RED, LVD, EMC, FCC, RoHS, UKCA, California battery compliance
7. Shared Smart Ecosystem
All MOW series models run on the unified SunPhoton Smart App.
- Unified mapping logic, scheduling rules and alert framework
- Solar production dashboard activated when optional BC solar kit is installed
- Standard open API to interconnect with SunPhoton BIPV and energy storage systems
- Remote firmware OTA upgrade for continuous function optimization
8. Global Certifications & General Warranty
Certifications
CE RED, LVD, EMC, FCC, RoHS, UKCA, California battery compliance
General Warranty Terms Summary
- MOW robot host: 2-year global warranty
- BC PV module in solar kits: 12-year linear power warranty
- Solar electronic controller (MPPT unit): 2-year warranty
- Extended paid warranty options available for commercial projects
SunPhoton Photon Robotics We integrate robotic lawn solutions with photovoltaic and energy storage ecosystems. The full MOW lineup covers small residential yards, mid-size villas, premium large estates and commercial park/farm sites. All models support optional BC back-contact solar charging kits and connect to our ESS & BIPV platform via open API.
Series Line-up MOW S · MOW M · MOW L · MOW XL
Global Compliance CE RED, LVD, EMC, FCC, RoHS, UKCA, California battery compliance
