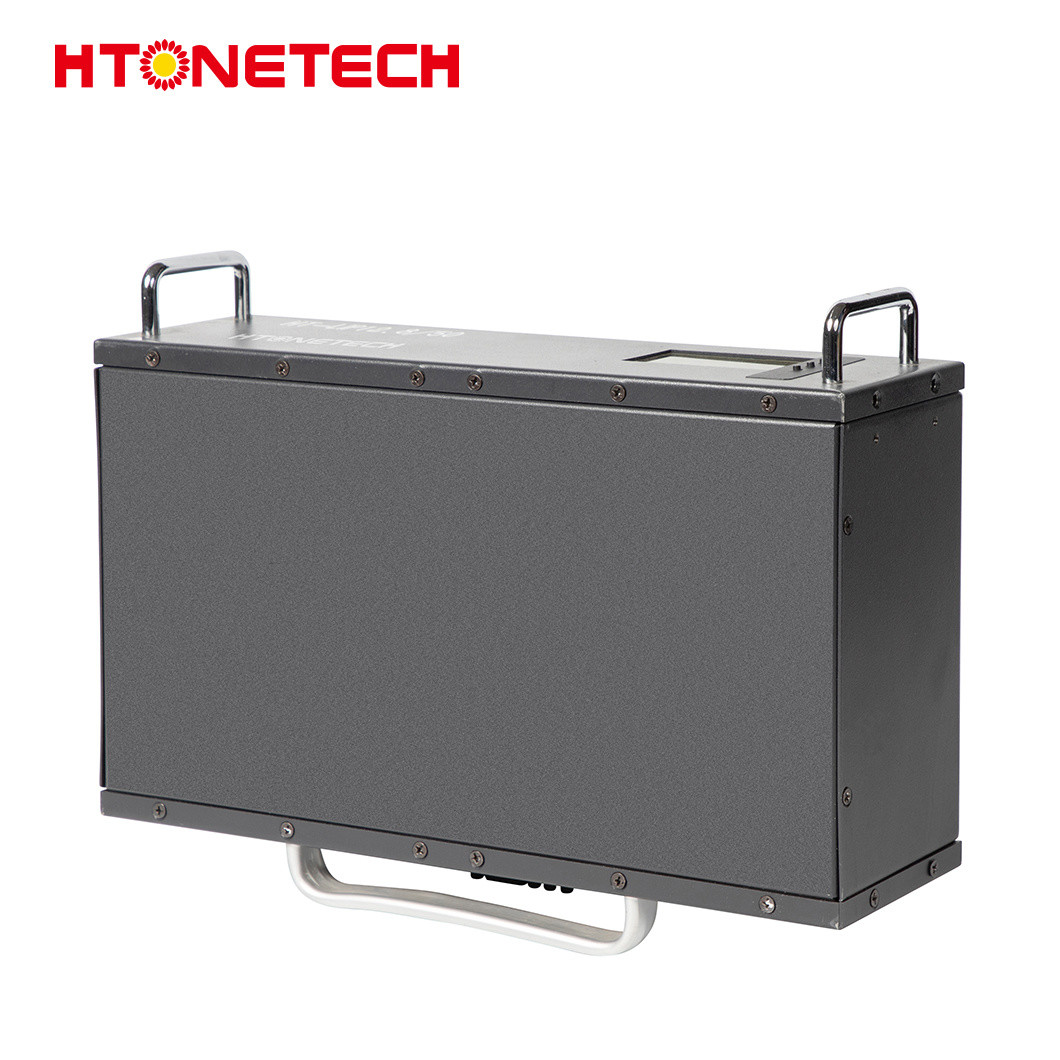

48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Lithium Battery | Size | Large |
|---|---|---|---|
| Capacity | 400ah-1000ah | Battery Cell | 3.2V 100ah LiFePO4 Cell |
| Cycle Life | 4000-6000 Cycles | Energy | 5120wh |
| Nominal Voltage | 48/51.2V | Application | Electric Power Systems/Solar Energy Storage System |
| Storage Type | Lithium Ion, LiFePO4, LiFePO4(LFP) | Inverter Matched | Deye, Goodwe, Growatt, Sofar, Gmde, Etc |
| Shape | Square | Material | LiFePO4 |
| Anode Material | LFP | Controller Type | MPPT |
| Keywords | LiFePO4 Lithium Battery | Other Name | Lithium Ion Battery |
| Product Name | Solar Lithium Battery | Transport Package | Standard Shipping Package Or Customized |
| Specification | Standard Specification Or Customized | Trademark | HTONETECH |
| Origin | Beijing, China | Supply Ability | 500000 Pieces Per Month |
| Shipping Cost | To Be Negotiated| Freight Cost Calculator | Type | Li-ion Battery |
| Cathode Material | NCM | Rechargeable | Yes |
| Samples | US$ 200/Piece 1 Piece(Min.Order) | | ||
| High Light | 48V Solar Energy Storage Battery,Solar Energy Storage Battery Prismatic,Prismatic Solar Battery Storage System |
||
Product Description
Product Description
HTONETECH 48V 200AH Energy Storage Battery Suppliers 3.2V 50ah Prismatic Cell Solar Battery LiFePO4 Material China 12V Lithium Ion Battery
LiFePO4 batteries are a type of lithium battery built from lithium iron phosphate.
For things like solar energy systems, RV, Golf Carts, Bass Boats, and Electric Motorcycles.
Advantages of Lifepo4 Battery:
1. Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burning or explosion.
2. Environmental Protection: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use
3. Easy installation: Our screw-in bolt ports allow for easy and secure connectivity. Plug and Play.
4. Long Cycle Life: Can be charged and discharged more than 2000 times @ 85% DOD, 5000 times @ 60% DOD
5. Light Weight: LiFePO4 battery is lighter and smaller than a Lead-acid battery/ Gel battery.
6. Protection: LiFePO4 batteries built in BMS it has overcharge, over-discharge, over temp, and short circuit protection.
Product Features
The SBS lithium energy storage battery uses a long working life LiFePO4 battery and high-performance BMS protects and manages the battery system, it has wider usage and longer life than traditional batteries.
- Energystorage system, control system, alarm system, power system, database
- Emergency lighting system, emergency power supply, UPS
- Telecommunication, communication, fire fighting system
- High power, friendly interface, free combination
- A+ battery cell, precise combination
- CAN/RS485/WIFI/4G/Blue tooth communication
- BMS customization supported
- Thick shell, well protection for inside cells
|
Battery Type
|
LiFePO4(LFP)
|
LiFePO4(LFP)
|
|
Nominal Voltage(V)
|
51.2V
|
51.2V
|
|
Nominal Capacity(WH)
|
5427.2WH
|
10854.4WH
|
|
Usable Capacity(WH)
|
4884WH
|
9768.96WH
|
|
Design Life
|
10+ Years (25°C/77F)
|
10+ Years (25°C/77F)
|
|
PHYSICAL
|
||
|
Dimension(mm)
|
648*462*162
|
648*786*162
|
|
Weight(kg)
|
54
|
98
|
|
ELECTRICAL
|
||
|
Cycle Life
|
>6000. 25°C
|
>6000. 25°C
|
|
Discharge Voltage(V)
|
40 - 48
|
40 - 48
|
|
Charge Voltage(V)
|
56 - 58.4
|
56 - 58.4
|
|
Charge/Discharge Current(A)
|
50A (Recommended) 100A(Max )
|
|
|
Internal Resistance
|
≤30mΩ
|
|
|
BMS
|
||
|
Power Consumption
|
<2W (Work) < 100mW(Sleep)
|
|
|
Monitoring Parameters
|
System voltage, current, cell voltage,cell temperature, module temperature
|
|
|
SOC
|
Intelligent algorithm
|
|
|
Communication
|
CAN/RS-485/RS-232
|
|
|
OPERATION
|
||
|
Operating Temperature Range
|
-10ºC - 50 ºC
|
|
|
Transport or Storage Temperate Range
|
-20ºC - 45 ºC
|
|
|
Humidity
|
15% - 85% (No Condensing)
|
|
|
WARRANTY
|
||
|
Product Warranty
|
5 Years
|
|
|
Performance Warranty
|
10Years
|
|
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
