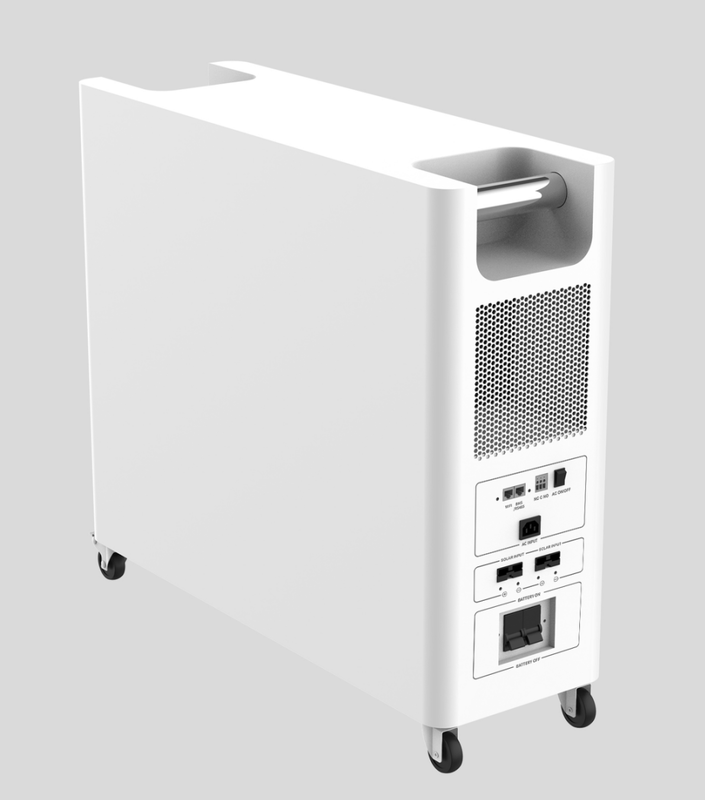

Portable 16KWh Battery LiFePO4 Only 1199$ with UN38.3

Large Image : Portable 16KWh Battery LiFePO4 Only 1199$ with UN38.3

Product Details:

Place of Origin:	China
Brand Name:	SunPhoton
Certification:	UN38.3
Model Number:	Voltimax-16KWh

Payment & Shipping Terms:

Minimum Order Quantity:	RFQ on MOQ
Price:	USD1199/Set+
Packaging Details:	Different packaging methods are adopted according to different modes of transport.
Delivery Time:	5-30 workingdays
Payment Terms:	T/T
Supply Ability:	10,000 Pieces

Contact Now chat now

Detailed Product Description

AC Input:

195–253VAC ±3V

AC Output:

220 / 230 / 240VAC ±5%

Rated Battery Input Voltage:

48VDC

PV Input Power:

5500W × 2 Channels Max

Highlight:

16KWh LiFePO4 battery

portable energy storage system

UN38.3 certified battery

YS Portable Power Station Voltimax-16KWh

Product Description

The Voltimax Portable Power Station series includes the Voltimax16KWh all-in-one energy storage systems, designed for residential, commercial, and industrial power backup and solar energy applications. Both models integrate high-efficiency LiFePO4 battery technology with advanced inverter systems, delivering stable, safe, and long-lasting energy storage solutions.

These systems support solar PV charging, AC input charging, and hybrid energy management, making them ideal for off-grid systems, backup power supply, and renewable energy projects. With intelligent monitoring options and robust safety protection, they ensure reliable performance in diverse operating environments.

Model Voltimax-16KWh

Item	Specification
Model	Voltimax16KWh
Battery Capacity	16.1 kWh (314Ah / 51.2V / 16S1P)
Rated Power	11000W
Peak Power	22000VA
Battery Type	Lithium Iron Phosphate (LiFePO4)
Cycle Life	6000+ cycles
AC Input	195–253VAC ±3V
AC Output	220 / 230 / 240VAC ±5%
Rated Battery Input Voltage	48VDC
PV Input Power	5500W × 2 channels Max
MPPT Voltage Range	90–500VDC
MPPT Max Voltage	500VDC
AC Input Current	150A Max
DC Output	12V 3A
USB Output	5V 2.4A
Type-C Output	5V 2.4A
Smart Features	Wi-Fi (Optional), LCD Display
Dimensions	L780 × W260 × H950 mm
Net Weight	145 kg
Gross Weight	Approx. 170 kg
Packaging	1116 × 841 × 445 mm (with tray)
Accessories	Anderson connector + 50A male plug + User Manual
20ft Container Capacity	60 units
40ft Container Capacity	140 units
