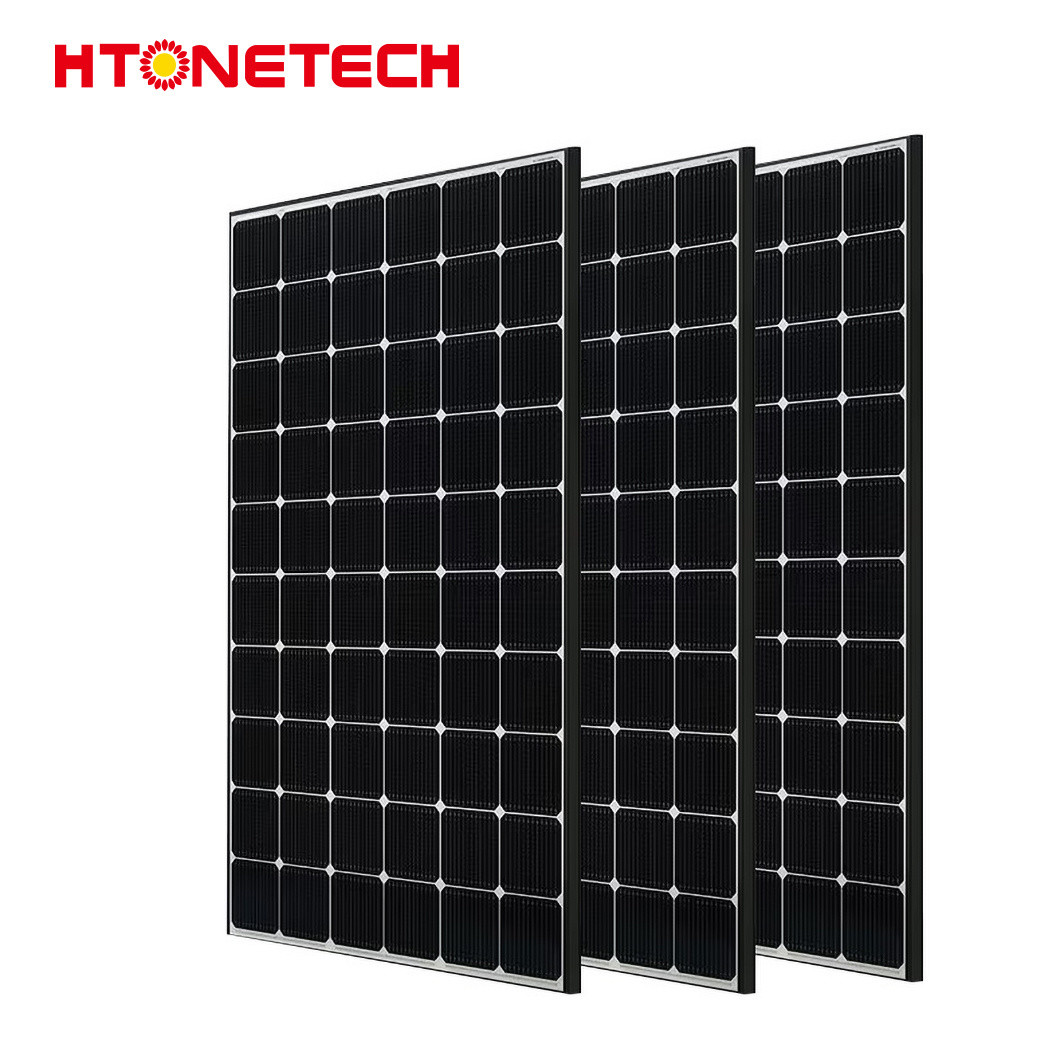

HTONETECH Monocrystalline Silicon Solar Panel 250W 647X629X252mm
| Certification | EST, ISO, CB, CE |
|---|
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Monocrystalline Solar Panel | Condition | New |
|---|---|---|---|
| Material | Monocrystalline Silicon | Panel Efficiency | 20.9% |
| Weight | 34.4kg | Cell Size | 210mmx210mm |
| Panel Dimensions | 2384*1303*35mm | Packing | 31PCS / Pallet |
| Brand Source | Canadiansolar/Ja/Trina/Longi/Jinko Solar... | Junction Box | IP68, 3 Bypass Diodes |
| Glass | 3.2mm High Transmission Rate | Frame | Anodized Aluminium Alloy |
| Solar Cell | Mono Perc 210mm | 40hq | 527 PCS |
| Cable | 4mm2 | Keyworlds | Mono Perc Solar Panel |
| Type | Perc / Half Cell | Product Name | Solar Panel |
| Transport Package | Standard Shipping Package Or Customized | Specification | Standard Specification Or Customized |
| Trademark | HTONETECH | Origin | Beijing, China |
| Supply Ability | 1000000 Watts Per Week | Shipping Cost | To Be Negotiated| Freight Cost Calculator |
| Warranty | 25 Years | Number Of Cells | 72pcs |
| Application | Light Industry | Samples | US$ 10/Piece 1 Piece(Min.Order) | |
| High Light | HTONETECH Monocrystalline Silicon Solar Panel,Monocrystalline Silicon Solar Panel 250W,Monocrystalline Silicon Solar Cells 647X629X252mm |
||
Product Description
Product Description
HTONETECH Monocrystalline Silicon Solar Panel Manufacturers 250W Amorphous Silicon Solar Panel China 647X629X252mm Panel Dimensions Polycrystalline Solar Panel
High-Efficiency Polycrystalline Solar Panel Module
The solar photovoltaic module adopts a high-efficiency polycrystalline silicon solar module, with module conversion efficiency greater than 15%, a positive tolerance of 0-+3%, a 15-year material and process warranty, and a 25-year linear warranty.
Excellent Warranty Commitment: 25 years power warranty, 0.55% linear power attenuation.
Key Features
- Structure: Monocrystalline silicon solar panels are made from a single crystal structure, which means the silicon used in these panels is formed from a single continuous crystal lattice. This results in a uniform and pure crystal structure that enhances the efficiency of the panel.
- Efficiency: Monocrystalline silicon solar panels are known for their high efficiency rates. They can convert a larger percentage of sunlight into electricity compared to other types of solar panels, such as polycrystalline or thin-film panels. Typically, monocrystalline panels have efficiency ratings ranging from 15% to 22%. Higher efficiency means more electricity can be generated from a given area of solar panels.
- Appearance: Monocrystalline silicon solar panels usually have a uniform black color due to the high purity and uniformity of the silicon crystal. This sleek appearance is often preferred by homeowners and businesses seeking a visually appealing solar installation.
|
MECHANICAL SPECIFICATION
|
|
|
Format
|
1480mm x 670mm x 30mm
|
|
Weight
|
12.0kg±3%
|
|
Cell
|
36 monocrystalline cells
|
|
Junction Box
|
IP68
|
|
Cable
|
4mm²
|
|
Nominal Max. Power (Pmax)
|
150W
|
160W
|
170W
|
|
Open Circuit Voltage (Voc)
|
21.69V
|
22.19V
|
22.69V
|
|
Short Circuit Current (Isc)
|
9.21A
|
9.61A
|
9.98A
|
|
Opt. Operating Voltage (Vmp)
|
17.80V
|
18.21V
|
18.62V
|
|
Opt. Operating Current (Imp)
|
8.43A
|
8.79A
|
9.13A
|
|
Module Efficiency
|
15.13%
|
16.14%
|
17.14%
|
|
MECHANICAL SPECIFICATION
|
|
|
Format
|
1020mm x 670mm x 30mm
|
|
Weight
|
8.9kg±3%
|
|
Cell
|
36 monocrystalline cells
|
|
Junction Box
|
IP68
|
|
Cable
|
4mm²
|
|
Nominal Max. Power (Pmax)
|
100W
|
|
Open Circuit Voltage (Voc)
|
20.96V
|
|
Short Circuit Current (Isc)
|
6.36A
|
|
Opt. Operating Voltage (Vmp)
|
17.20V
|
|
Opt. Operating Current (Imp)
|
5.82A
|
|
Module Efficiency
|
14.63%
|
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
