xModel NO. | Polycrystalline Solar Panel | Condition | New |
---|---|---|---|
Material | Polycrystalline Silicon | Glass | 3.2mm High Transmission Rate |
Panel Efficiency | 14.63% | Cell Size | 158.75mmx158.75mm |
Panel Dimensions | 1020*670*30mm | Packing | 31PCS / Pallet |
Brand Source | Canadiansolar/Ja/Trina/Longi/Jinko Solar... | Junction Box | IP68, 3 Bypass Diodes |
Weight | 8.9kg | Frame | Anodized Aluminium Alloy |
Solar Cell | Solar Panel Poly 156*156 Cell | Cable | 4mm2 |
Frame Color | Color Silvery, Black | Keyworlds | Polycrystalline Solar Panles |
Type | Perc / Hbc / Standard Solar Panel | Product Name | Solar Panel |
Transport Package | Standard Shipping Package Or Customized | Specification | Standard Specification Or Customized |
Trademark | HTONETECH | Origin | Beijing, China |
Supply Ability | 1000000 Watts Per Week | Shipping Cost | To Be Negotiated| Freight Cost Calculator |
Warranty | 25 Years | Number Of Cells | 72pcs |
Application | Light Industry | Samples | US$ 10/Piece 1 Piece(Min.Order) | |
High Light | Solar Photovoltaic Panel 158.75mmx158.75mm,Amorphous Silicon Solar Photovoltaic Panel |
Product Description

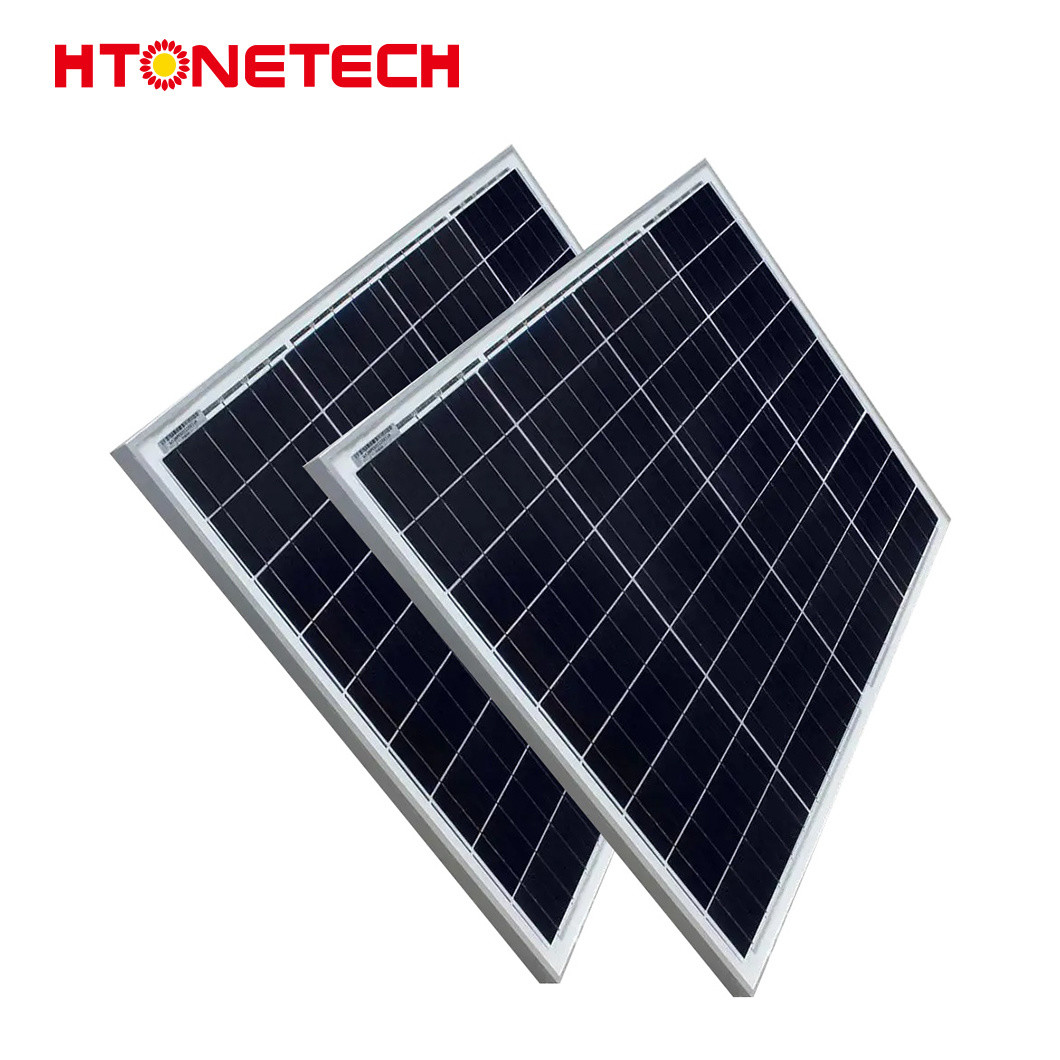

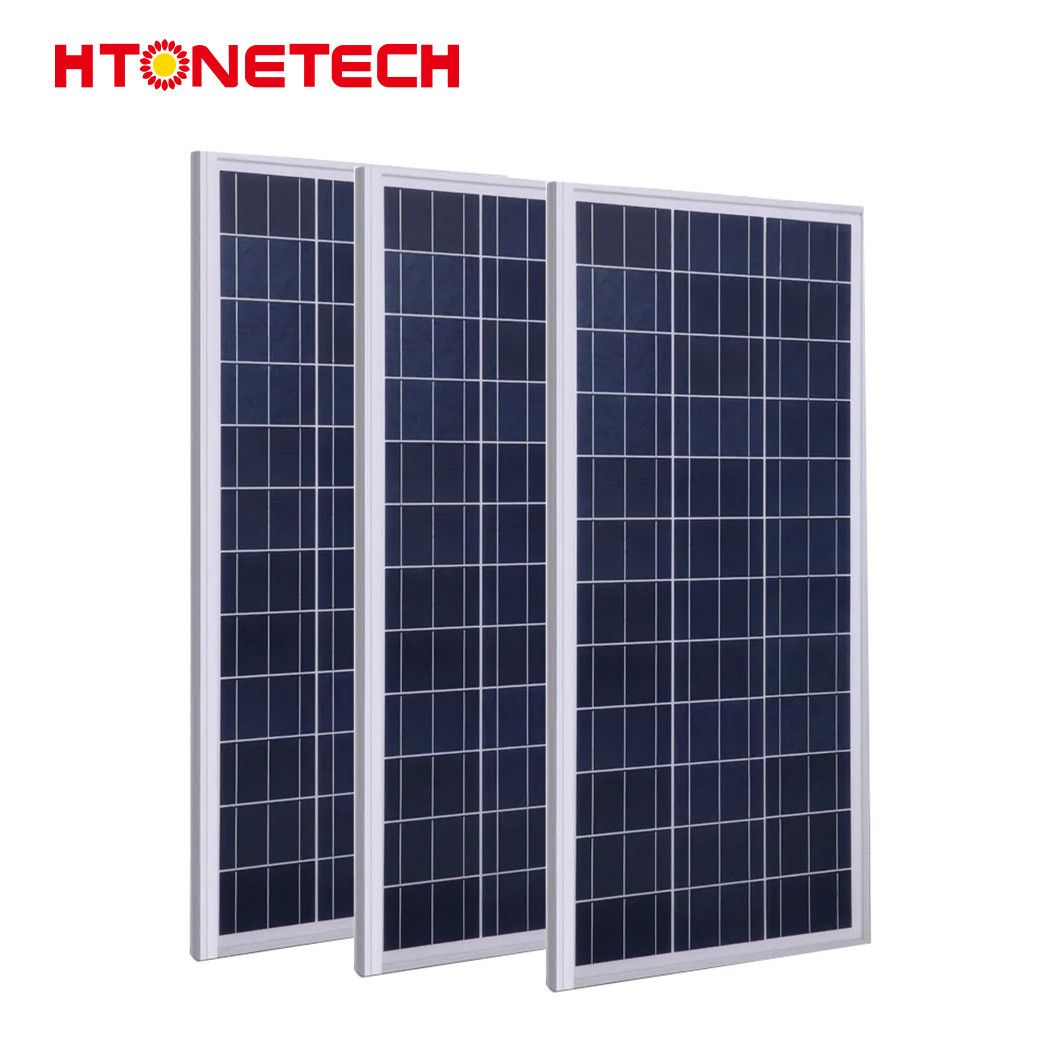

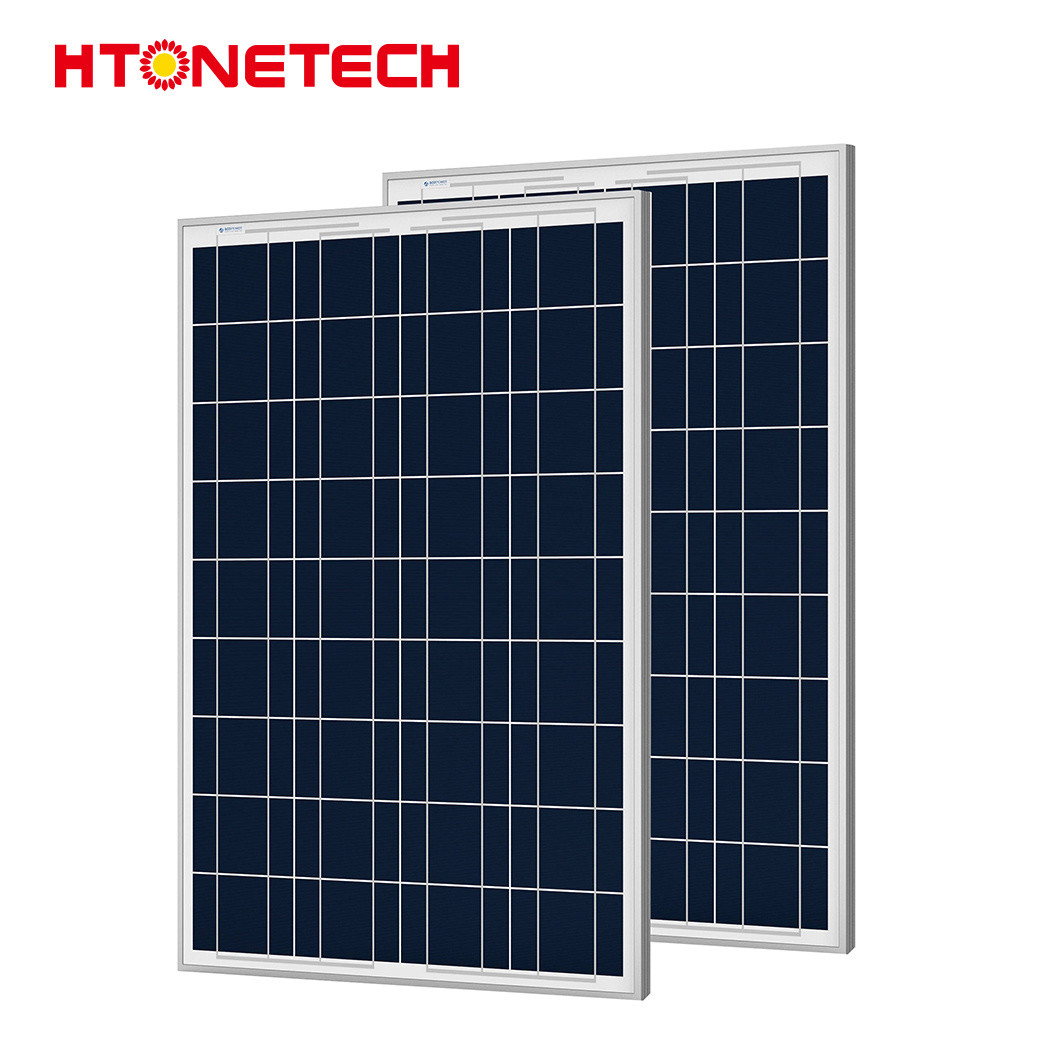

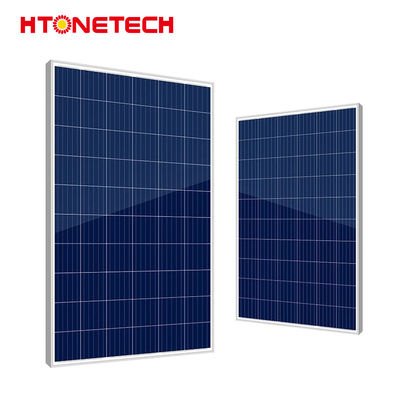

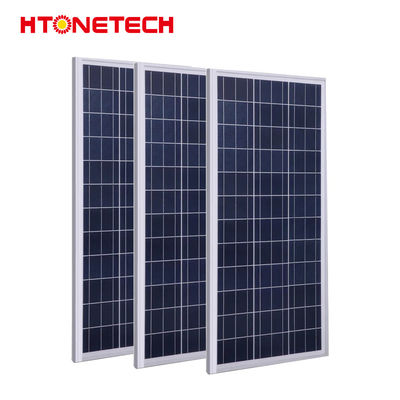

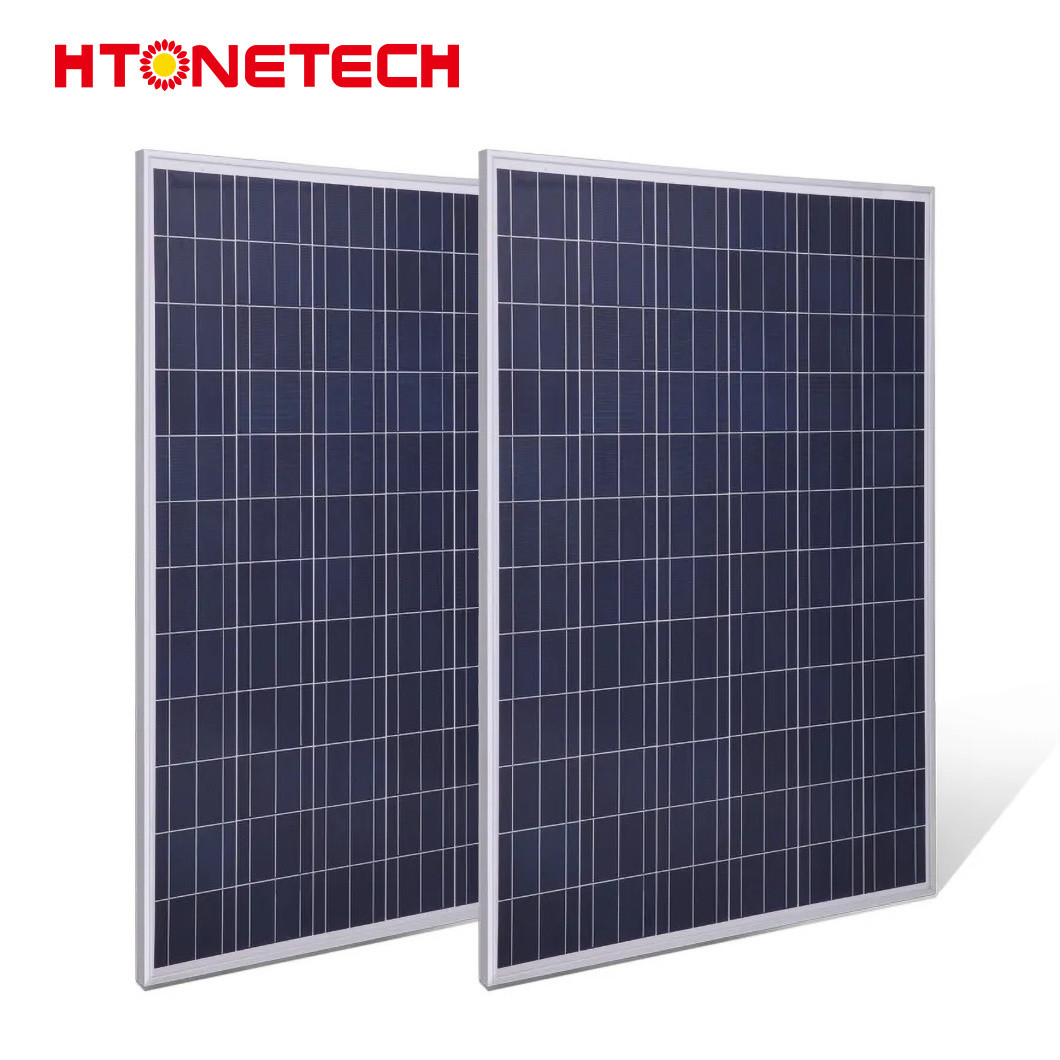

High-Efficiency Polycrystalline Solar Panel Module
The solar photovoltaic module adopts a high-efficiency polycrystalline silicon solar module, with module conversion efficiency greater than 15%, a positive tolerance of 0-+3%, a 15-year material and process warranty, and a 25-year linear warranty.
Excellent Warranty Commitment: 25 years power warranty, 0.55% linear power attenuation.
Key Features
- Aluminum Anodized Frame
Our strict requirements for the quality of raw materials make sure that each solar panel is endurable. Each corner of solar panels is equipped with corner protectors which can make our products more safe.
- Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
- Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
- PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
- High Salt Mist and Ammonia Resistance.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). Certificate
- Certified by SGS, TUV, CE, CQC
MECHANICAL SPECIFICATION
|
|
Format
|
1480mm x 670mm x 30mm
|
Weight
|
12.0kg±3%
|
Cell
|
36 monocrystalline cells
|
Junction Box
|
IP68
|
Cable
|
4mm²
|
Nominal Max. Power (Pmax)
|
150W
|
160W
|
170W
|
Open Circuit Voltage (Voc)
|
21.69V
|
22.19V
|
22.69V
|
Short Circuit Current (Isc)
|
9.21A
|
9.61A
|
9.98A
|
Opt. Operating Voltage (Vmp)
|
17.80V
|
18.21V
|
18.62V
|
Opt. Operating Current (Imp)
|
8.43A
|
8.79A
|
9.13A
|
Module Efficiency
|
15.13%
|
16.14%
|
17.14%
|
MECHANICAL SPECIFICATION
|
|
Format
|
1020mm x 670mm x 30mm
|
Weight
|
8.9kg±3%
|
Cell
|
36 monocrystalline cells
|
Junction Box
|
IP68
|
Cable
|
4mm²
|
Nominal Max. Power (Pmax)
|
100W
|
Open Circuit Voltage (Voc)
|
20.96V
|
Short Circuit Current (Isc)
|
6.36A
|
Opt. Operating Voltage (Vmp)
|
17.20V
|
Opt. Operating Current (Imp)
|
5.82A
|
Module Efficiency
|
14.63%
|
1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
