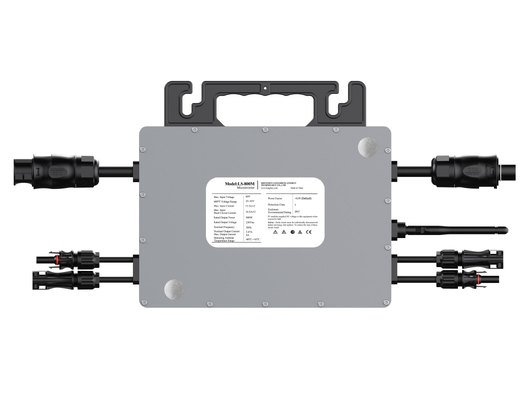

1600W 2000W Micro Inverter System LS-L1600M LS-L2000M IP67

Name: 1600W 2000W Micro Inverter System LS-L1600M LS-L2000M IP67
Brand: Jiangsu Photonics Factory Intelligent Technology Co., Ltd.
Availability: InStock

Large Image : 1600W 2000W Micro Inverter System LS-L1600M LS-L2000M IP67

Product Details:

Contact Now chat now

Detailed Product Description

Operating Temperature:

-40°C ~ +65°C

Dimensions:

312 × 301 × 43 Mm

Weight:

7 Kg

Protection Rating:

IP67

Highlight:

1600W micro inverter system

2000W micro inverter system

IP67 micro inverter panels

1600W/2000W Microinverter LS-L1600M/LS-L2000M

Product Description

The LS-L1600M / LS-L2000M Microinverter Series is a high-efficiency distributed solar conversion solution designed for residential and small commercial photovoltaic systems. Each unit supports multiple PV modules with independent MPPT tracking, ensuring maximum energy harvesting under different shading and orientation conditions.

With a rugged IP67-rated enclosure and advanced thermal design, the microinverter delivers stable performance in harsh outdoor environments. Built-in WiFi monitoring enables real-time system tracking, performance analysis, and fault detection, making it ideal for modern smart solar installations.

Product Specifications

DC Input

Item	LS-L1600M	LS-L2000M
Recommended PV Module Power	280W – 550W	280W – 650W
Start-up Voltage	20V	20V
MPPT Voltage Range	25V – 55V	28V – 55V
Maximum Input Voltage	60V	60V
Maximum Input Current	13A × 4	15A × 4
Maximum Short Circuit Current	19A	19A
MPPT Channels	4	4

AC Output

Item	LS-L1600M	LS-L2000M
Rated Output Power	1600W	2000W
Rated Output Voltage	230V	230V
Rated Output Current	7A	8.7A
Frequency Range	50Hz (45–55Hz)	50Hz (45–55Hz)
Peak Efficiency	96%	96%
Static MPPT Efficiency	99.5%	99.5%

Mechanical & Environmental

Item	LS-L1600M	LS-L2000M
Operating Temperature	-40°C ~ +65°C	-40°C ~ +65°C
Dimensions	312 × 301 × 43 mm	312 × 301 × 43 mm
Weight	7 kg	7 kg
Protection Rating	IP67	IP67
Cooling Method	Natural convection (fanless)	Natural convection (fanless)
Communication	WiFi	WiFi
Warranty	10 Years	10 Years

Product Features

4 Independent MPPT Channels for Maximum Energy Harvesting
High Conversion Efficiency up to 96%
Static MPPT Efficiency up to 99.5%
IP67 Fully Sealed Outdoor Protection Design
Fanless Natural Convection Cooling System
Built-in Smart WiFi Monitoring Module
Real-time Performance Tracking and Fault Detection
Flexible Module-Level Solar Optimization
Wide Operating Temperature Range (-40°C to +65°C)
Long 10-Year Warranty for Reliable Operation

Applications

Residential Rooftop Solar Systems
Small Commercial PV Installations
Balcony and Distributed Solar Systems
Complex Roof Structures with Shading Issues
Smart Energy Monitoring Systems
Modular Solar Expansion Projects
Urban Distributed Renewable Energy Systems
