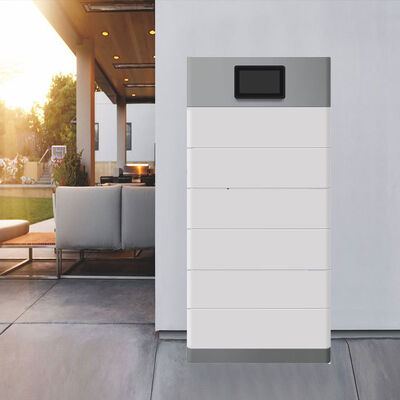

Large Image :  5KWH Solar Battery IP54 IP65 Wall Mounted Rack Mounted Floor Standing

Product Details:
Place of Origin: China
Brand Name: Sun Photon
Certification: CE
Model Number: SPSB5KWH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD+1450+Unit
Delivery Time: 5-30 working days
Payment Terms: T/T
Supply Ability: 10000+Set+per Month
Detailed Product Description
Nominal Capacity: 5KWh Operating Temperature: -20°C ~ 60°C
IP Rating: IP54 / IP65 Expandability: Support Parallel Connection
Highlight:

5kwh pv solar power system

,

5kwh hybrid energy storage system

,

ip54 pv solar power system

5KWH Solar Battery



Product Description

The 5KWH Solar Battery is a high-efficiency energy storage solution designed for solar power systems. It is widely used in residential, commercial, and industrial energy storage applications. The battery typically adopts advanced Lithium Iron Phosphate (LiFePO4) cells, offering high safety, long cycle life, stable performance, and intelligent battery management.

The system stores excess solar energy generated during the daytime and releases power when needed at night or during power outages, improving solar energy utilization and reducing electricity costs.

Equipped with an intelligent BMS (Battery Management System), the battery provides protection against overcharge, over-discharge, overcurrent, short circuit, and overheating. It supports wall-mounted, rack-mounted, or floor-standing installation and is compatible with most mainstream inverter brands.



Product Specifications

Item Specification
Product Name 5KWH Solar Battery
Battery Type Lithium Iron Phosphate (LiFePO4)
Nominal Energy 5KWh
Nominal Voltage 48V / 51.2V
Capacity 100Ah
Cycle Life ≥6000 Cycles
Charging Voltage 58.4V
Discharge Cut-off Voltage 40V
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Communication Protocol RS485 / CAN
Protection System Intelligent BMS
Installation Type Wall-mounted / Rack-mounted / Floor-standing
Operating Temperature -20°C ~ 60°C
Protection Level IP54 / IP65
Scalability Support Parallel Expansion
Compatible Inverters Compatible with Mainstream Inverter Brands
Application Solar Energy Storage System
Warranty 5–10 Years



Product Features

  • High Safety: Built with premium LiFePO4 battery cells featuring excellent thermal stability and enhanced operational safety.
  • Long Cycle Life: Supports more than 6000 charge and discharge cycles, ensuring long-term durability and lower maintenance costs.
  • Intelligent BMS Protection: Integrated smart Battery Management System provides protection against overcharge, over-discharge, overcurrent, short circuit, and overheating.
  • High Energy Efficiency: Delivers stable power output with high charging and discharging efficiency for optimized energy storage performance.
  • Wide Inverter Compatibility: Compatible with most mainstream inverter brands through CAN and RS485 communication protocols.
  • Flexible Installation: Available in wall-mounted, rack-mounted, and floor-standing designs to meet different installation requirements.
  • Expandable Capacity: Supports parallel connection for easy system expansion and increased storage capacity.
  • Eco-Friendly Solution: Helps maximize solar energy utilization and reduce dependence on traditional grid electricity.

Applications

  • Residential Energy Storage: Stores excess solar power for household use during nighttime or power outages.
  • Commercial Energy Storage Systems: Suitable for offices, shopping malls, hotels, and commercial facilities requiring stable backup power.
  • Industrial Power Backup: Provides reliable energy storage solutions for factories and industrial operations.
  • Off-Grid Solar Systems: Ideal for remote areas, farms, islands, and locations without stable utility grid access.
  • Telecom Base Stations: Ensures uninterrupted power supply for communication and network equipment.
  • UPS Backup Systems: Can be integrated into UPS systems for data centers, server rooms, and critical facilities.
  • EV Charging Stations: Supports renewable energy storage for electric vehicle charging infrastructure.
  • Microgrid & Renewable Energy Projects: Widely used in solar storage projects, hybrid energy systems, and microgrid applications.
