YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions

China Jiangsu Photonics Factory Intelligent Technology Co., Ltd. certification
I'm Online Chat Now
Chat Now

YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions

YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions
YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions

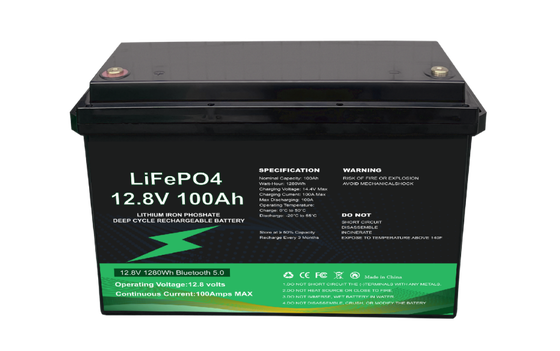

Large Image :  YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions

Product Details:
Place of Origin: China
Brand Name: YIFEI POWER
Certification: UN38.3
Model Number: LiFePO4 12.8V 100Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD 107
Delivery Time: 5~30 work days
Payment Terms: T/T
Detailed Product Description
Storage Temperature: <3 Months: -10°C To 25°C / <1 Year: 0°C To 25°C Humidity Range: 0% – 95%
Max Operating Altitude: 2000 M Compliance: UN38.3 Transport Standard
Highlight:

12.8V 100Ah LiFePO4 Battery

,

IP67 Protection Solar Battery

,

6000 Cycles Lithium Iron Phosphate Battery

YIFEI POWER LiFePO4 12.8V 100Ah Solar Battery With IP67 Protection And 6000 Cycles For Reliable Solar Power Solutions



Product Description

The YIFEI POWER LiFePO4 Battery 12.8V 100Ah is a compact low-voltage lithium iron phosphate energy storage solution designed for small solar systems, off-grid applications, RV power supply, and backup energy storage. With IP67 protection and high safety performance, it provides reliable operation in both indoor and outdoor environments.

With a usable energy capacity of 1.28kWh, this battery delivers stable output, long cycle life, and strong environmental adaptability, making it an efficient solution for lightweight energy storage needs.



Product Specifications

Item Specification
Product Name YIFEI POWER LiFePO4 Battery 12.8V 100Ah IP67
Battery Capacity 1.28 kWh (12.8V, 100Ah)
Rated Capacity 100Ah
Cell Configuration 4S1P
BMS Configuration 4S100A
Rated Voltage 12.8V
Operating Voltage Range 10.0V – 14.6V
Rated Charge/Discharge Current 100A
Peak Current 100A continuous @ 105A for 1 second
Rated Power 1.28 kW
Peak Power 1.28 kW (1.344 kW for 1 second)
Short-Circuit Current Approx. 2000A (20–500 μs)
Cycle Life ≥6000 cycles (80% DOD, 25°C)
Series/Parallel Support Up to 4S / 4P configuration
Communication Interface Not supported
Remote Monitoring Not supported
Battery Display Supported
Bluetooth / App Supported (optional, additional fees)
Installation Method Floor-mounted
Protection Rating IP67
Power Cable Exit M8
Operating Temperature Charge: 0°C to 50°C / Discharge: -10°C to 60°C
Storage Temperature <3 months: -10°C to 25°C / <1 year: 0°C to 25°C
Humidity Range 0% – 95%
Max Operating Altitude 2000 m
Compliance UN38.3 Transport Standard



Product Features

  • Compact 12.8V Low-Voltage Energy Storage System
  • High-Safety IP67 Waterproof and Dustproof Design
  • Lightweight and Portable 1.28kWh Capacity
  • High 100A Charge/Discharge Performance
  • Long Cycle Life (≥6000 Cycles at 80% DOD)
  • Strong Short-Circuit Protection Capability
  • Flexible Expansion (Up to 4 Series / 4 Parallel)
  • Battery Display for Real-Time Status Monitoring
  • Optional Bluetooth and Mobile App Connectivity
  • Ideal for Small-Scale Solar Energy Applications

Applications

  • Small Residential Solar Power Systems
  • RV and Caravan Energy Storage
  • Marine and Boat Power Supply Systems
  • Outdoor Camping and Portable Power
  • Emergency Backup Power Solutions
  • Off-Grid Low-Power Systems
  • DIY Solar Energy Storage Projects
  • Remote Area Power Supply
  • Lightweight Renewable Energy Applications
