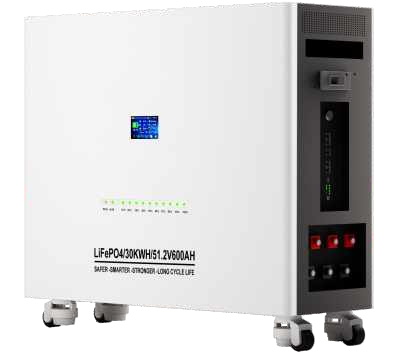

Energy Storage of 30kWh for Home and Business up to 480kwh

Energy Storage of 30kWh for Home and Business up to 480kwh
Energy Storage of 30kWh for Home and Business up to 480kwh

Large Image :  Energy Storage of 30kWh for Home and Business up to 480kwh

Product Details:
Place of Origin: CHINA
Brand Name: SunPhoton YIFEI
Certification: UN38.3
Model Number: SP-BESS-30KWH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: 2499$/Unit
Packaging Details: Different packaging methods are adopted according to different modes of transport.
Delivery Time: 5-30workdays
Payment Terms: T/T
Supply Ability: Production with Order
Contact Now chat now
Detailed Product Description
Nominal Energy: 30.72 KWh Rated Capacity: 600 Ah
Cell Configuration: 16S2P BMS Configuration: 16S 200A
Highlight:

IP21 home storage battery 30.72kWh

,

51.2V energy storage system with warranty

,

600AH lithium battery for home use

Product Description

The 30kWh LiFePO₄ Battery Energy Storage System is a high-capacity, high-performance lithium energy storage solution designed for residential, commercial, and industrial Solar applications. Built with advanced LiFePO₄ cell technology and an intelligent Battery Management System (BMS), it delivers reliable power output, long cycle life, and enhanced safety performance.

With scalable parallel capability and wide inverter compatibility, this system is ideal for solar energy storage, backup power, peak shaving, and off-grid applications. It supports major inverter brands and provides flexible integration into various energy storage architectures.


Product Specifications

Item Specification
Product Name 30.72kWh LiFePO₄ Battery System
Nominal Energy 30.72 kWh
Rated Capacity 600 Ah
Cell Configuration 16S2P
BMS Configuration 16S 200A
Nominal Voltage 51.2 V
Operating Voltage Range 44.0 V – 58.4 V
Rated Charge/Discharge Current 100 A
Peak Current 200A continuous / 205A for 10s
Rated Power 5.12 kW
Peak Power 10.24 kW (10.5 kW for 10s)
Cycle Life ≥6000 cycles @ 80% DOD, 25°C
Communication Interface RS485 / CAN / RS232
Remote Monitoring Bluetooth (optional) / Wi-Fi
Parallel Connection Recommended 6 units, max up to 16 units
Installation Method Ground-mounted
Protection Rating IP21
Operating Temperature Charge: 0°C ~ 50°C / Discharge: -10°C ~ 60°C
Storage Temperature -10°C ~ 25°C (≤3 months) / 0°C ~ 25°C (≤1 year)
Humidity Range 0% – 95%
Max Operating Altitude 2000 m
Compatible Inverters SMA / Growatt / TBB / Deye / GoodWe / Pylon / Luxpowertek / Victron Energy / Sofar / INVT
Transport Certification UN38.3 Compliant
Installation Type Ground mount
Cable Exit Side exit
Net Weight 224 kg
Gross Weight 245 kg
Packaging Size 961 × 846 × 505 mm (wooden crate with pallet)
Container Loading 20ft: 48 units / 40ft: 110 units


Product Features

  • High-Capacity 30.72kWh Energy Storage Design
  • Advanced LiFePO₄ Battery Technology for High Safety and Stability
  • Intelligent 16S 200A BMS Protection System
  • High Power Output with 10kW Peak Capability
  • Long Cycle Life of ≥6000 Cycles
  • Wide Compatibility with Major Global Inverter Brands
  • Flexible Parallel Expansion up to 16 Units
  • Smart Communication Support (RS485 / CAN / RS232)
  • Optional Remote Monitoring via Bluetooth / Wi-Fi
  • Strong Environmental Adaptability (-10°C to 60°C Operation)
  • Industrial-Grade Reliability and Safety Compliance (UN38.3 Certified)

Product Features

  • High-Capacity 30.72kWh Energy Storage Design
  • Advanced LiFePO₄ Battery Technology for High Safety and Stability
  • Intelligent 16S 200A BMS Protection System
  • High Power Output with 10kW Peak Capability
  • Long Cycle Life of ≥6000 Cycles
  • Wide Compatibility with Major Global Inverter Brands
  • Flexible Parallel Expansion up to 16 Units
  • Smart Communication Support (RS485 / CAN / RS232)
  • Optional Remote Monitoring via Bluetooth / Wi-Fi
  • Strong Environmental Adaptability (-10°C to 60°C Operation)
  • Industrial-Grade Reliability and Safety Compliance (UN38.3 Certified)
