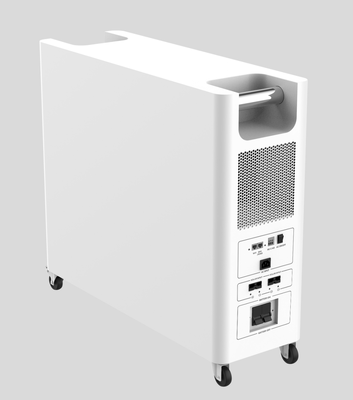

Large Image :  6KW All In One Machine 10KWh Portable Battery Power Station 60–500VDC

Product Details:
Place of Origin: CHINA
Brand Name: YIFEI
Model Number: 6KW All-in-one machine Y-6KW-10KWh
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD 1255
Delivery Time: 5-30workdays
Payment Terms: T/T
Detailed Product Description
PV Input Power: 6200W Max MPPT Voltage Range: 60–500VDC
MPPT Max Input Voltage: 500VDC Max AC Input Current: 60A Max
Highlight:

6KW portable battery power station

,

500V portable battery power station

,

60v portable battery station

YIFEI Portable Power Station 6KW All-In-One Machine Y-6KW-10KWh



Product Description

The YIFEI Portable Power Station 6KW All-In-One Machine Y-6KW-10KWh is a high-performance integrated energy storage system designed for residential, commercial, and off-grid applications. It combines a 6KW inverter with a 10.24KWh LiFePO4 battery system, delivering reliable and stable power output for a wide range of energy needs.

With support for solar PV input, AC charging, and multiple output interfaces, this system provides flexible energy management and efficient power utilization. It is ideal for backup power, solar hybrid systems, and remote or unstable grid environments.



Product Specifications

Item Specification
Product Name YIFEI Portable Power Station 6KW All-In-One Machine Y-6KW-10KWh
Model Y-6KW-10KWh
Battery Capacity 10.24 kWh (51.2V, 200Ah / 16S2P)
Battery Type Lithium Iron Phosphate (LiFePO4)
Rated Power 6000W
Peak Power 10000VA
Cycle Life 6000+ cycles
AC Input 90–280VAC ±3V
AC Output 220 / 230 / 240VAC ±5%
Rated Battery Input Voltage 48VDC
PV Input Power 6200W Max
MPPT Voltage Range 60–500VDC
MPPT Max Input Voltage 500VDC Max
AC Input Current 60A Max
DC Output 12V 3A
USB Output 5V 2.4A
Type-C Output 5V 2.4A
Smart Features Wi-Fi (Optional), LCD Display
Product Dimensions L780 × W260 × H750 mm
Net Weight 104 kg
Gross Weight 124 kg
Packaging (Wooden Crate) 916 × 841 × 445 mm
Accessories Anderson connectors + User Manual
20ft Container Capacity 60 units
40ft Container Capacity 140 units



Product Features

  • High-Efficiency 6KW Pure Sine Wave Output
  • Integrated All-in-One Design (Battery + Inverter)
  • Advanced LiFePO4 Battery Technology
  • 6000+ Long Cycle Life for Durability
  • Wide MPPT Voltage Range (60–500VDC)
  • High PV Input Capacity up to 6200W
  • Multiple Output Interfaces (AC / DC / USB / Type-C)
  • Intelligent Battery Management System (BMS)
  • Optional Wi-Fi Smart Monitoring System
  • LCD Display for Real-Time Status Monitoring
  • Compact Structure for Easy Installation and Transport

Applications

  • Residential Energy Storage Systems
  • Home Backup Power Supply
  • Off-Grid Solar Power Systems
  • Small Commercial Energy Solutions
  • Emergency Power Supply Systems
  • Remote Area Power Projects
  • Telecom Base Stations
  • Solar Hybrid Energy Systems
  • Outdoor and Mobile Power Applications
